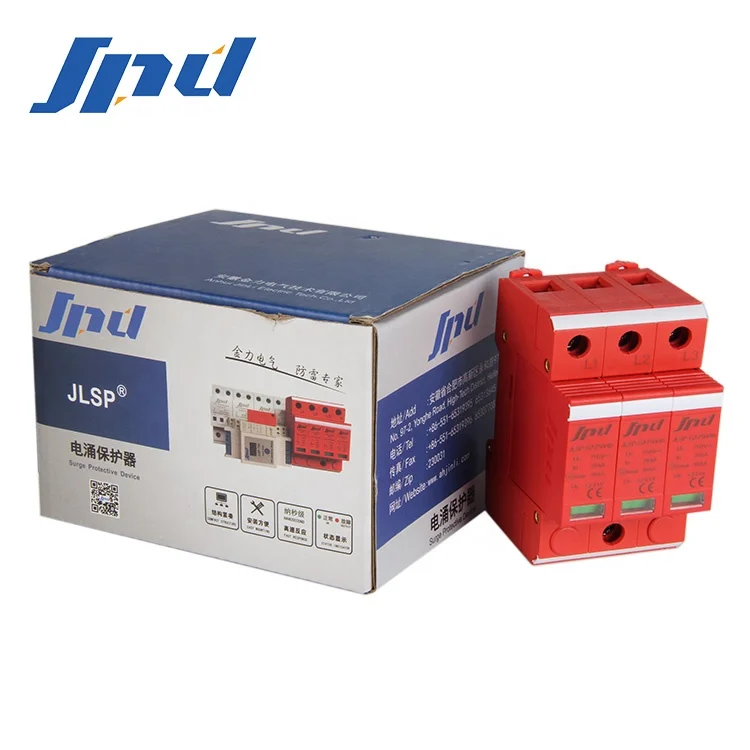

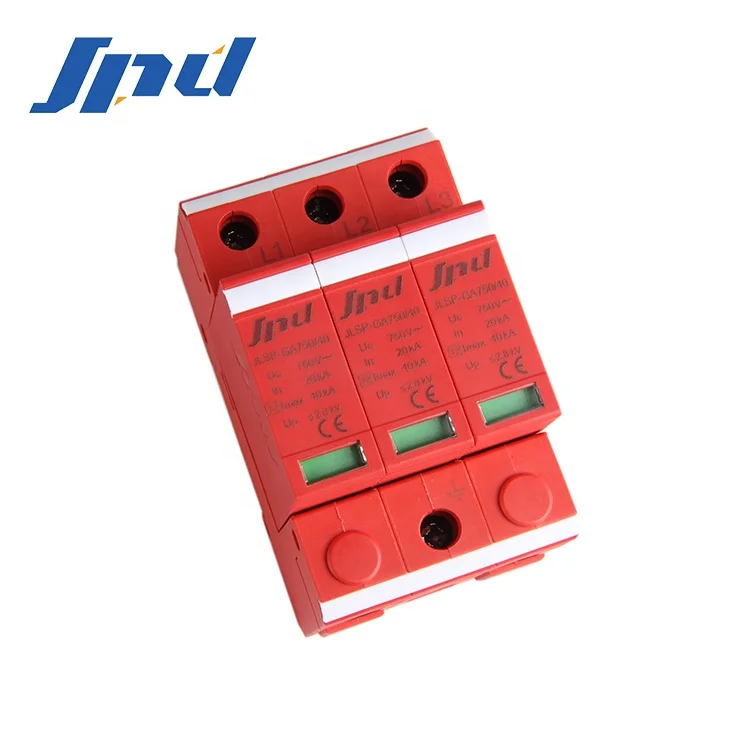

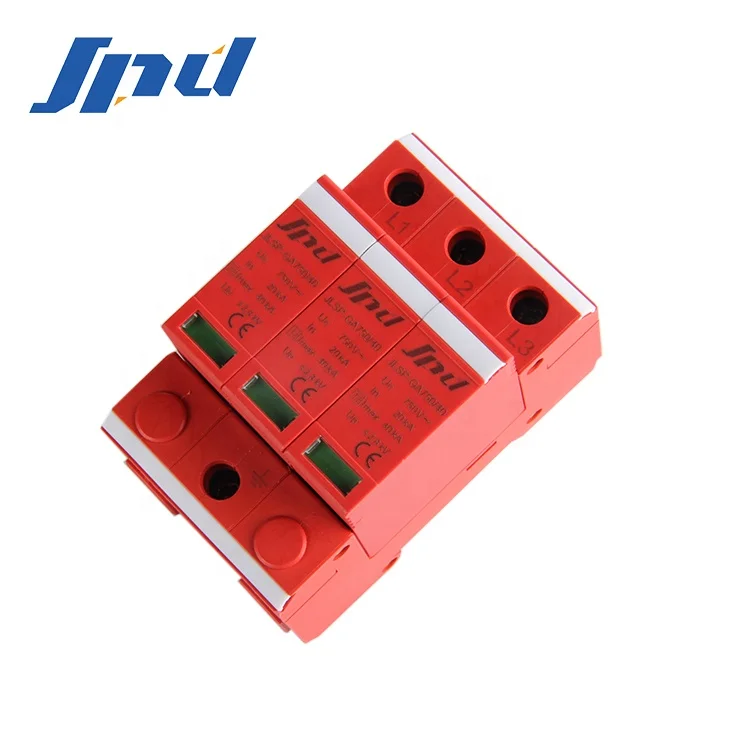

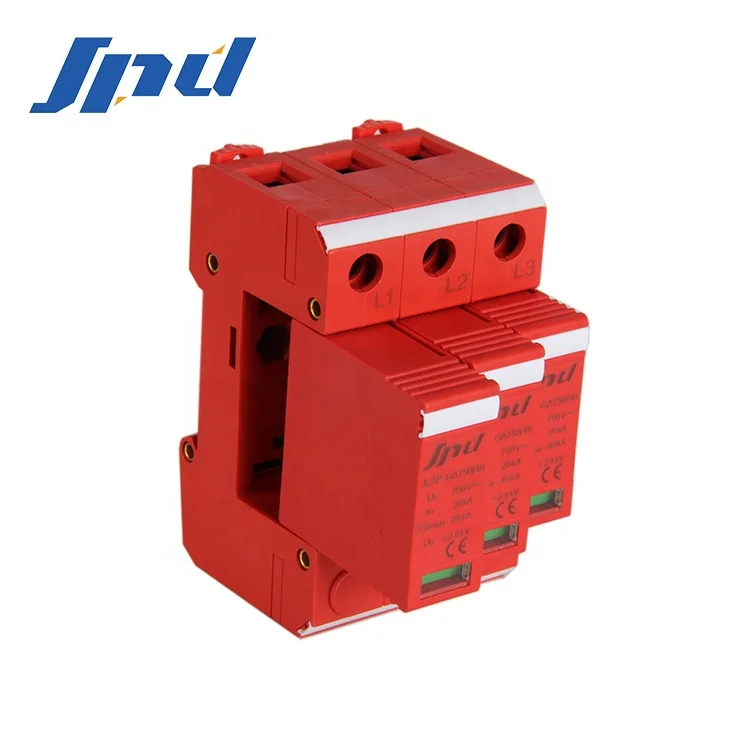

Jinli surge arrester device ac spd power surge protection 750V

Name: Jinli surge arrester device ac spd power surge protection 750V
SKU: 60849467210
Availability: InStock

Price:

Quantity:

Company Information

-_01 _02 _03 _04

Product Description

Model	JLSP-GA750/40	JLSP-GA750/80	JLSP-GA750/100
IEC Classification	Class II	Class II	Class II
AC Network Un (50/60Hz)(V)	690,400,690 (TN/TT/IT)	690,400,690 (TN/TT/IT)	690,400,690 (TN/TT/IT)
Max. continuous operationg voltage Uc (V)	750V	750V	750V
Nornimal discharge current In (kA)	20kA	40kA	60kA
Max. discharge current(8/20us) Imax (kA)	40kA	80kA	100kA
Voltage protection level Up (kV)	≤2.8kV	≤3.2kV	≤3.7kV
Max. backup fuse (A)	100 (gG)	100 (gG)	100 (gG)
Response time t_A	≤25ns	≤25ns	≤25ns
Capacity of withstand short circuit	25ka	25ka	25ka
Operating temperature	-40°C∼+85°C	-40°C∼+85°C	-40°C∼+85°C
Relative humidity	≤95%(25°C)	≤95%(25°C)	≤95%(25°C)
Max. cross-sectional area of wire	35mm²multi-strand cord	35mm²multi-strand cord	35mm²multi-strand cord
Dimensions (1P) (WLH) (mm)	189062	279062	369065
Mounting	DIN Rail 35mm	DIN Rail 35mm	DIN Rail 35mm
Protection rating	IP 20	IP 20	IP 20
Housing material	PBT	PA66	PA66
Flame retardant rating	UL 94 V-0	UL 94 V-0	UL 94 V-0
Capacity of remote signaling contact	250VAC/0.5A 30VDC/3A	250VAC/0.5A 30VDC/3A	250VAC/0.5A 30VDC/3A
Max.cross-sectional area of wire for remote signaling contact	1.5mm² multi-strand cord/single cord	1.5mm² multi-strand cord/single cord	1.5mm² multi-strand cord/single cord
Status indicator	Normal: Green Malfunction: Red	Normal: Transparent Malfunction: Red	Normal: Transparent Malfunction: Red
Standards compliance	EN50539-11 IEC61643-31 GB/T 18802.31	EN50539-11 IEC61643-31 GB/T 18802.31	EN50539-11 IEC61643-31 GB/T 18802.31
