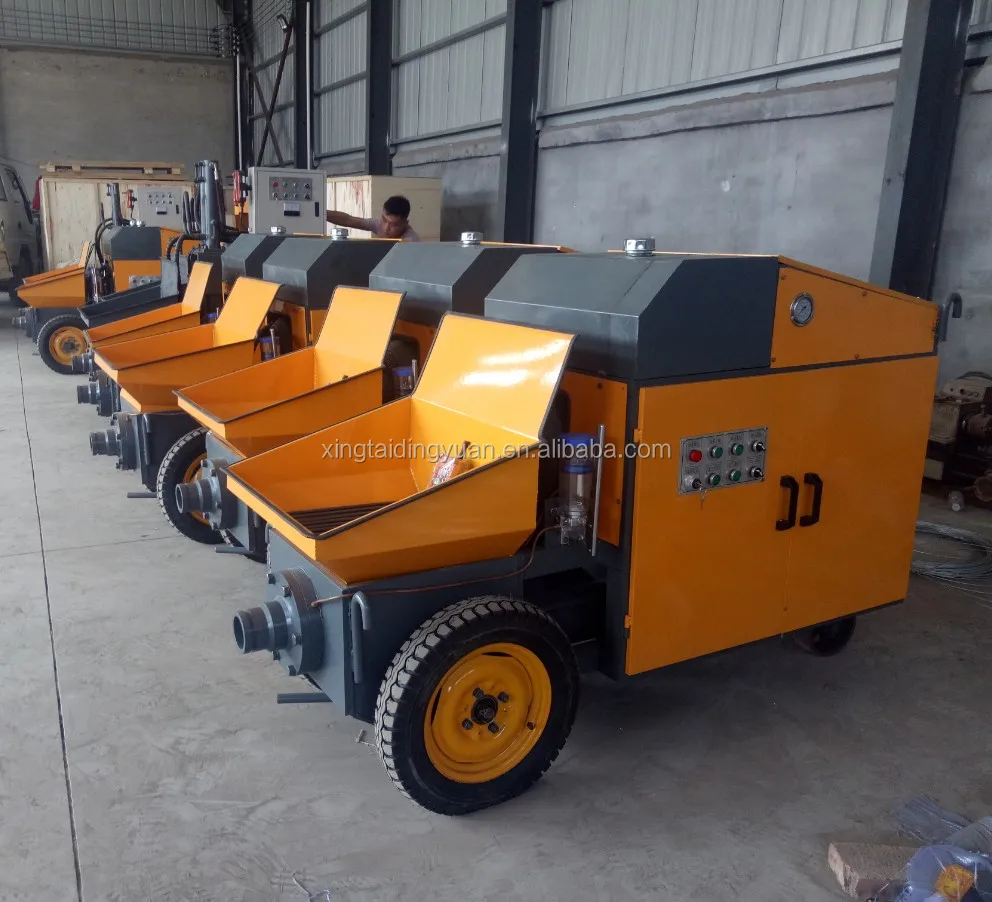

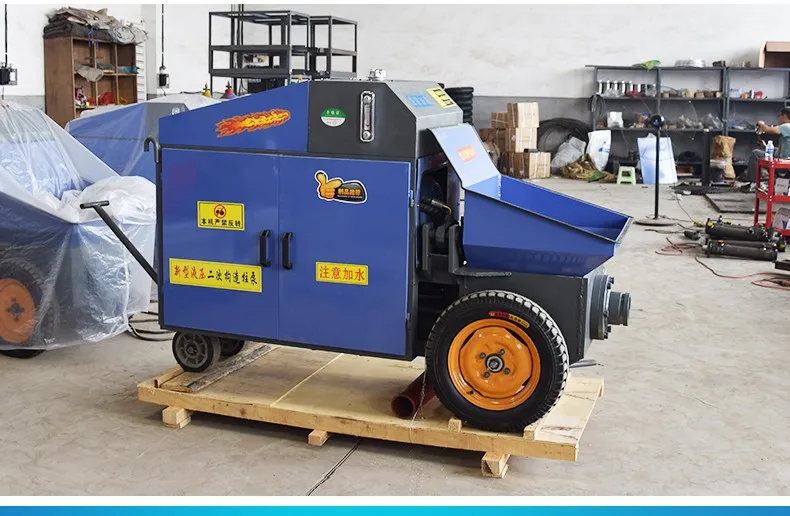

New good quality concrete pump

Product Application

Hydraulic vertical secondary construction column pump Scope of application: This pump is widely used in construction engineering secondary pouring construction (such as construction column, invisible column, etc.), road, railway tunnel, urban subway, underground powerhouse and other underground caverns, Consolidation grouting and backfilling grouting works; it can also be used for grouting of anchor piles during slope and soft rock reinforcement; and is widely used in some special construction environments such as: railway road tunnels, diversion tunnels, culverts, mines The construction of tunnels and other caves also includes water conservancy projects, hydropower projects, slope support, underground construction operations, foundation filling projects, and structural column casting of large-scale buildings. Application in high-rise building ash mortar and fine stone concrete transportation, secondary structure column filling, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel, subway, mine backfilling Grouting anchor support.

Main Features

1.The company's pump power is very small, only 15kw, in the absence of power supply, only a minimum generator can work. The company is the smallest concrete pump in the country and is the only choice for many narrow construction environments. The company's pump is light in weight and easy to move. The company's pump configuration is high, full hydraulic operation, stable performance, compact structure, low failure rate and long life.

Features of fine stone concrete pump

2,With the characteristic of large capacity, high pressure, saving time material, and easy to move It has become one of the most reliable mortar pump transmission equipment.

3, It not only can dual fluid grouting, but also can single liquid grouting

5,The fine stone concrete pump also be used with double hore, at the same time, can be used as grouting clear water pumps, sewage pumps, mud pump etc. It is widely used in tunnel digging ,maintenance road and bridge dam mine construction of high-rise building foundation and all kinds of injection constructions.

6, Construction and public works projects: different mud and earth types, plaster, chemical slime, sludge, wall clay, earth and sand, sewage, clay, bentonite, pouring spray-application materials used for water repellence, spray-application tunnel shielding jobs, grout pouring, etc.

7, The fine stone concrete pump with advanced technology, stable performance, reliable, the operation is simple, is the present domestic reliable quality of a kind of conveying grouting equipment.

Internal structure

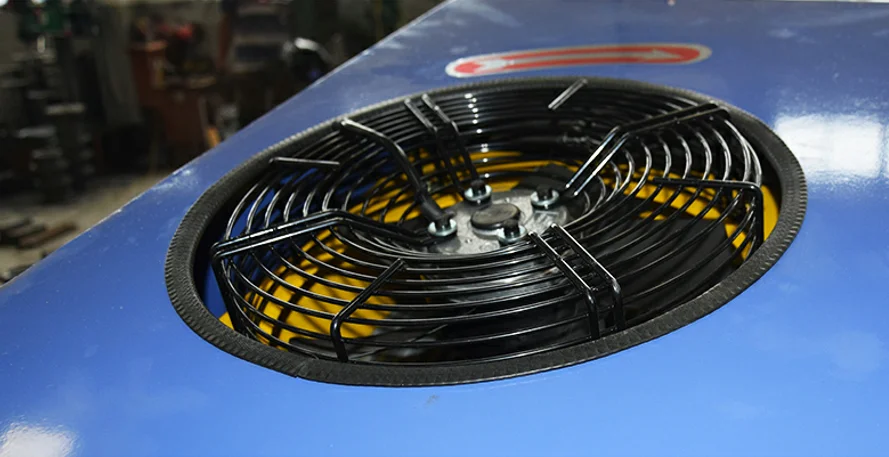

cooling system

Name: Air cooling system
The air-cooling and cooling system can stably control the oil temperature within 55C°, so that the equipment can work continuously for a long time.

Pressure system

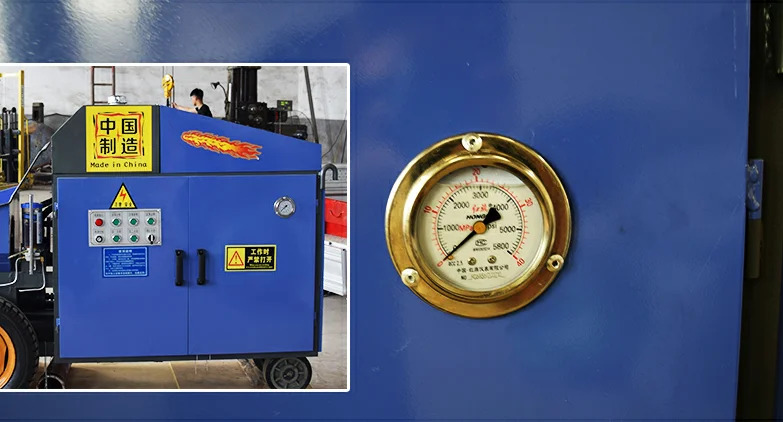

Name: System pressure gauge
The external shockproof pressure gauge accurately reflects the operating status of the system and monitors the operation of the machine.

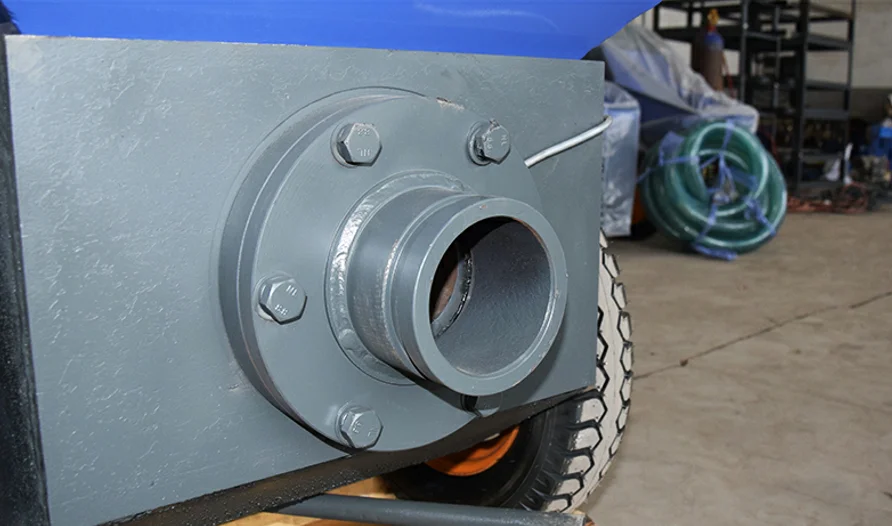

Concrete conveying port

Name: Pump portr
The large diameter is subjected to large pressure to ensure the conveying distance, and the large-diameter feeding port ensures the conveying effect, and the large particles can pass normally to improve the conveying efficiency.

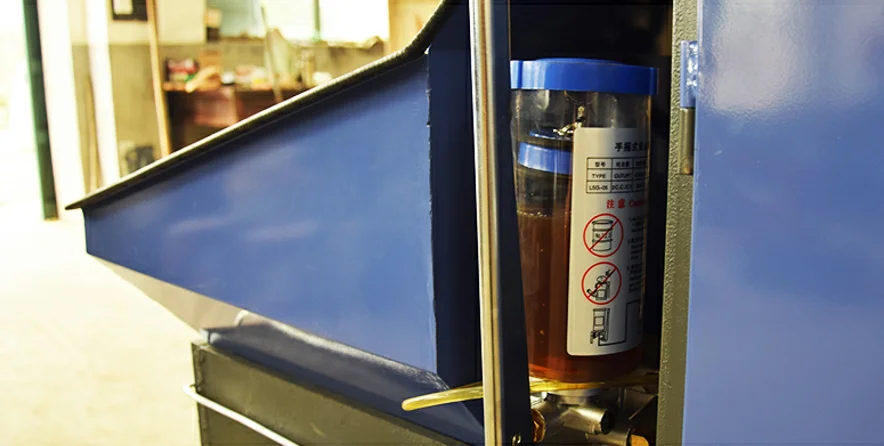

Lubrication system

.

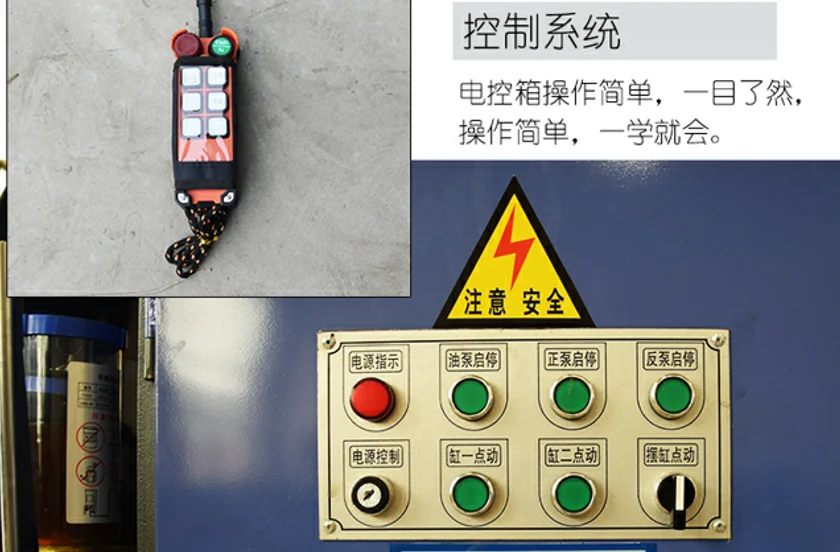

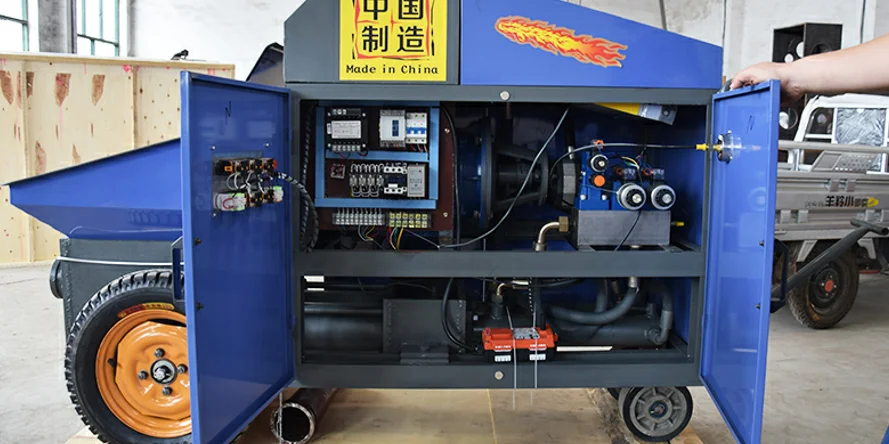

Control system

The electric control box is operated, the operation is simple, and the scene is clear.Remote and manual operation modes, the remote control can also operate the machine from a distance, improving work efficiency

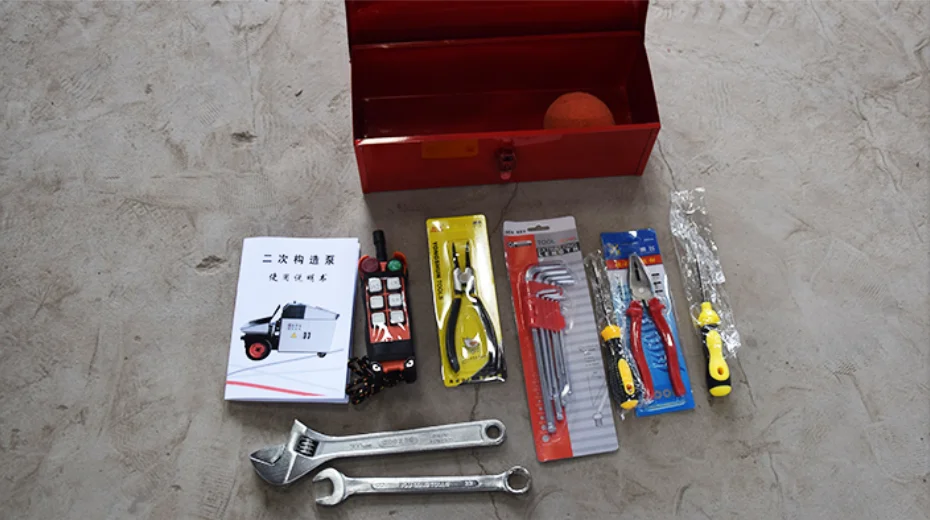

Repair kit

Operating instructions, maintenance tools are available, providing efficiency
