CHINA LOGINFLY CE horizontal Semi automatic pipe cutting band saw machine
- Category: Band Saw Machines >>>
- Supplier: Shanghai Loginfly Sawing Technology Co. Ltd.
Share on (60851340802):
Product Overview
Description
Product Description
Model No. | CH-1000 | ||

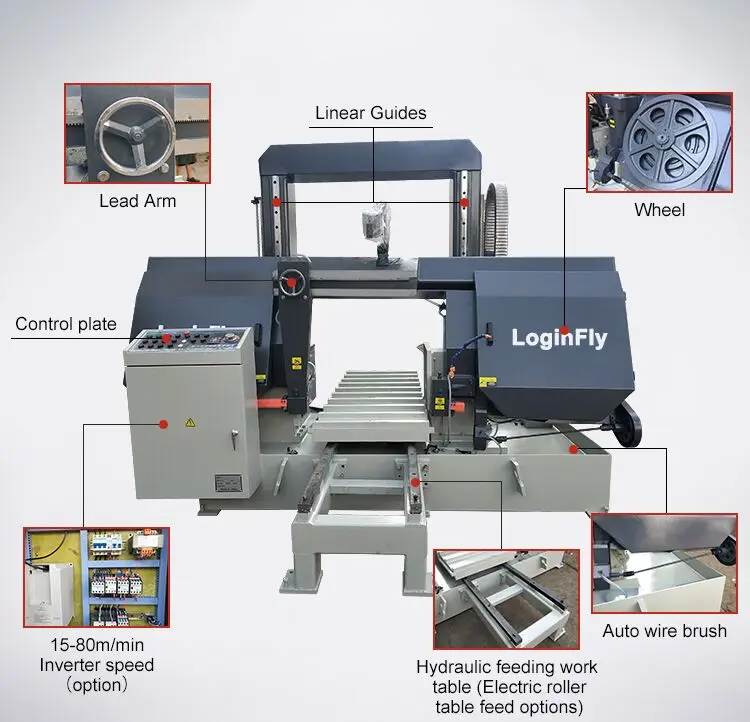

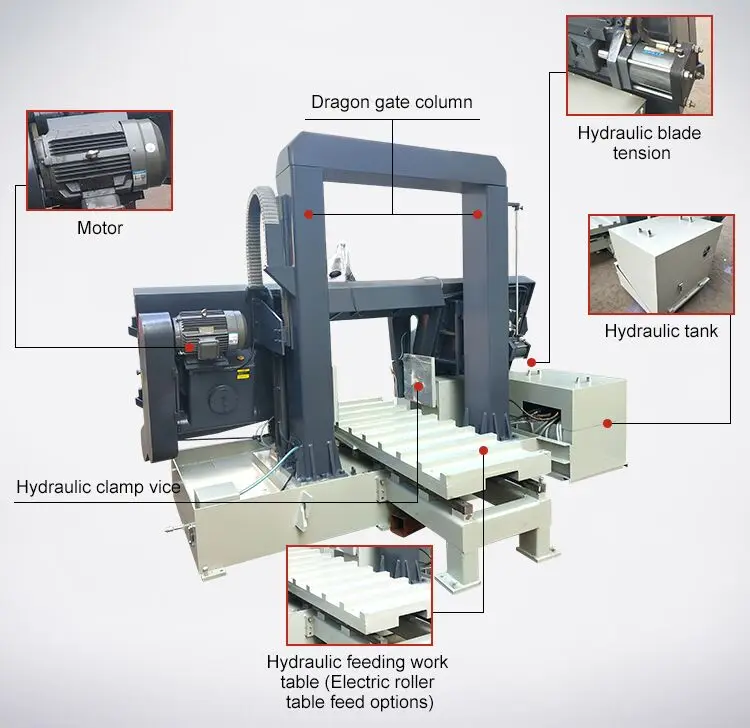

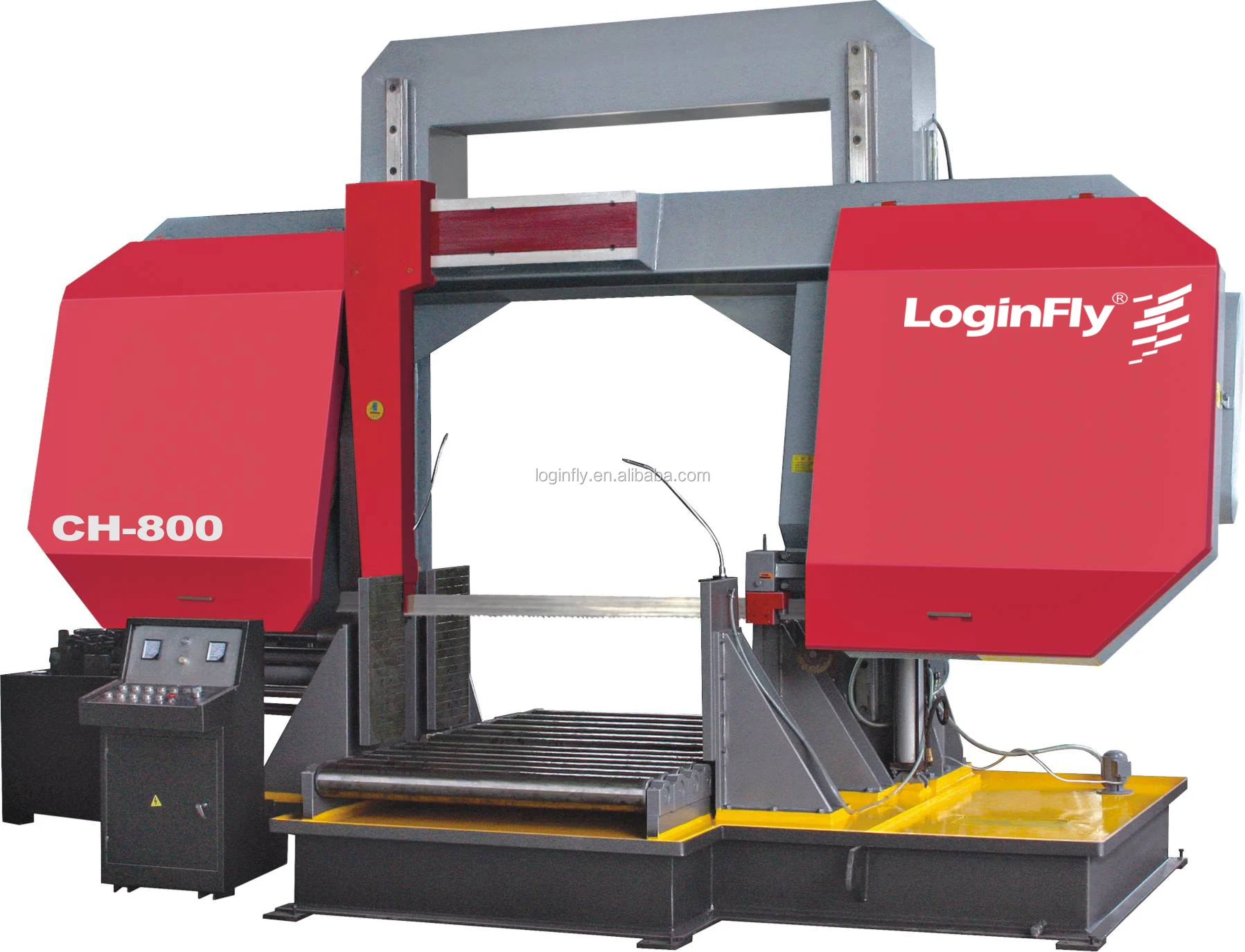

Machine Photo |
| ||
Technical Data | Cutting capacity(mm) | 1000mm for Round shape , 1000WX1100H for square shape | |
| Blade speed(m/min) | 20-80 m/min | |
| Blade size(mm) | 1.6×67mm | |
| Main Motor(kw) | 11 | |
| Hydraulic Motor(kw) | 2.25 | |
| Work piece Clamping | Hydraulic Vise | |
| Blade Tension | Hydraulic | |
| Main Drive | Worm wheel drive | |
| Material feed | manual | |
| Machine size | 4600×2300×3100 | |
| Machine weight | 10000kg | |
Standard Equipment | Blade Cleaning brush | Power blade cleaning brush | |
| Working light | YES | |
| One piece of bi-metal saw blade | YES | |
| One set of tools with tool box | YES | |
| Operation manual | YES | |
| Manual work height control | YES | |

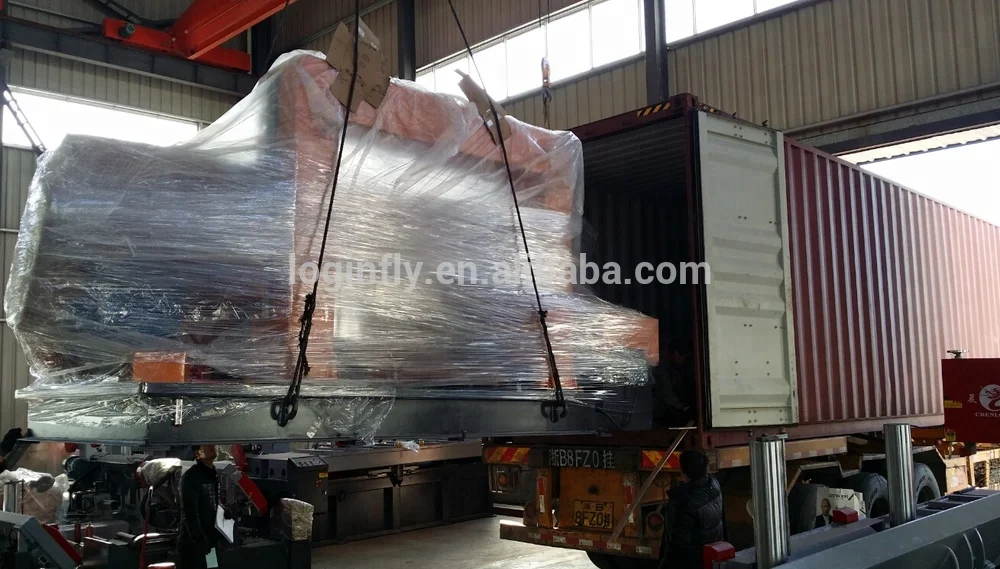

Machine package |
| ||
| |||
Option parts |
| ||
Band saw blade |
| ||
Roller table | |||
band saw machine Features:
1. Automatic CNC sawing machine, suitable for mass production continuous cutting.
2. Using PLC control system, you can set a group or several sets of data continuous cutting, repeat feeding accuracy of 0.2mm.
3. Color touch screen operation, man-machine interface to replace the traditional button control panel.
4. The use of grating control feed length, a single maximum feed stroke 500mm, more than 500mm length can be divided into multiple feed.
Use instructiongs of Metal Cutting Band Saw:
1.Band sawing machine operation and repair personnel must undergo professional training, grasp the band sawing machine operation and repair skills. Operators should ensure adequate sleep and keep the energy focused.
2.Before you change the speed, you have to stop the machine and then open the protective cover, turn the handle to make the belt loose, place the triangle belt in the groove of the required speed, tighten the belt and cover the shield
3.When adjusting the iron chip removing wire brushes, the wire brushes should make contact wire with the tooth of the saw blade, but not beyond the tooth root. Pay attention to observe wire brush to remove iron.
4.According to the size of the workpiece, you need to adjust guide arm along the dovetail and lock the guide device after adjustment.
5.The maximum diameter of the cutting material shall not exceed the requirements and the work piece must be held firmly.
6.With the proper degree of tightness of saw blade, speed and feed amount must be appropriate.
7.When making Iron, copper, aluminum products, cutting fluid is banned.
8.If the blade is broken, after the replacement of new blade, you must turn the work piece and resaw.
9.The operator is strictly forbidden to leave the job, and it is forbidden to operate with gloves.
10.Every time you are off work, you must cut off the power supply, open the protective cover, remove from the chip around the cutting wheel.
Company Information
Our team in China sawing industry especially band sawing machine and band saw blade industry has accumulated rich experience and established a set of technical training machine tool manufacturing, application for the integration of production and research and development base and sales service center.
In 1985, we beginning to manufacture band saw machine, until now we got rich experience in this scope, we also have OEM experience more than 15 years, there are more than 10000 sets Machine we do OEM as customer's requests.
In 1985, we beginning to manufacture band saw machine, until now we got rich experience in this scope, we also have OEM experience more than 15 years, there are more than 10000 sets Machine we do OEM as customer's requests.
FAQ
1) Q: Can i have your quotation?
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,
Email, skype, internet video. high efficiency. We offer one year guaranteen, within
one year, if component of the machine broken, we freely offer the component, but
the delivery fee should be paide by client
3)Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the
voltage and Hertz according to your requirment.
4) Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,
Email, skype, internet video. high efficiency. We offer one year guaranteen, within
one year, if component of the machine broken, we freely offer the component, but
the delivery fee should be paide by client
3)Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the
voltage and Hertz according to your requirment.
4) Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
