Through bore electrical slip ring,hole size 25mm 12 Circuit 10A
Through bore electrical slip ring,hole size 25mm 12 Circuit 10A

Through bore electrical slip ring,hole size 25mm 12 Circuit 10A

Share on (60852280059):


Price:

Quantity:


Product Overview

Description


Bargain Price Only in Alibaba





LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.

Features:


  • Transmit analog and digital signal

  • The power and signal are mixed transmitted, and the signal categories are as follows:

  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.

  • HD video: SDI, LVDS, etc.

  • Serial communication: RS232, RS485, RS422, etc.

  • Universal Serial Bus: USB2.0

  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.

  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

  • Long service life, maintenance-free

  • Easy to install


Main Applications:


  • Industrial automation equipment

  • Medical equipment

  • Wind power equipment

  • Test equipment

  • Exhibition

  • display equipment

  • Robots

  • Turntable equipment

  • Amusement equipment

  • High-speed railway equipment

  • Packaging

  • machinery

  • Ship offshore equipment

  • Construction machinery


Specification




























































Circuits12
Current Rating10A
Voltage240 VAC/DC
Dielectric Strength1000V@50Hz between circuits
Insulation500MΩ@500VDC
Hole Diameter25.4 mm
Working Speed0~300 RPM
ContactPrecious metal
HousingAluminum alloy
Wire Length300mm (rotor), 300mm (stator)
Working Temperature-20~+60℃
Humidity≤60%RH
Protection GradeIP50

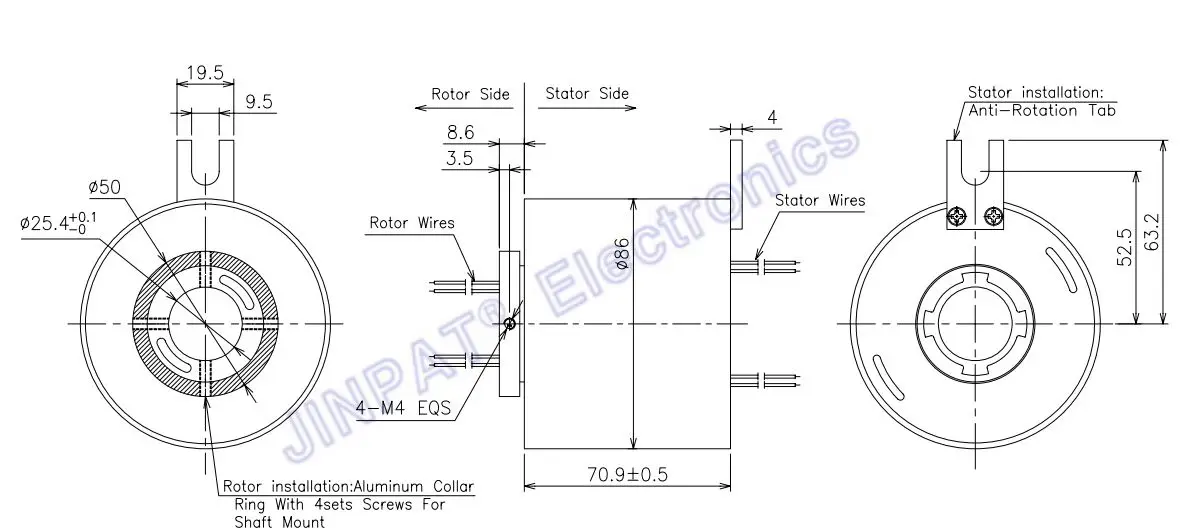

Outline Drawing

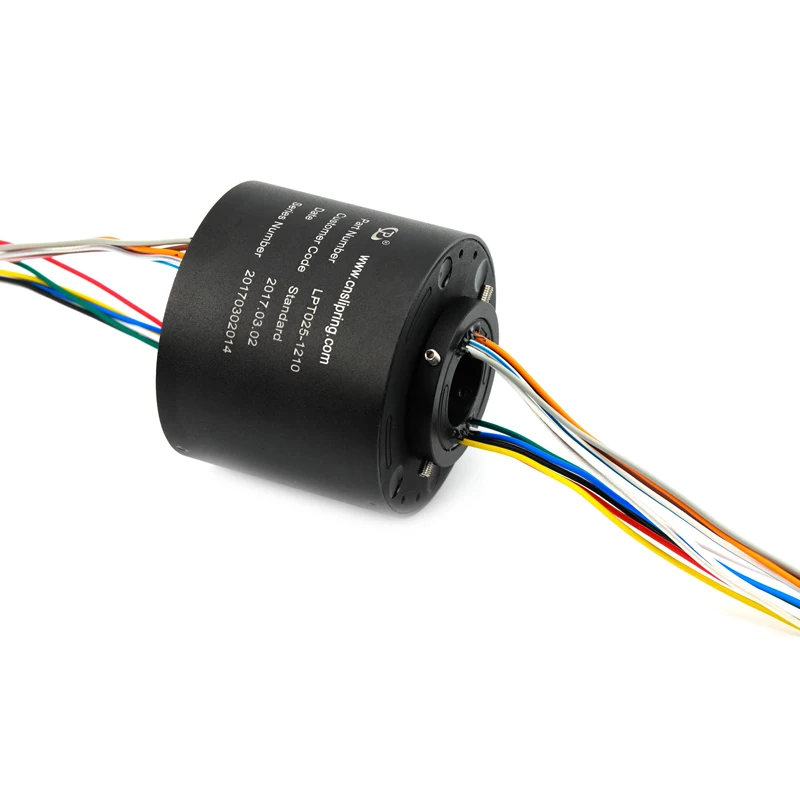

Product Display




















Our Advantages

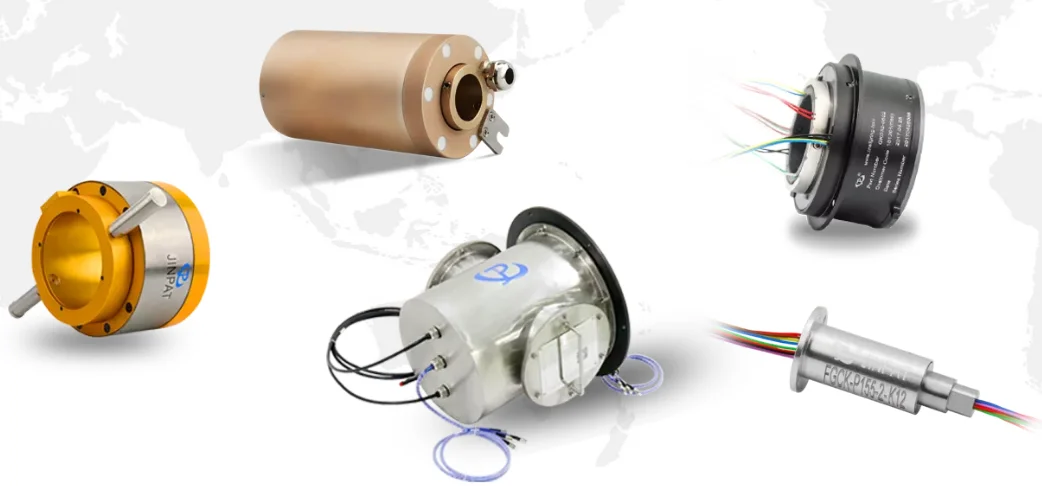

Welcome to JINPAT Electronics


 Providing free custom slip rings solutions,creating propulsion for your technology



  • With a large plant of over 12,000 square meters and more than 500 employees.

  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.

  • Long-term cooperation with global famous enterprises and agents all over the world.

  • With Over 10,000 designs with success in civil, military, commercial and industrial applications.

  • Founded in 1996, with more than 20 years of production and R & D experience.

  • Providing free custom slip rings solutions,which can be suitable for a variety of  equipment

  • Fast delivery







Typical Application
