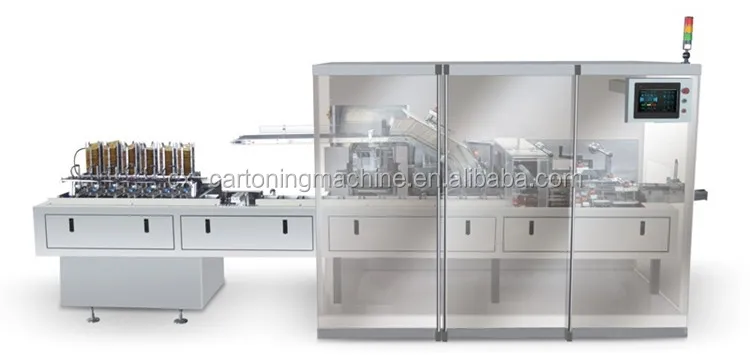

CXZ-120 is suitable for auto uploading and packing condom, pouch, sachet, blister, tubes and other related items into cartons and sealing the box automatically.
It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and discharge cartons automatically. Automatic intermittent motion horizontal cartoning machine,very compact and reliable.It can connect with Blister Machine, Pillow Pack Machine,Overwrapper, etc., to form a Production Packaging Line.
Main Technical Parameters
Encasing Speed
30-120 Boxes/Min
Carton Size Range
(Provide customization)
Length
50-250 mm
Width
20-120 mm
Height
15-60 mm
Compressed Air
Working Pressure
≥0.6 Mpa
Air Consumption
20 m3/h
Leaflet
Quality of Leafleft
60-802 g/m2
Unfold Size
(80-250)mm*(80-170)mm
Folding type(1-4 line)
(80-170)mm*(20-40)mm
Power Supply
380V/220V 50HZ
Motor Power
1.5 KW
Machine Dimension(L*W*H)
4500*1350*1800 mm
Machine Weight
1500 Kg

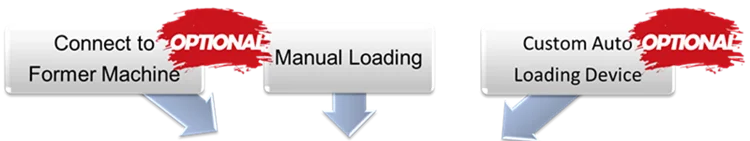

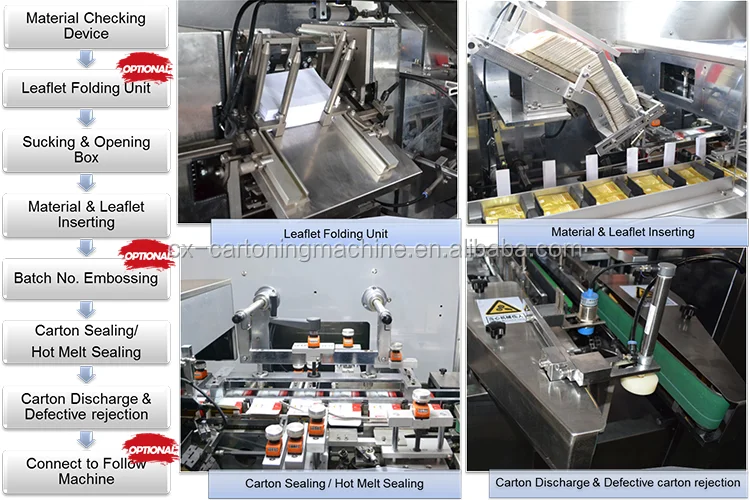

Production Flow
Product Uses
Packaging
Free fumigation Box
FAQ
Q1:Are you a manufacturer?
Yes,we are factory manufacturing cartoning machines and provide perfect OEM and prompt after-sale service.
Q2: How is after-services of your factory?
We have aftersale department and provide one year warranty service.
Q3:Where is your factory?
We are in Wenzhou,Zhejiang Province, near Shanghai City(2 hour by plane,4 hour by train).
Q4:How can I pay my order?
We accept T/T,WU,LC,etc. Mostly 30% in advanced,the rest need paid before shipping.
Q5:How can we ensure the safe production for product cartoning ?
The machine is equipped with a series of sensors and automatic overload protective devices to assure the machine runs safely and effectively.
