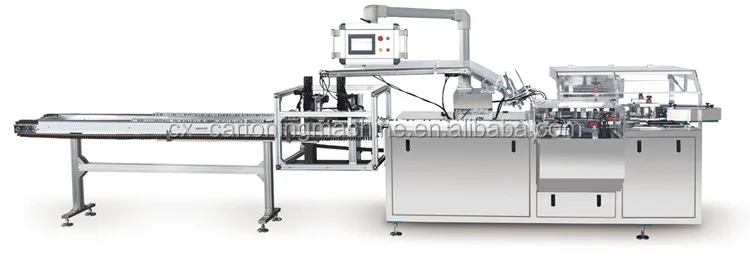

Granule Sachet Carton boxing Machine with Vertical Collating System
Product Description

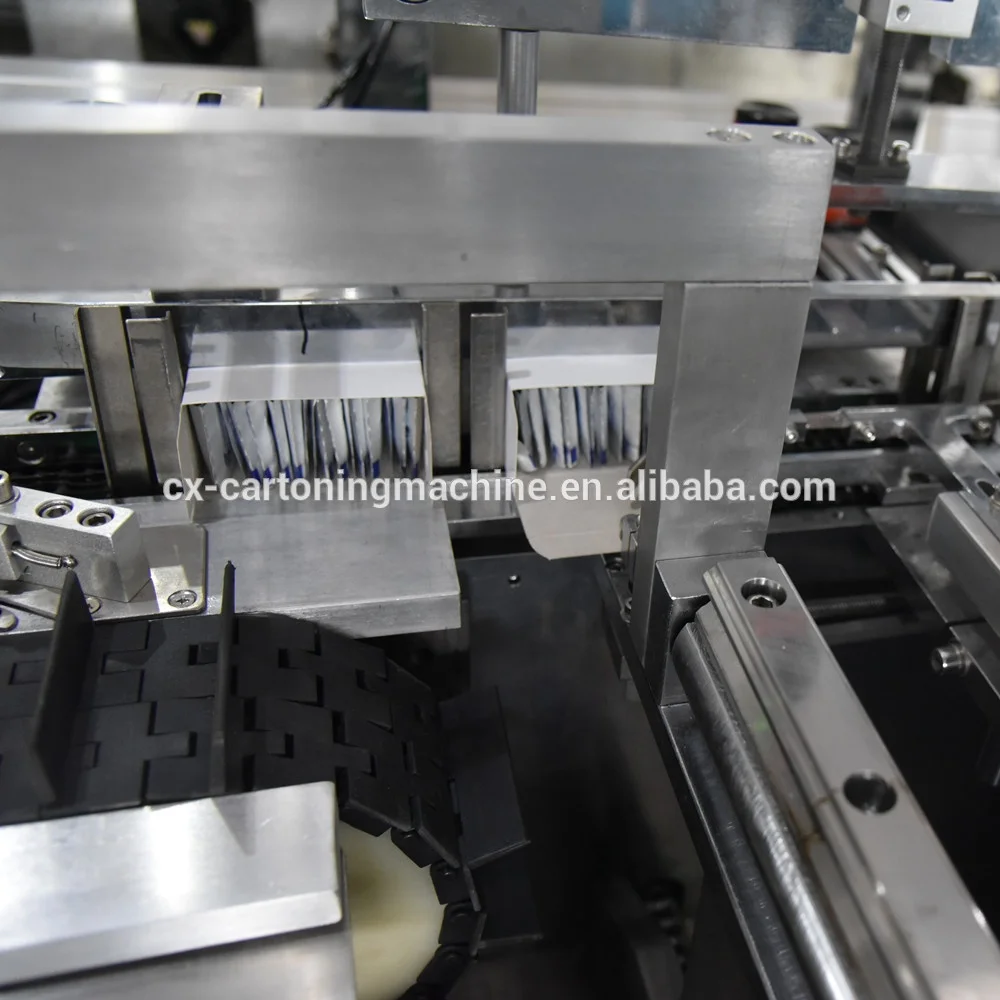

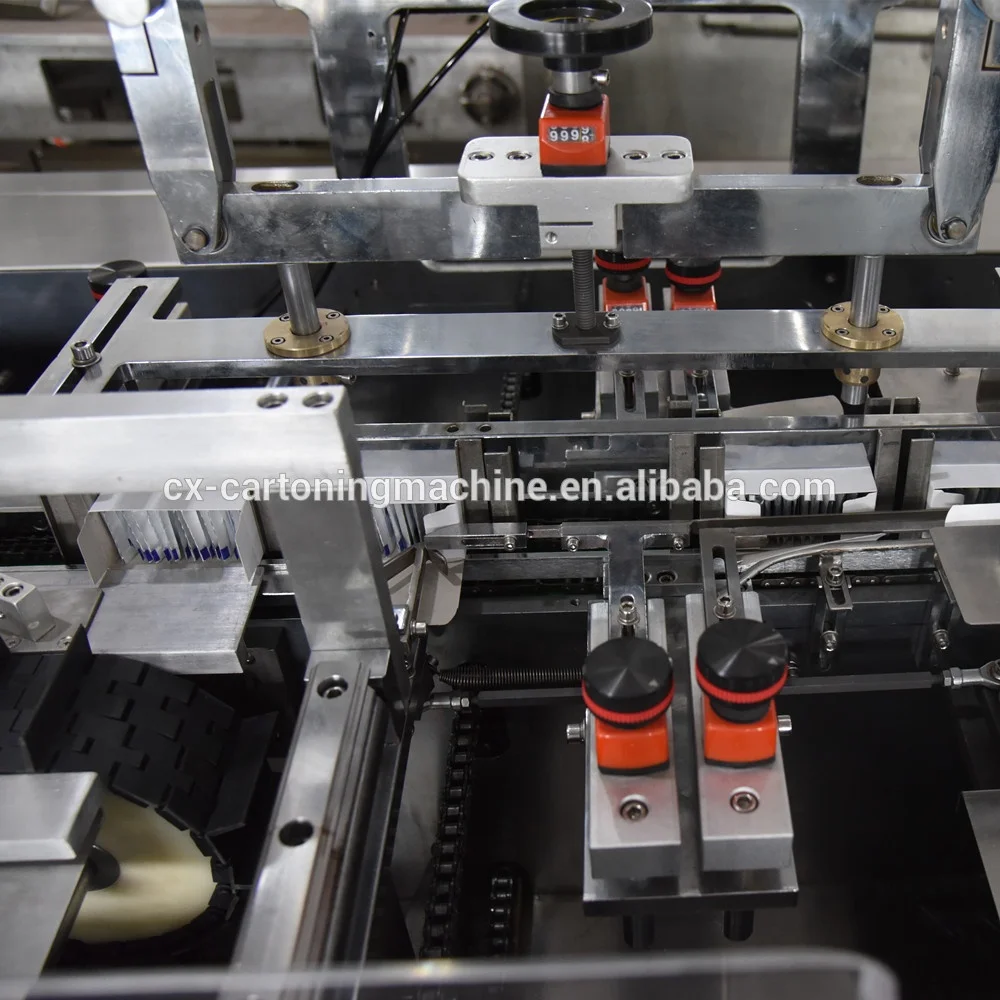

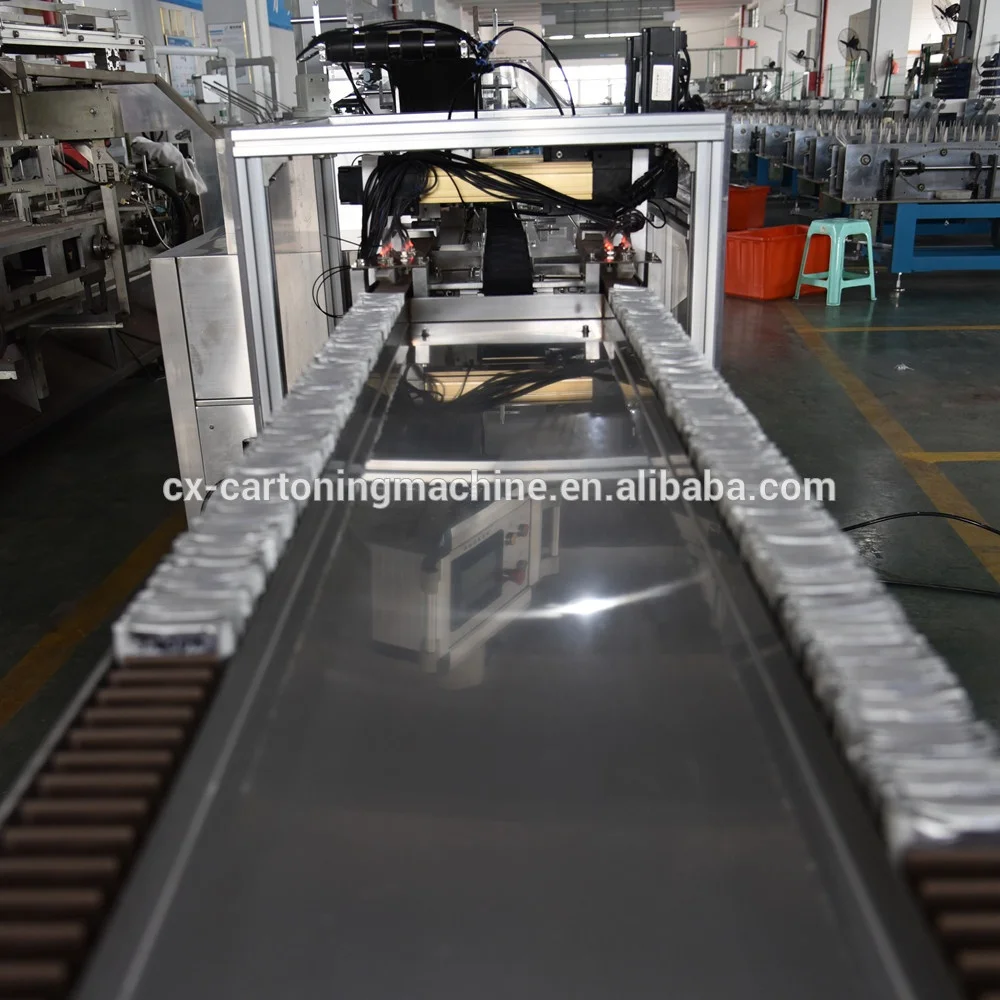

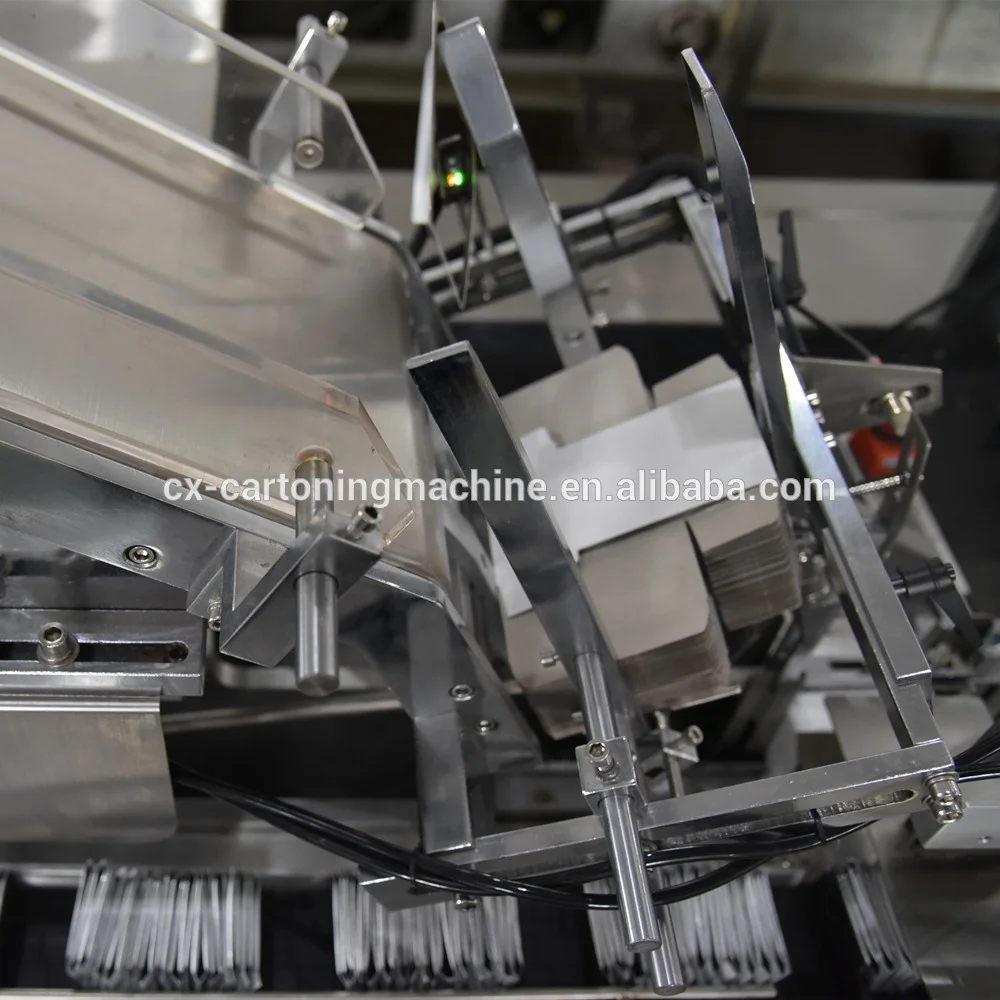

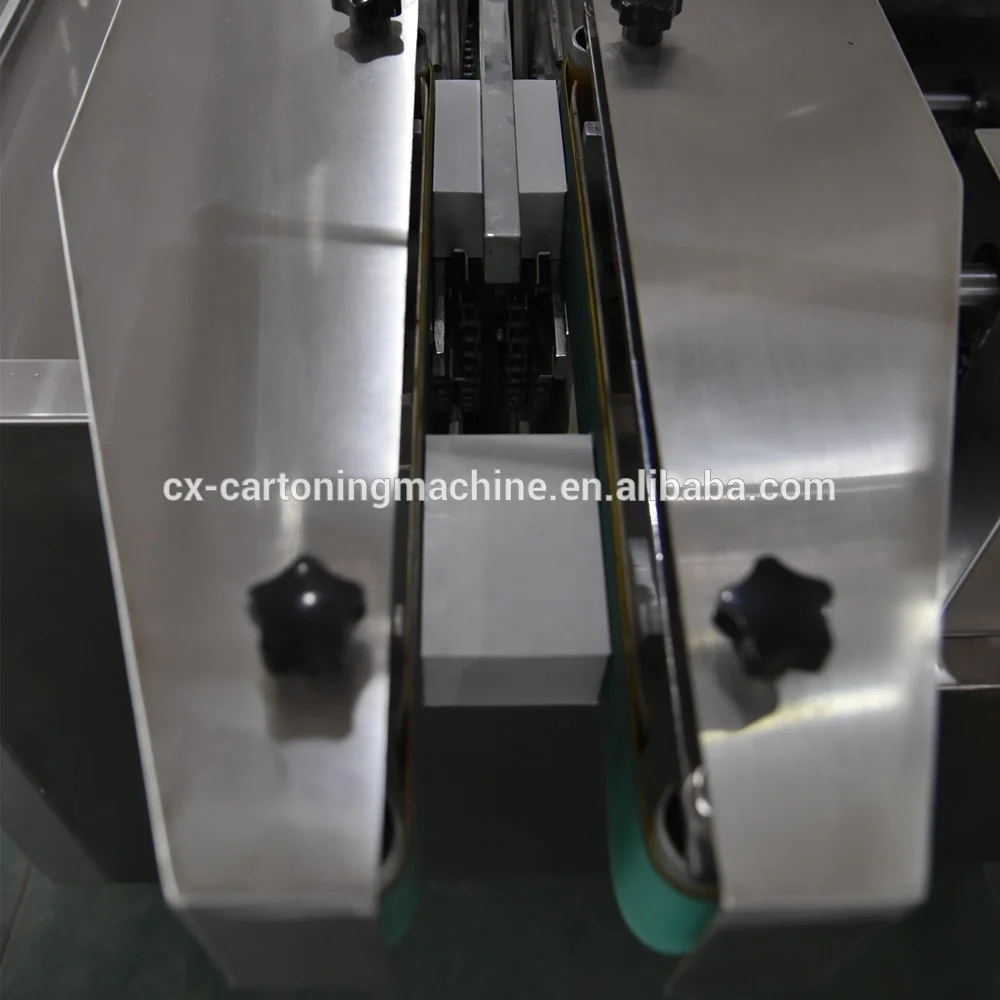

PHZ-100A customized with uprighter collator is suitable for packing Granule Sachets into carton box and seal the carton automatically. This system can uprighter collator sachets, open cartons, insert the products into cartons, emboss(optional), hot-melt closures and discharge cartons automatically.
Customized with uprighter collator.
Automatic intermittent motion horizontal cartoning machine,very compact and reliable.It can connect with Blister Machine, Pillow Pack Machine,Overwrapper, etc., to form a Production Packaging Line.
Model
PHZ-100A
Encasing speed
30-100Boxes / min
Carton Size Range
(can be customized according to customer's request)
Length
45-400 mm
Width
30-300mm
Height
10-120 mm
Carton paper requirements
250-350g/m3
Motor Power
1.5KW
Power Type
220/380V 50Hz
Machine noise
≤80dB
Gas source
0.5-0.8 Mpa
Air consumption
120-160L/min
Dimensions
4500×1600×1600 mm
Total Weight
1500Kg

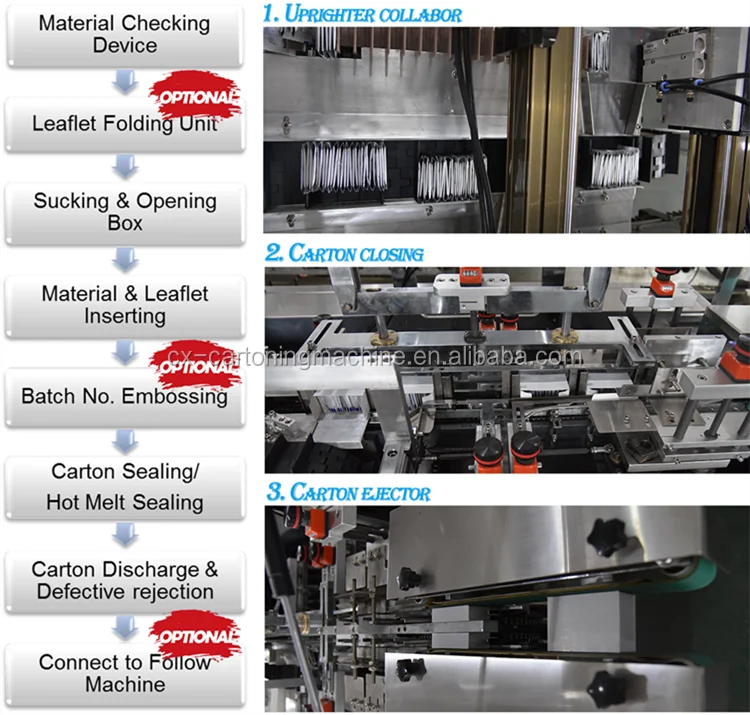

Production Flow
Product Uses
Packaging
Free fumigation Box
FAQ
Q1:Are you a manufacturer?
Yes,we are factory manufacturing cartoning machines and provide perfect OEM and prompt after-sale service.
Q2: How is after-services of your factory?
We have aftersale department and provide one year warranty service.
Q3:Where is your factory?
We are in Wenzhou,Zhejiang Province, near Shanghai City(2 hour by plane,4 hour by train).
Q4:How can I pay my order?
We accept T/T,WU,LC,etc. Mostly 30% in advanced,the rest need paid before shipping.
Q5:How can we ensure the safe production for product cartoning ?
The machine is equipped with a series of sensors and automatic overload protective devices to assure the machine runs safely and effectively.
