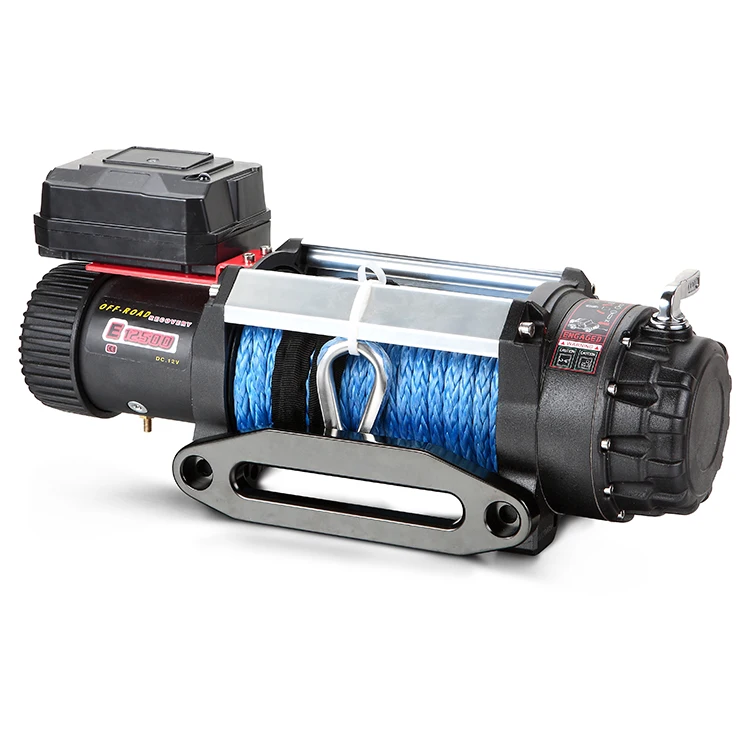

12500lbs 12v/24v electric winch offroad 4x4 car cable winch with synthetic rope

Share on (60857362401):


Price:$345.00

Quantity:


Product Overview

Description



Product Overviews


 -1.jpgX Winch Application A.jpg





























































































































































Specification



Rated line pull:



12500Lbs (5670kgs) single line

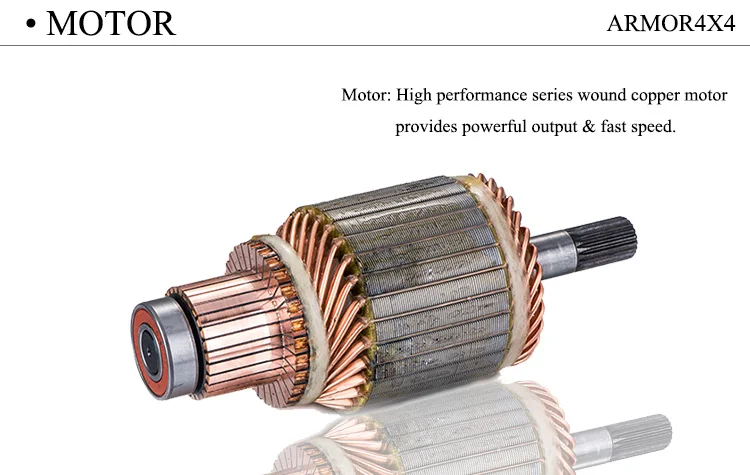

Motor:



Series wound 6.5hp /4.8kw,12V DC 8.1hp/6.0kw,24V

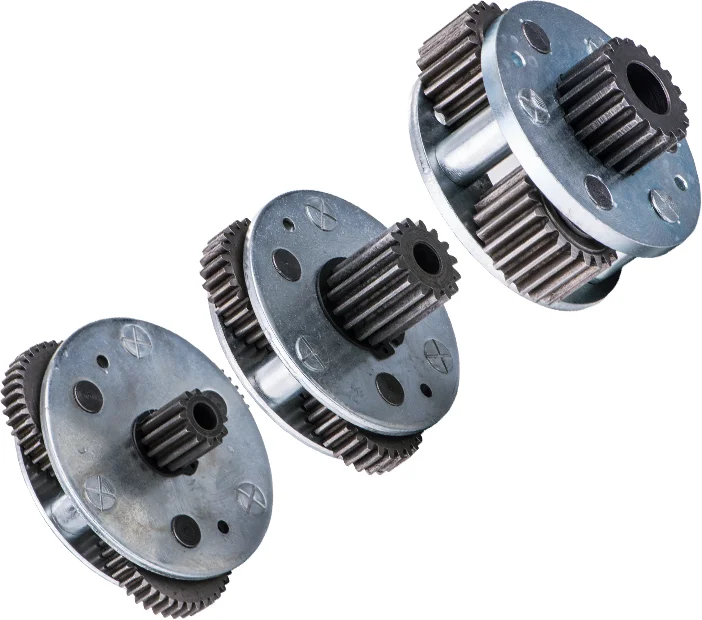

Gear Train:



3 stage planetary



Gear ratio:



262:1



Clutch:



Sliding Ring gear



Braking action:



Automatic in the drum



Fairlead:



Aluminum hawse fairlead for synthetic rope



Synthetic rope:



11mm ×24m



Drum size:



2.5"×9.0"(63mm×224mm)

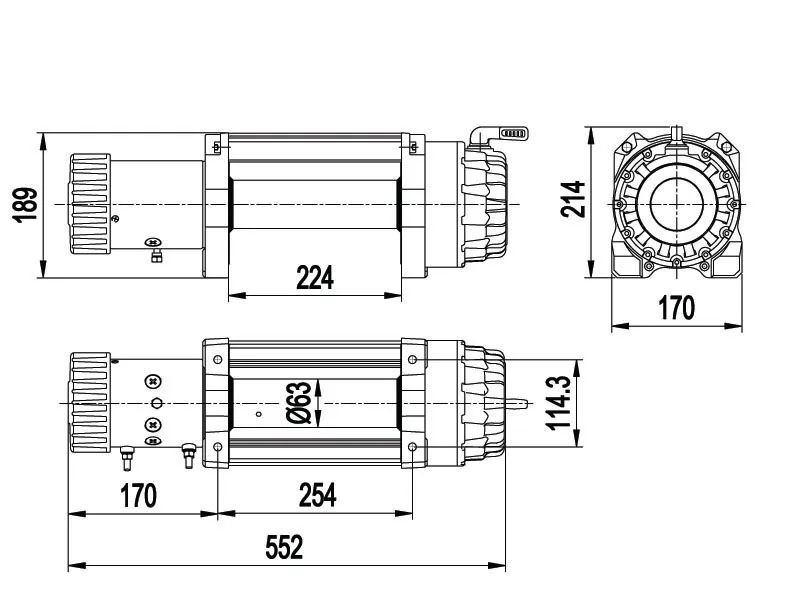

Dimensions:



23"×6.7"×8.4"( 552mm×170mm×214mm)



Mounting bolt pattern:



10"×4.5"(254mm×114.3mm)



Battery:



Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)



N.W:



86 lbs (39kgs)



Packing:



620mmx200mmx390mm(400pcs per 20' container)



Line speed and motor current (first layer)



Line pull



Lbs



0



2000



4000



8000



12500



Kgs



0



907



1814



3629



5670



Line speed



FPM



25.6



12.5



8.9



7.3



6



MPM



7.8



3.8



2.72



2.24



1.8



Motor current



Amps



65



100



130



200



290



Line pull and cable capacity




Layer of cable



1



2



3



4




Rated line pull per layer



Lbs



12500



10750



9460



8040




Kgs



5670



4876



4290



3647




Cable capacity per layer



Ft.



15.75



36.4



61.3



85.3




M



4.8



11.1



18.7



26







Size




Production lines





FAQ






You may concern




A:How to operate a winch?


Q:Getting stuck is an adventure. Getting unstuck is even better. At least when you have a winch on your rig. Learning       how to operate a winch safely is important for any offroad driver. Although using a winch can be a lot of fun, it can also be dangerous if used improperly.





A:How to get more winch power?


Q:If you need more pulling power, spool out more cable. You can do this either by choosing an anchor point further away from the vehicle or by using a snatch block to double back the cable. A double line pull increases your winch power by almost doubling the capacity.





A:How to prevent overheating?


Q:Unlike hydraulic winches, electric winches are not designed for long, continuous pulls. If you need to winch over a long distance, stop winching and let the motor cool down every so often to prevent overheating. If the motor becomes uncomfortably hot to the touch, that means you need to take a break. Wait five minutes or so—until the motor feels cooler to the touch—and continue winching.
