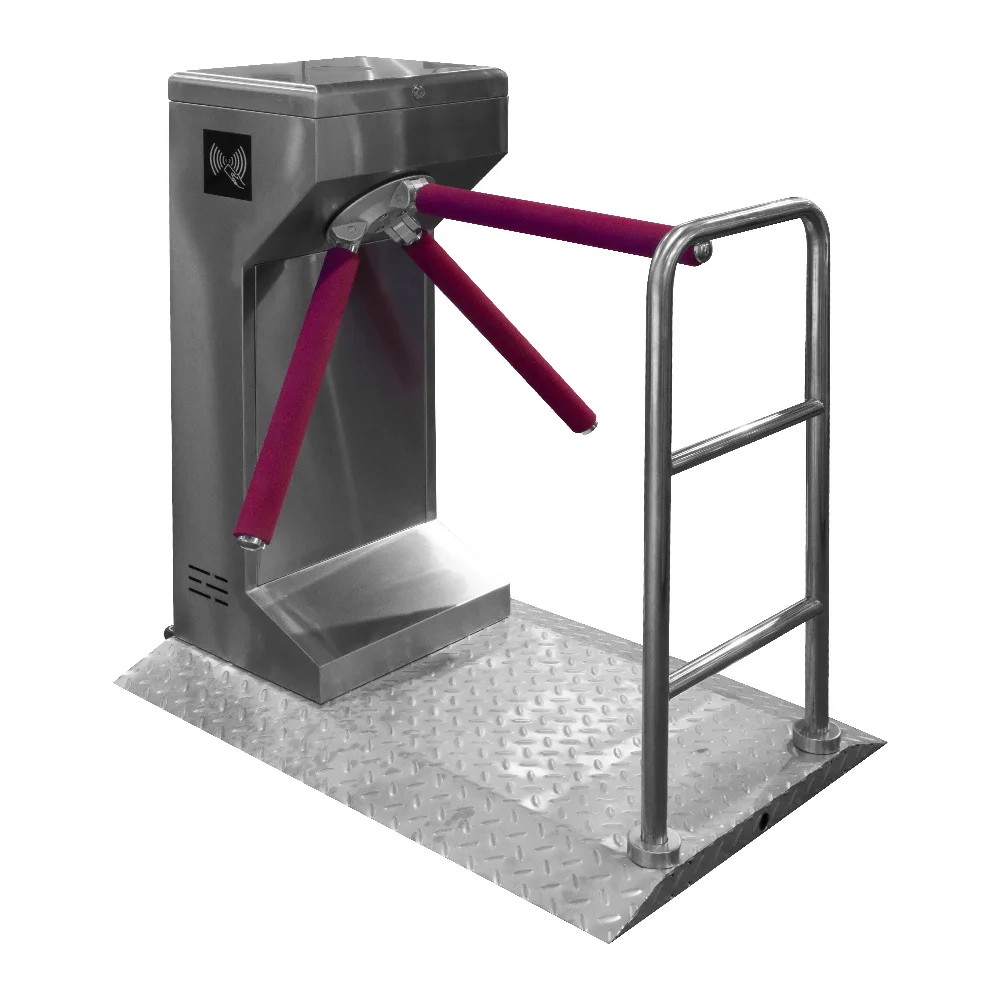

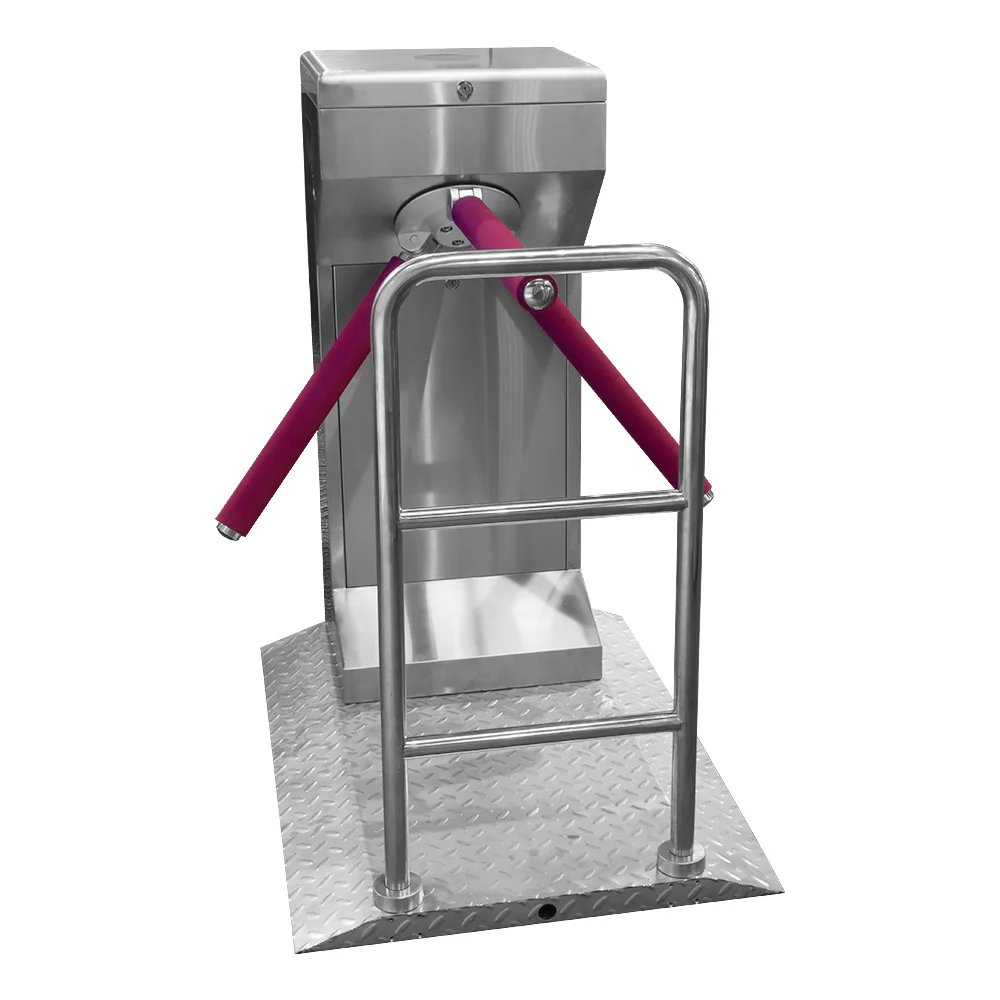

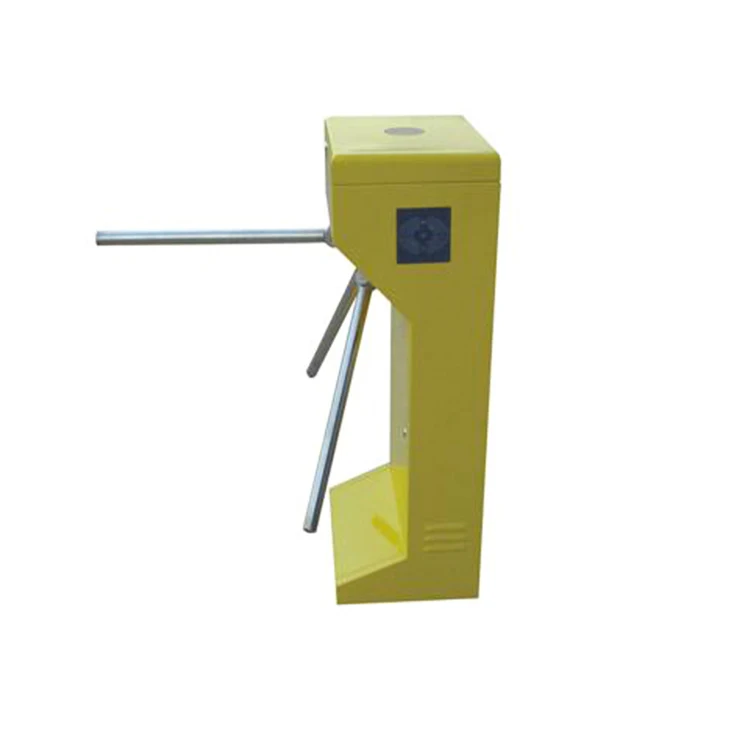

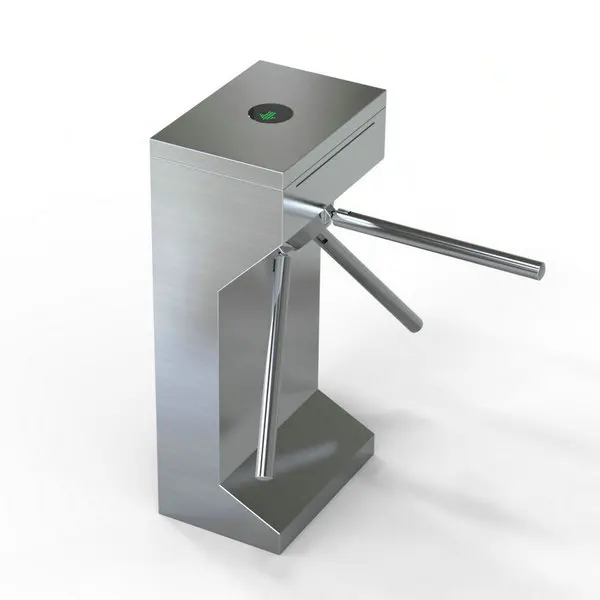

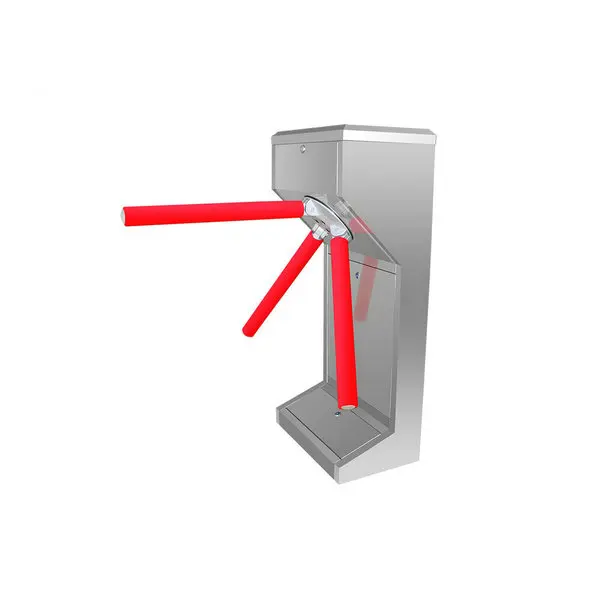

Stand type simple tripod waist height turnstile of 550 mm for entrance security access TGW-TT001
Waist High Turnstiles are the most cost-effective security turnstiles but also have the least security features. They can easily be jumped or avoided but if they are being monitored, they can be an effective means of access-control. We typically recommend these at entrances that require a human presence and have low security risk.
This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, companies and so on any place that requires a smart flow control.
This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, companies and so on any place that requires a smart flow control.

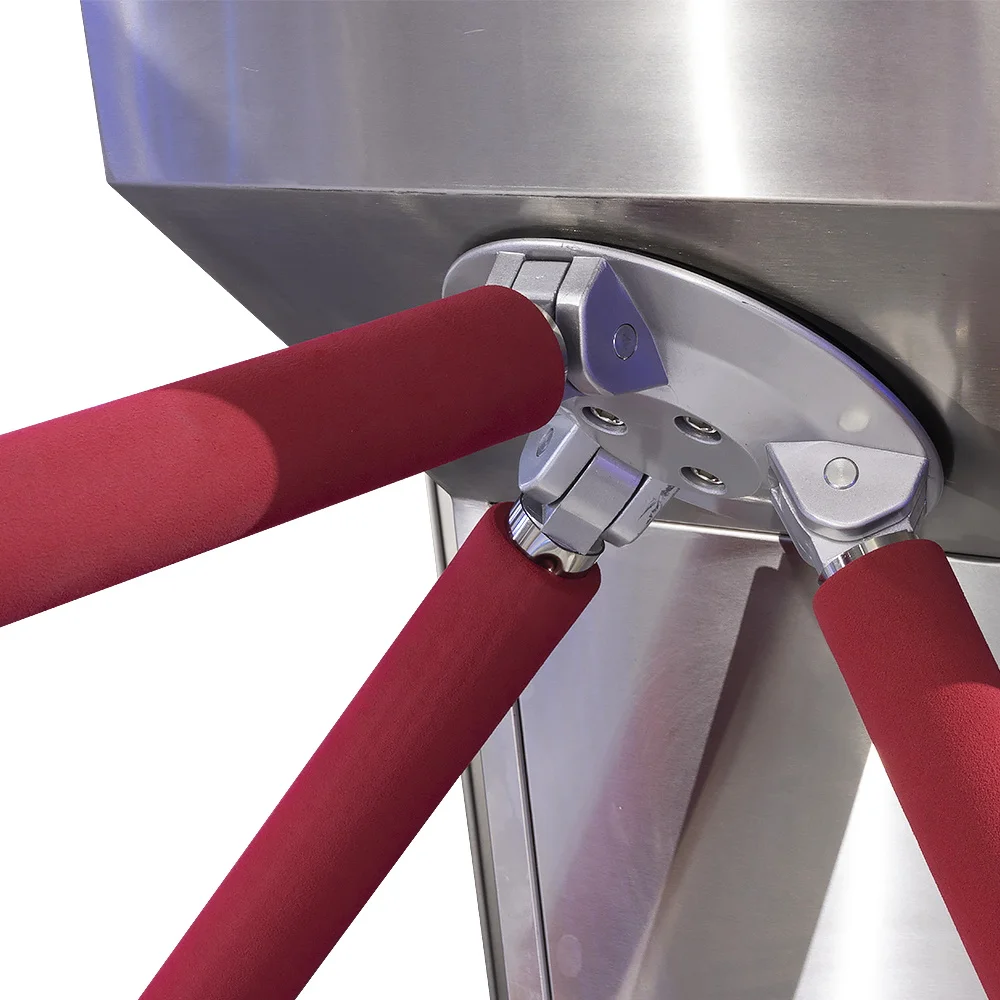

The waist high turnstiles are made with high quality stainless steel and investment cast components. Designed to provide years of trouble free operation, our waist high turnstiles rotate smoothly and self-center when returning to the home position. The stainless steel cabinet is manufactured without visible bolts or fasteners, providing a clean, less industrial look.
Vertical Tripod Turnstile gates usually have three modes: automatic, semi-automatic and fully mechanical. With the reduction of cost, the all-mechanical type has been withdrawn from the market, and the main popular types are fully automatic and semi-automatic. Vertical three roller gates usually have three forms: electromagnetic core, hydraulic type and electric core.
SPECIFICATIONS FOR WAIST TRIPOR TURNSTILE TGW-TT011 | ||||||
Cabnit Parts | Size | mm | 1200*280*980 | |||
Max lane width | mm | 550 | ||||
Arm Length | mm | 500 | ||||
Main performance parameters | Passing Speed | persons/min | 30-40 | |||
Barrier Open Time | s | <=0.3 | ||||
Working Enviroment | -10℃~70℃ | RH≤90% | ||||
Function | IC Card | ID Card | Fingerprinter | |||

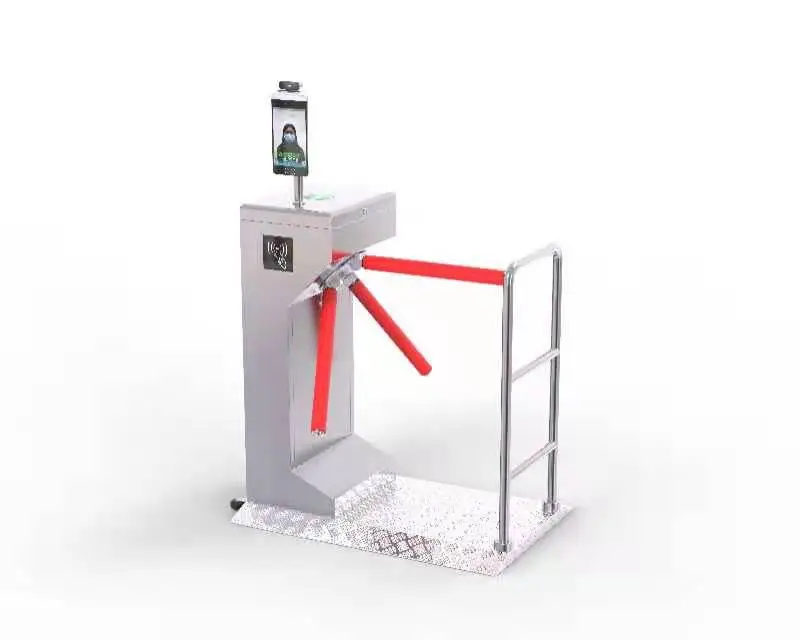

Barcode | Face Recognition | QR Code | ||||
Swallow machine | Coin machine | Number Counter | ||||
Main Features
○ Work voltage: AC220V±10% 50HZ±10%
○ Core: DC24V solenoid valve
○ Core: DC24V solenoid valve
○ Rotation direction for arm: left or right, or bi-directional
○ Led direction indicator
○ Card reading window: standard or customized
○ Led direction indicator
○ Card reading window: standard or customized
○ Emergency : auto drop for arm
○ Normal work life: 3,000,000 times
○ Communication interface: RS 485, distance ≤1200m
○Input interface: relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10mA

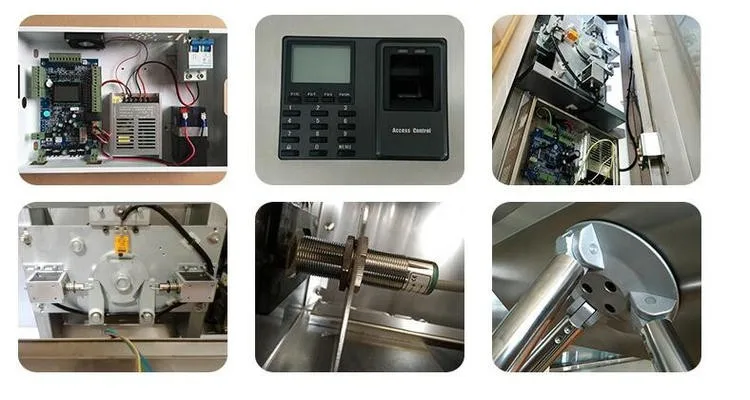

Details

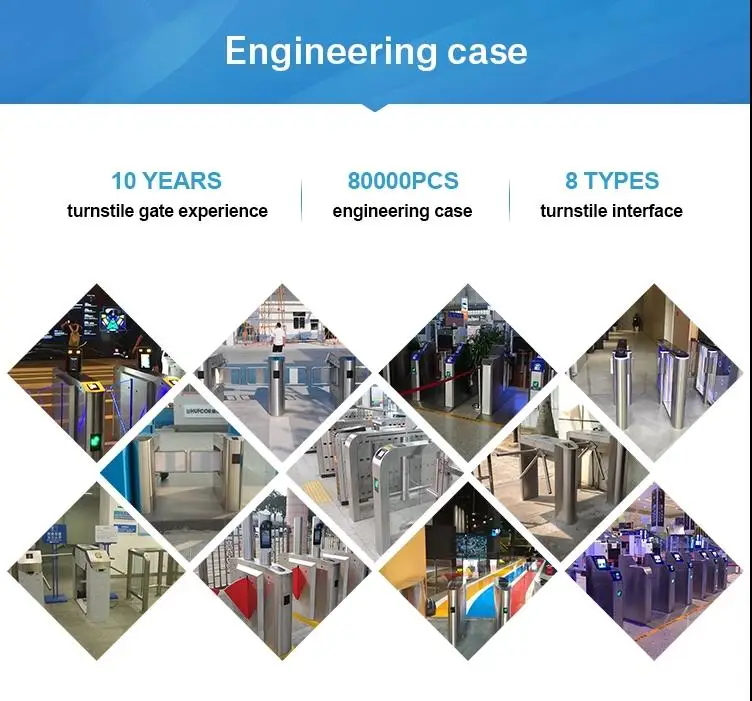

Project Case
About us
Pre-Sales Service
1. Professional pre-sales guidance, patient introduction to product function details.
2. According to the actual site requirements, give the appropriate product configuration.3. Give the convincing test videos and photos, and invite them to visit.
4.Provide wiring diagrams, installation instructions and other details.
5. Smooth communication and give you a cost-effective solution, saving time and effort.
After-Sales Service
1. The first time to follow up the receipt confirmation.
2.Provide professional product installation and commissioning instructions and software hardware instructions.3.Free remote installation debugging knows the service.
4.Paid field installation and commissioning.
Training how to instal the machine, training how to use the machine.
5.Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size(mm) | 1300 (L) * 380 (W) * 1100 (D) | |
Weight | 75-80 KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Shipping | ||
Volume m³ | 0.56/set | |
Weight | 75-80KGS | |
Shipping Suggestion | Suggest for the sea shipping by containers, we also could send by air, express DHL,TNT,etc if emergency using. Forwarders for optional and negotiation. | |
