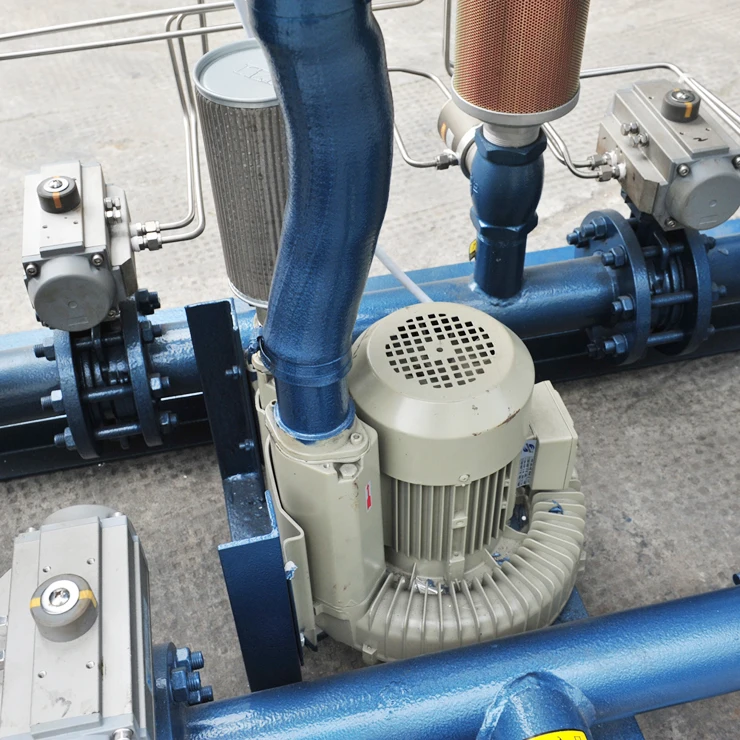

For added energy savings, it uses a high efficiency blower to take in ambient air required during the heat regeneration cycle to desorb moisture from the desiccant, no compressed air is used during this phase.
Dry compressed air is used during the dry air cooling regeneration period for reduced heat and dew point spike at tower switchover. This amounts to an average process air use of 3% of the rated capacity of the dryer.
Working Conditions and Technical Specifications
Air Inlet Temp.
5~45 ℃
Oil Content
≤0.1PPM
Air Inlet Pressure
0.6~1.0MPa
Cycle Time
T=6~8h
Pressure Dew Point
-40℃ (Standard type)
Air Consumption
≤3% (air consumption)
0 (zero air consumption)
Air Flow
10-300Nm^3/min
Power
AC 380V-50HZ/ 220V/50Hz
Ambient Temp.
5-35 ℃
Control Method

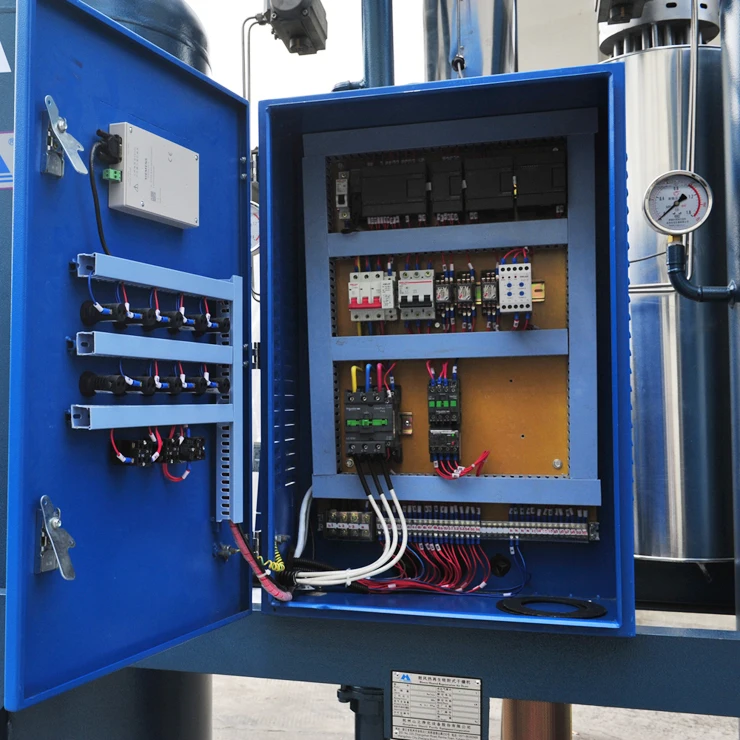

Microcomputer Automatic Control/ PLC Control
Note: All the above parameters are based on our standard working pressure 0.7MPa.
(Please contact us if you need customized service.)
With Gas Consumption Type
Model
Capacity
Connection Diameter
Heater power
Blower power
Desiccant weight
weight
Device size
(Mm3/min)
cfm
(KW)
(KW)
(kg)
(kg)
(mm)
SDXG-10I
10.9
384
DN50
8
1.3
311
1000
1500x850x2295
SDXG-15I
16
564
DN65
10
2.2
486
1300
1600x1000x2395
SDXG-20I
22
775
DN65
12
2.2
606
1500
1700x1050x2435
SDXG-25I
26.8
945
DN80
15
5.5
716
2000
1800x1403x2520
SDXG-30I
32
1128
DN80
18
5.5
860
2200
1800x1200x2550
SDXG-40I
43.5
1533
DN100
22
7.5
1158
2300
2000x1400x2640
SDXG-50I
53
1868
DN100
27
7.5
1422
3000
2100x1500x2740
SDXG-60I
67
2361
DN125
36
9
1608
4200
2300x1650x2840
SDXG-80I
90
3172
DN125
42
9
2436
5400
2600x1850x2940
SDXG-100I
110
3877
DN150
54
13
2926
6100
2720x1950x3080
SDXG-120I
130
4582
DN150
72
13
3476
8100
2850x2050x3150
SDXG-150I
160
5639
DN200
84
13
4710
11600
3050x2300x3400
SDXG-200I
210
7402
DN200
96
15
6160
16000
4700x2500x3550
Product Overviews
Advantages
Company Information

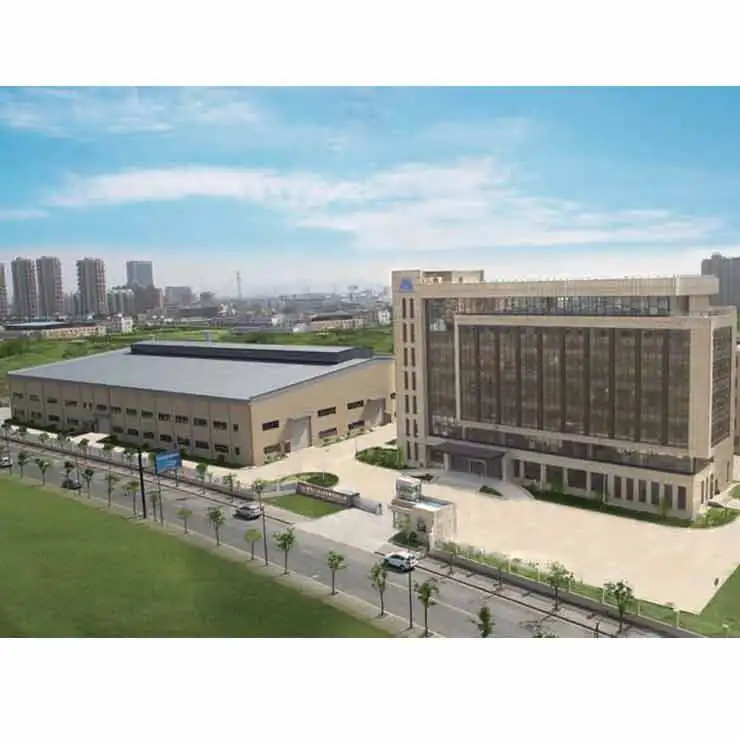

Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design,
development and production of compressed air dryers, filters and other purification equipments. Our compa

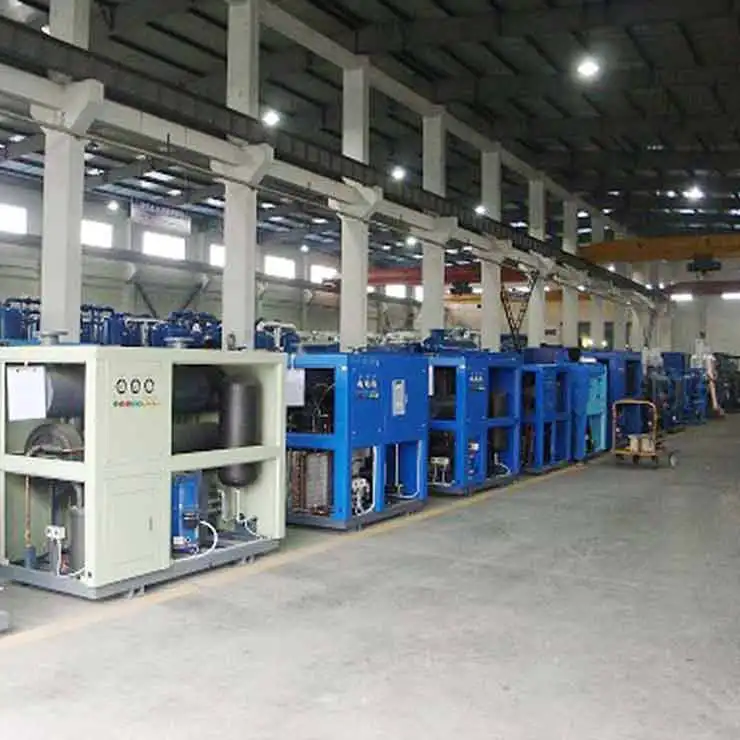

ny has a workshop of 30, 000 square meters and more than 300 staff. Shanli has become one of the largest
refrigerated air dryer manufacturers in the Chinese purification industry with the top sales turnover. Our self-
design and self-made equipment is compatible with many famous brands of air compressor to efficiently rem
ove water, oil and dustfrom compressed air. On basis of IS0 9001 certification standard, our design, producti
on, test and services of the machine are all well managed and strictly controlled since year 2001.
Application
Shanli refrigerated air dryers are widely used in industry such as glass making,cement making,ship making,
car making,medician,power plant,aviation,food industry,textile industry,building material,oil and gas industry.
