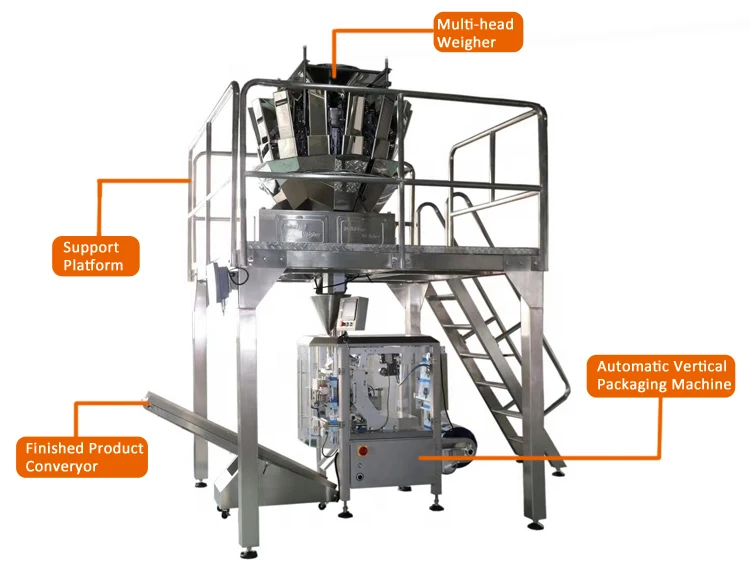

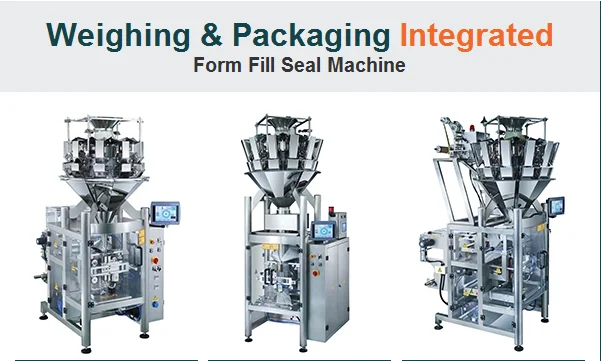

Automatic 14 Head Multihead Weigher Packing Machine
Automatic 14 Head Multihead Weigher Packing Machine
Automatic 14 Head Multihead Weigher Packing Machine
Automatic 14 Head Multihead Weigher Packing Machine

Automatic 14 Head Multihead Weigher Packing Machine

Share on (60862285675):


Price:$4,399.00 - $5,800.00

Quantity:


Product Overview

Description





APPLICATION



This machine is applicable for packing granule or irregular solidity in form of pillow pouch or gusset pouch, with different patterns of sealing, and different styles of cutting, which include processes of weighing, film-pulling, filling, pouch-making, sealing and cutting off, the detail application description as following table:

Send Inquiry to Get Special Discount !!!


Applicable Pouches
1) Pillow / Flat Pouch
2) Gusset Pouch
Applicable Products
Granule or other irregular solidity such as candy, popped food, roasted seeds or nuts, etc




PACKAGING PRODUCTS




TECHNICAL SPECIFICATION


Catalogue/1T-xxxx-xx
1040-10
1250-10
1450-08
HMI Dimension-inch
10.4
10.4
10.4
Heads of Weigher
10
12
14
Bucket Volume-Liter
1.0
1.0
0.8
Single Weighing Range-gram
10-1000
10-1000
10-1000
Max Film Width-mm
400
500
500
Pouch Size-Length ‘mm
50-230
50-290
50-290
Pouch Size-Width ‘mm
60-190
60-240
60-240
Max Packing Speed –Pouches/min
60
90
90
Vertical Sealing Method
Servo Motor
Servo Motor
Servo Motor
Horizontal Sealing Method
Pneumatic
Servo Motor
Servo Motor
Approximate Net Weight -kg
550
650
650
Dimension ( ‘mm )
1530*1300*2300
1630*1320*2600
1630*1320*2600

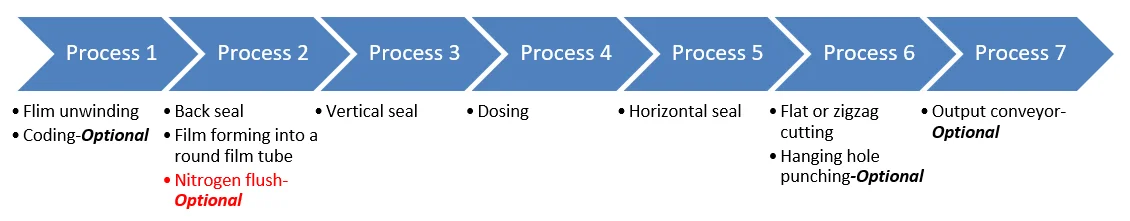

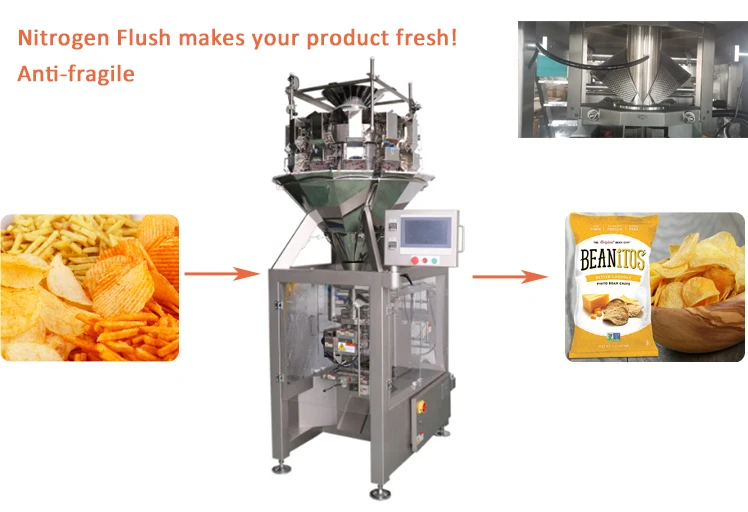

WORKING PROCESSES

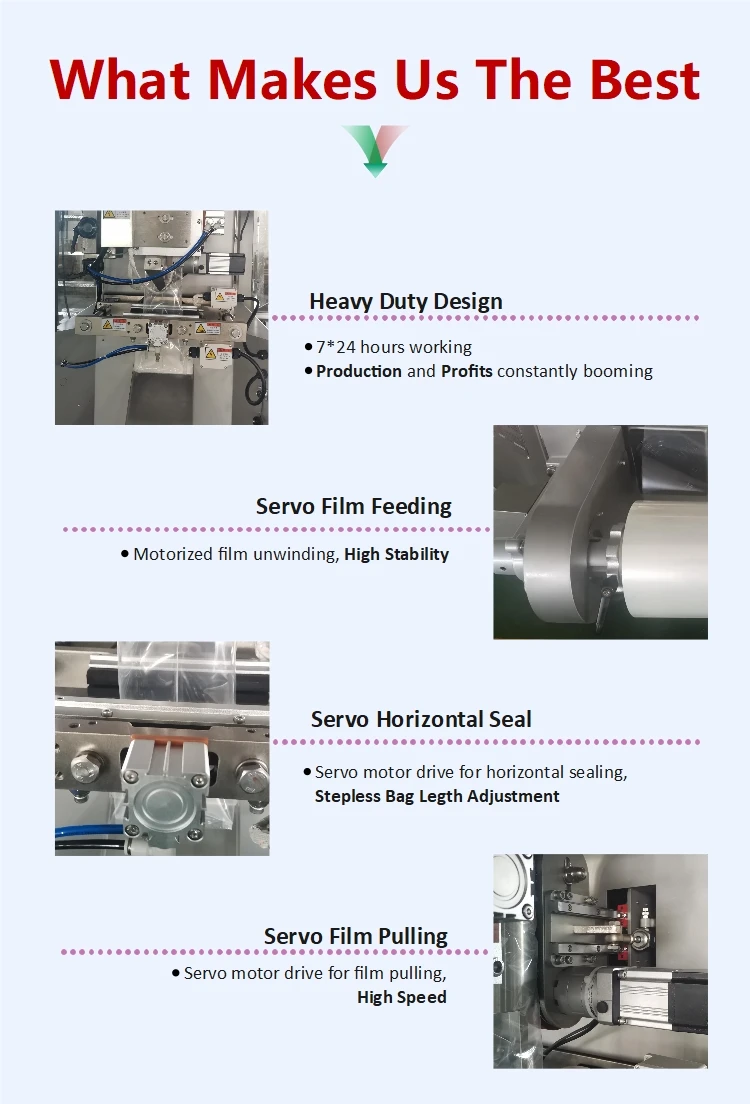

ADVANTAGES








DETAIL DISPLAY
