Semi Automatic L Sealer and Shrink Wrap Machine L Bar Shrink Tunnel Plastic film Packaging

Product Overview

Description

Model	SF-20LG	SF-4525
Power	1kw	9kw
Power Supply	AC 380/220V 1/3PH 50/60Hz	AC 380/220V 3PH 50/60Hz
Tunnel Size L×W×H	/	1000×450×250mm
Max.Packing Size	L+H≤530 W+H≤430 H≤200mm	1000x300x200mm
Packing Speed	0~15m/min.	0~15m/min
Air Temperature	0~300℃	0~300℃
Shrink Film	POF,PVC	POF,PVC
Machine Size L×W×H	1730×790×780mm	1300×720×1500mm
Packaging Size L×W×H	1780×820×1120mm	1580×770×1105mm
G./N. Weight	145/125kgs	235/215kgs

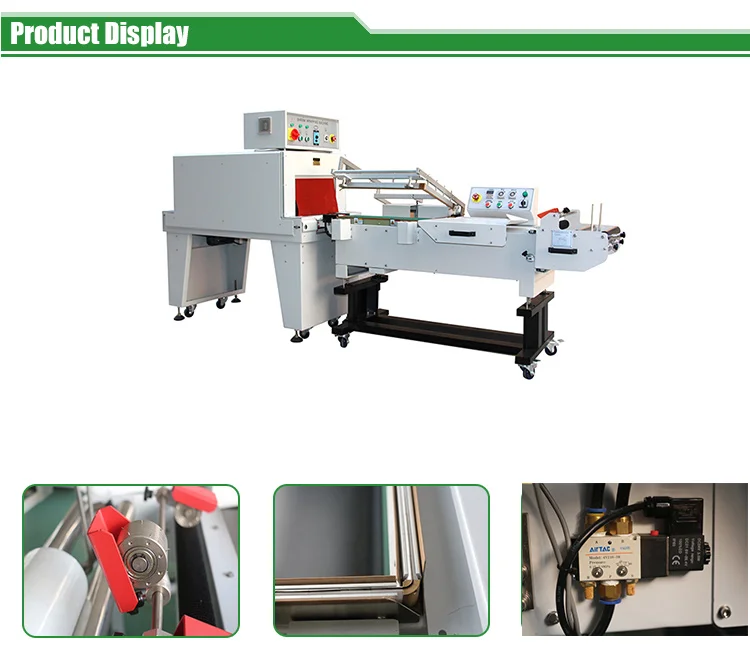

         |    This machine is made of shrink tunnel and sealing machine. Adopt L bar sealing, then automatically transit to the shrink chamber and finish the shrinking;

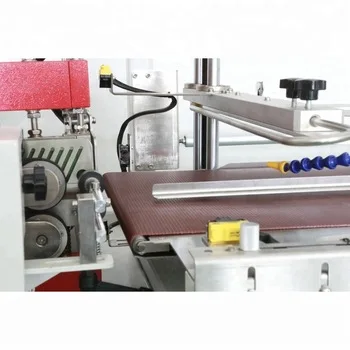

         |   Anti-stick high-temperature alloys L type sealing knife which can seal neatly, without cracking, coking and smoking; The sealing blade with Teflon non-stick coating layer makeshift non-sticking.

         |   It is easy to adjust the conveyor height by the hand wheel;

         |   Control the sealing time by time relay;

         |   Sliding bracket can be placed all kinds of shrink film, while the punching device is smooth;

         |    The whole sealing function of SF-20LG/B is automatically completed by cylinder which decreases labor intensity and increases working efficiency;

         |   Sealing knife with automatic anti mistakenly cutting and anti-overheating protection device effectively protect the operator away from accidental cutting;

         |   With emergency stop device in case of emergency situations can immediately stop the machine running;

         |   Imported electrical components assure stable performance;

         |   Imported heat - resistant insulation curtain greatly reduces heat loss;

         |   Stainless steel heating elements makes warming-up fast. Large power fan motor assures big wind volume and air transported uniform. According to products’ sizes and output, you can adjust conveyor speed and chamber temperature to achieve optimal contraction effect;

         |   Using solid roller conveyor, external anti-high temperature silicone tube can endure heavier objects and rollers will become deformed;

         |   Suitable for PVC, POF, PET film sealing wrapping.





Sealer	Brand	Country
Sensor	Banner	USA
Side Sealing Cylinder	Festo	Germany
Side Sealing Solenoid Valve	SMC	Japan
Cross Sealing Cylinder	Airtac	Taiwan
Cross Sealing Valve	Airtac	Taiwan
Gear Motor	GPG	Taiwan
PLC	Siemens	Germany
HMI	Siemens	Germany
Film Motor	Li Ming	Taiwan
Intermediate Relay	Siemens	Germany
Power Supply	Mean Well	Taiwan
Solid Relay	Fotek	Taiwan
AC Contactor	Schneider	France
All Switches	Siemens	Germany

Shrink Tunnel	Brand	Country
Power Supply	Mean Well	Taiwan
Solid Relay	FOTEK	Taiwan
Gear Motor	GPG	Taiwan
Circulation Motor	SURFON	Taiwan
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
Electric Breaker	Schneider	France
Thermal overload Relay	Schneider	France
AC Contractor	Schneider	France
Frequency Inverter	Schneider	France
All Switches	Siemens	Germany
