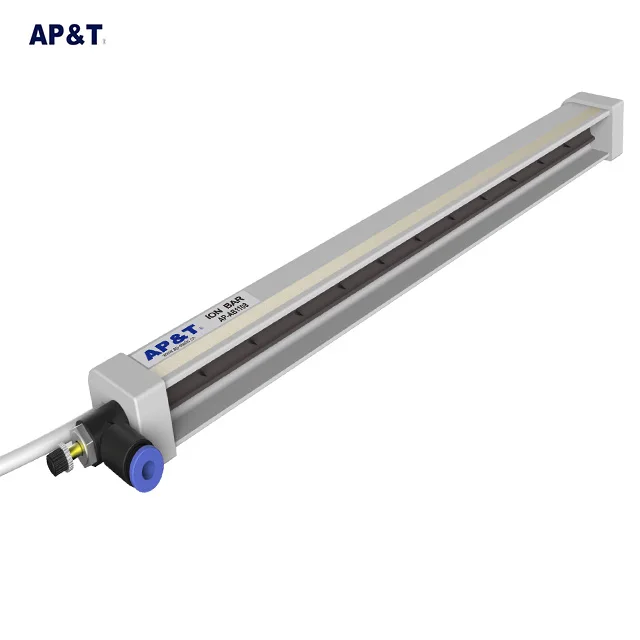

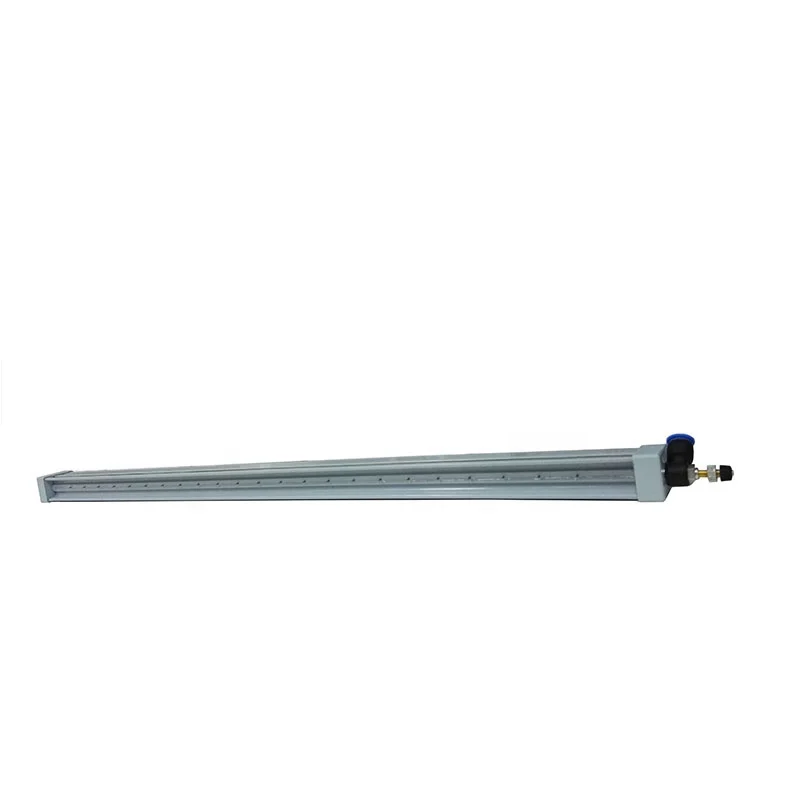

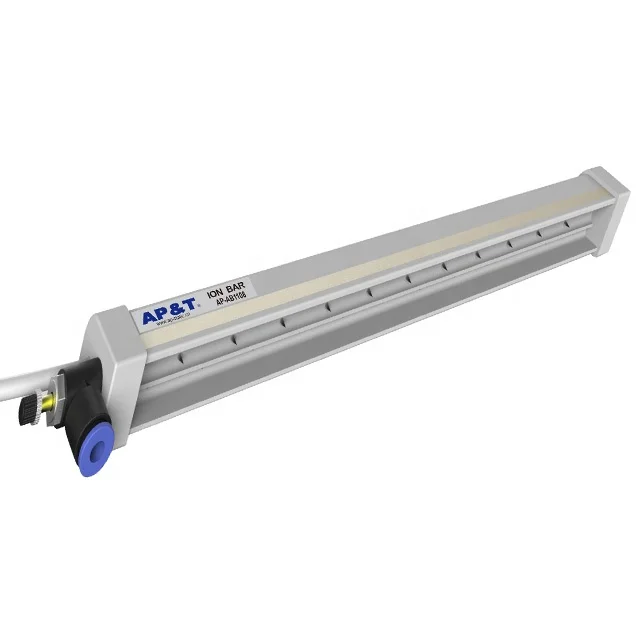

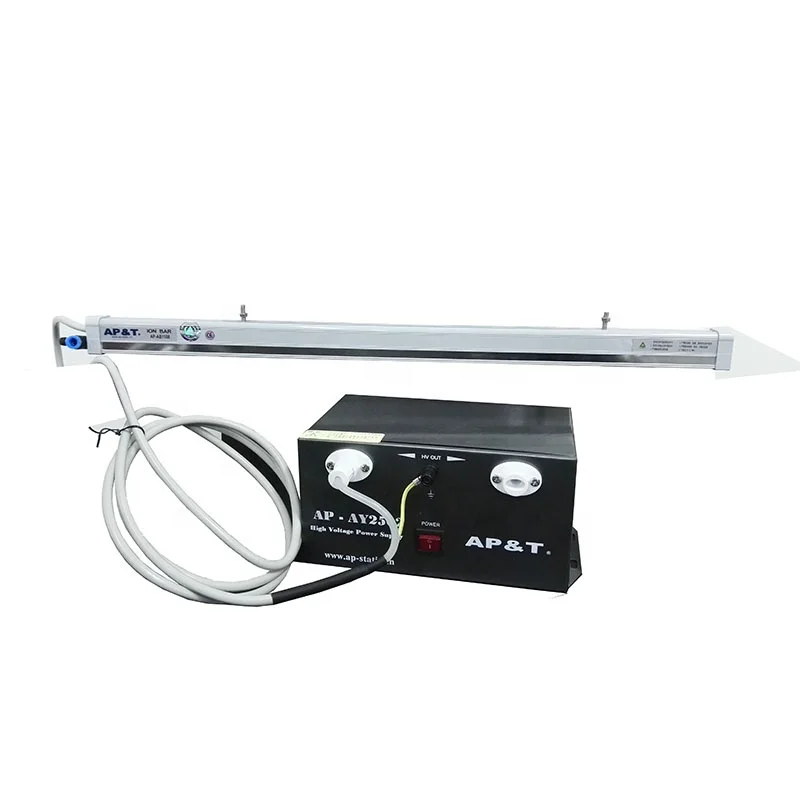

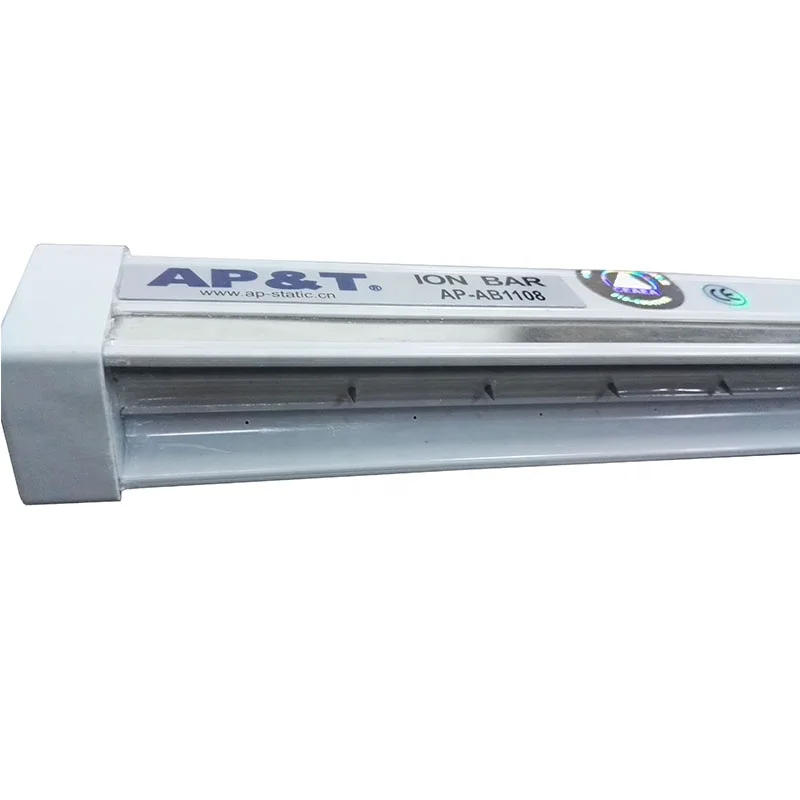

AP AB1108 3 anti static electricity discharge charge stick

Product Overview

Description

Specification

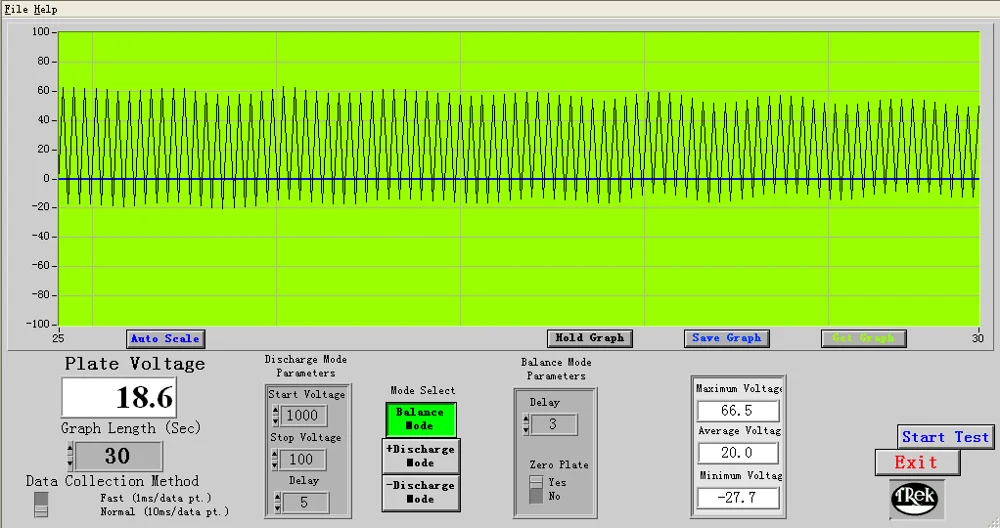

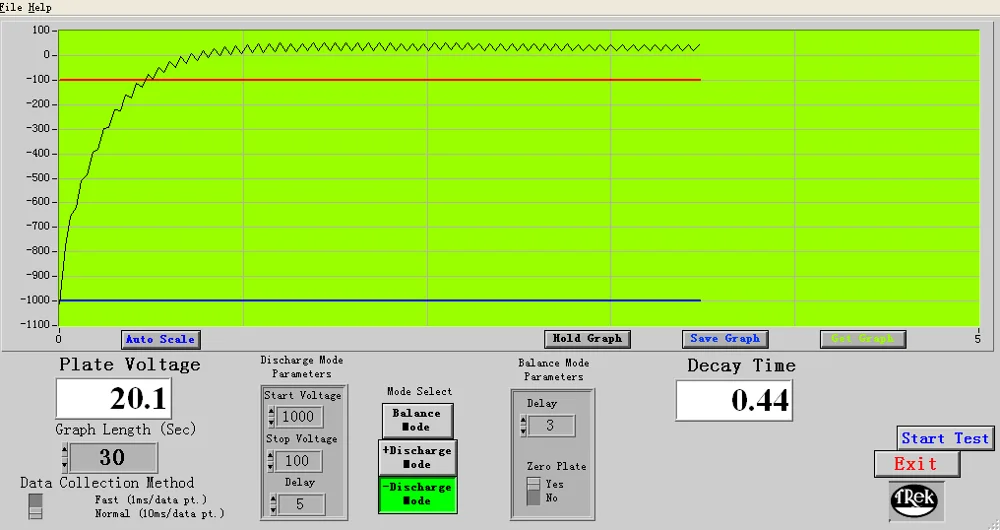

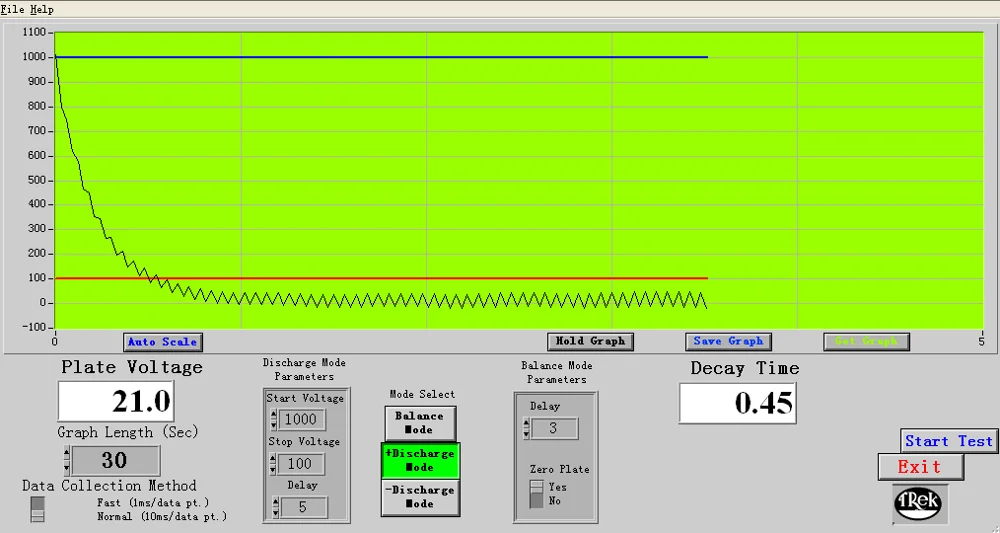

Effect of electrostatic elimination

Test environment (Distance:300mm Length of Ionizing Bar:350mm,airflow pressure0.3MPa)



Testing Standard:ANSI/ESD.STM3.1,ANSI/ESD.SP3.3,SJ/T 11446—2013

Test Instrument: Trek157

Test Voltage:±1000V → ±100V Attenuation

Test Environment: Humidity 50 ± 5%; Temperature 23 ± 3 ℃



Security Warning

 1. Please read the instructions carefully before installing and using this equipment.

 2. The working input power ground of the power box must be reliably connected to the grounding line of the power supply line.

 3. The equipment should not be used in the environment with more than 70% humidity.

 4. Use the equipment in flammable and explosive environment is strictly prohibited.

 5. Internal maintenance and repair must be carried out by professionals.



Use and installation

Installation instructions:

(1) Select the best power dissipation position and install the rod body and the matching high voltage power supply firmly.

(2) Insert the high-pressure connector on the rod body into the high-pressure output connector of the matching high-voltage power supply.

(3) Connect the earthing port on the rod body to the earthing stud of the high-voltage power supply.

(4) Connect the air source connector on the rod body to the air source generator and turn on the air source switch.

(5) Turn on the power switch, the switch indicator is on to show the power work, adjust the appropriate air source pressure, make the positive

and negative air ions generated at the electrode needle, to neutralize the static electricity on the surface of the object.

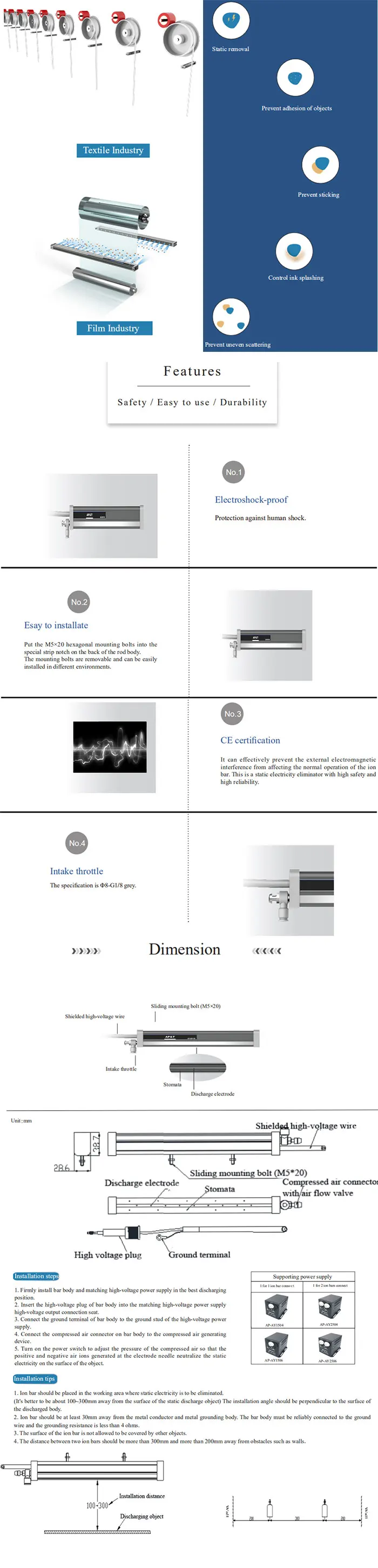

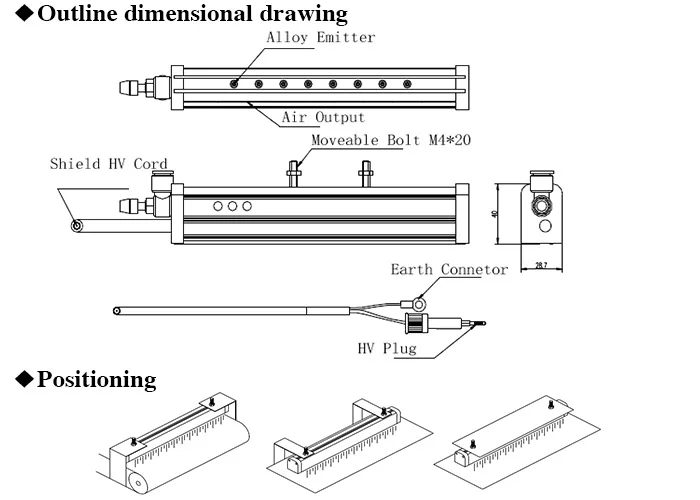

Installation diagram:



4. Technical tips:

(1) When using an ion bar, it should be placed in a static-dissipating work area (50~500mm from the surface of the static-dissipating object)Preferably,

the mounting angle should be perpendicular to the surface of the charged body.

(2) The ion bar should be placed away from the metal conductor and the metal grounding body, and the rod must be reliably connected to the grounding wire.
