low cost robotic 6 Axis loading arm, pickup and place robot

Name: low cost robotic 6 Axis loading arm, pickup and place robot
SKU: 60866746424
Availability: InStock

Price:

Quantity:

Robot Arm 6 Axis Pick Up Manipulator 10KG/50KG Load Industrial Robot Price

Whatsapp & Tel are available to contact me for quick response

Name:Mr. Brian Chan
Tel/Whatsapp: +86 18680389568

Wechat: willsteed

Descriptions:

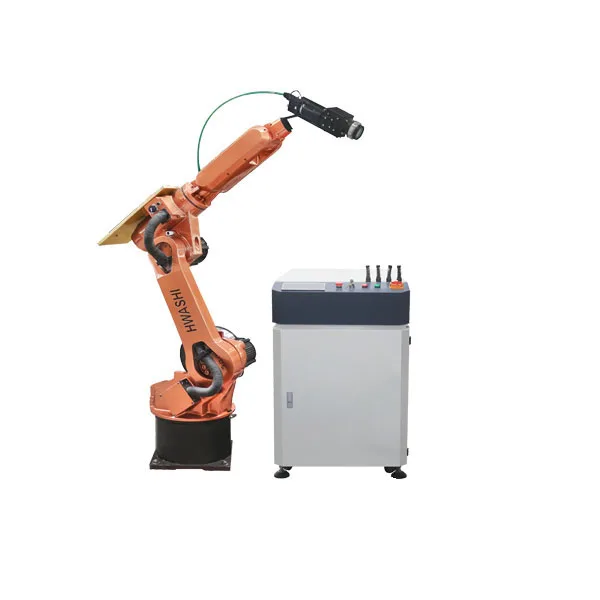

A (3).jpg

Vertical Reach	To mounting face	885mm
Vertical Reach	To wrist center	820mm
Axis Rotation	J1	±175°
	J2	+64°/-142°
	J3	+165°/-73°
	J4	±178°
	J5	±132°
	J6	±720°
Max Horizontal Reach	1722mm
Allowed torque	J4	42 N*m
	J5	42 N*m
	J6	20 N*m
Allowed Inertia	J4	1.18 kg . m
	J5	1.18 kg . m
	J6	0.5 kg . m
Environment	Temperature	0-45℃
	Humidity	20~80% RH(no condensation)
	Other	Keep away from: Flammable/corrosive gases Flammable/corrosive Solvents Water or oil and powder dust Sources of electric noise
Weight		200-250 kg
Safety Regulations Arm		IP65
Safety Regulations Electric cabinet		IP43

6 Axis Robot Arm Structure.jpg

Robot application.jpg ROBOT

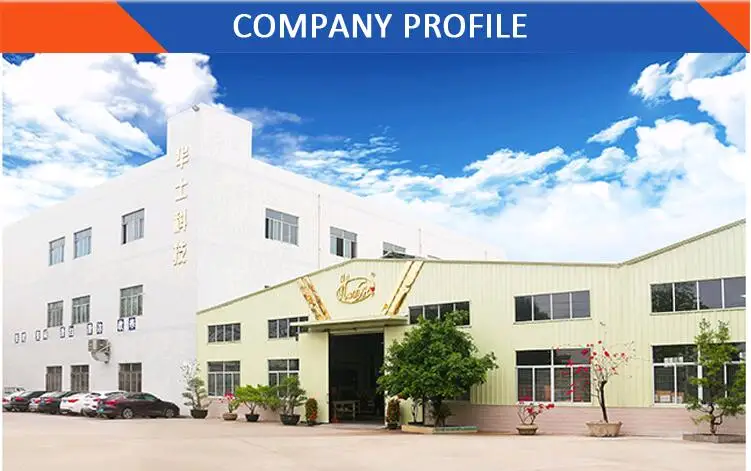

Com

$_{}KJKKEAZH[W]2ZBM7GM45$

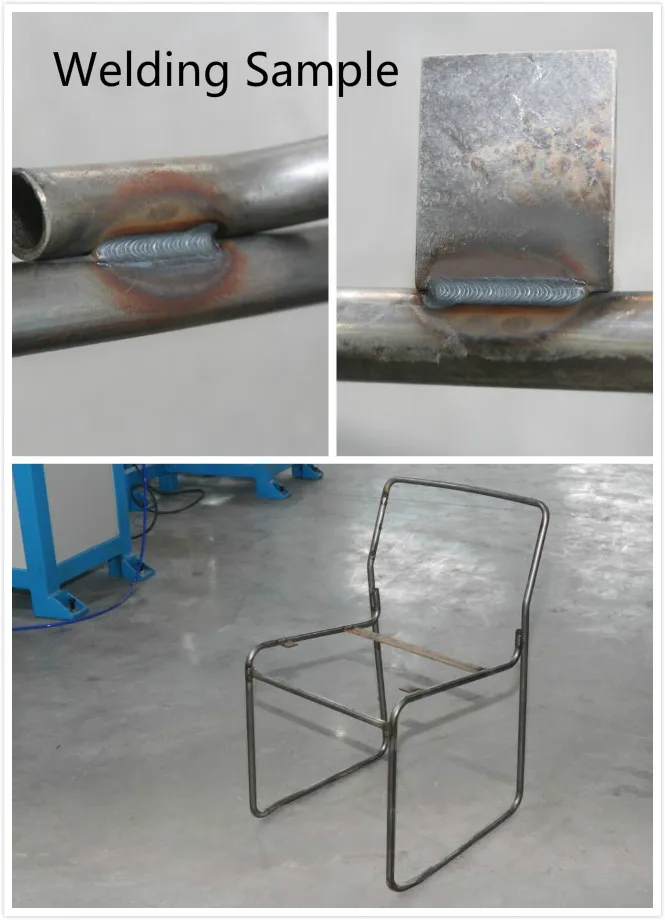

Welding sample 1.jpg

Any questions or request, please let me know, I am sure to help!!!

contact info-Brian
