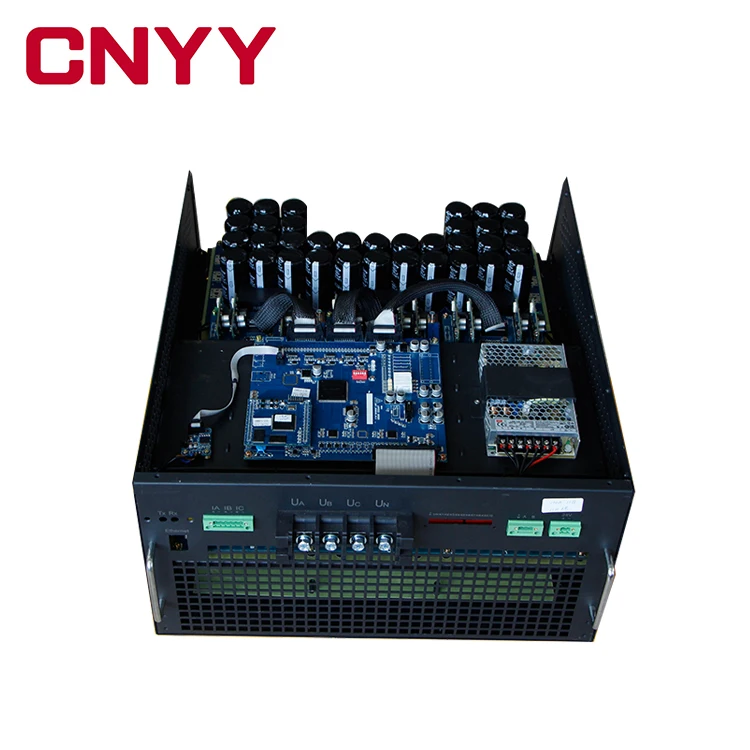

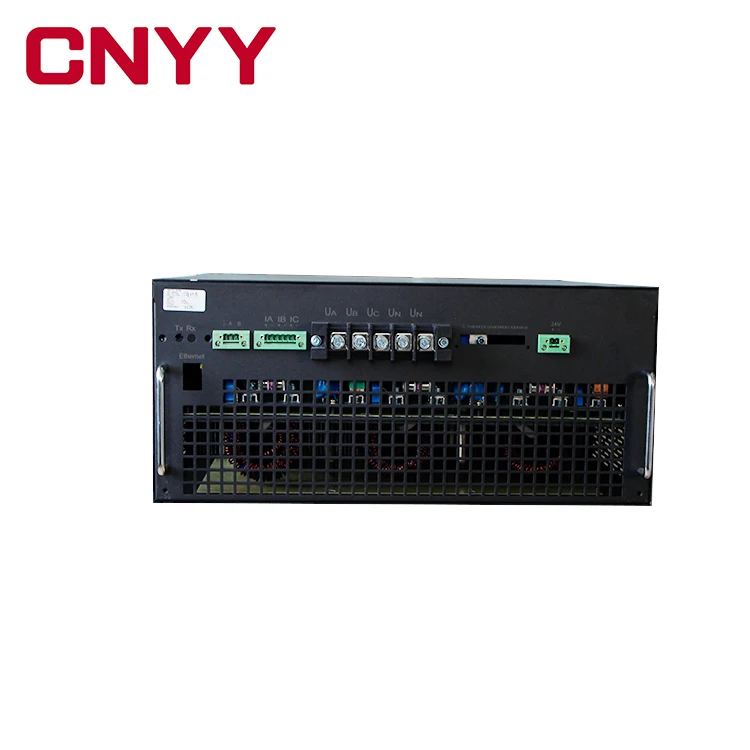

Industrial Active Power Filter module design APF 50A~400A

Product Overview

Description





Performance

		APF (A)					SVG (kvar)
Specification	Horizontal block specification	30	50	75	100	150	30	50	75	100
	Module size (W*H*D) (Note 1)	500*220*550		500*260*580			500*220*550		500*260*580
		\\					\\
	Parallel number	8
Input	Operating Voltage	400V/690V (-20% ~ +15%)
	working frequency	50Hz (-10% ~ +10%)
	Current Transformer	100:5 ~ 10000:5
Output (width*depth)(Note 2)	800*800 cabinet	Power ≤ 150A					Power ≤ lOOkvar
	800*800 cabinet	Power ≤ 300A					Power ≤ 200kvar
	800*800 cabinet
	800*800 cabinet	Power < 900A					Power ≤ 600kvar
Features	Compensation harmonic	2-50 times					2-13 times (50% of rated current)
	Harmonic filtering rate	>97%
	Compensation for reactive power	-1~+1 adjustable
	Compensation for three-phase imbalance	100% imbalance full compensation
communication	communication method	RS232, 485, Modbus protocol, TCP/IP optional
protocol	Wanted interface	Rs485, network port
	PC software	Yes, all parameters can be set by the host computer
	error alarm	Yes, up to 500 alarm messages can be recorded
	monitor	Support independent monitoring of each module /  centralized monitoring of the whole machine
technology	Full response time	<10ms
index	Active loss	<2.5%

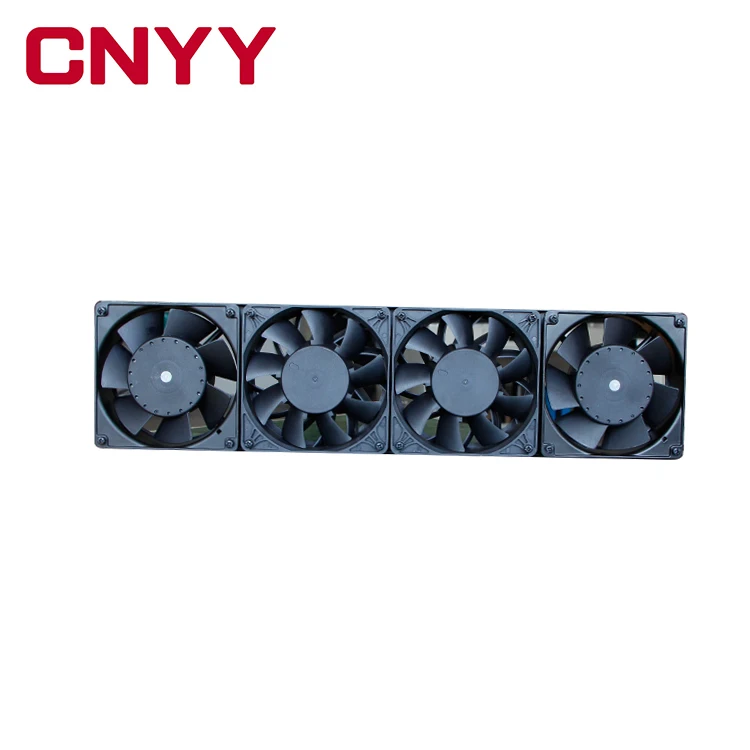

	Heat dissipation method	Intelligent air cooling
	noise	<60dB
	Sampling/control frequency	160kHz
	Equivalent switching frequency	80kHz
	Current loop cutoff frequency	4kHz
	Protective function	Over 20 kinds of protections such as overvoltage, undervoltage,overheating, overcurrent, short circuit, etc.
	CT installation location	Load side / grid side optional

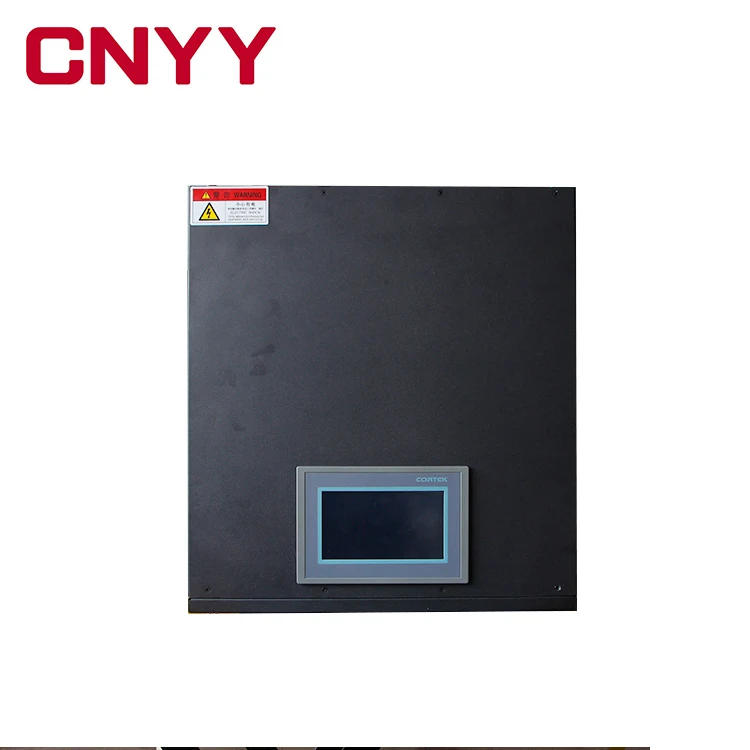

Mechanical properties	Wall size	Wall mount is the same size as the module
	Module weight	25kg ( <=75A/50kvar) 50kg ( > = 100A/100kvar)
	colour	Fine orange pattern, national standard 7035
surroundings	Operating temperature	-10°C~+45°C
Claim	altitude	<5000 meters(1000 meters or more, 1% reduction in power per 100 meters)
	Relative humidity	<95% non-condensing
	Protection level	Ip20 (more protection level can be customized)

Industrial Active Power Filter module design APF 50A~400A



Note 1: For intermediate modules, you can select the appropriate size for different cabinet widths.



Note 2: The height of the cabinet is 2200mm by default. Each module in the cabinet is equipped with a circuit breaker for each module to expand the power in the future.
