 ZW7-40.5KV outdoor vacuum circuit breaker (VCB) is applied to control and protect oursooe 35KV power transmission.

Rated Voltage: 40.5KV

Rated Current: 1600A/2000A

Rated Short Circuit Breaking Current: 25KA/31.5KA

Mechanical Life: 10000 times





  • Model: ZW7-40.5
  • Rated voltage : 40.5 KV
  • Rated current: 1250A
  • Rated short-circuit breaking curent : 25KA
  • Lightning impulse withstand voltage (peak): 185 KV
  • Operation sequency: 0-0.3S-CO-180S-CO
  • G.Weight : 800 kgs
  • Package dimension : 2700 x 800 x 2550mm
  • Rated short-circuit duration : 4 S
  • Spring operation mechanism
  • Frequency : 50/60 Hz
  • Operation voltage : 220V

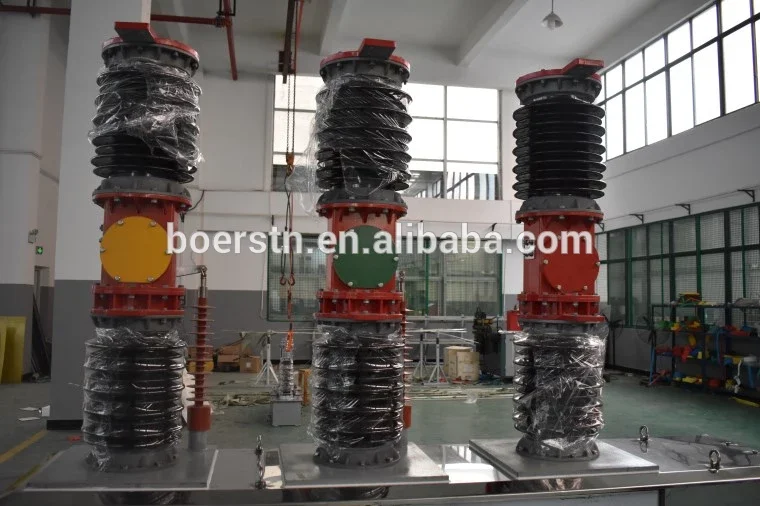

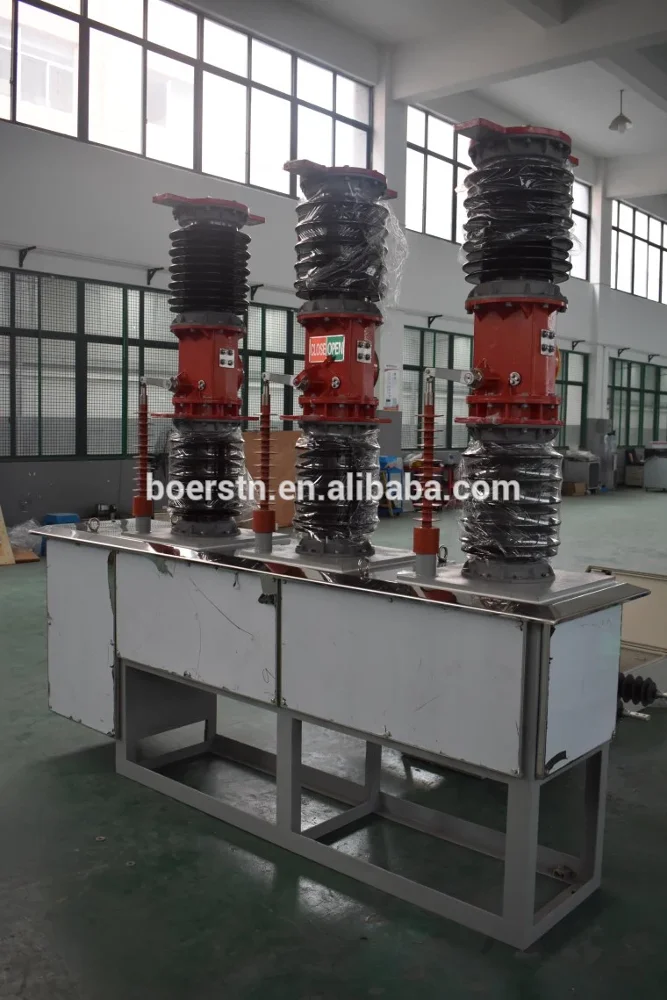

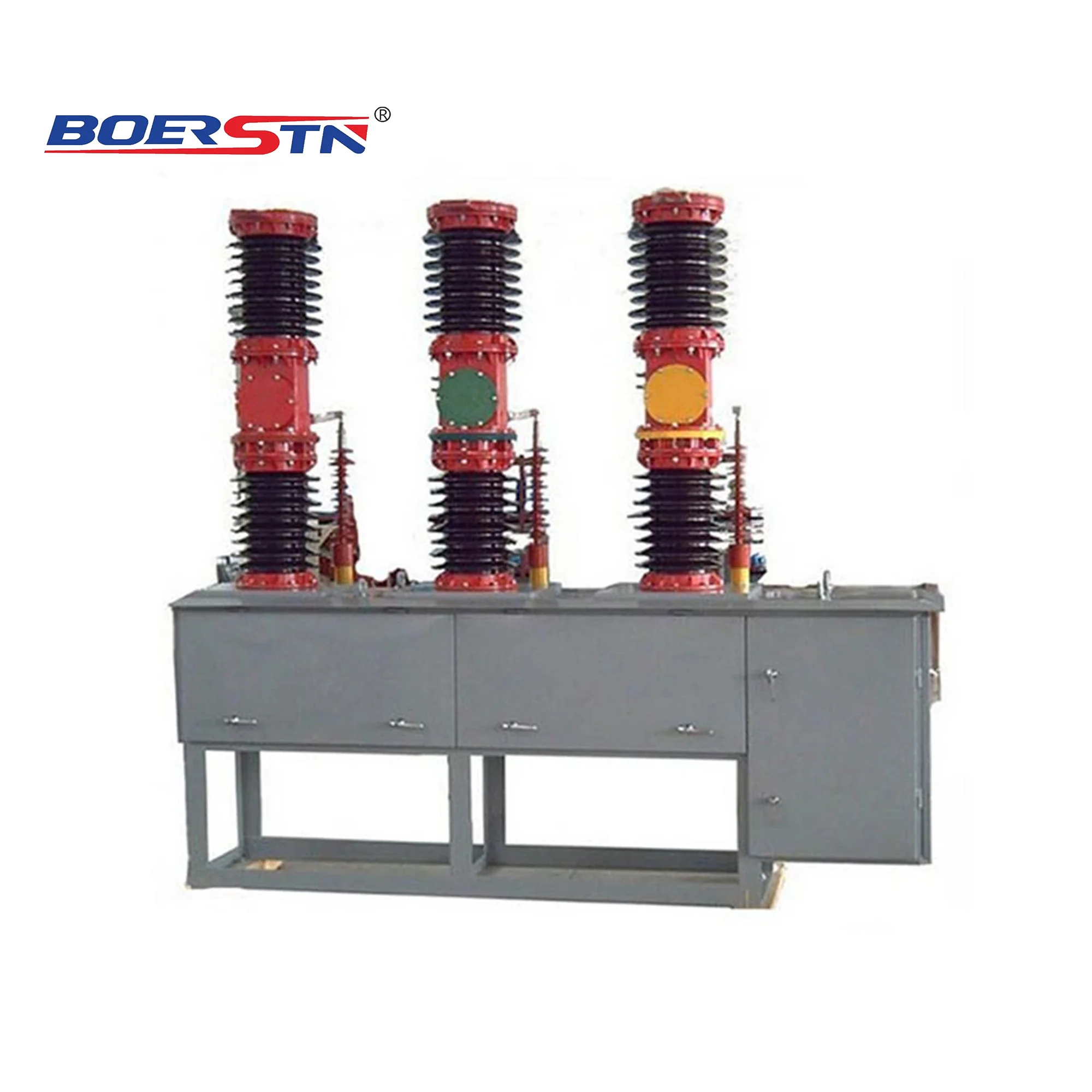

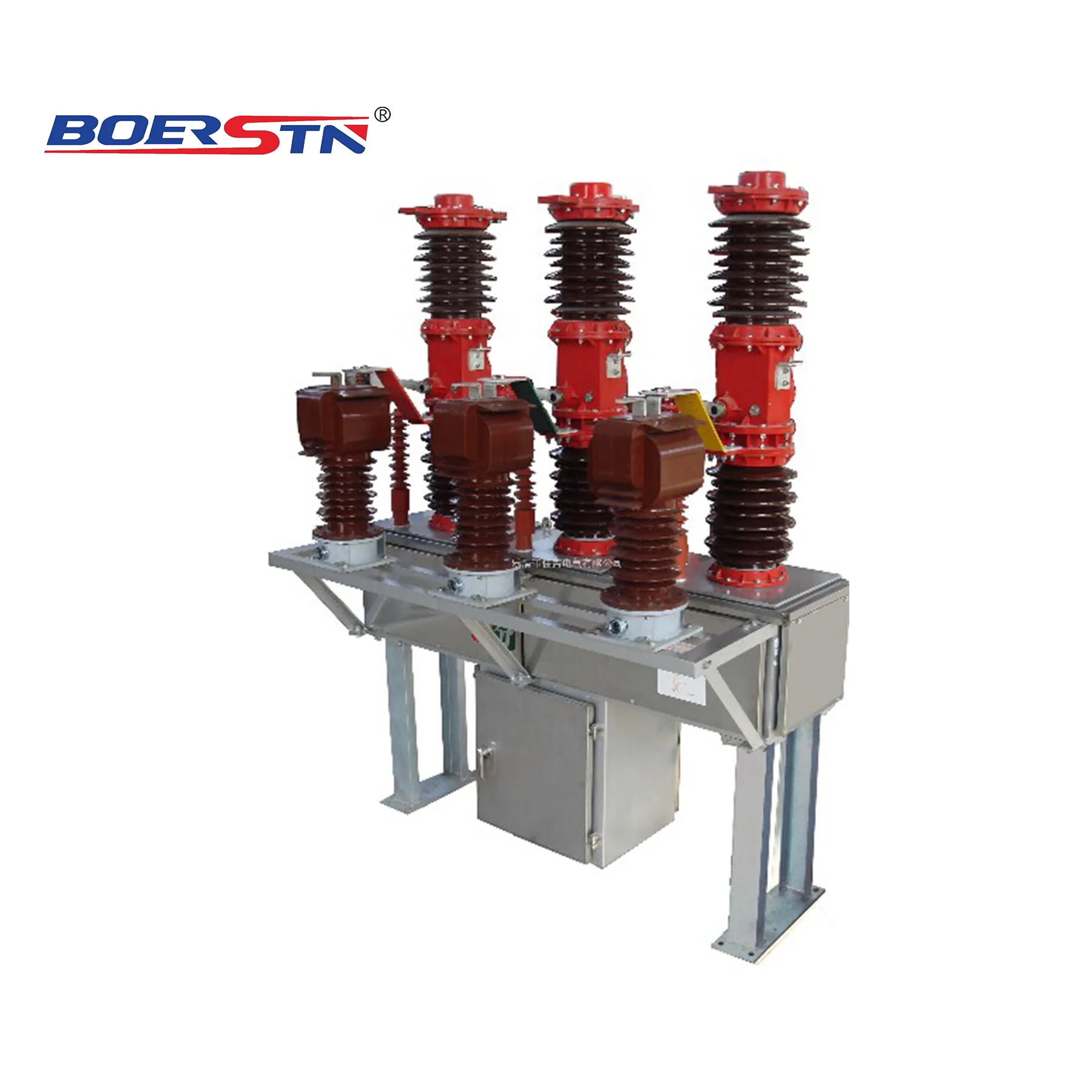

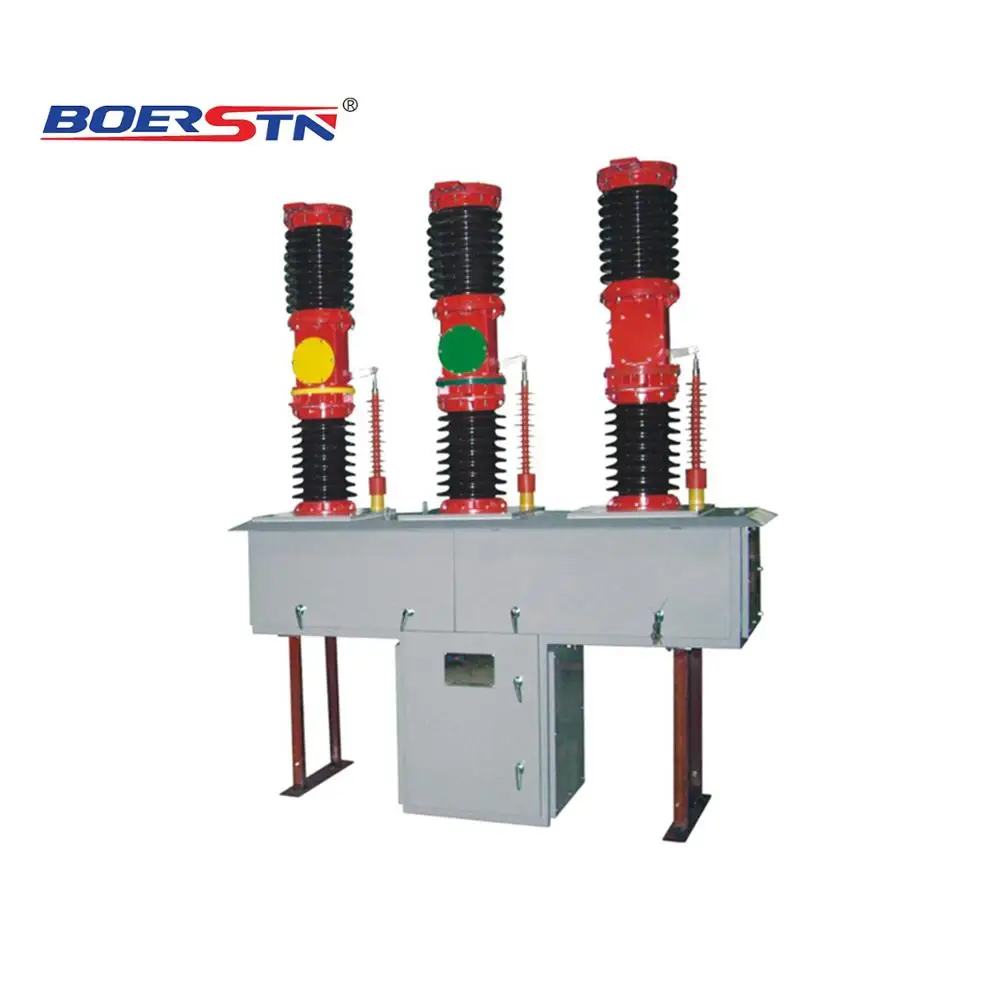

Product Picture







Technical Data



No. Item  UnitData
 1 Rated voltageKV40.5
2Rated currentA1250,1600,2000
3Rated frequencyHZ50

4

Rating short-circuits drop-out currentKA20,25,31.5
5The rating short-circuits the pass to gather the electric current (peak value)KA 50,63,80
6Fixed peak value withstanding electric currentKA
7Fixed short-time withstanding electric current KA20,25,31.5
8Fixed operation voltage and assistance return route rated voltage VJunction, direct current
220,110
9Fixed operation sequence off ~0.3~ on/off~180S~ on/off
10The rating short-circuits the durations4
11Mechanical lifetimes10000
12Sound of something astir contact permission attrition thicknessmm3
13Weightkg800
