AH711 24 hour Din Rail Square Battery Mechanical Timer Switch with CE
- Category: Industrial Controls >>>
- Supplier: Wenzhou Elsine Electric Co. Ltd.
Share on (60870305643):
Product Overview
Description
AH711 24 hour Din Rail Square Battery Mechanical Timer Switch with CE
Product Description
Application:
The AH711/710 analog time switches are designed to be mounted inside a control panel and can accommodate surface or flush panel mounting. The AH711/710 analog time switches is a light duty commercial time switch for 110-240V single-phase applications.
Technical data:
Type | AH711 |
Operating voltage | 110V-240V AC |
Frequency | 50-60 Hz |
Number of channels | 1 |
Width | 4 modules |
Installation type | surface / flush panel / control panel |
Type of connection | Screw terminals |
Drive | Quartz-controlled stepper motor |
Program | Daily program |
Power reserve | 200 hours |
Max. switching capacity at 250 V AC, cos φ = 1 | 10 A |
Max. switching capacity at 250 V AC, cos φ = 0.6 | 3 A |
Incandescent/halogen lamp load | 600W |
Energy saving lamps | 100W |
LED lamp < 2 W | 20W |
LED lamp > 2 W | 100W |
Shortest switching time | 10 min |
Programmable every | 10 min |
Number of switching segments | 144 |
Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
Type of contact | Changeover contact |
Switching output | Potential-free and phase-independent |
Power consumption | 1.5 VA |
Test approvals | CE |
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
Type of protection | IP 20 |
Protection class | II in accordance with EN 60730-1 |
Ambient temperature | –10 °C ~ +50 °C |

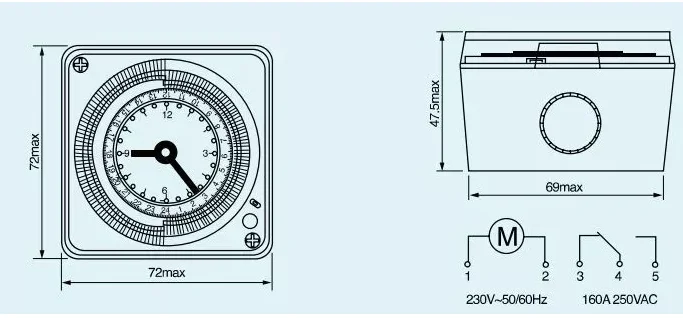

Outline dimension and wiring connection diagram:
Related Products
Packaging & Shipping
Company Information
Certifications
FAQ
Q 1. What's the payment term?
A. We accept T/T, L/C, Western Union, Cash
Q 2. What's the delivery time ?
A. Usually it would take about 25 days for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q 4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality, copper coil with silver contact.
Q 5. Do you accept OEM and ODM business?
A. We do,for OEM service please send us your authorization, also your quantity should large enough.
Q 6. Could you offer certificate of origin?
A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
