Cinterio TC35/TC35i/TC63i/TC65/TC65i/TC75i/MC35/MC35i/MC39/MC39i/MC52i/MC55/MC55i/MC45/MC46/MC75/MC75i modem

Product Overview

Description

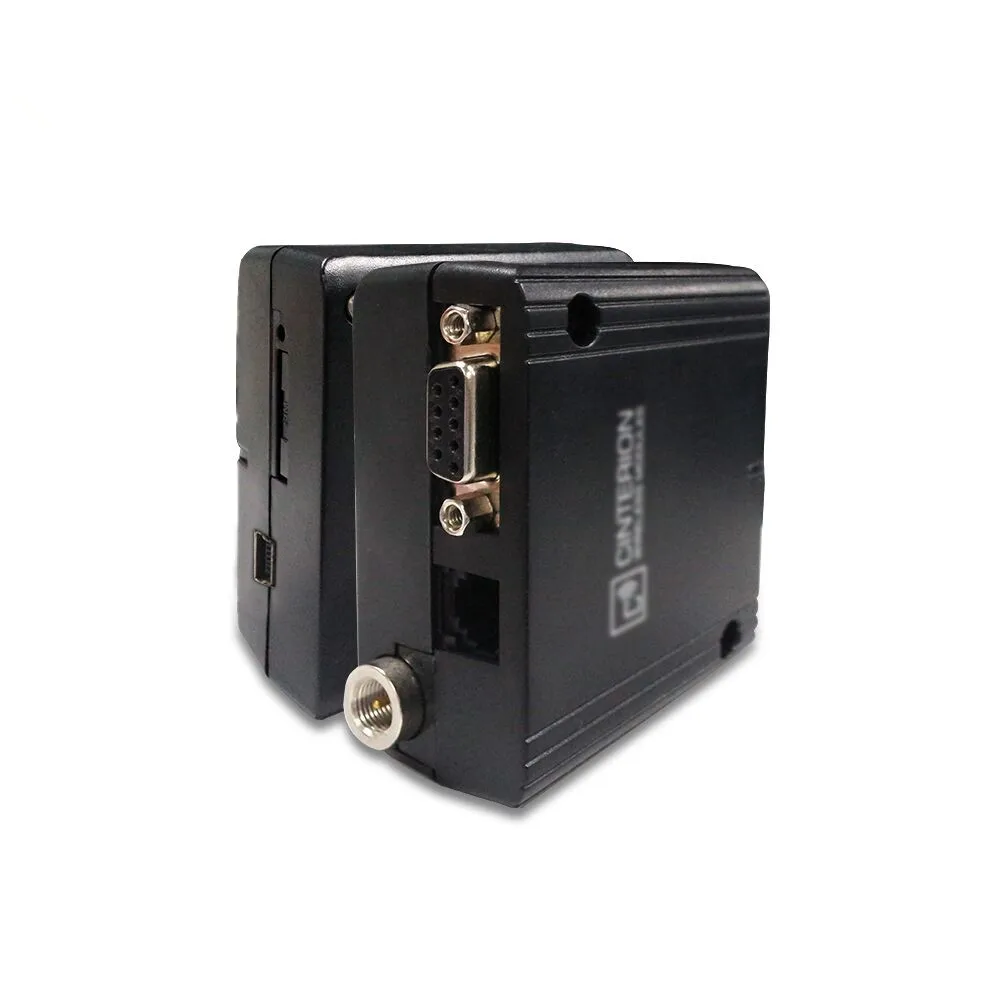

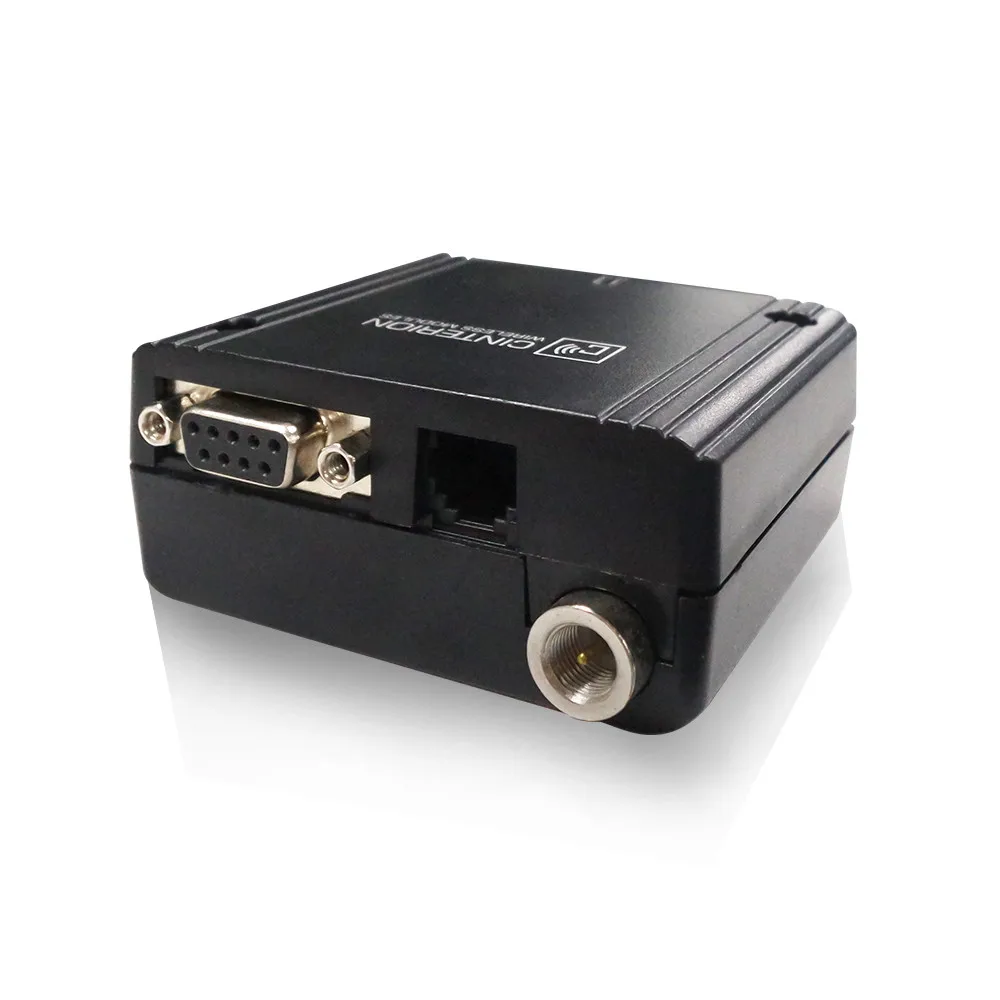

Cinterion mc55i Terminal GSM Modem

Cinterio  TC35/TC35i/TC63i/TC65/TC65i/TC75i/MC35/MC35i/MC39/MC39i/MC52i/MC55/MC55i/MC45/MC46/MC75/MC75i modem



General features

Industrial design
Aluminum casing
Wireless access to internet
Based on Cinterion(Siemens) module MC55i
with TCP/IP stack
Internet Services: PPP,TCP, UDP, HTTP, FTP, SMTP, POP3
850/900/1800/1900MHZ
Compliant to GSM phase 2/2+
Output power:
Class 4 (2 W) for EGSM850-1800
Class 1 (1 W) for GSM900-1900
Control via AT commands
SIM Application Toolkit
Supply voltage range: 7-30 V
Temperature range
Normal Operation: -20°C to +70°C
Restricted Operation: -25°C to +75°C
Switch off: +80°C
Storage: -40°C to +85°C

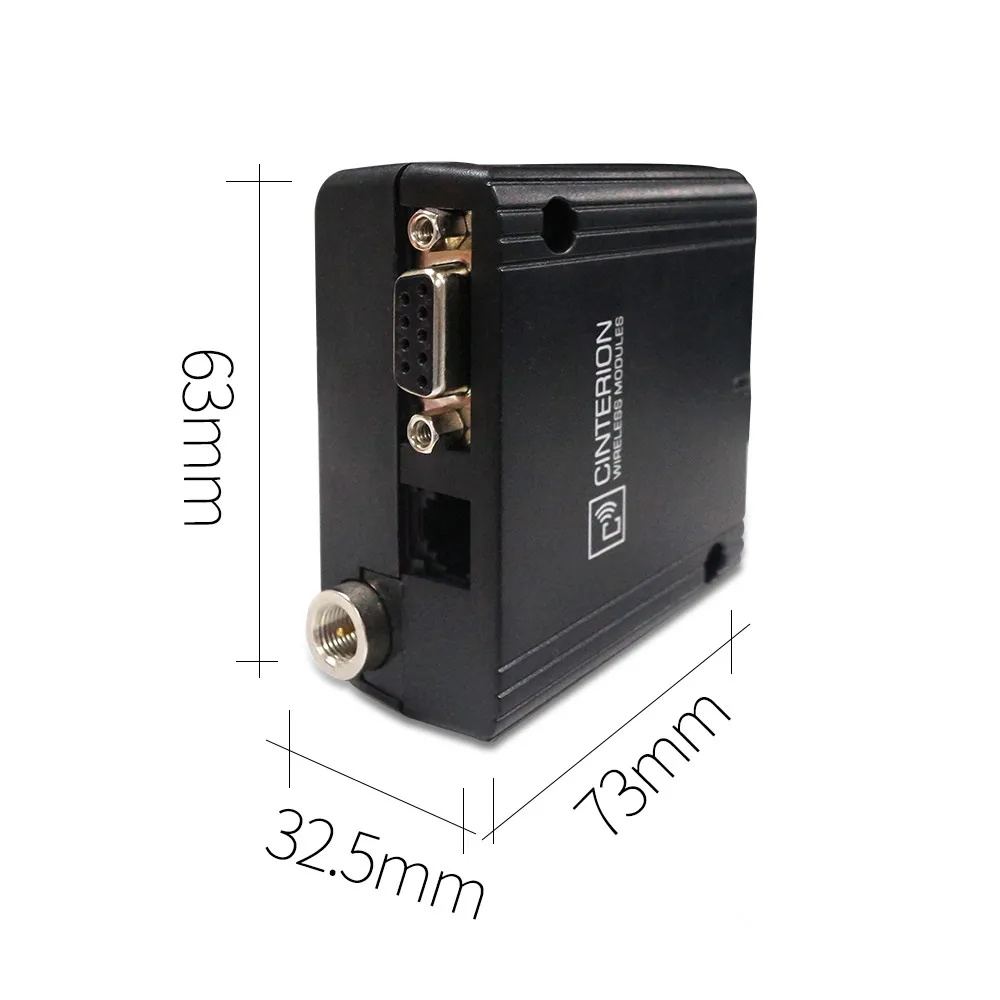

Size 65*74*33mm
Weight 95g

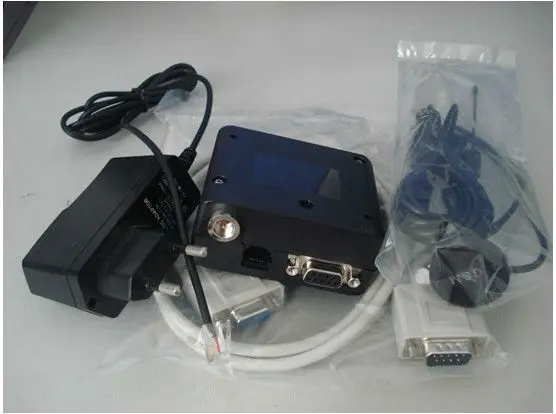

Accessories: AC/DC adaptor, RS232 cable, antenna with 3-meter cable and
magnetic stand
Specification for GPRS data transmission
GPRS class 8: max. 85.6 kbps (downlink)
Mobile station class B
PBCCH support
Coding schemes CS 1-4
Specification for CSD data transmission:
Up to 14.4 kbit/s
V.110
Non-transparent mode
USSD support
Specification for SMS
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode
Specification for fax
Group 3, class 1, 2
Specification for voice
Triple-rate codec for HR, FR and EFR
Basic hands-free operation
Echo cancellation
Noise reduction
Interfaces
Antenna connector FME (male)
Plug-in power supply
Handset audio interface
Mini-SIM card reader
V.24/V.28 interface on the 9-terminal
Sub-D socket
Operating status LED



\\
