CNC automatic feeding pneumatic programmable wood turning lathe machine
- Category: Wood Lathe >>>
- Supplier: Foshan City WEHO Machinery Co. Ltd.
Share on (60871859266):
Product Overview
Description
Products Display

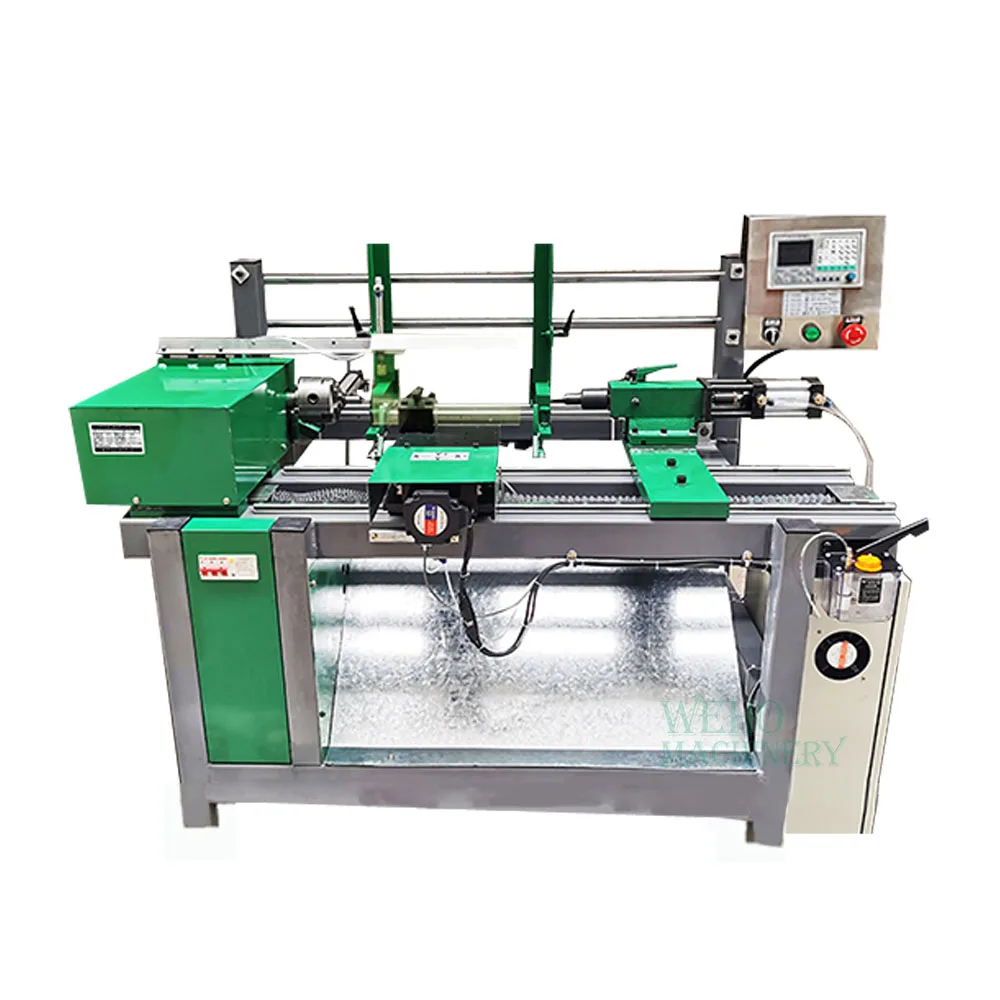

CNC automatic feeding pneumatic programmable wood turning lathe machine
The programmable automatic feeding woodworking lathe can process the strip wood of 60cm in length and 8cm in width into table foot, sofa foot, chair, rolling pin, etc
Product Paramenters
Model | WH-60 |
Feeding mode | Automatic feeding |
Working diameter | 8cm |
Working length | 60cm |
Machining accuracy | 0.01mm |
Motor power | 2.3kw |
Machine dimensions | 2500*660*1200mm |
Weight | 400kg |

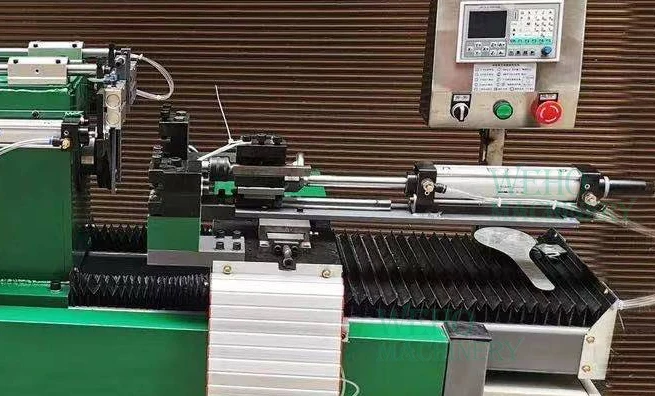

Details Images
Tail design
Multi function automatic feeding CNC lathe can use round or square materials

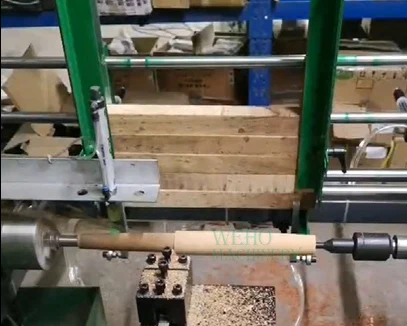

Feeder
Multi function automatic feeding CNC lathe can use round or square materials.
Material
80 * 80 national standard square pipe, with
thickness of 6mm and stable guarantee.
thickness of 6mm and stable guarantee.

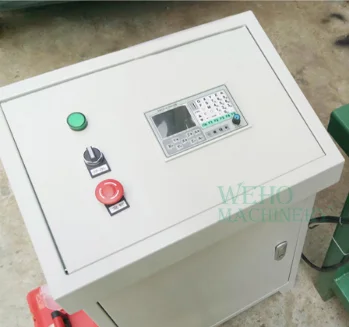

Switch
Magnetic start key position can be placed at will, vector converter can be selected.

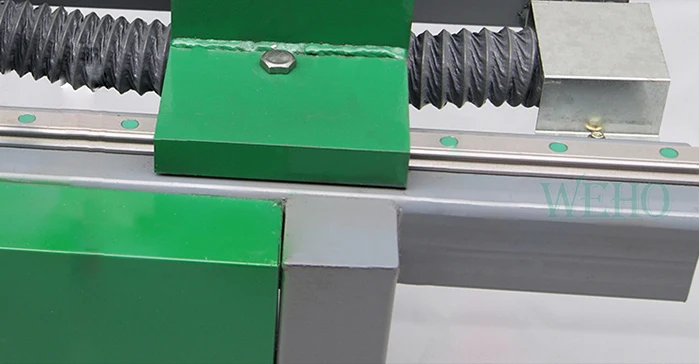

Lead screw design
Maintain the accuracy of the ball screw, reduce
sawdust and dust pollution, improve the service life of more than 5 times.
sawdust and dust pollution, improve the service life of more than 5 times.
TBI ball screw
Model：SFUR16140
Accuracy：±0.01mm
Advantage：High precision, low noise, high stability.
Accuracy：±0.01mm
Advantage：High precision, low noise, high stability.
TRH linear guide
Model：TRH20B
Accuracy：±0.01mm
Advantage：High precision, low drag 3D guidance
Accuracy：±0.01mm
Advantage：High precision, low drag 3D guidance
CNC lathes
The whole series of CNC lathes are upgraded to CNC digital controller control, which not only saves 1 control computer, does not need USB cable connection, has strong anti-interference, is more stable, does not need mouse and keyboard, is more convenient to operate, and is more suitable for factory work, with the use of intelligent code automatic generation software.

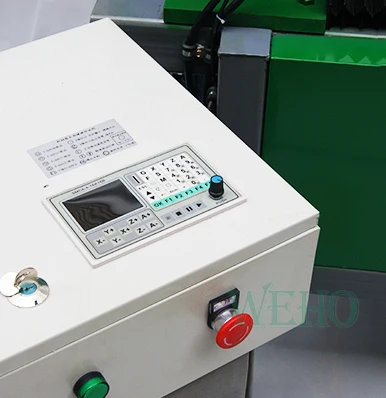

CNC system

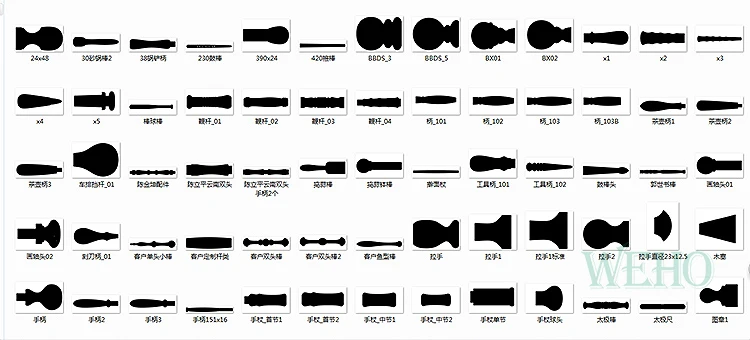

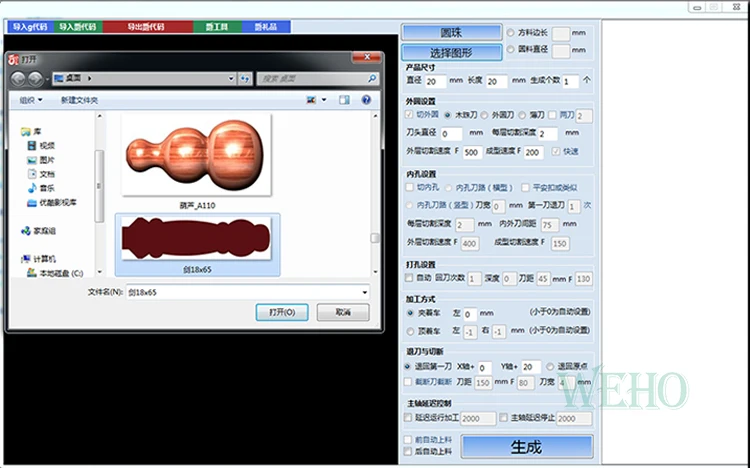

Import the following shape picture, input the required size and length, select the processing method and tool, the software can automatically generate the NC lathe processing program (G code). The processing Diamante is directly saved to the TF card, and the lathe processing is directly controlled by the controller.
Product Application
Package
Size | 2500x660x1200mm |
Size | 400KG |
Package | The optional package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Our Advantages
FAQ
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
Service contacting
Before buying, choose suitable model contact Whatsapp 00861337847781. After buying, technical supporting contact 008613326792205
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
Service contacting
Before buying, choose suitable model contact Whatsapp 00861337847781. After buying, technical supporting contact 008613326792205
