Product Overview

Description

waste tire recycling machine/rubber powder/waste tyre crusher

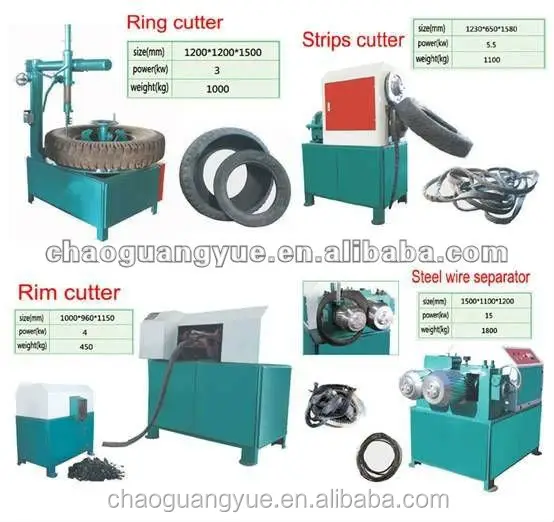

1.Ring cutter

   This machine mainly used to cut the sidewall of steel wire tire ,and then to the next step of segmentation .First, put the tire on the platform, then rotate the hand wheel , the three claws will stick the inner tire firmly ,Second ,Starting power,work platform will rotation ,cutting tool according to need to cut tire slowly step by step . until the tire side cut off.



Item	Specification
motor power	5.5
Speed of main screw	46.8  r/min
Max Diameter of tyre	1200mm
Dimension	1100*900*1700

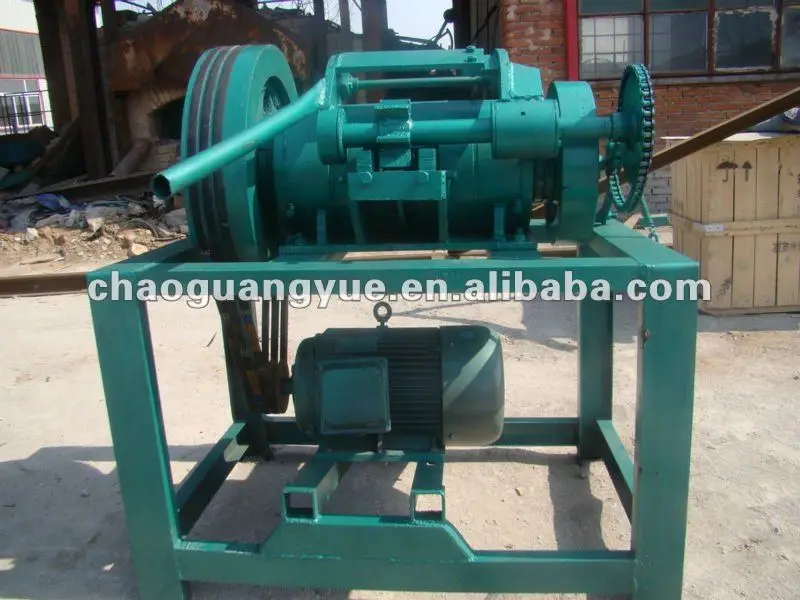

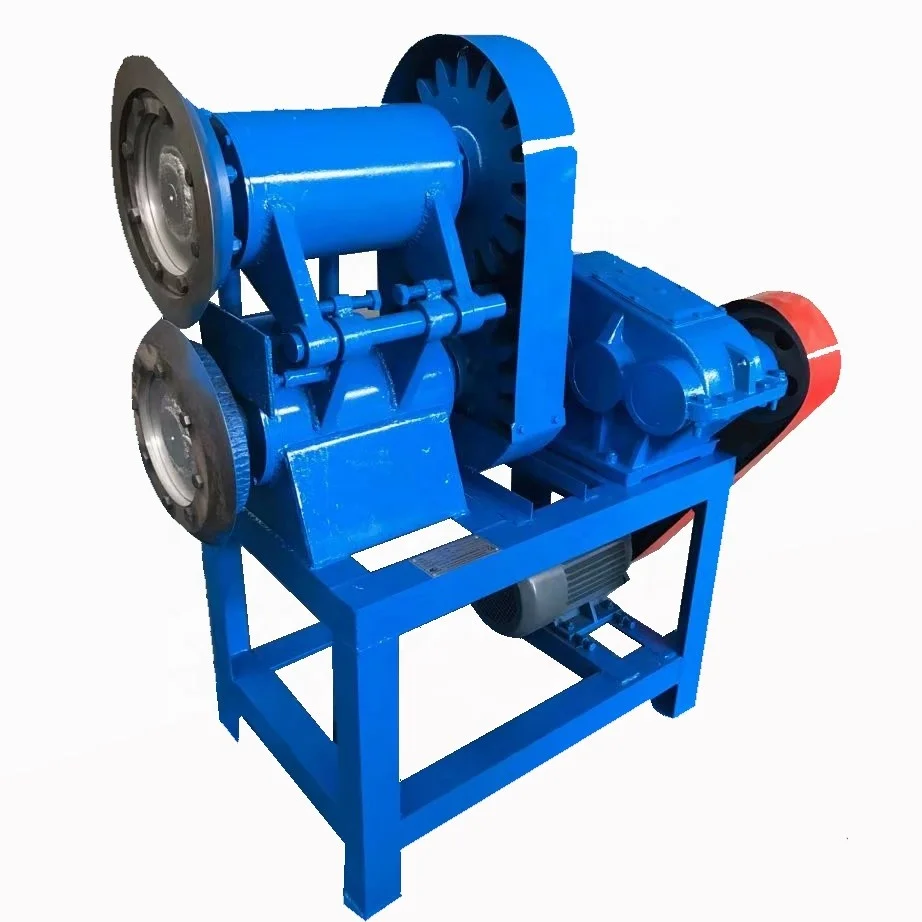

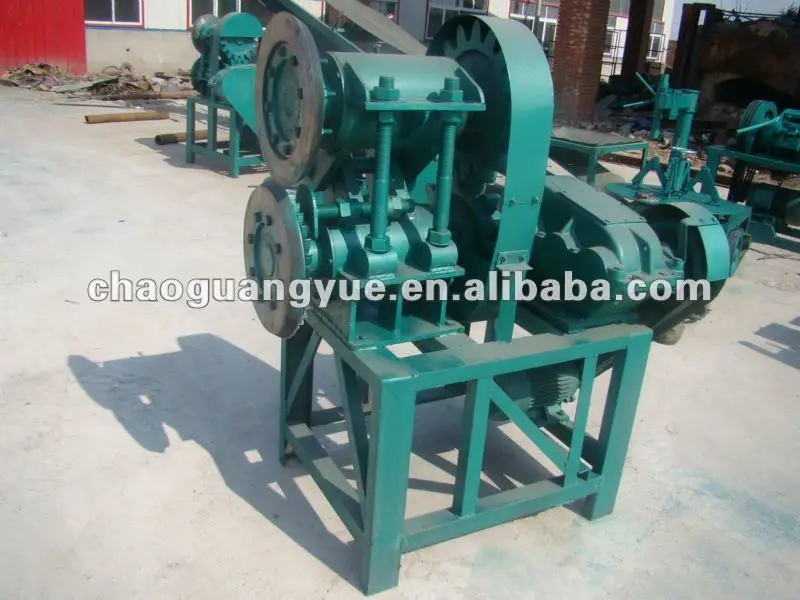

2.strips cutter

 strips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips ,and the width of the adjustable section .Two circular knives for special materials ,hard and durable , can be used repeatedly grinding for no more than 1200 steel tires.



Item	Parameter
Motor Power	5.5kw
Disc Diameter	380mm
Rotate Speed	18.4r/min
Dimension	1290*870*1550



3.Block cutter

 Block cutter is designed to cut car, truck and rear tractor tire. range is up to 120cm truck tires. the tire cutter adds flexibility to your total tire cutting system by providing you the opportunities of accepting tires up to 120cm into your system ,The unit also allows your system to cut 60-70 truck tires per hour or 120-150 car tires per hour.



Item	Specification
motor power	11kw
Speed of main screw	420 r/min
Out diameter of cutter	200mm
Dimension	1130*830*1100

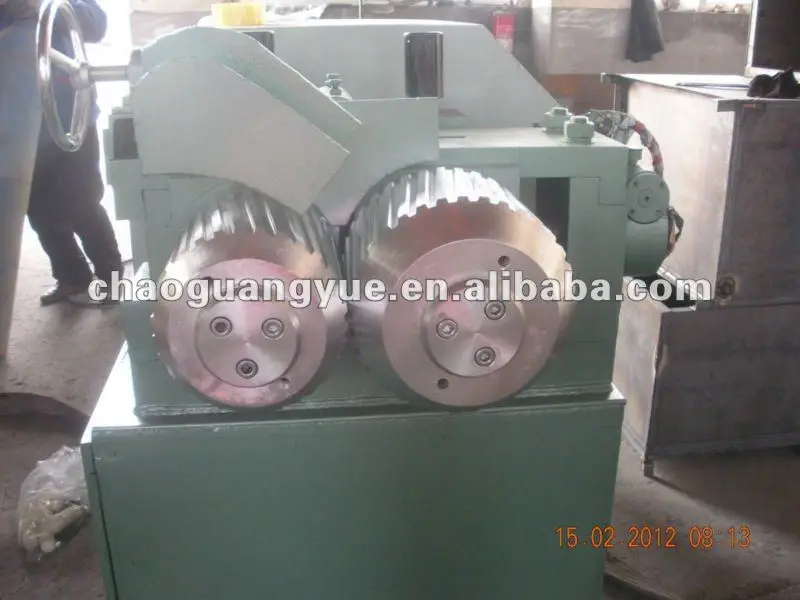

4.Bead wire separation

 Be utilized to separate rubber and steel wire of bead in order to get whole steel wire .

Feature:It is easy operation ,easy to be installed and maintained high efficiency and clean etc.



Item	Specification	Bead wire separation
Motor power	15 KW
Linear speed of front roller	15.5 m/min
Ratio of speed	1.1
Dimension	1520*1150*12101mm

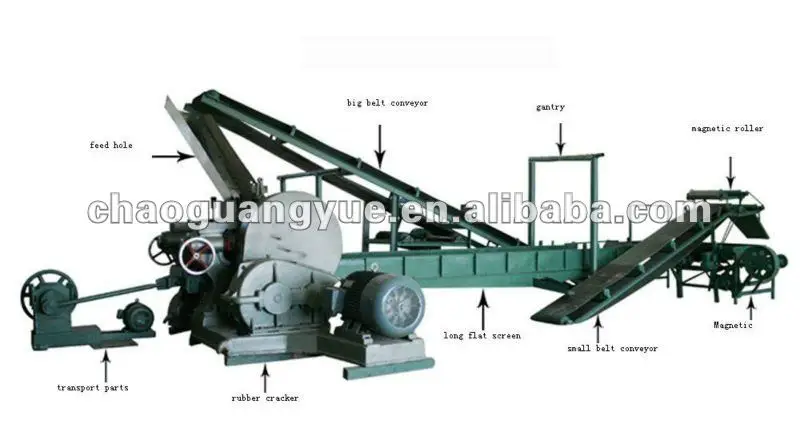

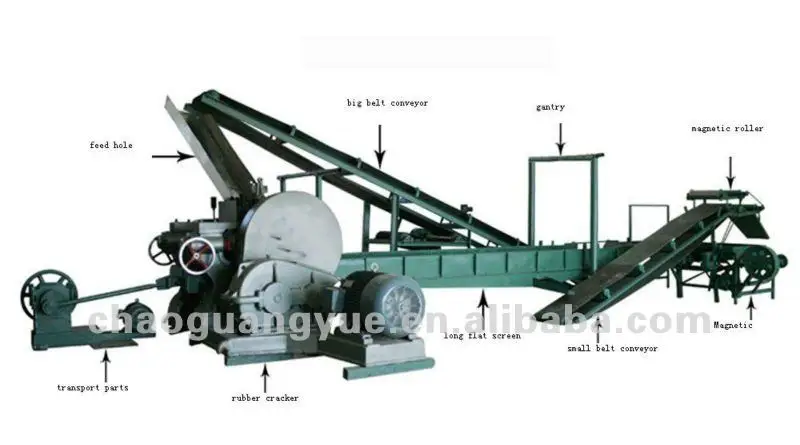

5.Tyre crusher

This machine is mainly used to crush waste tire and rubber .the structure is gear transmission



6. magnetic seperator and transportation
