Price:RUB 3.86 - RUB 73.22

Quantity:


Product Overview

Description

Speciafication







LED Price list & datasheet 5x7 Dot Matrix Display 3mm



Application:

1)       Semi-outdoor/outdoor or indoor using, elevators/lift, led strip display, clock display and other different display areas of digital instruments, display screen modules, mechanical & medical equipments.

2)       Customized LED Panel Displays: Application for household appliance, special using LED



LED Dot Matrix XH-12088 23088 7088 15088 Newshine-Justin.jpg

Specification/Parameter:

1)       Size Available: Φ3.0mm, Φ3.7mm, Φ5.0mm, Φ7.62mm, Φ10mm

Lens/Epoxy: Water Clear, Diffused color, Red color, Green color etc.

2)       Emitted Color Available

Single: Red, Orange, Yellow, Green, Blue, Yellowish-Green, White color LED

Bi-color: Red & Green, Red & Blue, Red & Orange, Green & Yellow etc.

RGB: Red & Green & Blue, Red/Yellow/Green etc. or other customized combination

3)       Characteristics:

  1. High luminous intensity output
  2. Low voltage and current operation
  3. Ultra-low power consumption, Solid-state lighting chips inside, SSL.
  4. IC compatible, easy mounting & installation on PCB/sockets
  5. Meet TUV ROHS certifications
  6. Providing free sample for testing for common models





Product Description

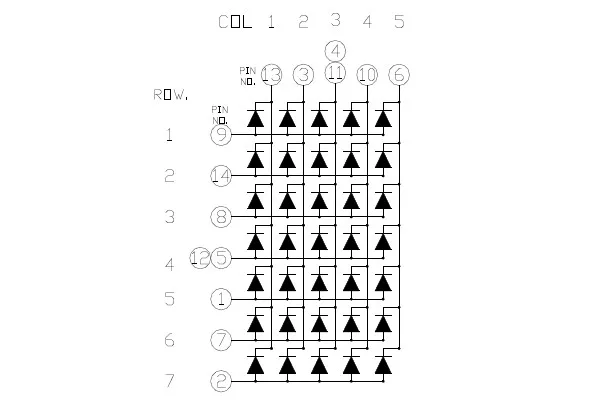

Size & Dimension/Pins Layout, Circuit Diagram of 3mm Single-color LED Dot Matrix 5*7 XH-12057

 XH-12057 3MM LED DOT MATRIX NEWSHINE SKYPE TIANRIYIWEI.jpgXH-12057 3MM LED DOT MATRIX NEWSHINE SKYPE TIANRIYIWEI Circuit Diagram.jpg















Related 5*7 5*8 8*8 16*16 LED dot matrix display component modules


[--1.9mm 8*8 LED Dot Matrix XH-7088, 2.0CM*2.0CM]





[--2.9mm/3.0mm 5*7 LED Dot Matrix XH-12057] Image as above.

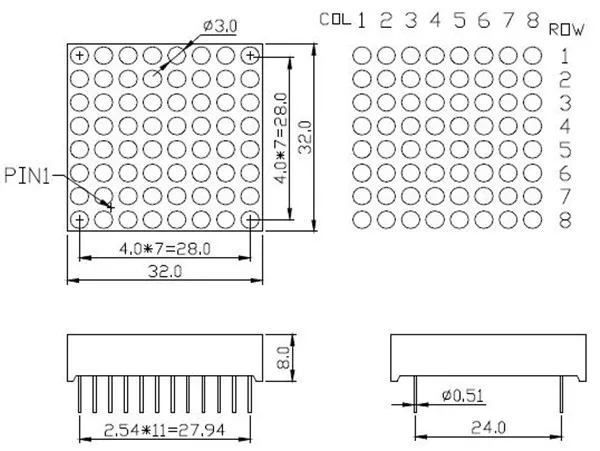

[3.0mm 8*8 LED Dot Matrix XH-12088, 3.2CM*3.2CM]





Company Information



Major technological process of NEWSHINE LED dot matrix/digit/alphanumeric displays

LED DISPLAY LED DOT MATRIX-NEWSHINE.jpgLED DISPLAY LED DOT MATRIX-NEWSHINE Manufacturing major equipment.jpg





Shipping Solutions with NEWSHINE

NEWSHINE Shipping method-dhl-fedex-tnt-ems-ups-express-courier.jpg

Also, by AIR/SEA are all available for future cooperation; Drop-Shipping supportable.

For more or any questions, contact us freely via EMAIL or other IM! Energy Saving Specialist—

SHENZHEN NEWSHINE OPTICS CO.,LTD





 Shenzhen Newshine Optics Co.,Ltd-------



[Energy Saving Specialist       *8*8/16*16/5*8/5*7 LED dot matrix/LED bulbs/led candle light/led light bulb/high power LED*]
