Garage Door Motor Kit Panel Lift Door Opener Garage Door Operator

Product Overview

Description

Tip-up Garage Door Motor Kit Panel Lift Door Opener Garage Door Operator



Garage door opener models:

Specifications:



· 433.92 Mhz frequency with rolling code (1.2 billion combinations)

· Input Voltage: 220~240V AC

· 24V DC 8N Motor

· Pulling Force: 600N/800N/1000N/1200N

· Rated Door Area: 10/12/14/16 sq.m.

·  Rail length: 3m, 3.3m,3.6m, 3.9m, 4.2m ; chain drive or belt drive

· LED Display Screen

· 24V Accessory Output

· Transmitter: 23A 12V Battery

· Working Temperature -20°C to +50°C

· Battery Backup: 24V 2.5Ah



Features:



1. Easy operation
to operate the door simply press the hand held transmitter or the wall mounted switch for two seconds and the door will automatically open or close.

2. Safety obstruction reverse
while the door is doing a closing cycle and it should hit an obstacle or be restricted in some manner, it will automatically reverse.

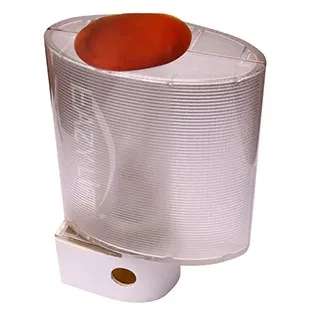

3. Automatic courtesy light
The courtesy light on the opener comes on automatically whenever the door is activated to do an opening or closing cycle. and the light will stay on for 3 minutes then turns off.

4. Security code store
the opener uses state of the Microchip technology in storing code, the remote control security code, up to 20 different transmitters can be stored in the non-volatile memory device.

5. Open and close drive button
O/S/C buttons, these buttons are used to set the open and close limit position, the quicker setting time and a more precise limit position can be achieved using this system.

6. Auto close mode
the opener can be programmed to automatically close about 30 seconds after the door has opened. A photoelectric beam must be installed if this mode is selected.

7. Photoelectric beam
the opener has an input for a photo electric beam to be connected for an extra safety protection.



Optional Accessories:
