gypsum board machine/gypsum board making machines
US $7500-$12000

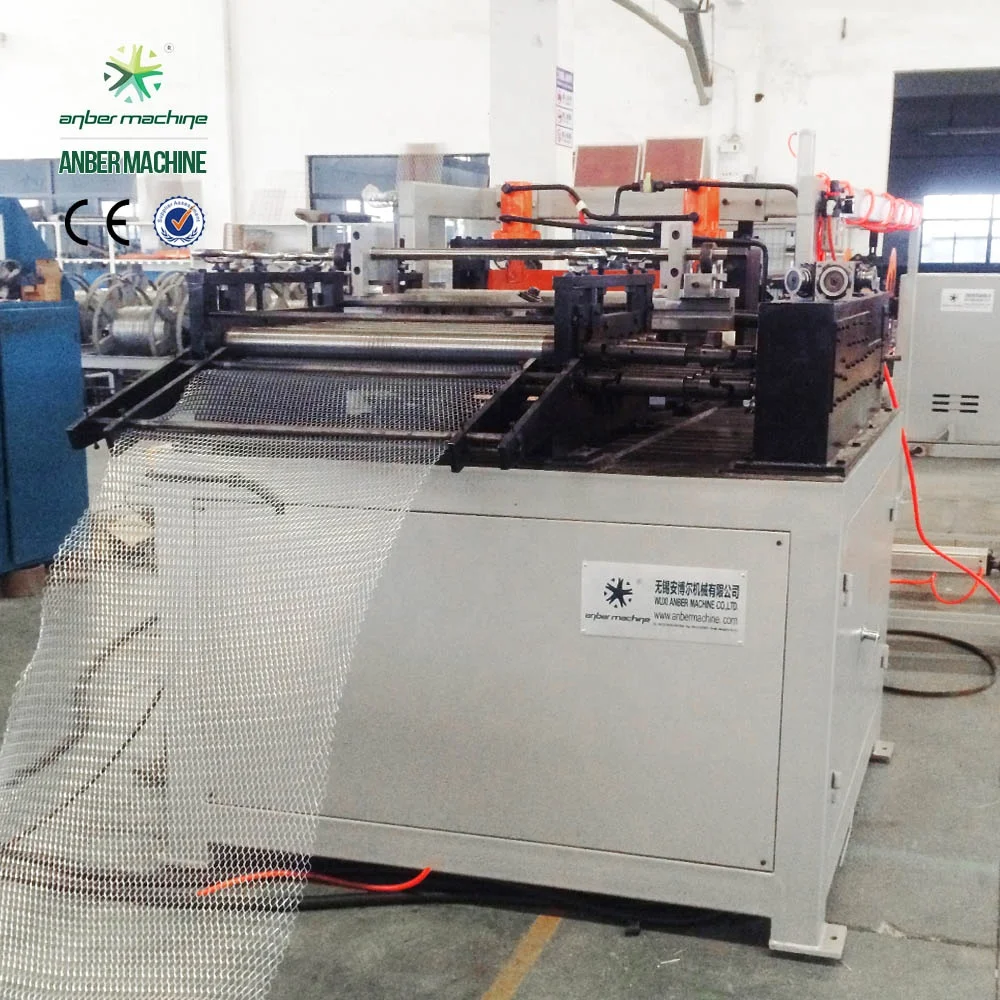

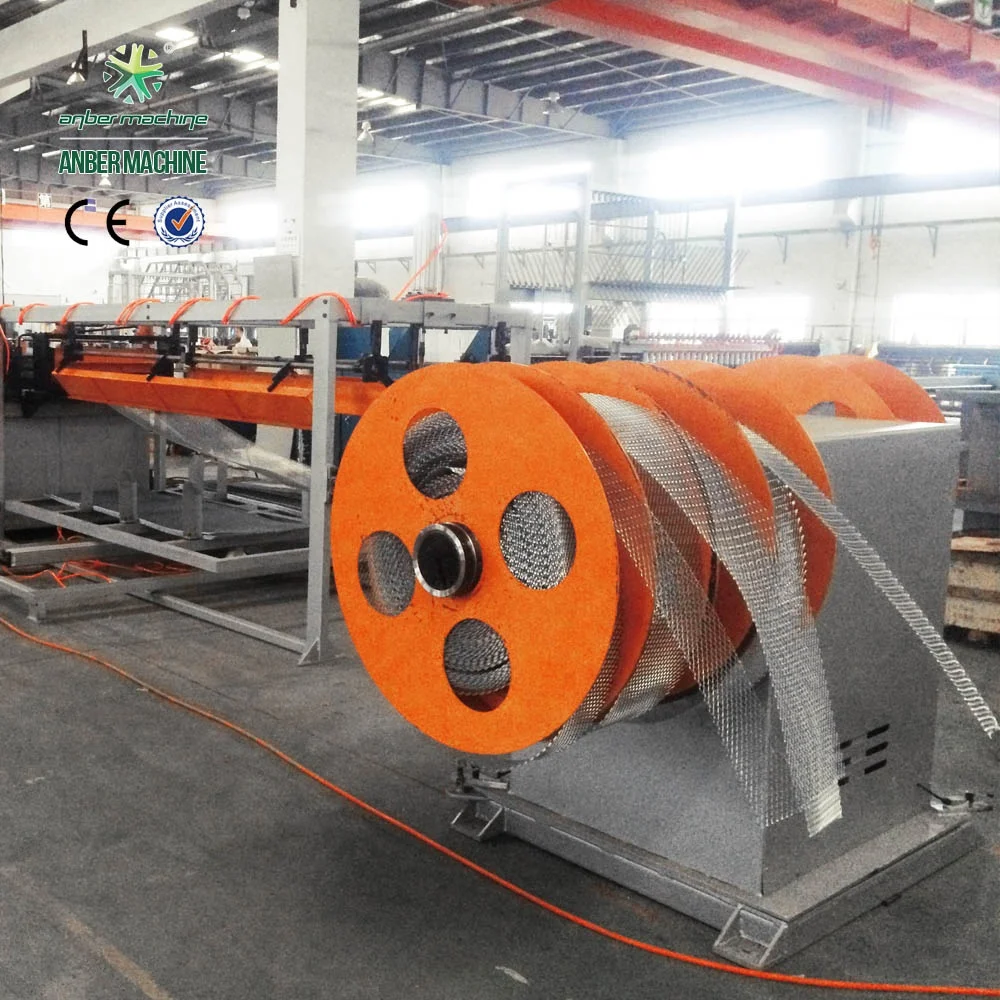

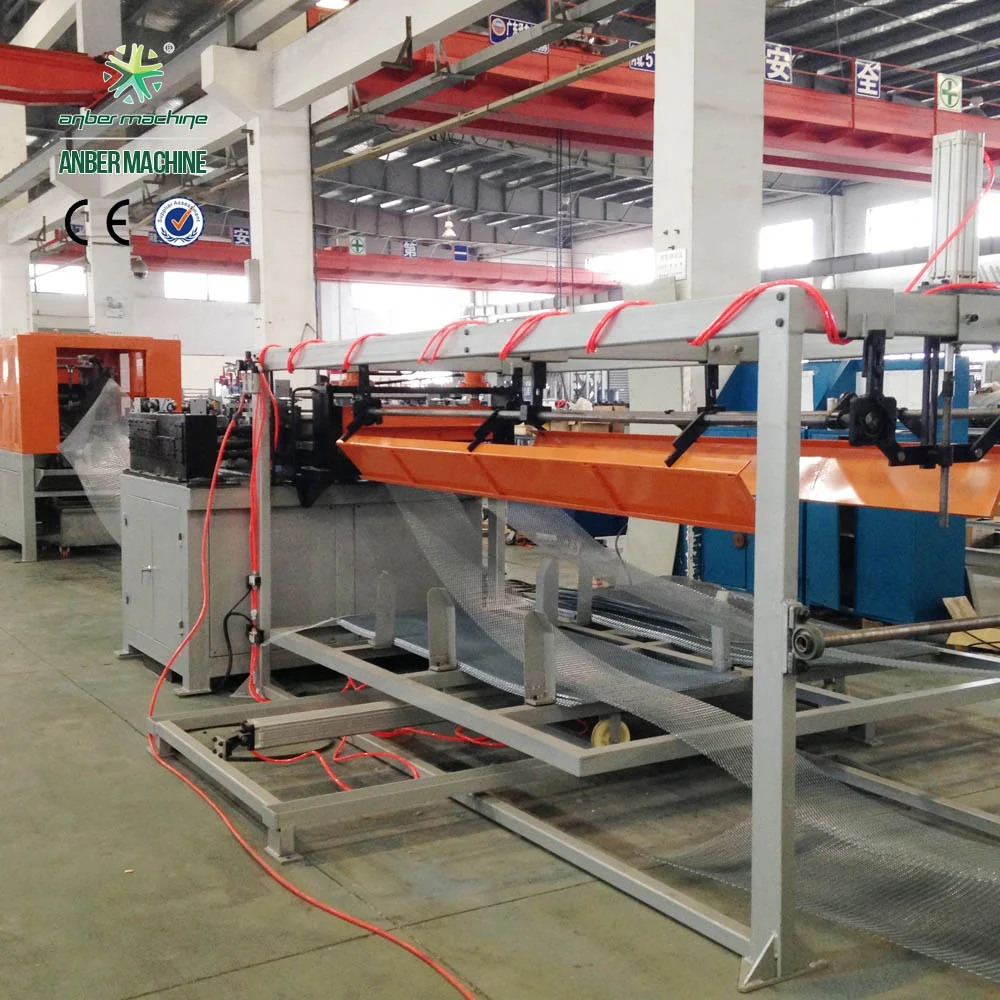

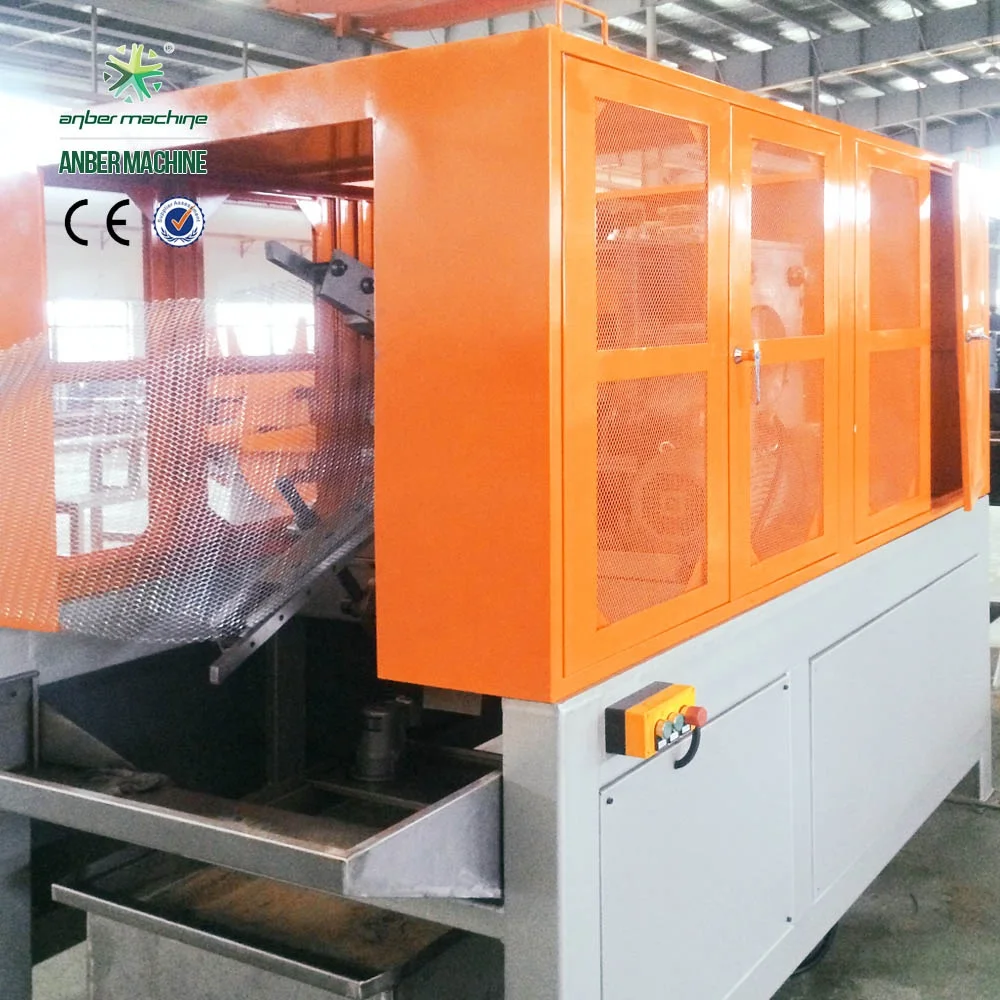

rotary plaster mesh brickwork reinforcing mesh lath machine
- Category: Other Construction Material Making Machinery >>>
- Supplier: Wuxi Anber Machine Co. Ltd.
Share on (617656553):
Product Overview
Description
| Product Description |
Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.
| Related Products |

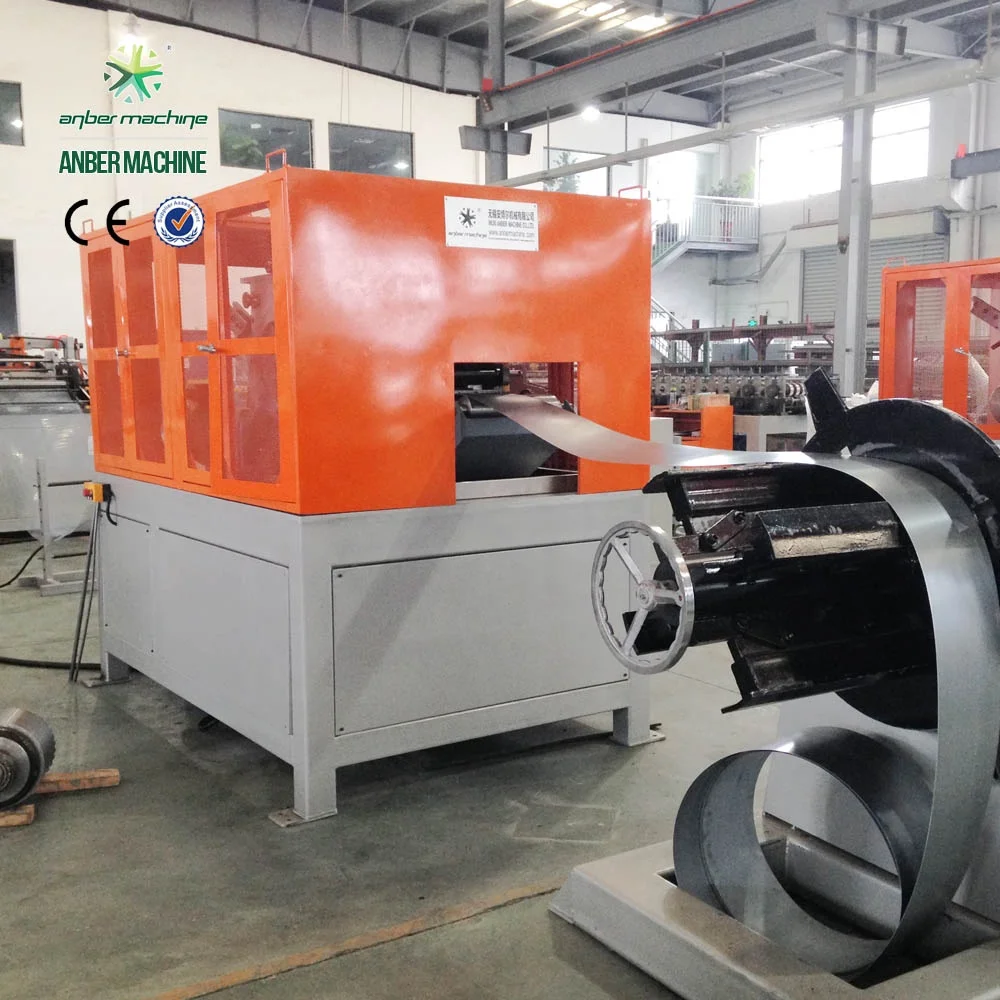

| 1. Decoiler
Name:Parameter Inner diameter: 500mm, adjustable Outer diameter: 1000mm Loading weight: Loading weight of each side is 1t Machine size: 2650x1970x1620mm Weight: 1260Kg Two sides: Each rotation 180° | |
| 2. Roll Shearing/expanding
Outer diameter of cutter: Φ263mm Blade repaired capacity: 3 mm Speed or roll and cutting: 12m/min Motor:Power: 4kw, Voltage: 380V, Rotation speed: 1450r/min Machine Size : 2220x1510x1810mm Weight: 2352Kg | |
| 3.Straightening and slitting machine
Diameter of roll: 63mm Straightening roller QTY: 13 straightening rollers Motor:Power: 3kW, Voltage:380V, Reduce speed machine: JZQ200——i=20.54 Size of machine: 1800x1665x1725mm Weight: 1554Kg | |
| | 4.Stacker
Product size: 700x3000mm Loading weight: 1t Loading height: 500mm Size of machine: 3610*2900*1620 Weight: 586Kg | |
| | 5. Double head re-winder
Inner diameter:120mm Outer diameter:800mm Loading weight:300Kg Motor:Power: 1.5kw, voltage: 380V, 2 sets Machine size :3240x1770x1610mm Weight:1420Kg
|
Contact us
| Our Company |
Business type: manufacturer and seller of kinds of wire mesh and fence making machine
Service: OEM service
Primary competitive: low in price and maintainance, high in quality and performance.
Products list:
Construction mesh making machine
Hi-rib lath priduction line,high speed rib lath line, rib lath line, metal lath and birckwork mesh line, high speed angle bead line, angle bead production line, bieckwork mesh production line, plaster stop bead peroduction line Architrave bead priduction line, Control joint bead production line
Expanded mesh machine
Heavy duty expanded metal mesh machine, expanded metal fence machine, diamond expanded mesh machine ETC.
Welded wire mesh machine
welded mesh fence/panel machine, welded mesh machine for construction, reinforcement mesh welding production line, space welded mesh machine for buildings
Wire drawing machine
iron wire drawing machine, stainless steel wire drawing machine, tin wire drawing machine, copper wire drawing machine, rod break down
Other wire mesh machine: razor barded wire machine, barded wire machine, gabion mesh machine, gabion mesh fence machine and full automatic gabion mesh production line, hexagonal wire netting machine, chain link fence weaving machine, automatic chain link fence weaving machine, semi-automatic chain link fence weaving machine, hinge joint knot field fence machine and perforated metal mesh machine.
PVC coated production line: for the fence, galvanized coating production line for the fence, wire PVC coated line
Our factory is located in Wuxi, China. It is famous for its good wire mesh machine and wire mesh products. And was named "AAA" factory by our National Industrial Authority.
We hope to have chance to establish good business relationship with all the friends who are interested in our products. We will expect your visit to our factory.
| Packing & Delivery |
| FAQ |
Q:Where is ABO Building factory?
We are in Kunshan, 1hour driving from Shanghai airport.
Q:What is your factory strength?
All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.
Q:Are you a trading company or manufacturer?
We a manufacturing and trading combo. Anber manufacture the machine, like angle beads machine, rib lath, etc, we ABO sell finished products, like metal lath and beads.
Q:What is your available port for shipment?
Shanghai seaport.
Q:What about the payment Terms?
Normally deposit 50% in advance.
