Zircon sand benefication equipment plant spiral concentration of heavy Minerals
Our factory produce full sets mining equipments for quartz rock chromite ore processing, separation. The equipments including feeder machine, jaw crusher, cone crusher, ball mill, spiral classifier, shaking table, jigger machine, spiral separator, magnetic separator...

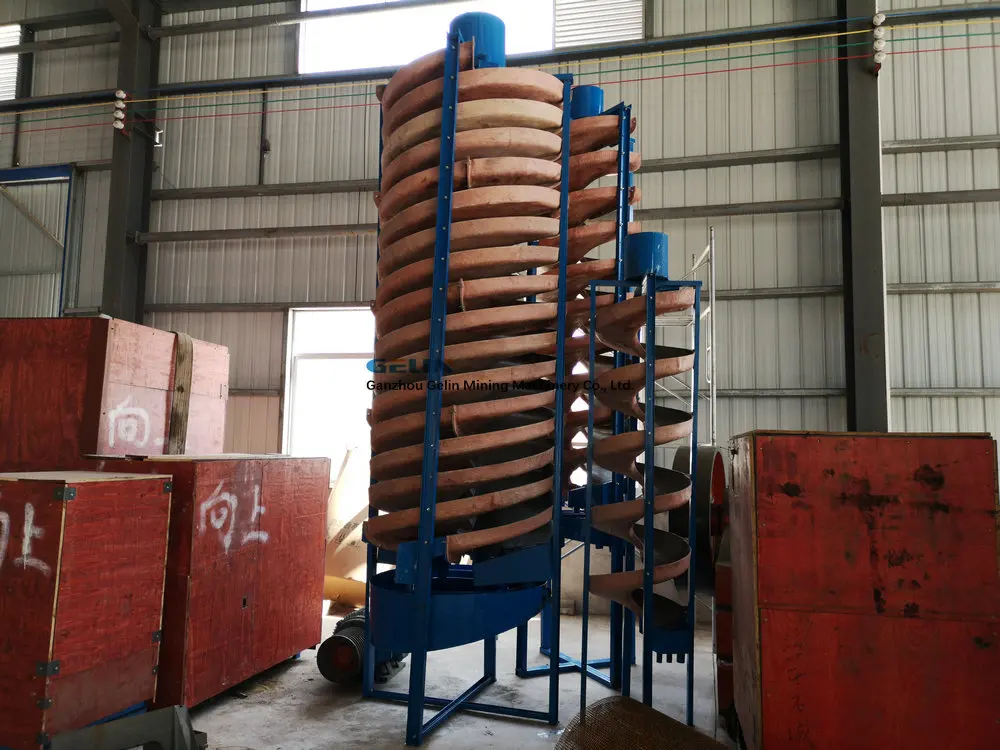

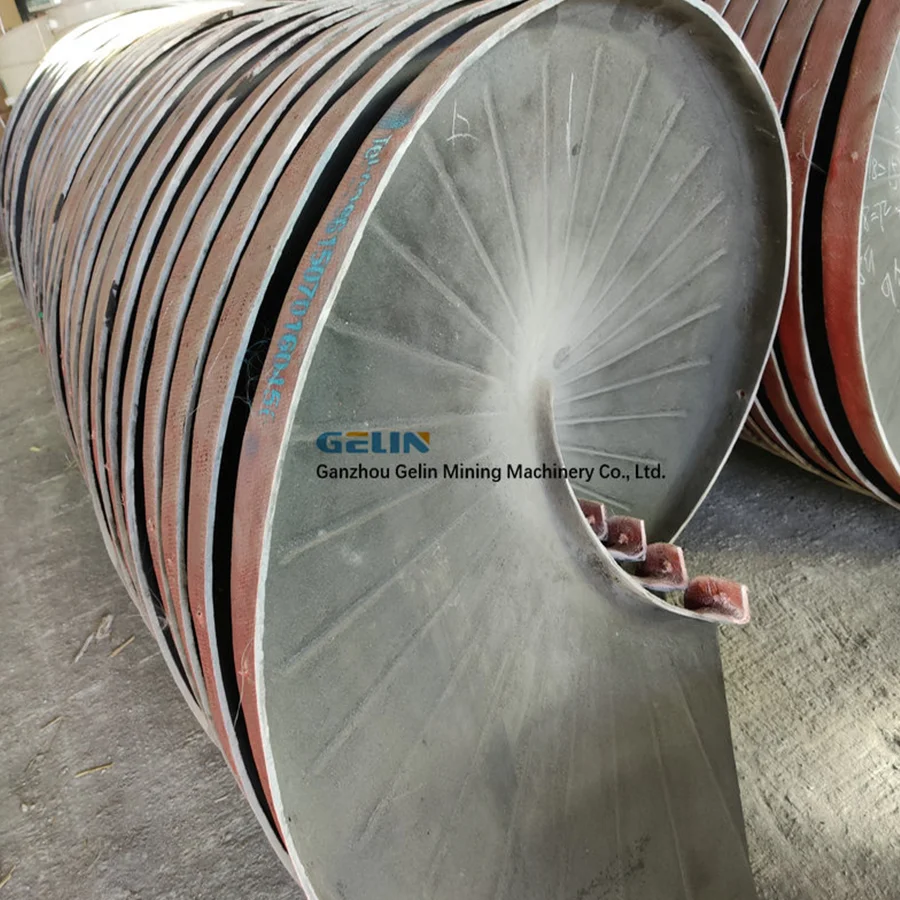

Spiral Chute is the best equipment for mining and mineral processing, which combines the characteristics of the spiral concentrator, shaking table and Centrifugal concentrator. It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover, light moisture proof, anti-rust. It is mainly used for separation and recovery of a wide range of minerals: zircon, ilmenite, rutile, iron ore, chromite, manganese, tin, tantalum and tungsten ore, silica sands, gold, copper and base metals and etc., as well as other non-ferrous metals, rare metals and non-metallic minerals.
Features
1.Reasonable structure and small occupation area.
2. High recovery, high efficiency, and precise separation.
3. Light in weight, rust and corrosion resistant.
4. Simple installation and Minimal maintenance requirements.
5. Low operating cost and long operating life.
6. Reliable running with minimal operator attention.
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.

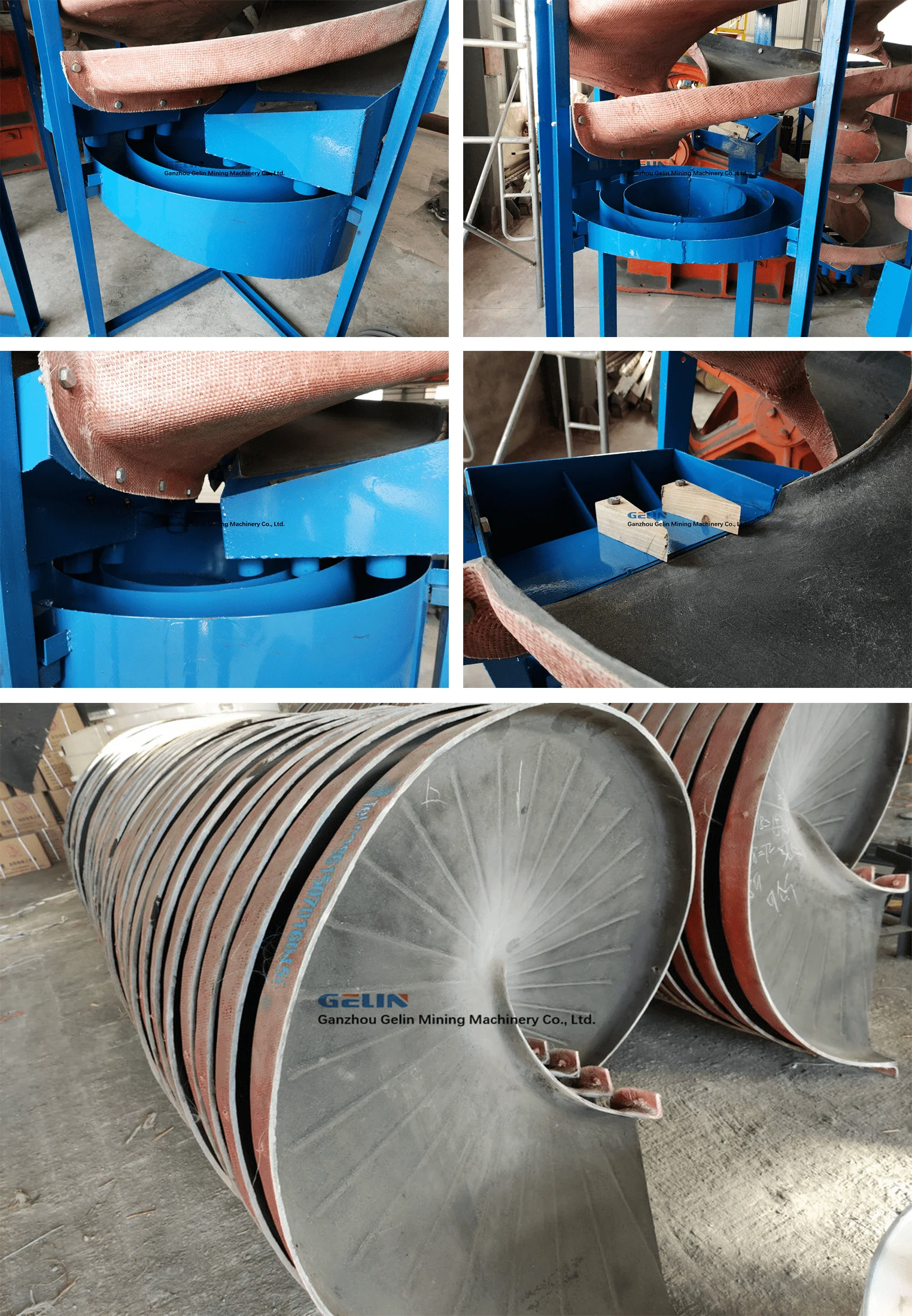

Structure

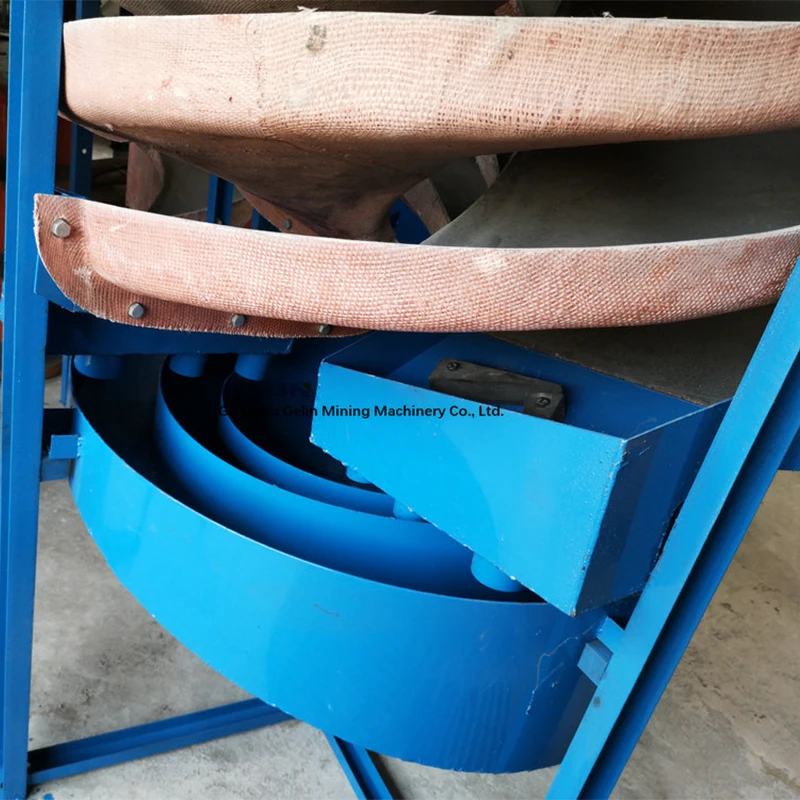

Working principle
Raise the spiral chute and fix it in the proper position, sand pump transport the ore to the feed inlet, adding water to adjust
the concentration of the slurry. The slurry naturally swirls from high to low, and generates an inertial centrifugal force in the rotating bevel flow rate. The mineral is separated from the sand by the gravity and centrifugal force of the swirl by the
difference in specific gravity, grain size and shape of the ore. The concentrate flows into the concentrate bucket and is
connected by the pipeline. The tail sand flows into the tailing sand bucket and is connected to the sand pool by the pipeline, and then drained by the sand pump to complete the whole process of the beneficiation.
Technical Data
Model | 5LL-400 | 5LL-600 | 5LL-900 | 5LL-1200 | 5LL-1500 | 5LL-2000 |
Spiral Diameter (mm) | 400 | 600 | 900 | 1200 | 1500 | 2000 |
Screw Pitch(mm) | 240/180 | 450/360 | 40405 | 720/540 | 900 | 1200 |
Dia. Rate | 0.45 | 0.4 | 0.4/0.6 | 0.6 | 0.6 | 0.6 |
Gradient (°) | 9 | 9 | 9 | 9 | 9 | 9 |
Num. Of Threads | 1-2 | 1-2 | 2-3 | 2-4 | 2-4 | 2-4 |
Num. Of Turns | 5 | 5 | 5 | 5 | 5 | 4 |
Feeding Size (mm) | 0.02-0.2 | 0.02-0.2 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.04-0.4 |
Feeding Density (%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 | 30-35 |
Capacity (t/h) | 0.2-0.5 | 0.8-1.2 | 2-3 | 4-6 | 6-8 | 7-10 |
Boundary Size L*W*H (mm) | 460*460*1500 | 700*700*2600 | 1060*1060*4000 | 1360*1360*5230 | 1560*1560*5230 | 2120*2120*5230 |
Weight (kg) | 50 | 150 | 400 | 600 | 800 | 900 |

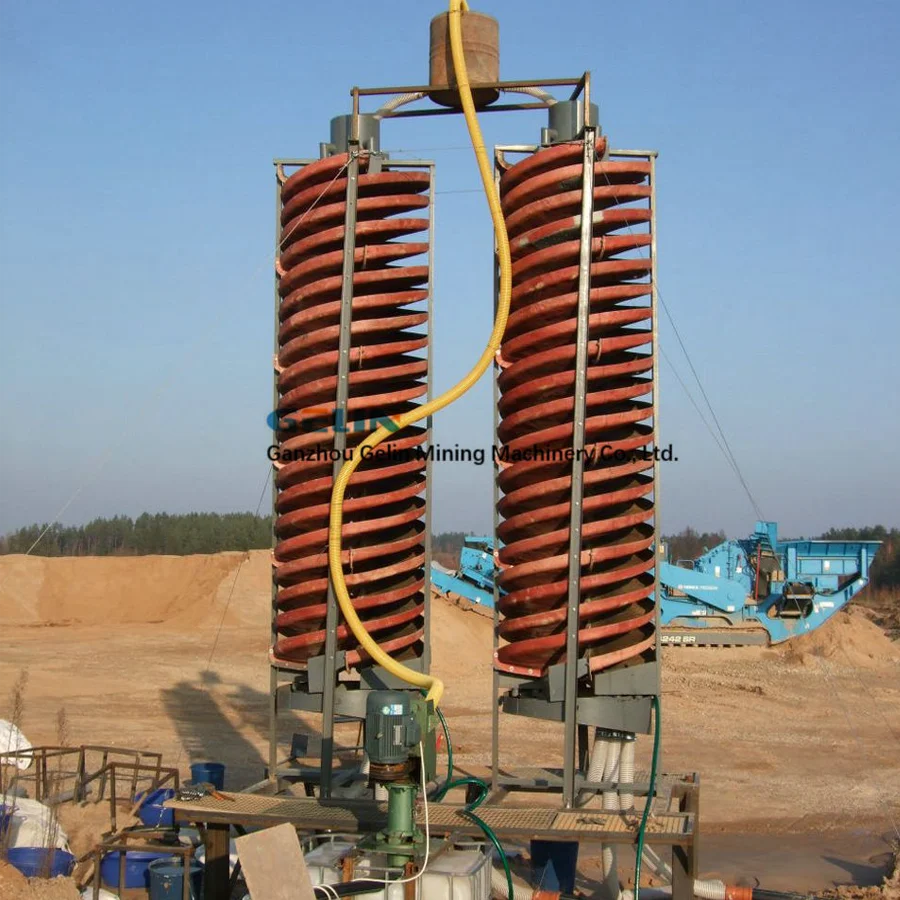

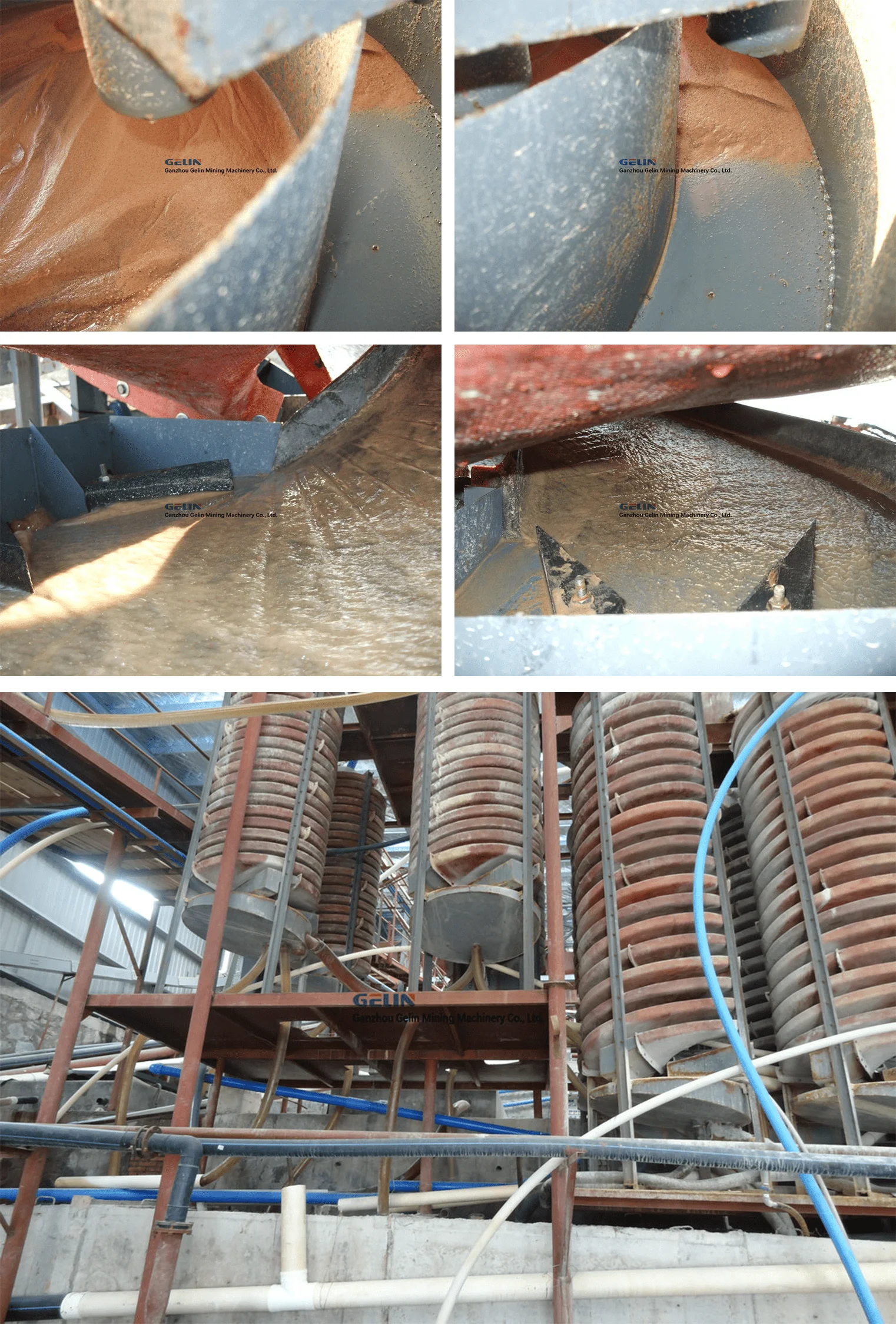

Application&Successful Case
It is applicable for separation of granularity ranged from 4mm to 0.02mm metallic minerals such as iron, ilmenite, chromite, tungsten-tin ore, niobium-tantalum ore, gold placer, seashore monazite, rutile and zircon as well as other metallic and non-metallic minerals with adequate difference of specific gravity. For the seaside, riverside, sand beach, the stream of placer mining, it is the best equipment of all.
