BIS CE DC5V 12mm WS2811 UCS1903 SM1903 IP68 addressable Mult Full Color mult RGB advertising signal light Led pixel Module

50pcs /string   50pcs/lot

Led Pixel Light ,

we have following Items:

1:DC5V/12V Colorful WS2811 IC 12MM

2:DC5V 12V Colorful UCS1903 IC 12MM

3:DC5V 12V RGB Pixel Without IC 12MM

4:DC5V 12V Colorful WS2818 IC 12MM

5:DC5V 12V Colorful LPD6803 IC 12MM

6:DC5V 12V Colorful P9883 IC 12MM

7:DC5V/12V Single color WW,W,R,G,B,Y 9MM

                               5V  12mm led ws2811 pixel module 50 node/string

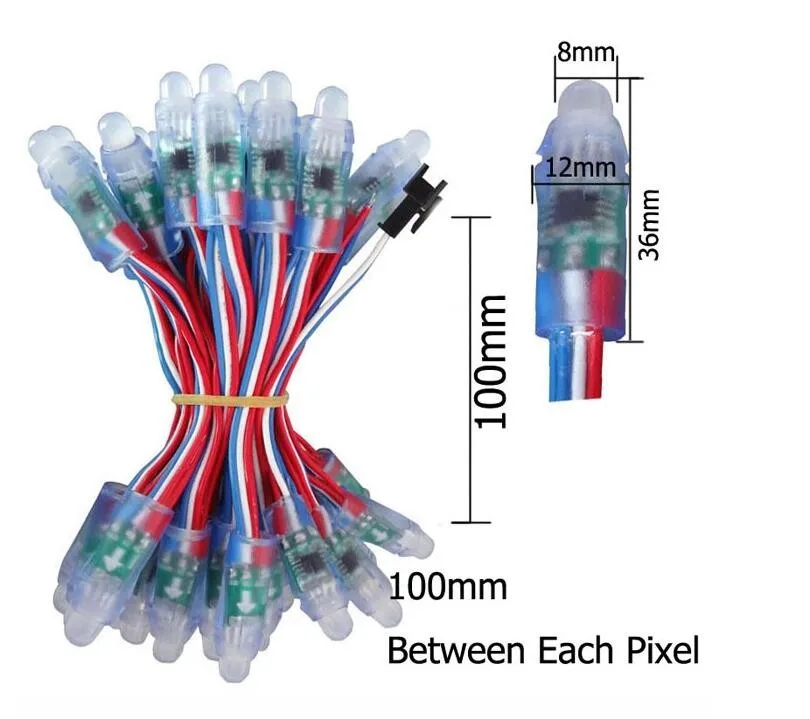

1.WS2811 led pixel module is 12mm diameter ,DC5V power ,50 pieces per strand/string

2.RGB pixels are digitallycontrollable lights you can set to any color, or animate. Each RGB LED and controller

chip is molded into a 'dot' of silicone. The dots are waterproof and rugged.

3.The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width. The total max brightness of

all LEDs is about 1600mcd but with the light more evenly distributed & mixed than a clear LED.



Feature:

full color Pixels are digitally-controllable lights you can set to any color, or animate

Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

There are four flanges molded in so that you can 'push' them

into a 12mm drill hole in any material up to 1.5mm/0.06" thick

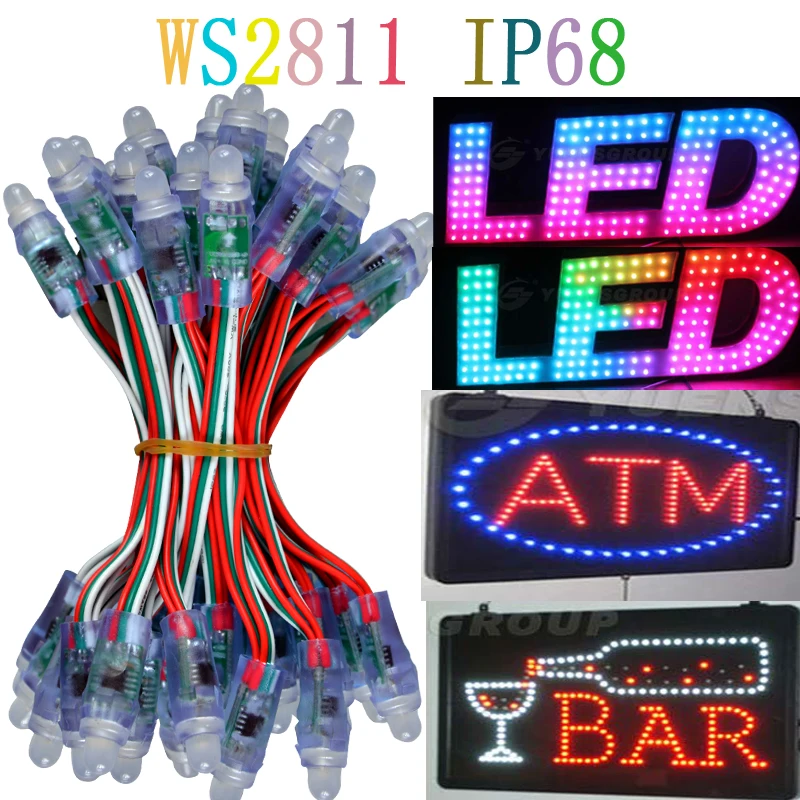

They are typically used to make outdoor signs. Compared to our other 20mm LED dots

these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

The pixels are connected by a 3-conductor cable. Red is +12V, white is Ground, green is Data and

Data is shifted down from one pixel to the next so that you can easily

cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller

The pixels use 8mm diffused RGB LEDs

with brightness of about 300 mcd per individual r/g/b LED.



SD controller

Programable by Software

Individually Control

Conformal Coating,PVC glue protection

IP68, Water-proof protection

Easy installation (punching 12mm hole on metal panel)

50pcs per set



Product Description



Description:

Great for decoration, advertising lights.

Working voltage: DC5V

Working current: 30ma

IP grade: IP68

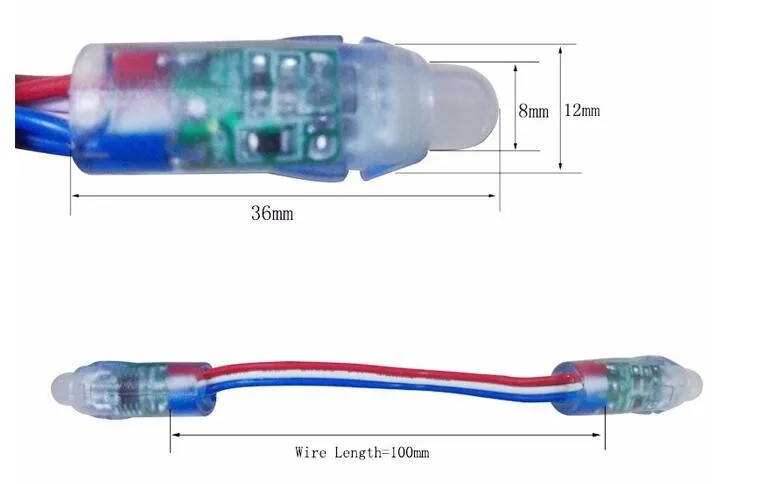

Dimension: 12mm

RED WIRE: DC5V input +

Green wire:DATA

White wire: Ground

input side: is the side without IC
