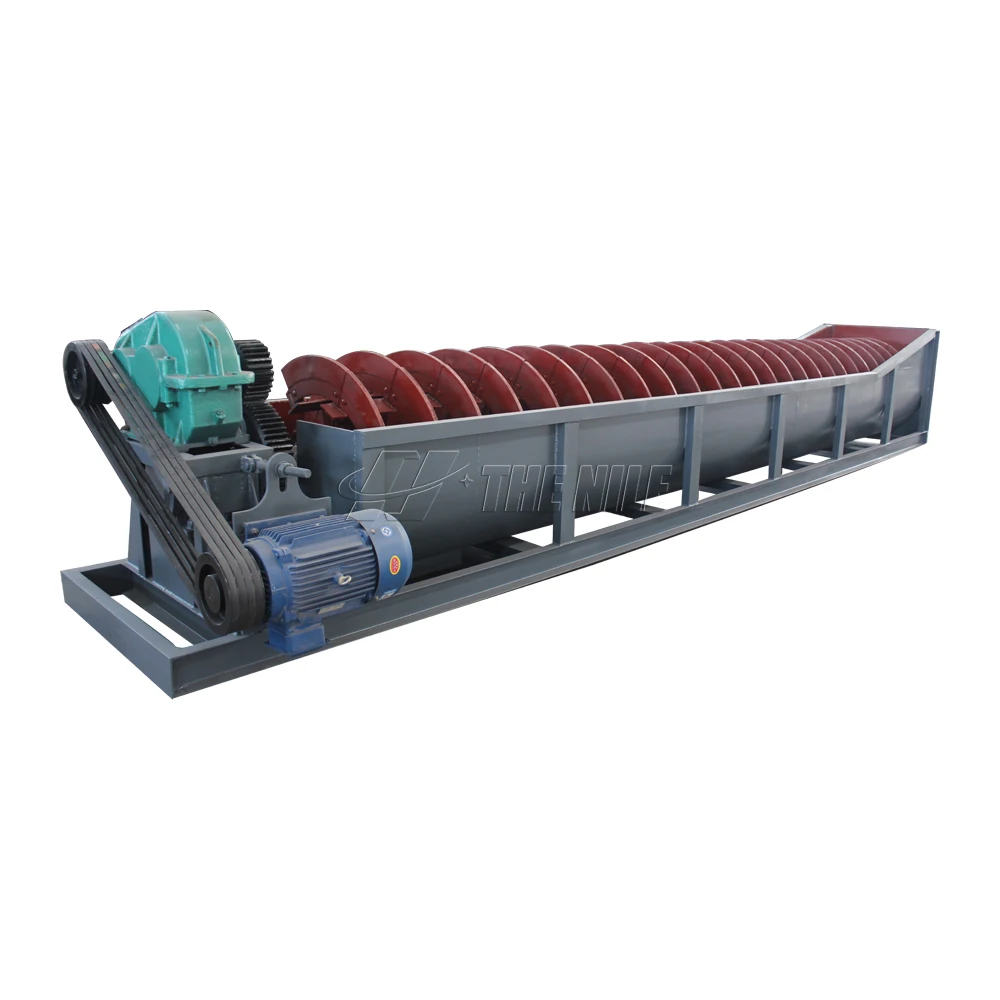

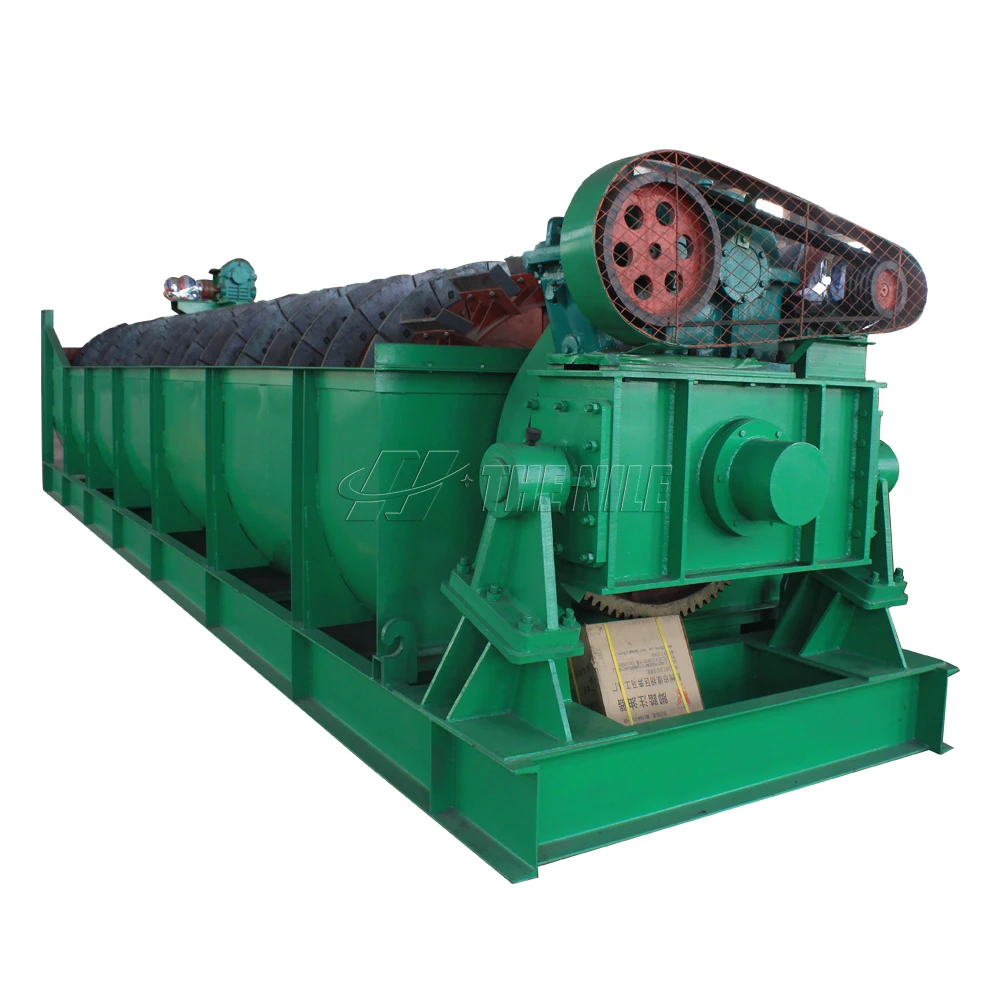

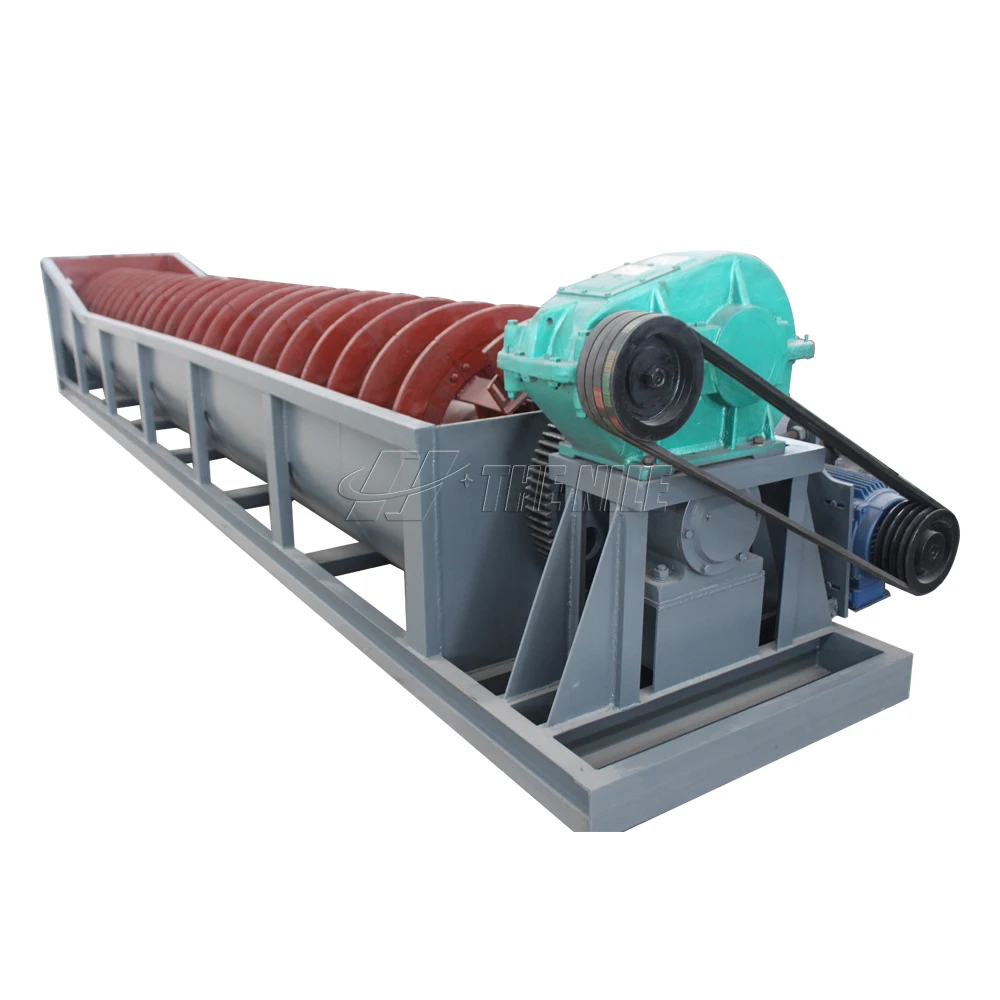

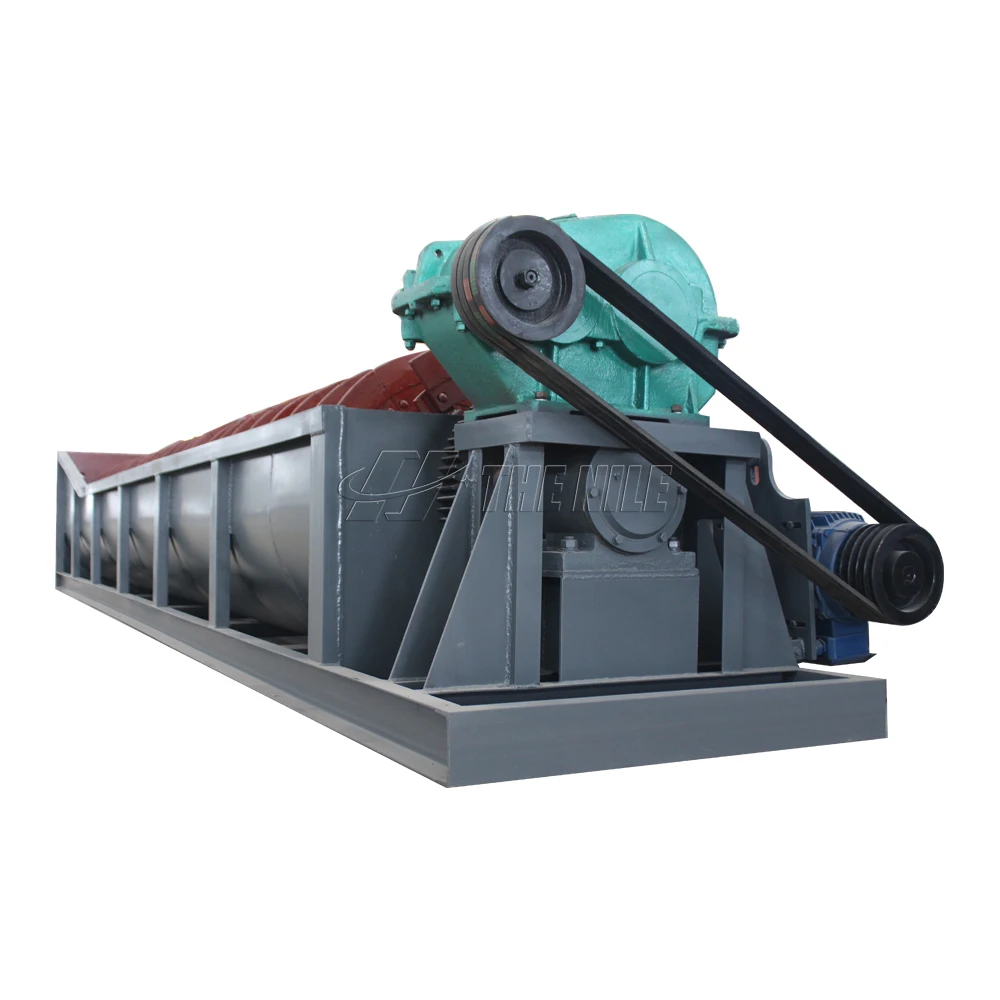

Mineral Spiral Classifier Sand Washing Machine Price
- Category: Mineral Separator >>>
- Supplier: The Nile Machinery Co. Ltd.
Share on (62000616217):
Product Overview
Description
Products Description
Working Principle of Spiral Classifier
The slurry is fed into the U-shaped groove from the feed inlet in the middle of the side of the channel. With the low speed rotation of the screw and continuous stirring of the slurry, most light and fine particles are suspended on the top, and overflow from the overflow Weir becomes the overflow product. Coarse and heavy particles will settle at the bottom of the trough (sand sink, pushed by the spiral blade above the chute and discharged, and dehydrated simultaneously during the transportation process. If the sand sinking through the chute into the grinding machine regrinding, the sand into the grinding machine is sand return.
A rotating spiral is used to divide a mixture of different thicknesses into different grain-size levels in the fractionating slot.
The spiral classifier is widely used in the grinding circuit of beneficiation as the pre-classification and inspect classification
machine, and also in the ore washing and desliming operation.
machine, and also in the ore washing and desliming operation.
Features of Spiral Classifier
1.Simple structure, reliable running and easy operation;
2.It mechanically classifies through the mechanism of different sedimentation speed of solid particle in liquid due to different size and different specific gravity;
3.It can classify the ground material powder from the grinder, spiral the coarse grain into material inlet of grinder through the spiral chip, and discharge the classified fine grain from overflow surface;
4.Its base is made from channel steel, and its body is welded from steel plate;
5.The lower support of spiral bearing is of the engine-bearing structure of good wear-resistance and durability;
6.The lifting device is of electric and manual mode.
2.It mechanically classifies through the mechanism of different sedimentation speed of solid particle in liquid due to different size and different specific gravity;
3.It can classify the ground material powder from the grinder, spiral the coarse grain into material inlet of grinder through the spiral chip, and discharge the classified fine grain from overflow surface;
4.Its base is made from channel steel, and its body is welded from steel plate;
5.The lower support of spiral bearing is of the engine-bearing structure of good wear-resistance and durability;
6.The lifting device is of electric and manual mode.
Technical Data
Model | Diameter (mm) | Speed of Screw (r/min) | Capacity | Slope(°） | ||
Returned Sand(t/d) | Overflow(t/d) | |||||
FLG-508 | 508 | 8-12 | 140-260 | 32 | 14-18 | |
FLG-750 | 750 | 6-10 | 250-570 | 65 | 14-18 | |
FLG-915 | 915 | 5-8 | 415-1000 | 110 | 14-18 | |
FLG-1200 | 1200 | 5-7 | 1165-1630 | 155 | 17 | |
FLG-1500 | 1500 | 3.5-6 | 1830-2195 | 235 | 17 | |
FLG-2000 | 2000 | 3.5-5.5 | 3890-5940 | 400 | 17 | |
2FLG-1200 | 1200 | 5-7 | 2340-3200 | 310 | 12 | |
2FLG-1500 | 1500 | 3.5-6 | 2280-5480 | 470 | 12 | |
2FLG-2000 | 2000 | 3.5-5.5 | 7780-11880 | 800 | 12 | |

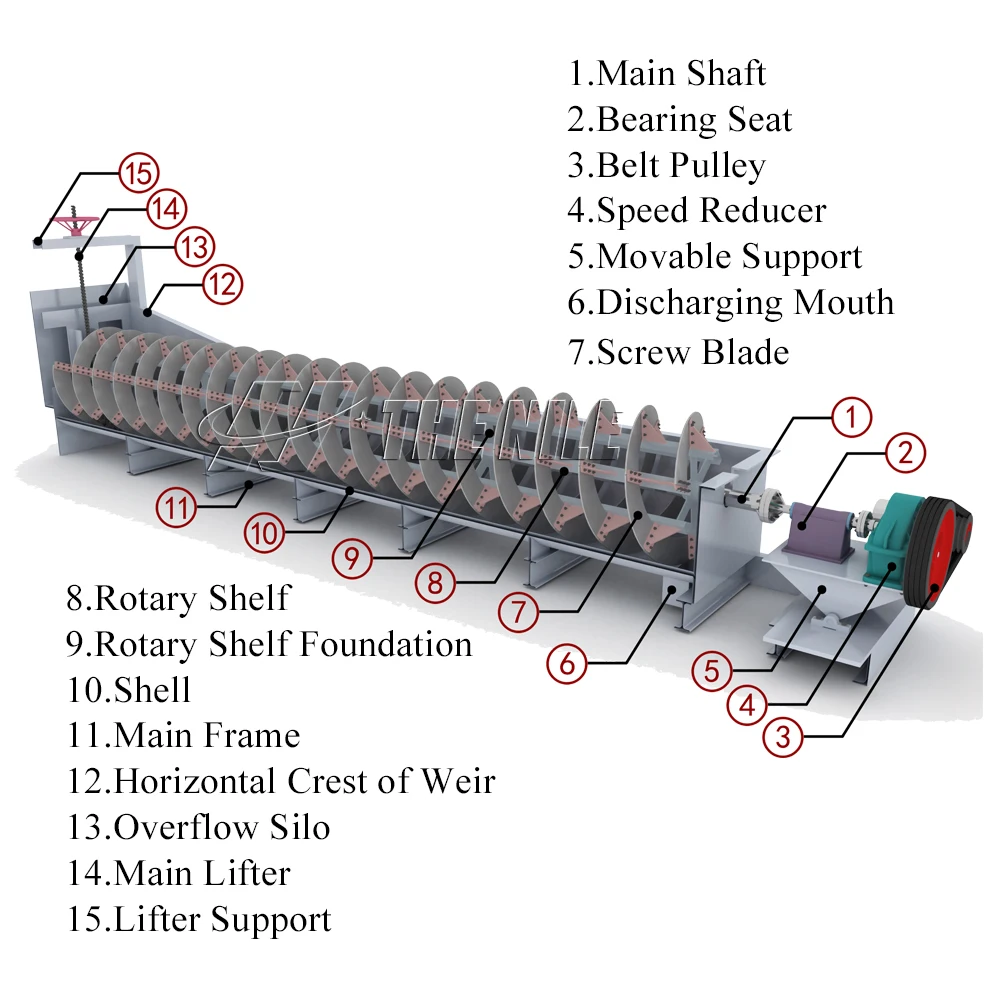

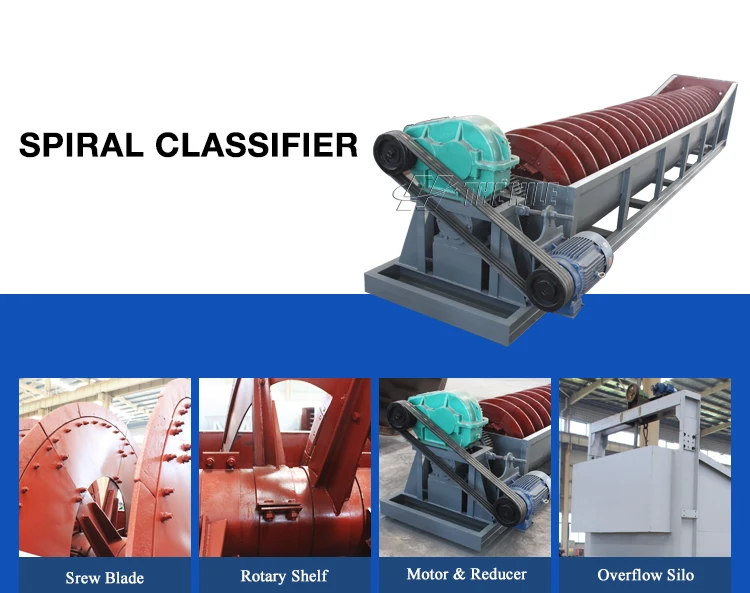

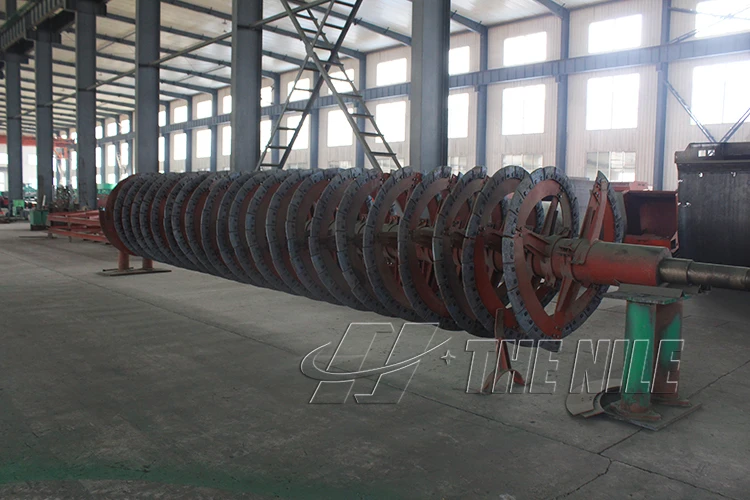

Product Details

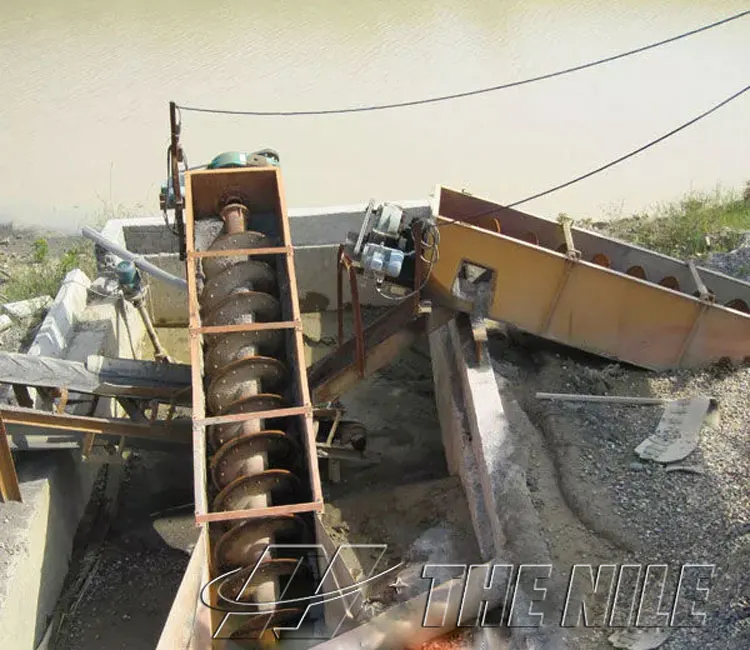

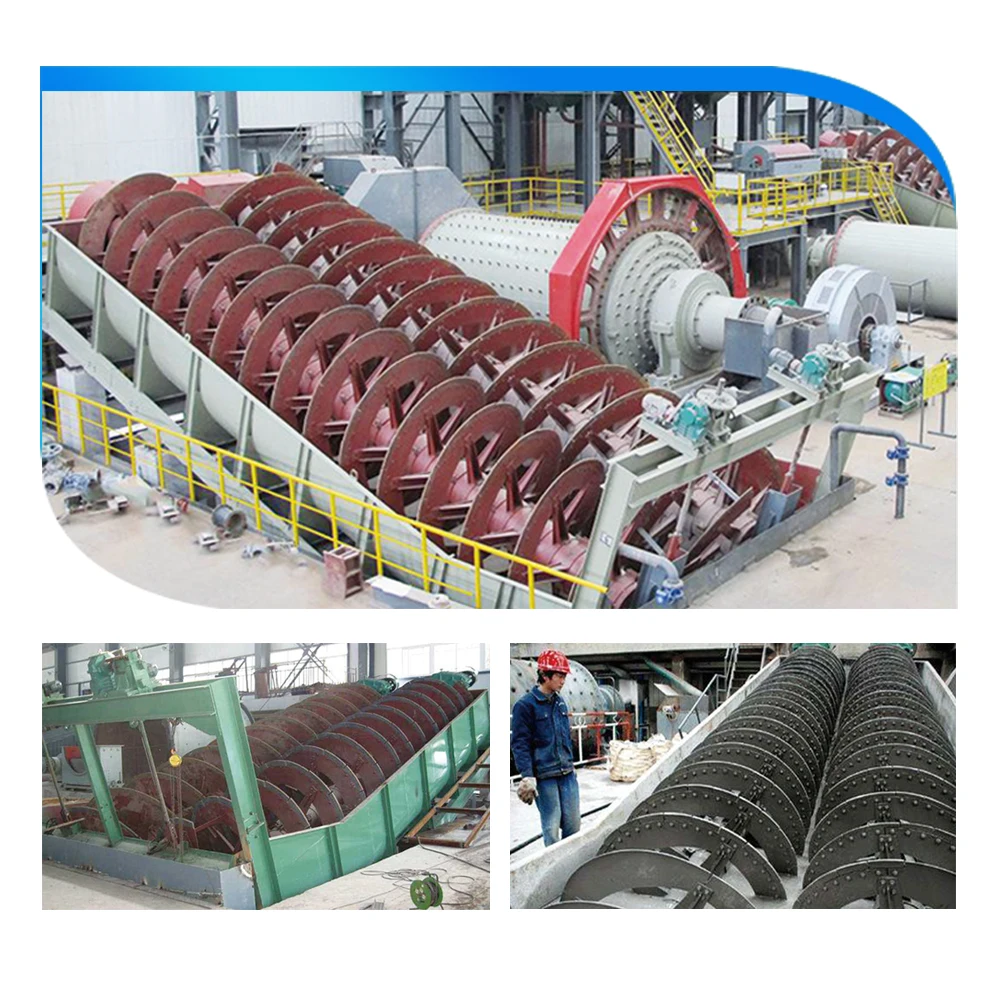

Customer Site

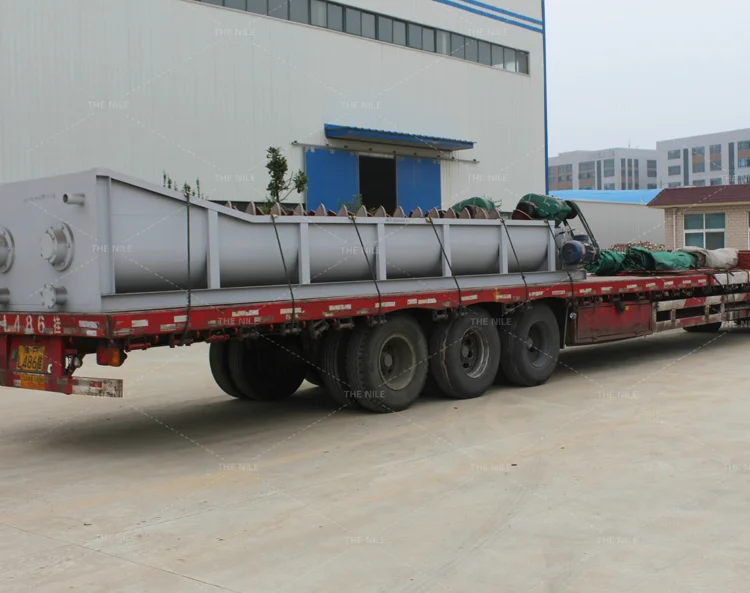

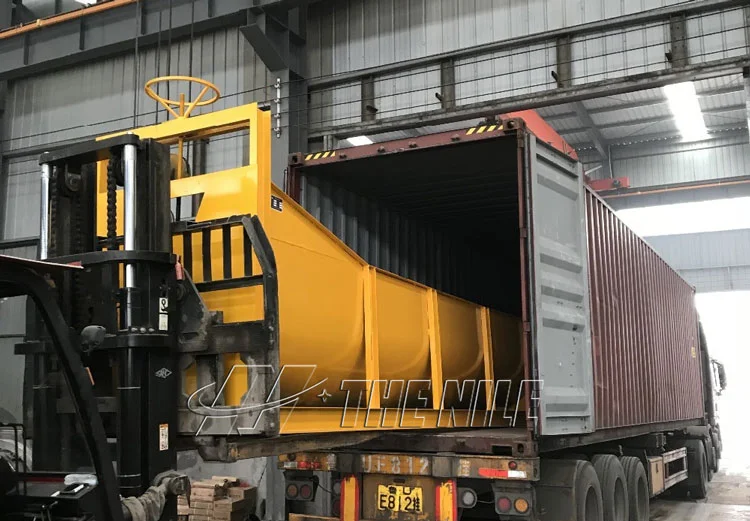

Packing & Shipping
Company Profile
The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.
Our Advantages
Overseas Service
1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .
2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .
3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .
Factory and Warehouse in Kenya
Welcome to visit our factory in China and Kenya .
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
