golden bridge Copper bridge stainless steelweldingrod manufacturer AWS E6013E7018 e6011weldingelectrode

Product Overview

Description

golden bridge Copper bridge stainless steel welding rod manufacturer AWS E6013 E7018 e6011 welding electrode

Description

Types Of Electrodes	Introduction	Uses
Model: CB-J421   GB: E4313   AWS: E6013	It is a kind of carbon steel electrode with titania type coating. AC/DC. All position welding. It has excellent welding performance, excellent operating performance, easy reignition, stable arc,  beautiful appearance of weld.	For welding low carbon steel structures, especially suitable for welding on thin plates and cometic welding which requires the weld beads to be beautiful and glossy.
Model: CB-J425   GB: E4311   AWS: E6011	It is a kind of carbon steel electrode with cellulose potassium type coating. AC/DC. It has excellent welding performance, beautiful appearance after vertical downward welding, fewer slags and high welding efficiency.	Suitable for butt welding, fillet welding and lap welding on thin plates, such as low carbon steel structures like flues of power stations, air ducts, transformer oil tanks, hulls, exterior panels of cars, etc.
Model: CB-J508   GB: E5018   AWS: E7018	It is a kind of carbon steel electrode with low hydrogen type coating. AC/DC. It has excellent welding performance, easy reignition, stable arc, beautiful appearance of weld.	Used for welding carbon steel and low alloy steel structures, such as 16Mn, etc.

Chemical Composition of Deposited Metal (%)

AWS	Chemical Composition	C	Mn	Si	S	P
E6013	Guarantee Value	≤0.12	0.30-0.60	≤0.35	≤0.035	≤0.040
E6011	Guarantee Value	≤0.20	0.30-0.60	≤0.30	≤0.035	≤0.040
E7018	Guarantee Value	≤0.12	≤1.60	≤0.75	≤0.035	≤0.040

Mechanical Properties of Deposited Metal (%)

AWS	Test Item	Rm(Mpa)	Rel(Mpa)	A(%)	KV2(J)
E6011	Guarantee Value   General Result	≥420   440-450	≥330   ≥340	≥22   22-30	≥27(-30°C)   50-90(-30°C)
E6013	Guarantee Value   General Result	≥420   460-540	≥330   ≥340	≥17   18-26	-(0°C)   ≥47
E7018	Guarantee Value	≥490	≥400	≥22	≥27(-30°C)

Reference Current(AC, DC)

AWS	Electrode Diameter(mm)	φ2.5	φ3.2	φ4.0	φ5.0
E6013	Welding Current(A)	50-90	90-130	130-210	170-230
E6011	Welding Current(A)	30-50	80-100	110-130	150-200
E7018	Welding Current(A)	60-100	80-140	110-210	160-230

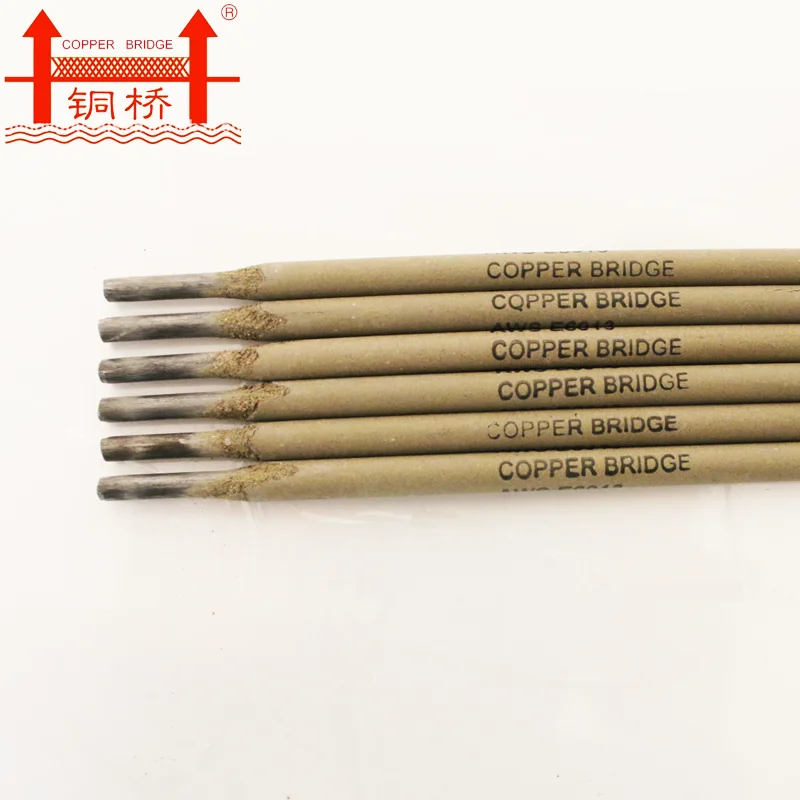

Electrode Details

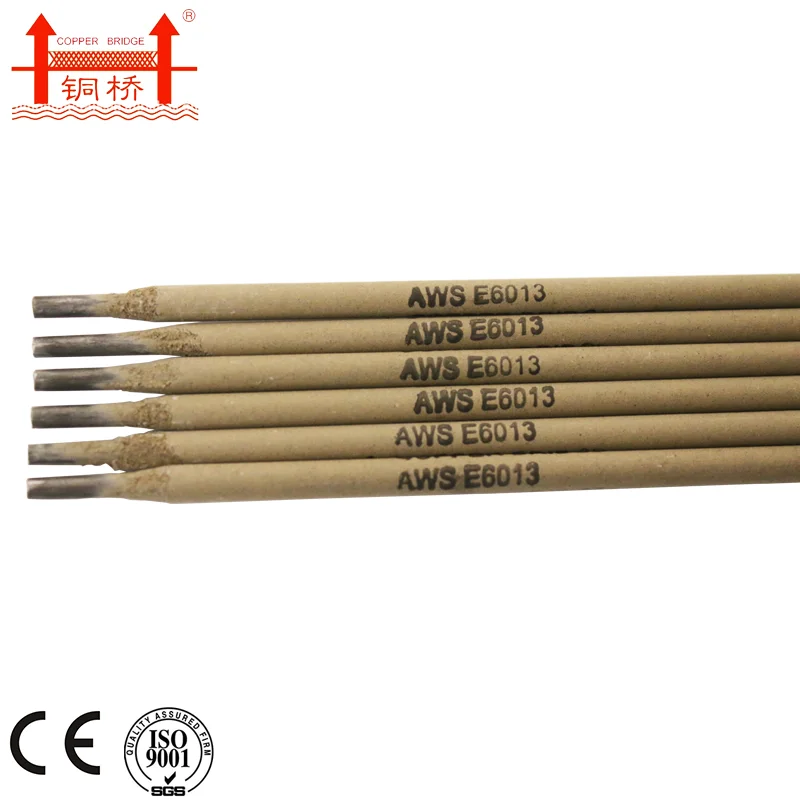

welding electrode aws E6013

welding electrode aws E6011

welding electrode aws E7018



Product performance

(please refer to video above for more details)

>>>>>>CNTACT US>>>>>>

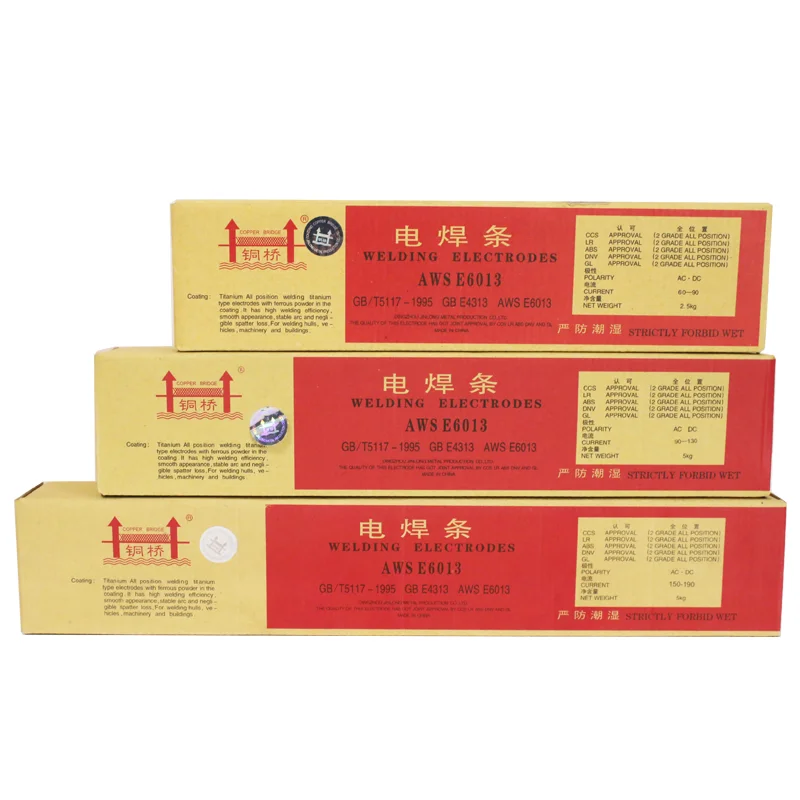

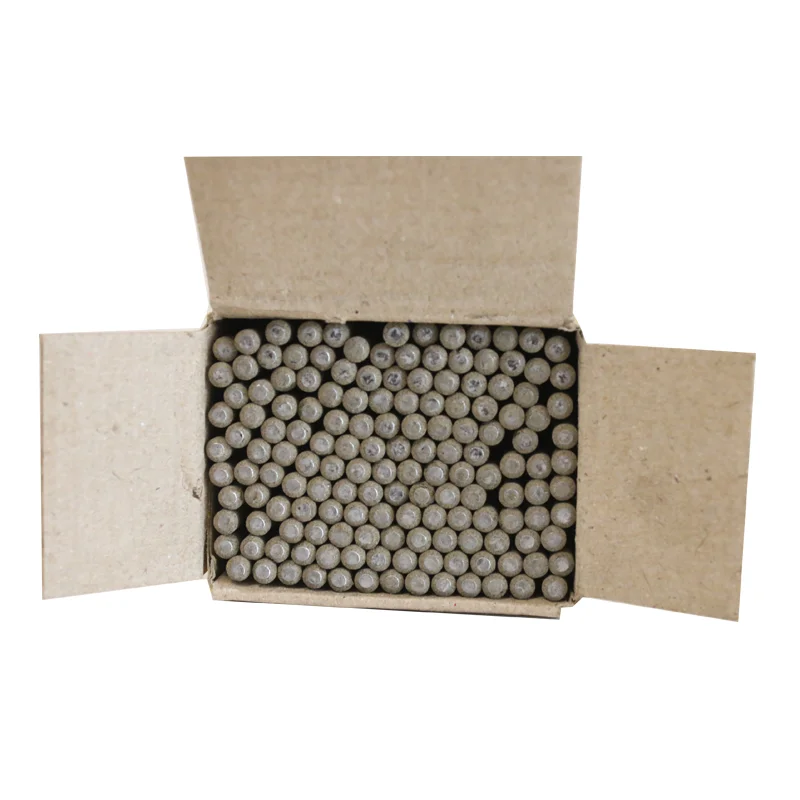

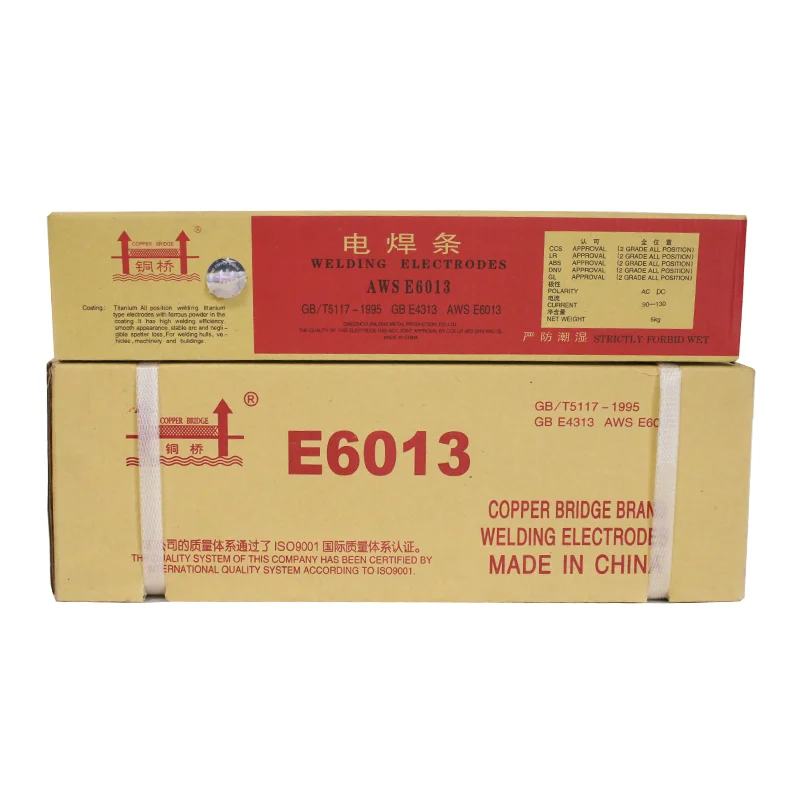

Packing Detials

Size (mm)	Wight	Inner Packing (mm)	Outer Packing (mm)
2.5*300	2.5kg/box 8 boxes/carton=20kg	310*80*60	320*170*120
2.5*350	5kg/box 4 boxes/carton=20kg	360*80*60	360*170*120
3.2*350	5kg/box 4 boxes/carton=20kg	360*80*60	360*170*120
4.0*400	5kg/box 4 boxes/carton=20kg	410*80*60	420*170*120
5.0*400	5kg/box 4 boxes/carton=20kg	410*80*60	420*170*120
inner boxes is a shrink-wrapped cardboard box , we can do it on pallet as clients 'requirement.  1MT/Pallet , or 2.5MT/Pallet we can do OEM package as clients required.



 We have different styles of packing for you to choose, and we can design the package according to your requirements. OEM packing availble.
