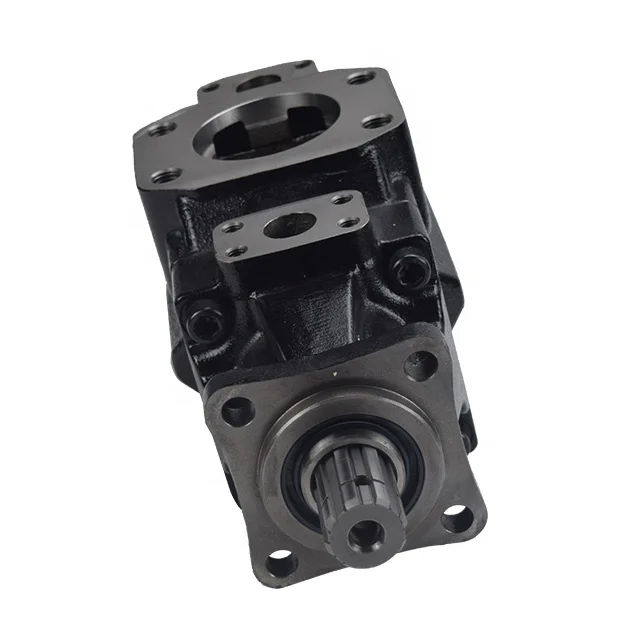

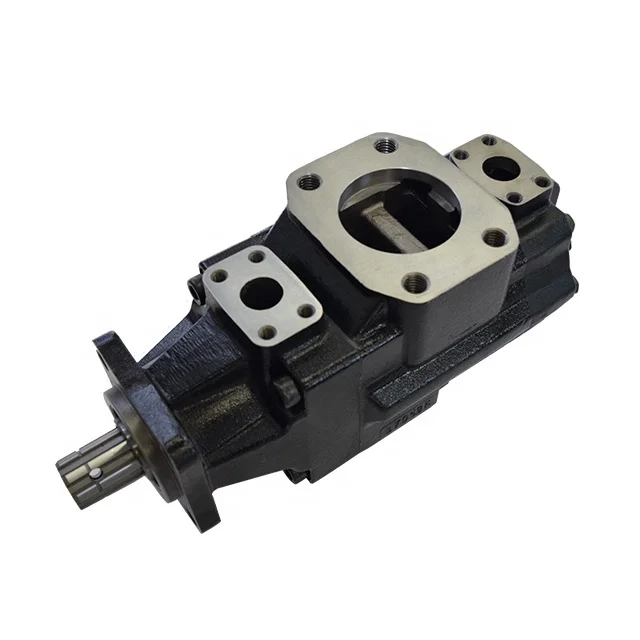

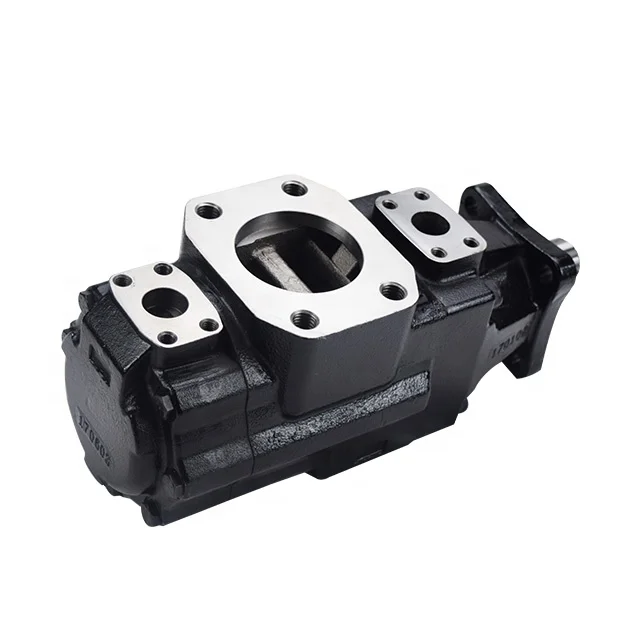

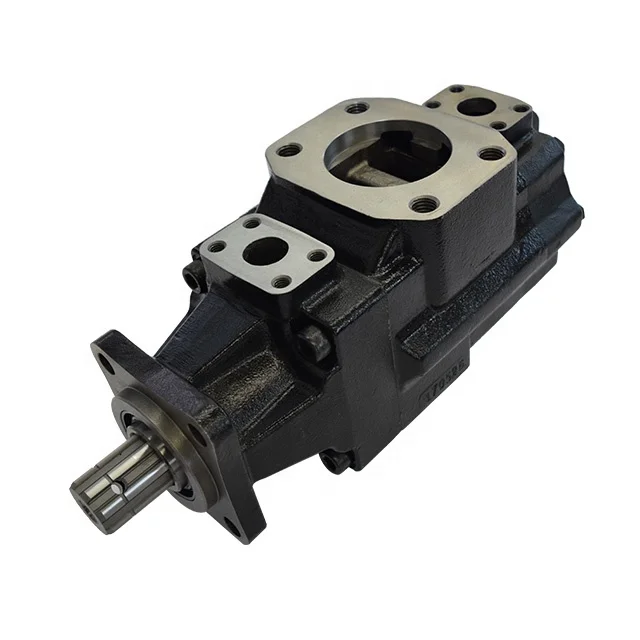

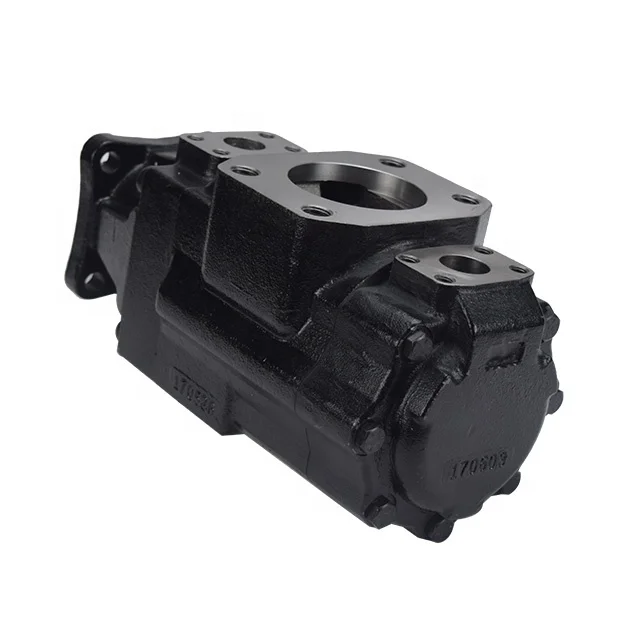

Гидравлический насос Denison T6GCC с тремя лопастями для parker

Product Overview

Description

Denison hydraulic T6GCC triple vane pump for parker

High pressure and high performance dowel pin type vane pumps are widely used for plastic machinery,casting machinery,metallurgy machinery,pressing machinery,refining machinery,construction machinery,marine-Machinery

Features

1.With dowel pin vane structure, it can work in high pressure,low noise and long lifetime.

2.This vane pump can fit wide viscosity hydraulic medium,and be started at low temperatre and work at high temperature.

3.As the vane pump adopts bilabial structure vane,it has high oil polution resistance and wide speed scope.



T6CC	-25	-17	-1	R	02	C	1	Port
Series	Flow-Shaft end pump	Flow-cover end pump	Shaft  type	Rotation	Outlet  Positions	Design  number	Sealing  Level
T6CC	03,05,06, 08,10,12, 14,17,20, 22,25,28, 31	03,05,06, 08,10,12, 14,17,20, 22,25,28, 31	See  installation  dimensions	(Viewes  form  shaft end  of pump)            R         L	See below	C	1-S1  Nitrile  rubber	00 01 10 11
T6DC	14,17,20, 24,28,31, 35,38,42, 45,50,61	03,05,06, 08,10,12, 14,17,20, 22,25,28, 31					5-S5  Fluoro rubber	No
T6EC	42,45,50, 52,57,62, 66,72,85	03,05,06, 08,10,12, 14,17,20, 22,25,28, 31
T6ED	42,45,50, 52,57,62, 66,72,85	14,17,20, 24,28,31, 35,38,42, 45,50,61
