S17 Square Rectangular Metal Detect Inductance Inductive Proximity Sensor Switch NPN/PNP 5Vdc/12V/24V IP67 Waterproof (IBEST)

Product Overview

Description

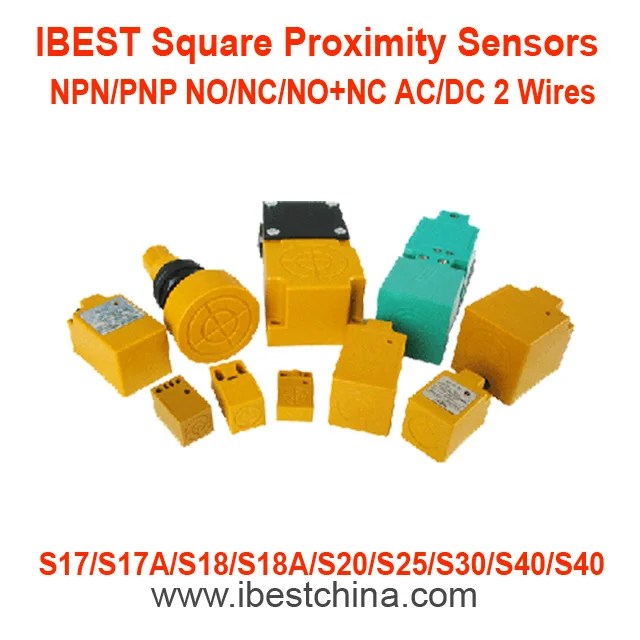

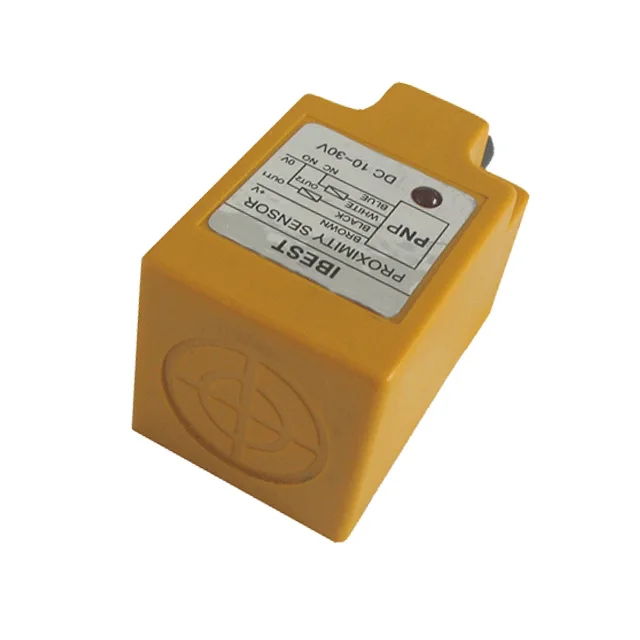

IBEST Square Type Inductive Proximity Sensor

S17 NPN or PNP 3 Wires/ NO or NC output



1.Features of IBEST  S18 Shielded Proximity Switch  :
--      Dim: 17*17*28mm, rectangular.

--      NPN or PNP output, NO or NC 3 wires or NO+NC  4 wiresoutput, DC 10-30V DC supply.
--      Mounting distance: 5mm
--      With LED operation indicate lamp, easily identifiable
--      Standard sensing object: Iferrous metals;
--      Protection rate: IP67, water resistant
--      Over-current and short circuit protection; Against polarity reversal.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.

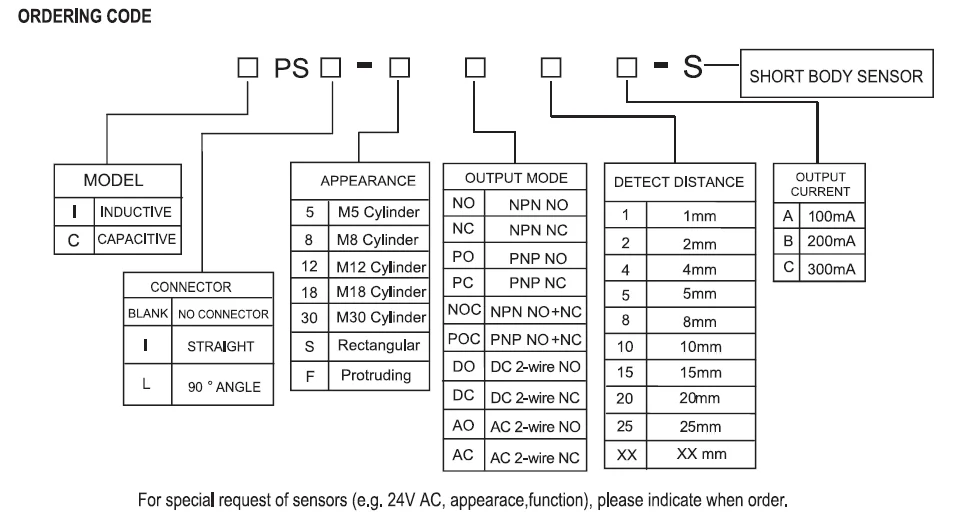

2.Ordering code:

IPS-S17POC5B	PNP NO+NC	5mm	0...4.5mm	≤200mA	DC 10-30V (4 Wire)
IPS-S17NOC5B	NPN NO+NC	5mm	0...4.5mm	≤200mA	DC 10-30V (4 Wire)

IPS-S17AO5C

AC 2 Wire NO

5mm

0...4.5mm

≤300mA

AC 90-250V (2 Wire)

IPS-S17AC5C

AC 2 Wire NC

5mm

0...4.5mm

≤300mA

AC 90-250V (2 Wire)



3. Specifications:
