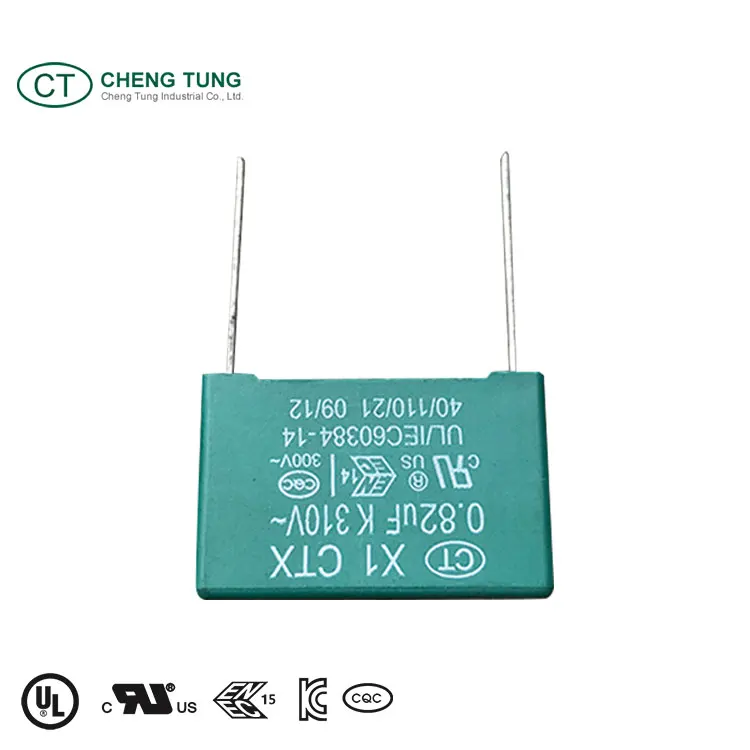

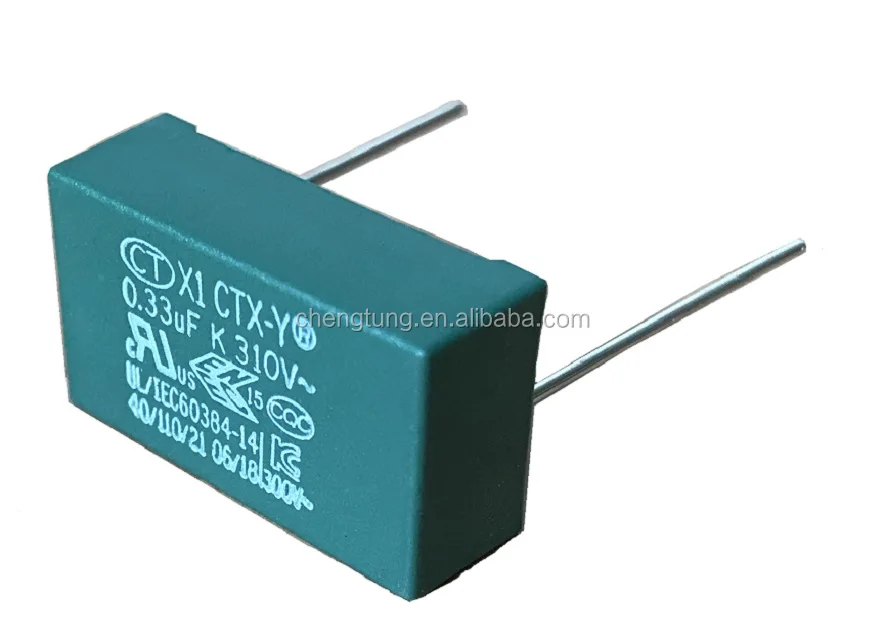

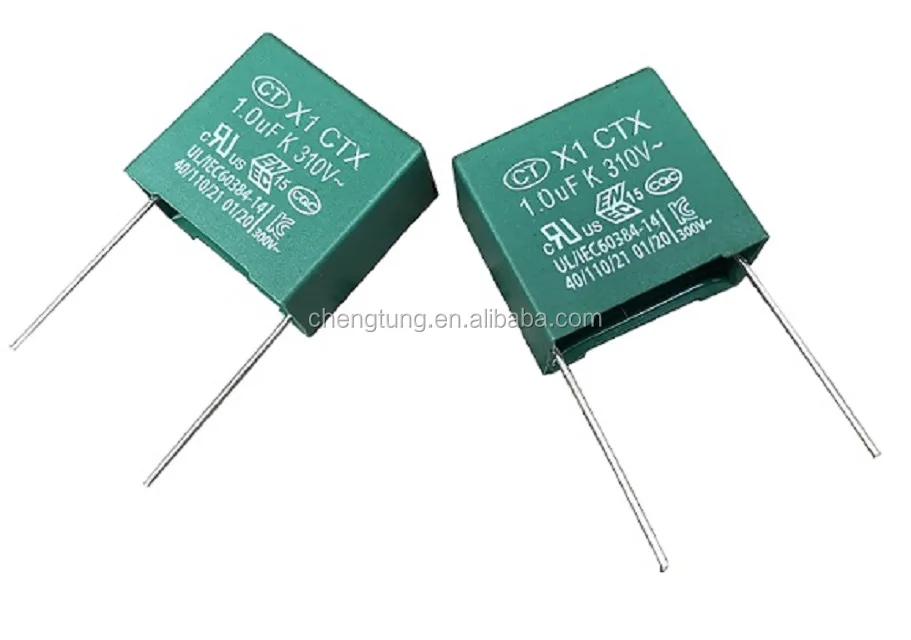

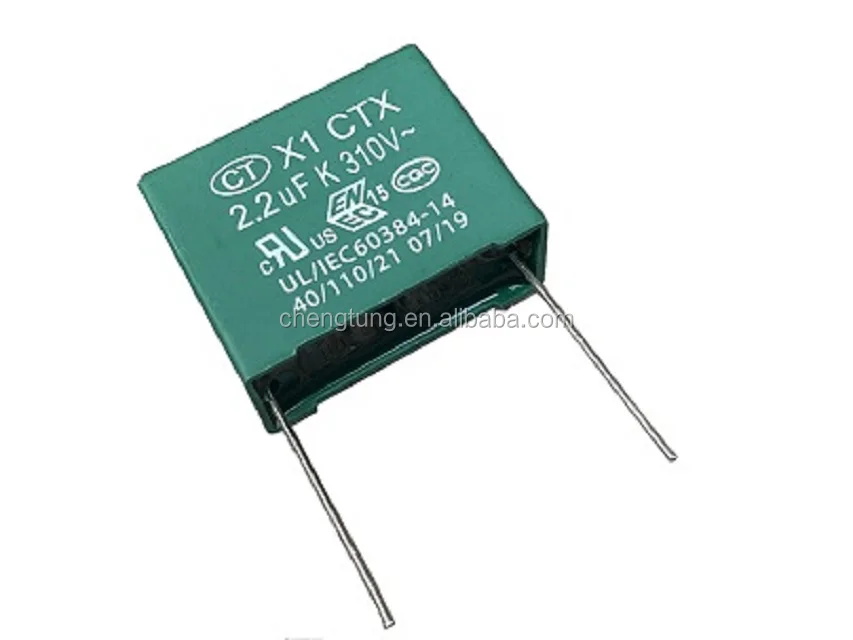

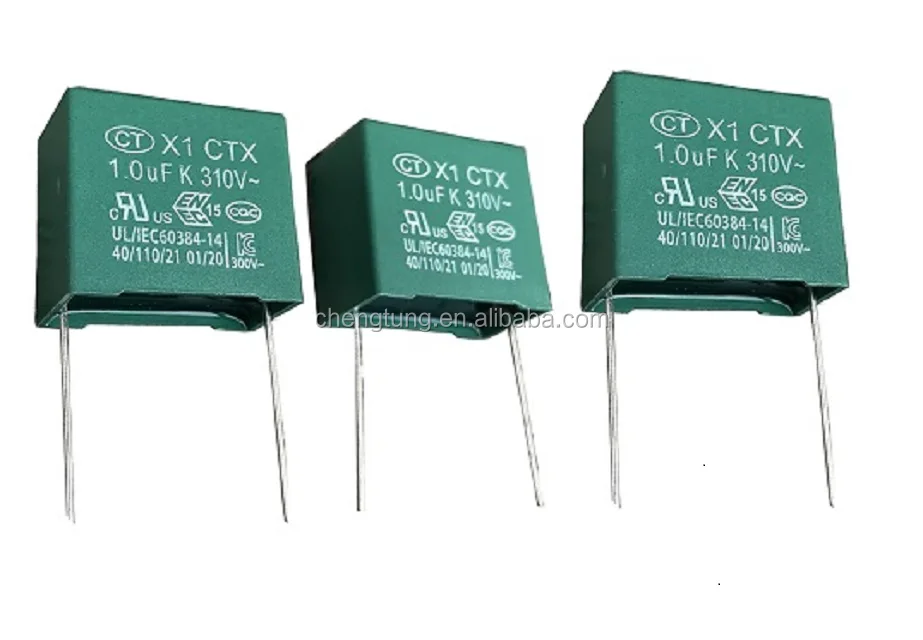

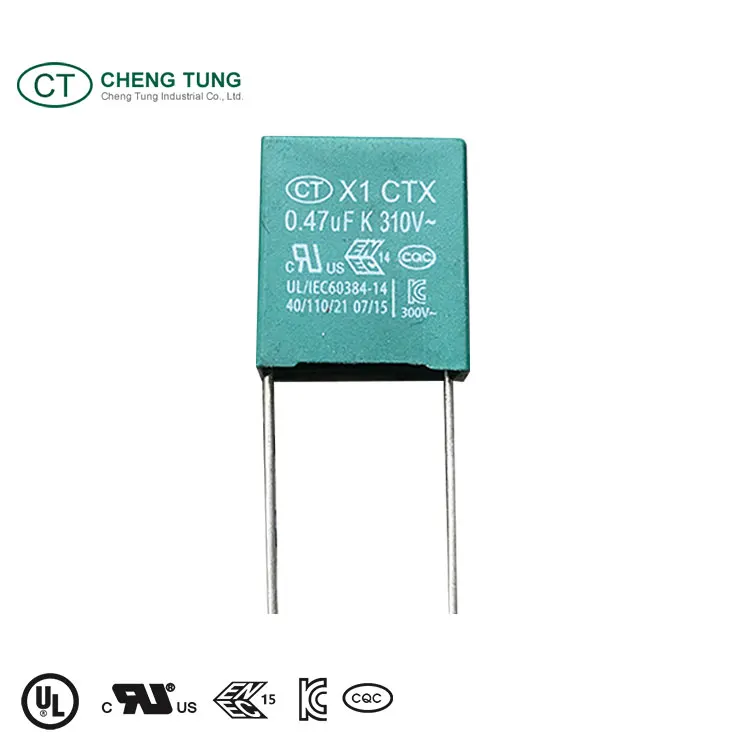

MKP X2 конденсаторы

TYPE: TYPE: X1/X2 CLASS (310 V.AC)

FEATURES

 APPLICATIONS

•


  Provides interference suppression, all safety approval





•


  Overvoltage stress withstanding





•


  Self-healing properties





•


  Active and passive flame retardant




• Ideal for use in line bypass, antenna coupling,   across-the-line and spark killer circuits.


• Available for EMI filter.


• Switching power supply applications.


• Business machines appliances, such as: typewriters,   adding machines, computer displays and monitors.


• Household appliances, such as: mixers, fans, coffee grinders,audio and TV circuits.


• Thyristor and triac appliances, such as: dimmers.

SPECIFICATIONS

  Dielectric

  Polypropylene film

  Electrodes

  Vacuum evaporated metal

  Coating

  Encapsulated in flame retardant (UL94V-0)

  plastic case and epoxy resin end seal.

  Leads

  Radial leads of tinned wire

  Climatic Catalogue

  40 / 110 / 21

  Capacitance versus Rated Voltage   (U_R)

300/ 310V.AC (50/60Hz) 0.0047uF ~ 10uF (X1 class)

300/ 310V.AC (50/60Hz) 0.0047uF ~ 52uF (X2 class)

  Capacitance Tolerance

  J = ± 5%  K = ±10%  M = ± 20%

 Dissipation Factor (Tangent of Loss)

<=0.1% at 1KHz and 20℃

<=0.3% at 10KHz and 20℃

  Voltage Proof

T-T  1333V.DC 60 Sec. or 1700V.DC 1 Sec.

T-C  2120V.AC 50/60Hz 60 Sec.

  Insulation Resistance

C<=0.33uF  IR>=30,000MΩ

C>0.33uF  IR>=10,000MΩ / uF
