Product Overview
Description
Products Description

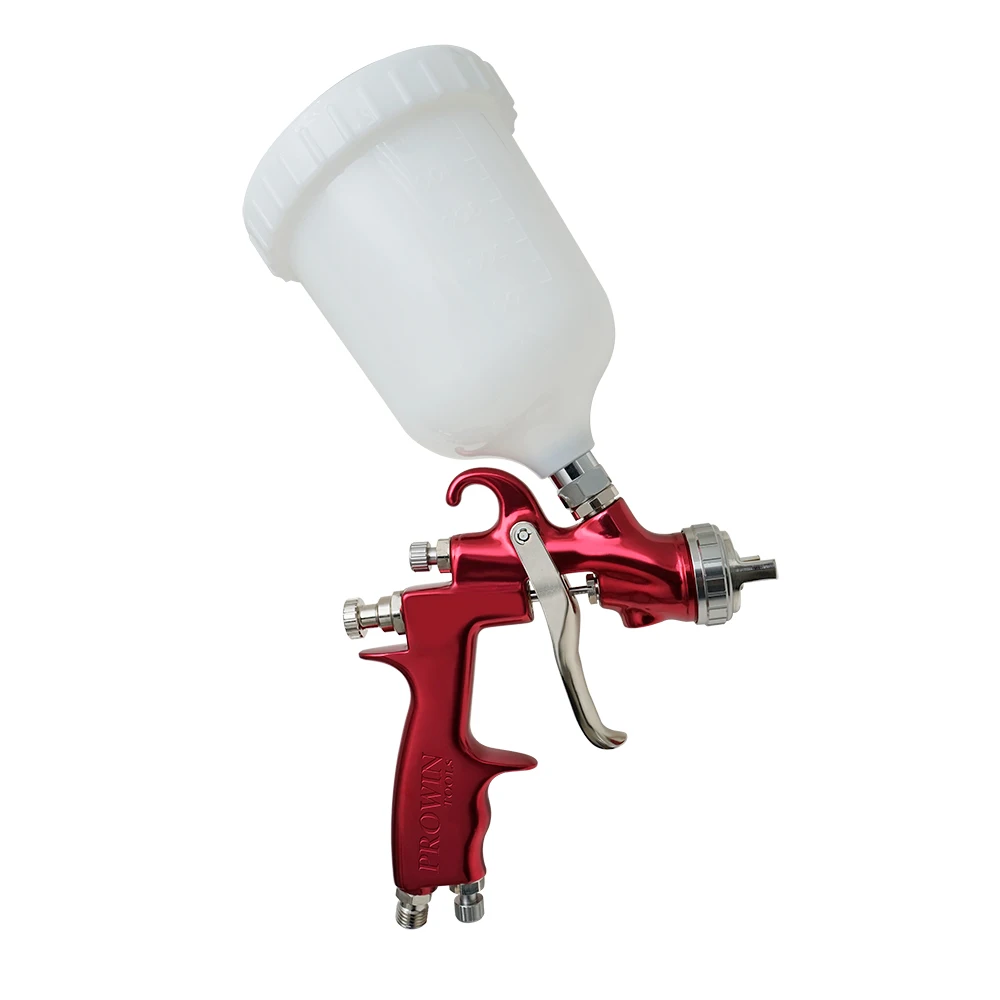

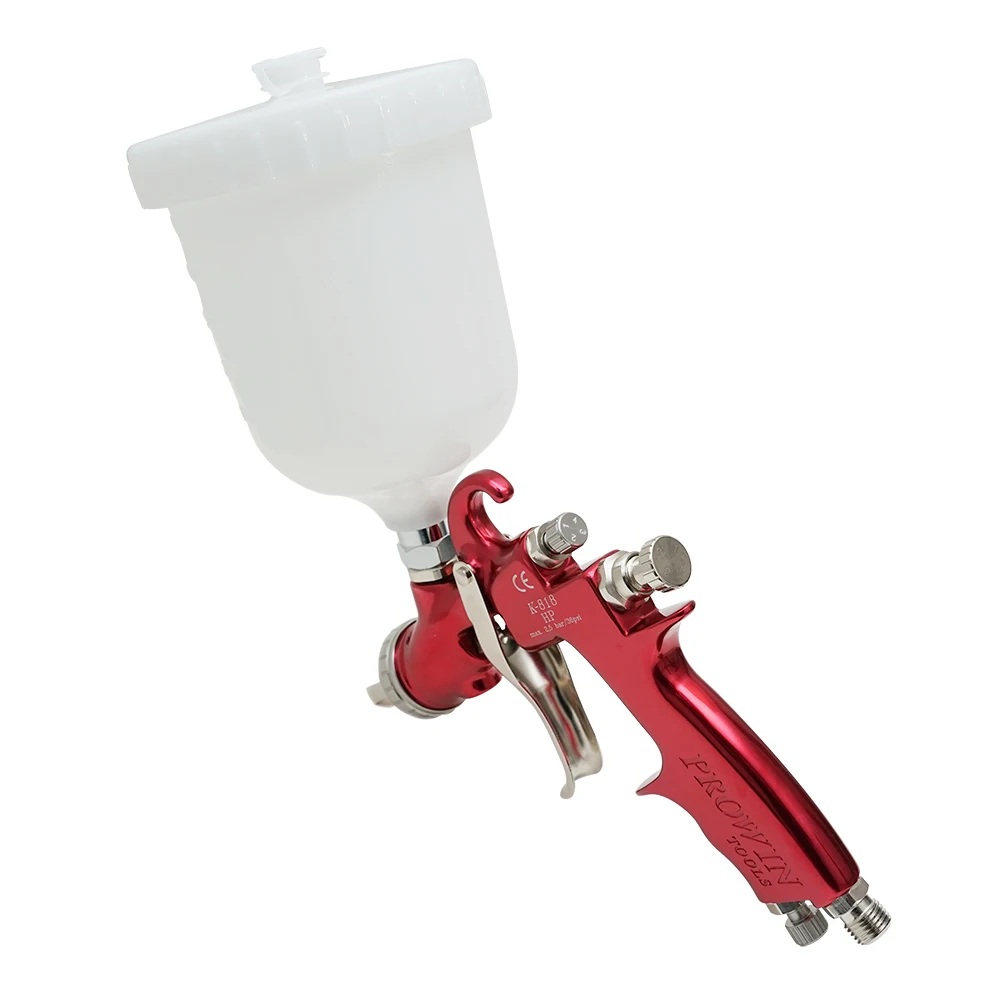

Easy maintenance mini spraygun spray guns
Why choose our Conventional spray gun?
1. One-piece aluminum forged body, finest atomization
2. No sand-hole, consistent painting performance
3. Fast paint output, good transfer efficiency>45%, up to 60-65%*1
4. Aesthetic Anodized surface, great rust-resistance & service life*2
5. Ergonomic design, comfort for long-time operating
6. 100% made in Taiwan, 100% quality inspection
7. P.O.M cup, well rigidity, long time use without color-attached
Footnote:
1. Experiment conducted by internal factory.
2. No sand-hole existence, compared with die-casting guns
Details Images
Product Description
Front view
Aesthetic anodized surface with ergonomic design
Aesthetic anodized surface with ergonomic design
Pressure Feed
Gravity Feed
Pressure Feed
Back view
Suitable for both left/right-handed
Suitable for both left/right-handed
Pressure Feed
Gravity Feed
Pressure Feed
Side view
Pressure Feed
Gravity Feed
Pressure Feed

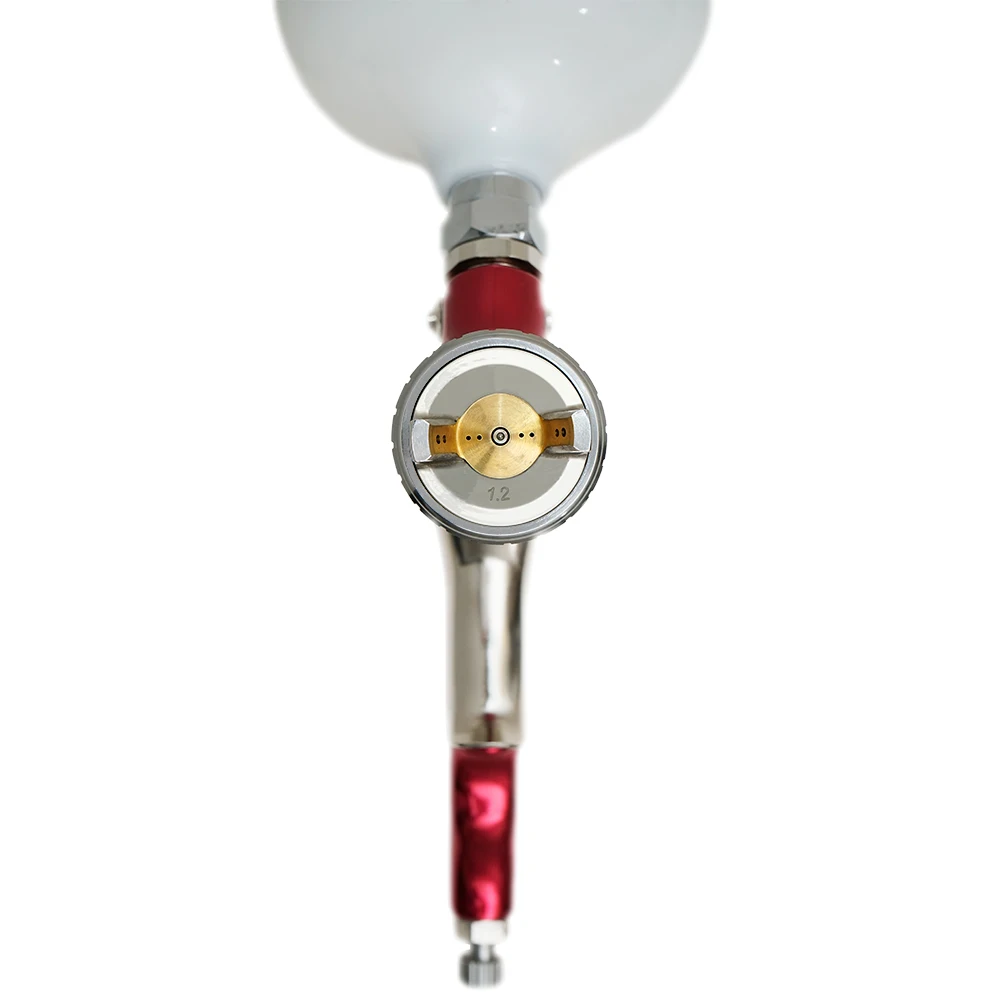

Nozzle view
Precision CNC machining and consistent
Precision CNC machining and consistent
Specification
Specification | Turn - up Kit | ||||||||||
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size | |||||
K-818M-10 | 1.0 mm | 130 ml | 290 mm | 190 l/min | SG008-818-10 | 1.0 mm | |||||
K-818M-12 | 1.2 mm | 170 ml | 300 mm | 210 l/min | SG008-818-12 | 1.2 mm | |||||
K-818M-13 | 1.3 mm | 210 ml | 305 mm | 210 l/min | SG008-818-13 | 1.3 mm | |||||
K-818M-14 | 1.4 mm | 220 ml | 310 mm | 210 l/min | SG008-818-14 | 1.4 mm | |||||
K-818M-15 | 1.5 mm | 240 ml | 315 mm | 210 l/min | SG008-818-15 | 1.5 mm | |||||
K-818M-16 | 1.6 mm | 260 ml | 320 mm | 220 l/min | SG008-818-16 | 1.6 mm | |||||
K-818M-18 | 1.8 mm | 300 ml | 330 mm | 220 l/min | SG008-818-18 | 1.8 mm | |||||
K-818M-20 | 2.0 mm | 340 ml | 340 mm | 220 l/min | SG008-818-20 | 2.0 mm | |||||
K-818M-25 | 2.5 mm | 380 ml | 350 mm | 220 l/min | SG008-818-25 | 2.5 mm | |||||
• Type : Gravity • Cup Capacity : 600 c.c. • Fluid Inlet : M16×1.5P • Air Inlet : 1/4" | • Working Pressure : 30~45 psi • Standard Nozzle : 1.4 mm • Gun Weight : 514 gs | ||||||||||
Specification | Turn - up Kit | ||||||||||
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size | |||||
K-818P-10 | 1.0 mm | 120 ml | 310 mm | 210 l/min | SG008-818-10 | 1.0 mm | |||||
K-818P-12 | 1.2 mm | 170 ml | 300 mm | 210 l/min | SG008-818-12 | 1.2 mm | |||||
K-818P-13 | 1.3 mm | 220 ml | 305 mm | 210 l/min | SG008-818-13 | 1.3 mm | |||||
K-818P-14 | 1.4 mm | 220 ml | 310 mm | 210 l/min | SG008-818-14 | 1.4 mm | |||||
K-818P-15 | 1.5 mm | 240 ml | 315 mm | 210 l/min | SG008-818-15 | 1.5 mm | |||||
K-818P-16 | 1.6 mm | 260 ml | 320 mm | 220 l/min | SG008-818-16 | 1.6 mm | |||||
K-818P-18 | 1.8 mm | 300 ml | 330 mm | 220 l/min | SG008-818-18 | 1.8 mm | |||||
K-818P-20 | 2.0 mm | 340 ml | 340 mm | 220 l/min | SG008-818-20 | 2.0 mm | |||||
K-818P-25 | 2.5 mm | 380 ml | 350 mm | 220 l/min | SG008-818-25 | 2.5 mm | |||||
• Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 3/8" | • Air Inlet : 1/4" • Working Pressure : 30~45 psi • Gun Weight : 514 gs | ||||||||||
Specification | Turn - up Kit | ||||||||||
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size | |||||
K-818S-10 | 1.0 mm | 120 ml | 310 mm | 210 l/min | SG008-818-10 | 1.0 mm | |||||
K-818S-12 | 1.2 mm | 170 ml | 300 mm | 210 l/min | SG008-818-12 | 1.2 mm | |||||
K-818S-13 | 1.3 mm | 200 ml | 305 mm | 210 l/min | SG008-818-13 | 1.3 mm | |||||
K-818S-14 | 1.4 mm | 220 ml | 310 mm | 210 l/min | SG008-818-14 | 1.4 mm | |||||
K-818S-15 | 1.5 mm | 240 ml | 315 mm | 210 l/min | SG008-818-15 | 1.5 mm | |||||
K-818S-16 | 1.6 mm | 260 ml | 320 mm | 220 l/min | SG008-818-16 | 1.6 mm | |||||
K-818S-18 | 1.8 mm | 300 ml | 330 mm | 220 l/min | SG008-818-18 | 1.8 mm | |||||
K-818S-20 | 2.0 mm | 340 ml | 340 mm | 220 l/min | SG008-818-20 | 2.0 mm | |||||
K-818S-25 | 2.5 mm | 380 ml | 350 mm | 220 l/min | SG008-818-25 | 2.5 mm | |||||
• Type : Suction • Cup Capacity : 1000 c.c. • Fluid Inlet : 3/8" | • Air Inlet : 1/4" • Working Pressure : 30~45 psi • Gun Weight : 514 gs | ||||||||||
Application
1. Auto refinishing, high finishing to restore the shine
2. Craftsmanship
3. Architectural coating
4. Wood working industry, creating color-rich glossy surfaces.
5. Marine domain, non-corrosive layer coating
2. Craftsmanship
3. Architectural coating
4. Wood working industry, creating color-rich glossy surfaces.
5. Marine domain, non-corrosive layer coating
Reasons for choosing Conventional guns?
1. Fast painting speed, speedy finishes
2. Lower air consumption (190-220 L/min) coupled with a superb finish
3. Easy to operate: professionals or DIY enthusiasts can easily get perfect refinishing outcome.
2. Lower air consumption (190-220 L/min) coupled with a superb finish
3. Easy to operate: professionals or DIY enthusiasts can easily get perfect refinishing outcome.
OEM / Distribution

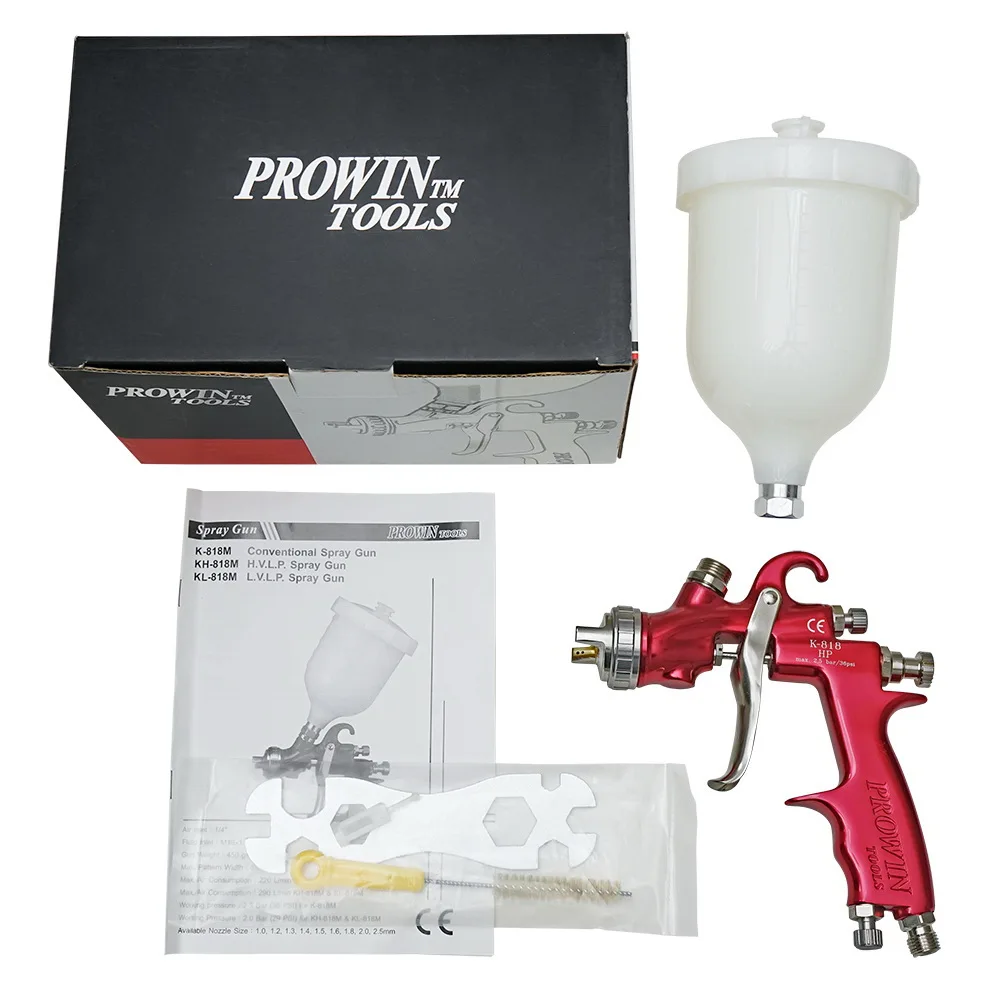

Product Packaging
Related Product
Recommend Product
HVLP

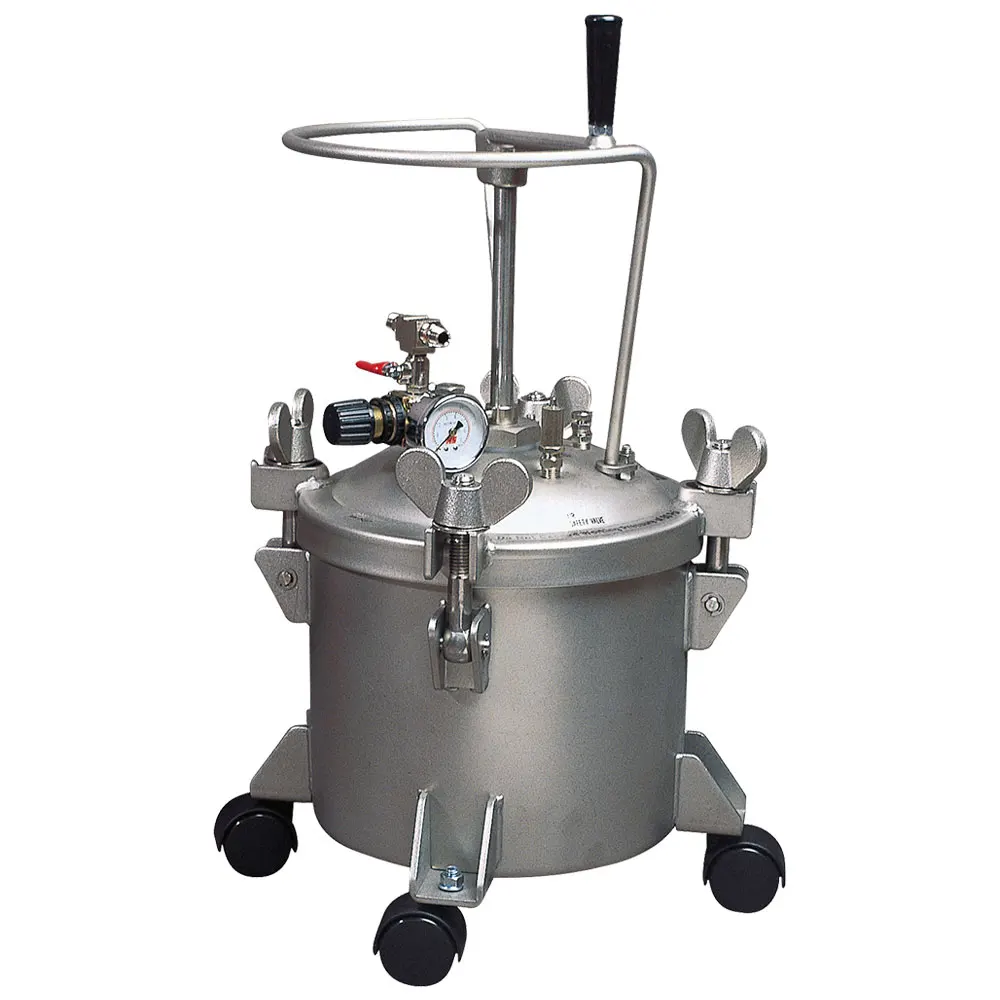

Pressure tank

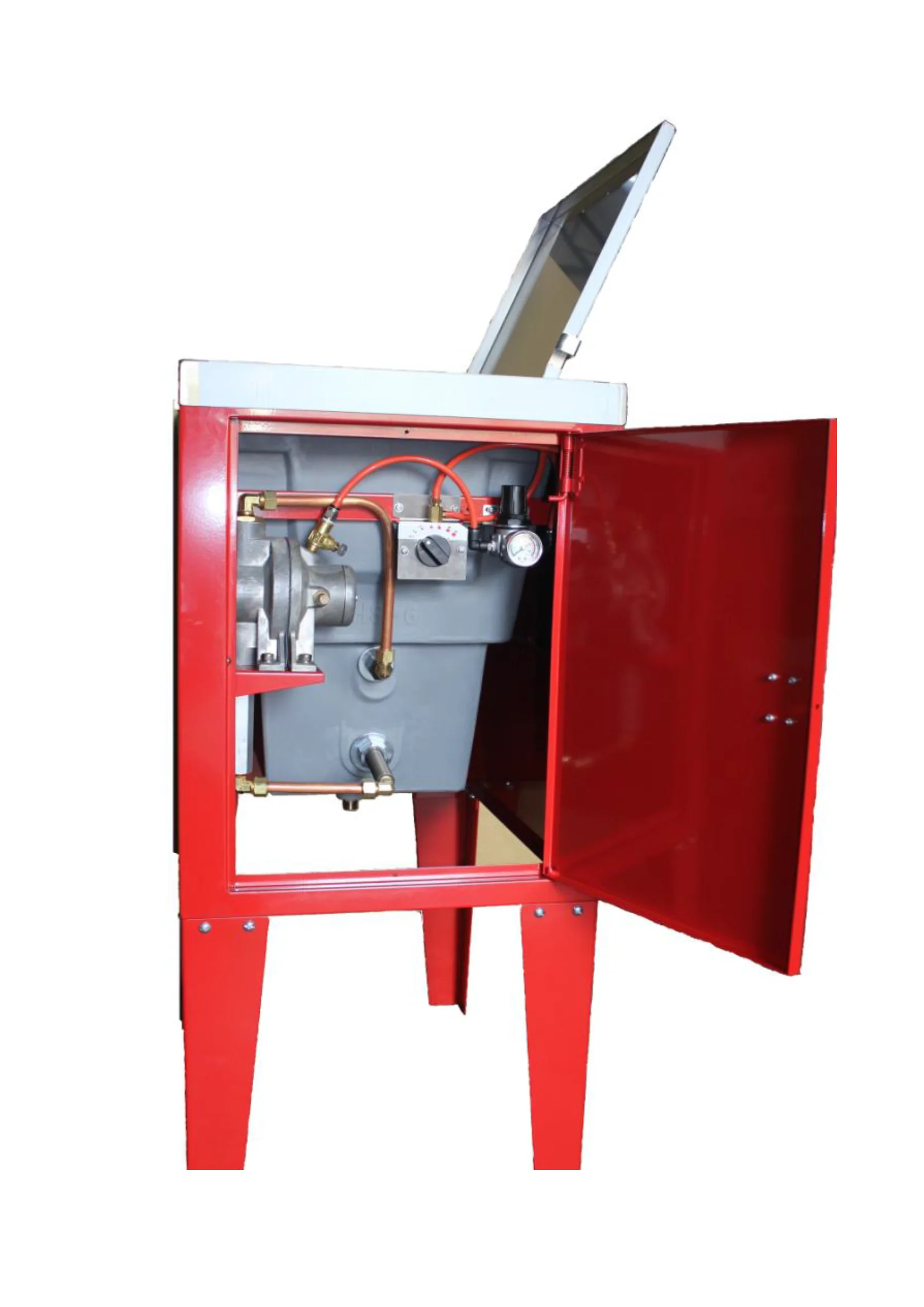

Spray Gun Washer
