48v 72v 96v 4000w brushless type high speed electric bike motor 4kw
48v 72v 96v 4000w brushless type high speed electric bike motor 4kw
48v 72v 96v 4000w brushless type high speed electric bike motor 4kw
48v 72v 96v 4000w brushless type high speed electric bike motor 4kw
48v 72v 96v 4000w brushless type high speed electric bike motor 4kw
48v 72v 96v 4000w brushless type high speed electric bike motor 4kw
48v 72v 96v 4000w brushless type high speed electric bike motor 4kw

48v 72v 96v 4000w brushless type high speed electric bike motor 4kw

Share on (62003157886):


Price:$129.00-145.00

Quantity:


Product Overview

Description

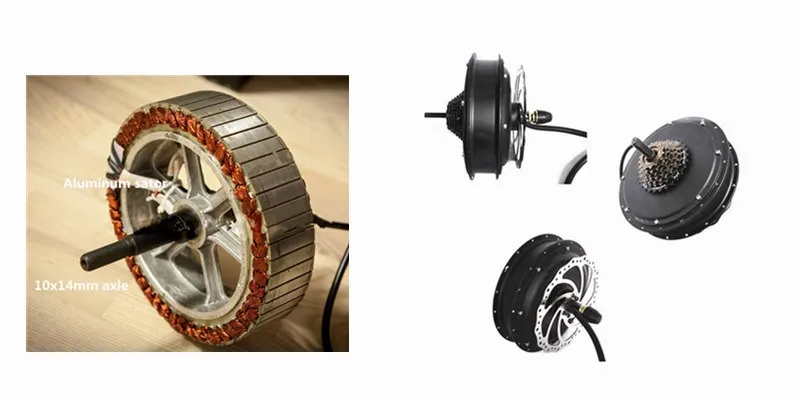

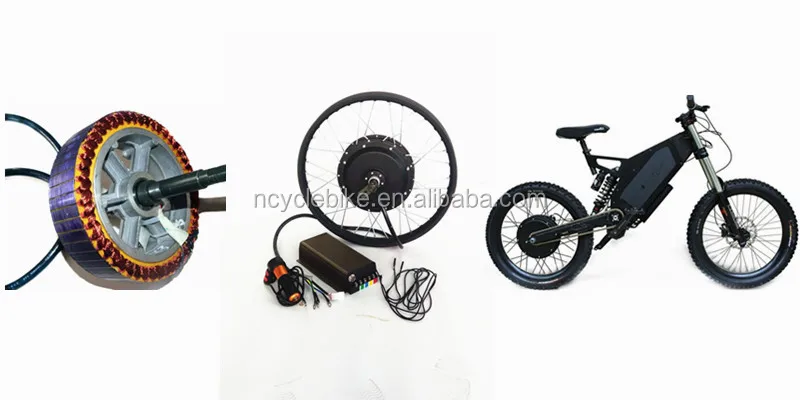

                     PRODUCT PICTURES

72v brushless electrical motors 3000w gearless hub electrical motors



                          PRODUCT DETAIL

Model

NC4000 electric bike hub motor

Motor power

4000watts

Axle

10mm* 16mm

motor diameter

244mm

Voltage

72v

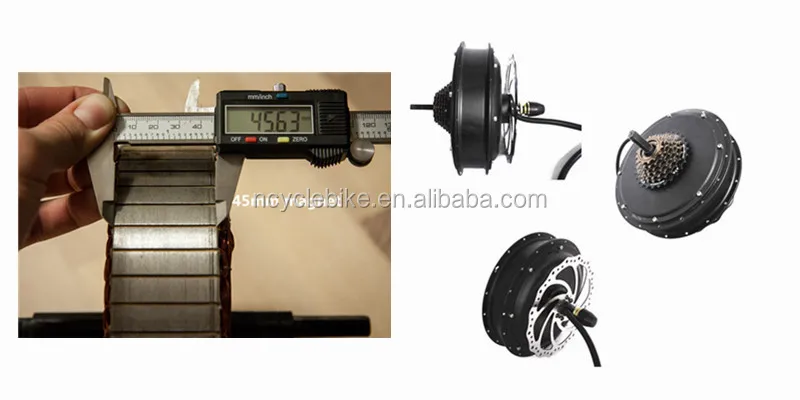

Magnet Height

45mm

Design

Brushless gearless

windings

21*3

waterproof grade

IP54

RPM/min

860

numbers of pole pairs

23

peak phase current

190

Max torque

110

Max Efficiency

85%

drop out

150mm for rear motor only.

Brake

Disc

Hall sensor

Yes

hall sensor phasing

120 degrees

Cable size

2m*6 mm2

temperature sensor

Yes

color

dark black

N.W

8.9 kgs

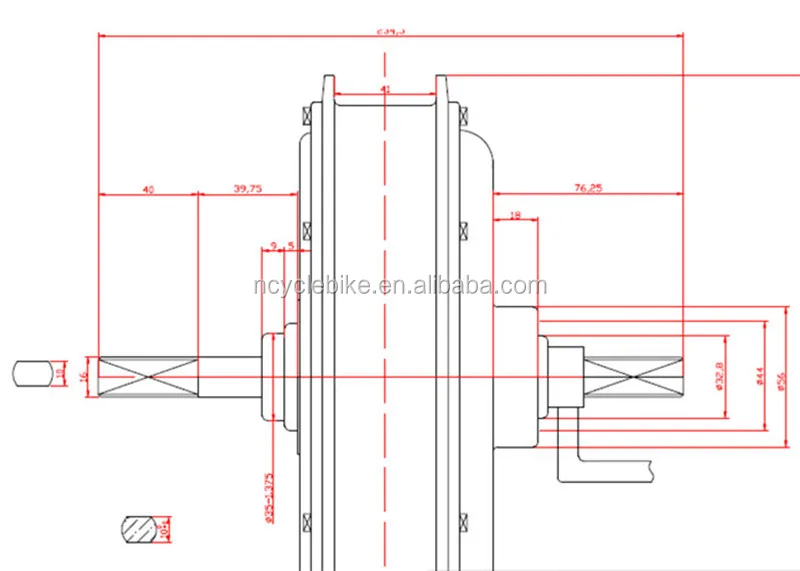

                     PRODUCT DRAWING

72v brushless electrical motors 4000w gearless hub electrical motors

 3kw motor drawing_

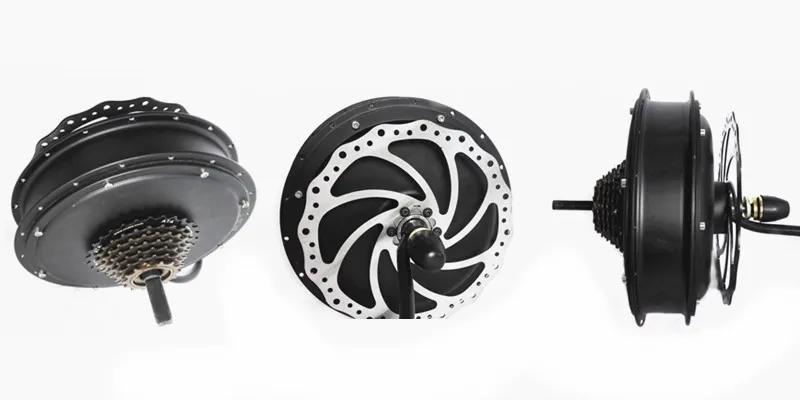

                       PRODUCT FEATURES

72v brushless electrical motors 4000w gearless hub electrical motors

Economy & Efficient

High Efficiency (86%-92%), low loss on electricity transform.

Professional

MANUFACTURER of high quality Electric Bike/Scooter/Motorcycle/Tricycle/ in-wheel motor (CE approved) with competitive price

Ranging 180W -5000W electric bike motor , with differenct voltage



Quality

Good Quality Control. Choose good raw materials from the beginning to the end. All the motor are inspected before delivery.

Long working life(3-5 years), High Efficiency (85-92%),  repair rate less than 1%.



Service

Well-trained sales and professional engineers provide you with professional solutions & after sale issues.

Drawing & Test Report are available.

Support OEM and customized Logo. Main parameters could be customized, e.g., RPM

3000w 2

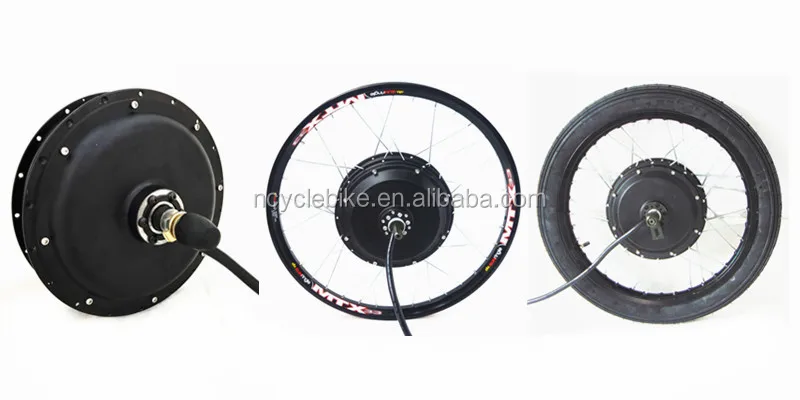

                    PRODUCT APPLICATION

72v brushless electrical motors 4000w gearless hub electrical motors

 5000W motor 1

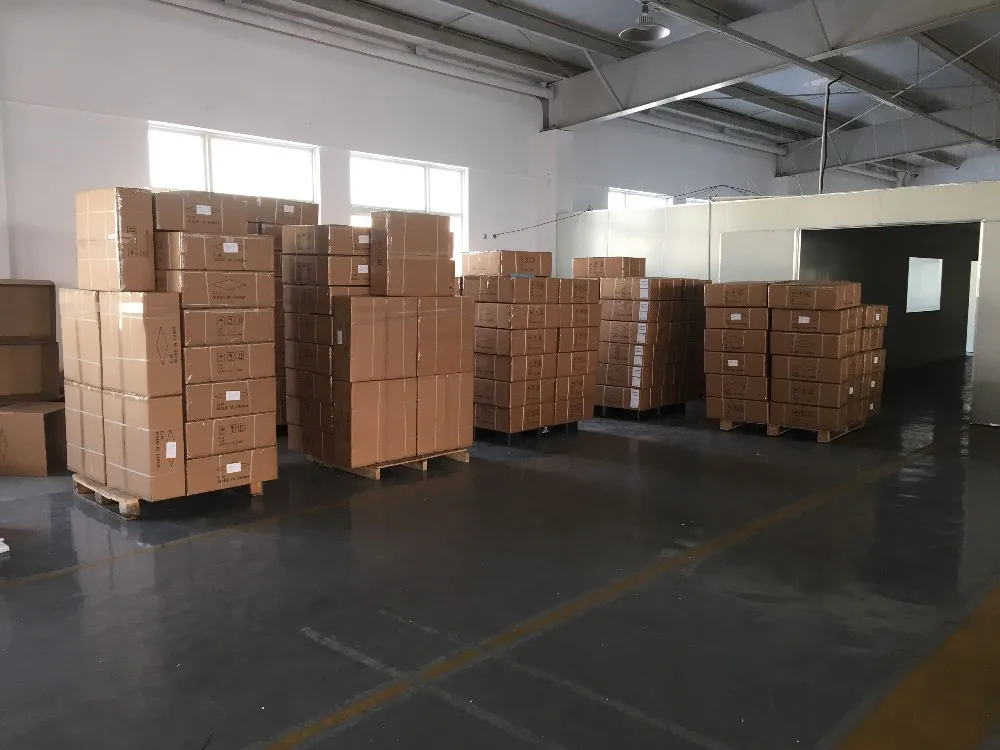

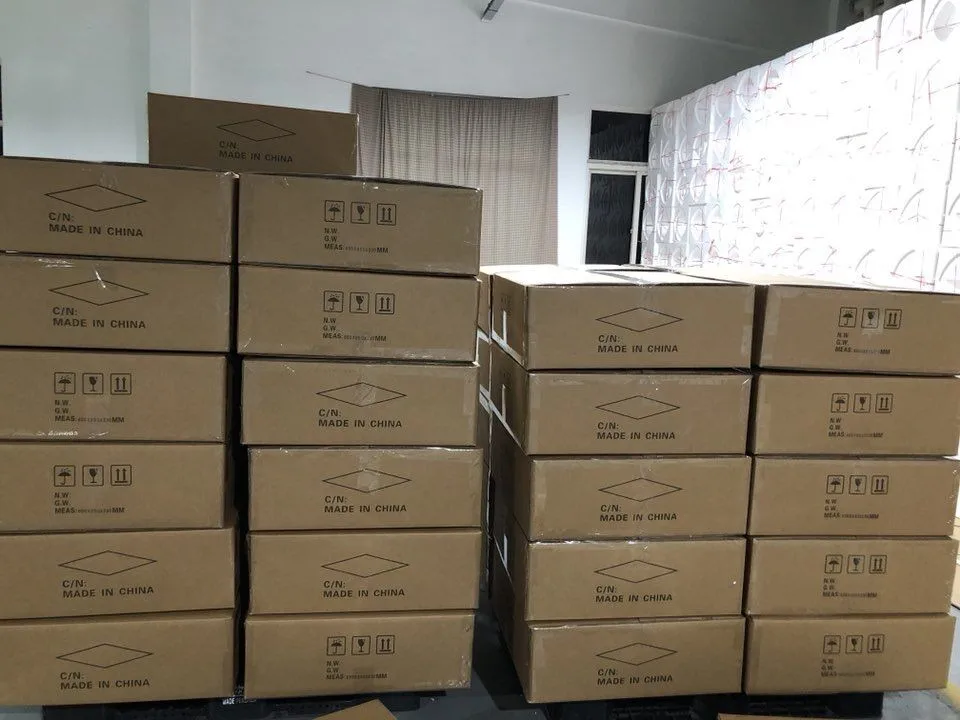

                        PRODUCT PACKING

Packing details for 72v brushless electrical motors 4000w gearless hub electrical motors

Material : carton with foam for ebike 4000W hub motor


QQ20181212154247QQ20181212154317

Our Services





1.Our company products can be according to customer requirement do export the authentication

2.About specific packing,factory conventional or According to clients' requirements.

3.Product specific issues can send email to us Company, our company in time reply your.

4.24 hours online service and 24 hours on call.

5.LCL available, MOQ is 1 PC.

6.Delivery fast and on time.

7.Supply some parts for free.

8.Return samples cost after bulk order placed.

9.Good preferential Policy.

Company Information

NCYCLEBIKE

⇒Our main products include electric bicycle,motor,lithium-ion battery,LCD control panel,power-assist sensor and some e-bike kits.

⇒And we have the Competitive price ,perfect quality and fast delivery time are the principles of us.

⇒We sincerely looking forward to cooperating with you and your esteemd company!




FAQ

1. Question : Are your company a manufacturer or a trading company?
Answer : We are a manufacturer, and also we export some products from other cooperative partner.

2. Question : What payment term do you accept?
Answer : We accept TT, , LC and paypal.



3. Question : How long is the delivery time?
Answer : For normal orders, we can send within 7 days after we get the payment. If it is a very large order, the delivery time may be a little longer.

4. Question : Does your company accept customization?
Answer : As a professional manufacturer, we can do almost any kinds of customization.

5. Question : Do you have any kinds of certificates?
Answer : We have got CE certificates, and if you need other kinds of certification, please feel free to contact us, we are glad to try any kinds of certification.

6. Question : Does your company accept sample orders?
Answer : Yes, we do.

7. Question : Can I visit your factory?
Answer : Of course you can! We are ready to show you around our professional workshop.

8. Question : Is your company ready to sign a distributor with me for my country?
Answer : Yes, we would think about it ,if you are good enough.
