XCMG Official JP32C1 water tower fire fighting truck price for sale
- Category: Fire Trucks >>>
- Supplier: XCMG E-Commerce Inc.
Share on (62004067458):
Product Overview
Description
Products Description

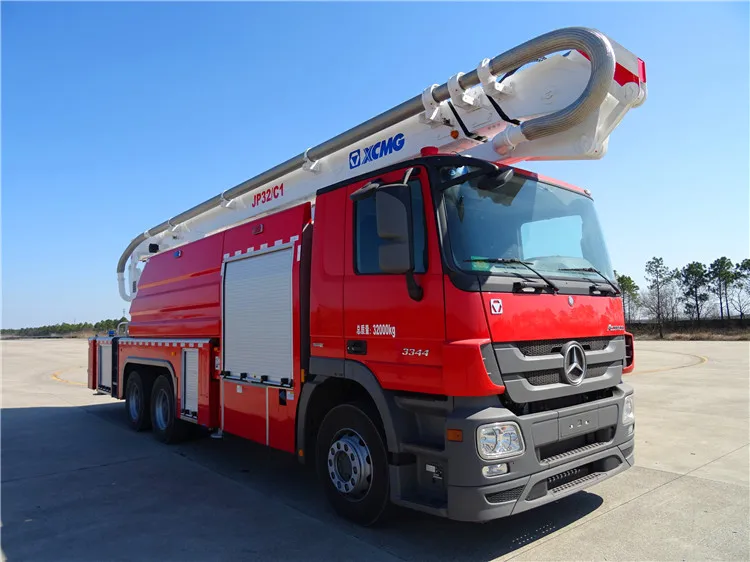

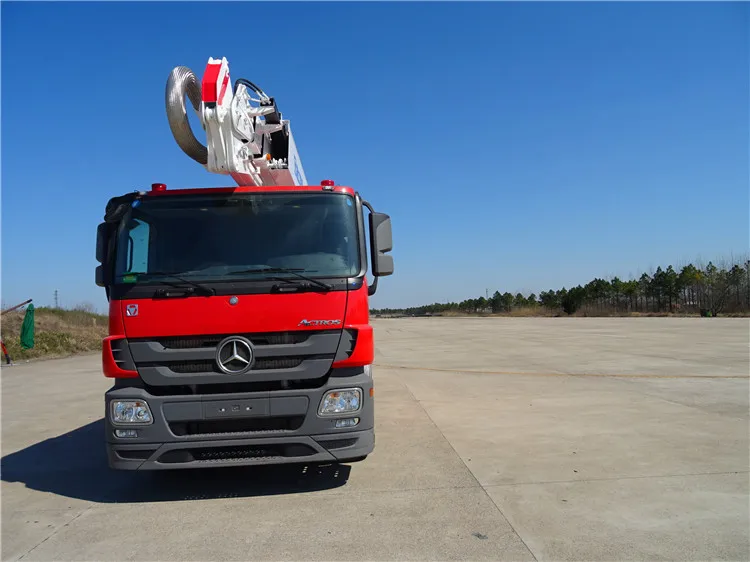

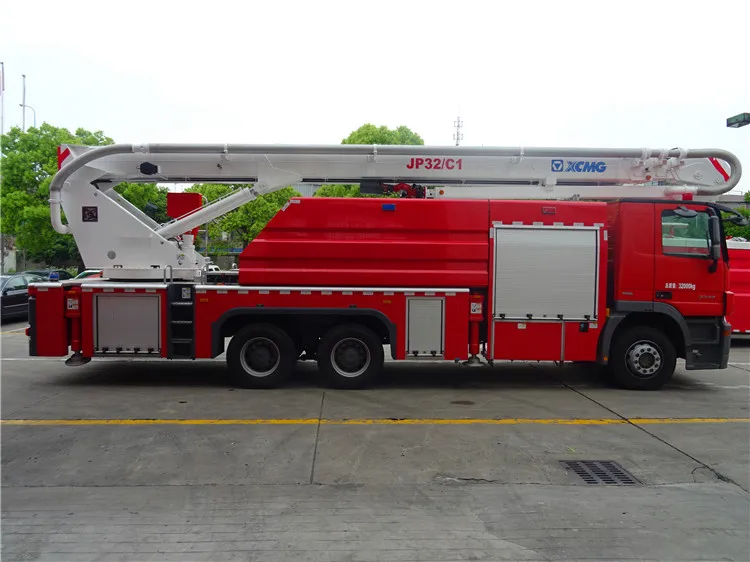

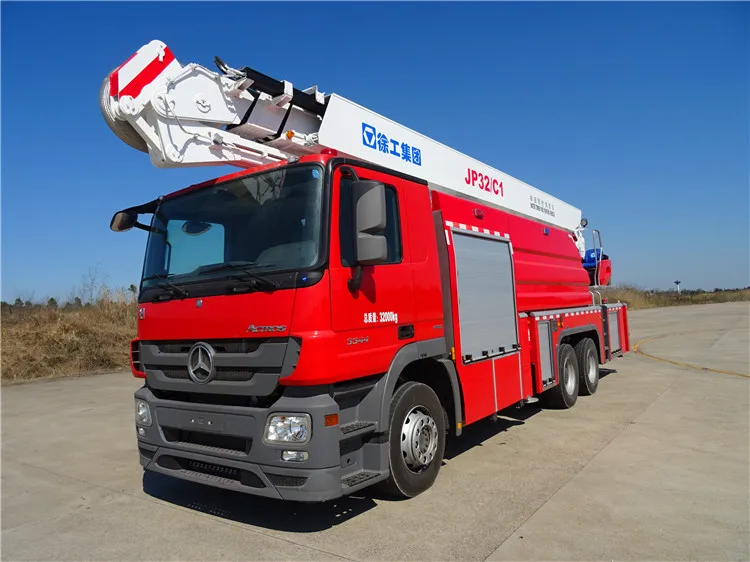

XCMG Official JP32C1 water tower fire fighting truck.
1.The JP32C1 water tower fire truck is a main battle vehicle that combines the functions of a water tanker, a foam vehicle, and a water tower truck. It is widely used in fire protection and rescue work of middle and high buildings such as towns, mines, oil fields and factories. It is the first choice for extinguishing fires in high and medium-rise buildings, rescue personnel in distress and rescue property.
2.The water tower fire truck adopts the German Mercedes Actros 3344 vehicle chassis, and the upper vehicle uses a full swing, straight telescopic arm + crank structure. All the sports organizations adopt the way of electric control and hydraulic drive, which makes the vehicle easy to operate, flexible in action, safe and reliable, and practical. It uses a computer to automatically control the extreme position of the deceleration and stop, so that the operation is rapid, labor-saving, convenient, and stable, and has a large range of speed, micro movement, accurate movement. The effective cooperation of the straight telescopic arm + crank arm enables it to have excellent high-altitude cross-barrier capability, and has a wider operating range than that of the folding arm fire truck.
2.The water tower fire truck adopts the German Mercedes Actros 3344 vehicle chassis, and the upper vehicle uses a full swing, straight telescopic arm + crank structure. All the sports organizations adopt the way of electric control and hydraulic drive, which makes the vehicle easy to operate, flexible in action, safe and reliable, and practical. It uses a computer to automatically control the extreme position of the deceleration and stop, so that the operation is rapid, labor-saving, convenient, and stable, and has a large range of speed, micro movement, accurate movement. The effective cooperation of the straight telescopic arm + crank arm enables it to have excellent high-altitude cross-barrier capability, and has a wider operating range than that of the folding arm fire truck.
Specification
Main performance data | ||||||
Overall size : (L x W x H) | 11470×2500×3920mm | |||||
Full-load weight | 32480kg | |||||
Maximum truck speed | ≥100km/h (Electronic speed limit) | |||||
Minimum turning diameter | ≤20m | |||||
Approach angle | ≥15° | |||||
Departure angle | ≥7° | |||||
Maximum gradeability | ≥25% | |||||
Outrigger span | Outrigger longitudinal span | 6000mm | ||||
Outrigger transversal span | 5400mm | |||||
Maximum working height | 32m | |||||
Maximum working radius | 22m | |||||
Jib rack luffing angle | Telescopic arm: -3°-85° Folding arm and telescopic arm: 0°-180° | |||||
Turning range | 360° full circle swing | |||||
Leg deployment time | ≤25s | |||||
Time of the boom rising to the rated height and rotating 90° | ≤75s | |||||
Maximum turning speed | 0.5~1.5r/min | |||||
Fire pump | Rated flow | 80 L/s | ||||
Rated pressure | 1.4MPa | |||||
Fire monitor | ||||||
Rated flow | 80 L/s | 80 L/s | ||||
Rated pressure | 0.8MPa | 0.8MPa | ||||
Shoot range | 75m | 70 m | ||||
Liquid | Water | Foam | ||||
