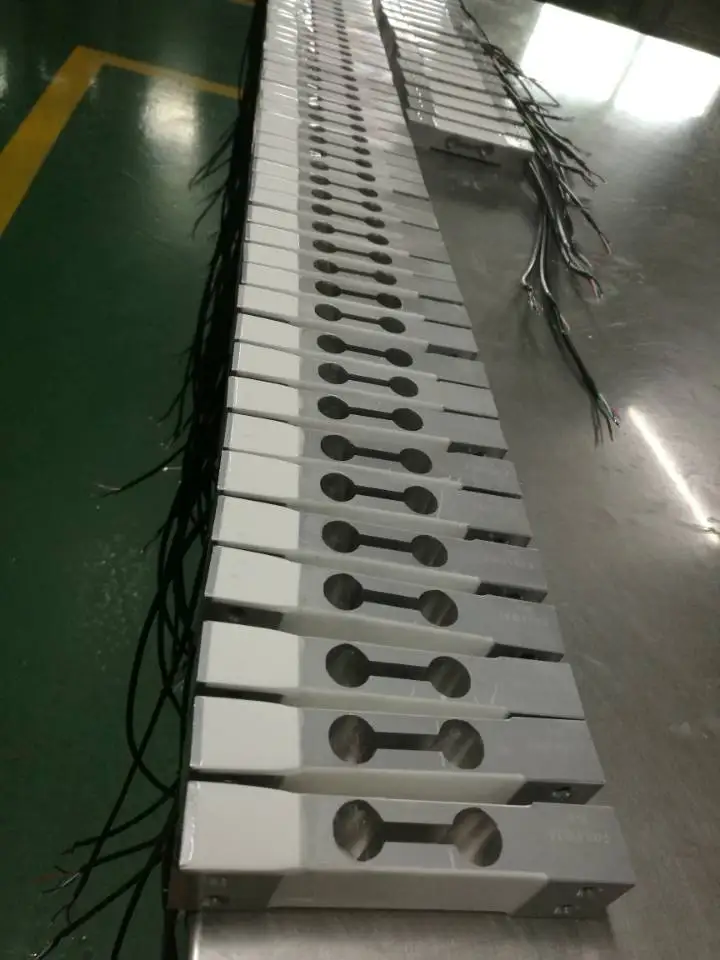

OIML C3 Single Point Load Cell CZL601

Product Overview

Description

Single point load cell, high precision & stability, competitive price



Rated load: 3,5,8,10,15,20,30,40,50,60,100,120kg



Main features:The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.



Specifications:

Precision	C2&C3	Temp. effect on span(%F.S/10℃)	±0.02& ±0.014
Comprehensive error(%F.S)	±0.02 & ±0.017	Temp. effect on zero(%F.S/10℃)	±0.03 & ±0.017
Rated output(mv/v)	2.0±0.02	Compensated temp. range(℃ )	-10~+40
Creep(%F.S/30min)	±0.02 & ±0.017	Use temp. range(℃ )	-20~+60
Zero balance(%F.S)	±1.0	Excitation voltage(V)	9~12(DC)
Input resistance(ohm)	405±10	Safe overload (%F.S)	120
Output resistance(ohm)	350±3	Ultimate overload (%F.S)	150
Insulation resistance(Mohm)	≥5000(100VDC)	Defend grade	IP65

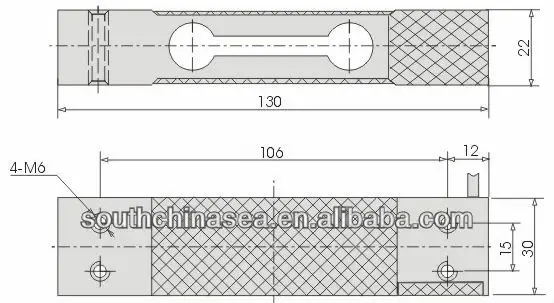

Size





Wiring schematic diagram:

Red: Input ( + ) 111   White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)
