Manual Welding Tool for Upvc Windows and Doors Making
US $169.99-$190.00
Jinan shandong machinery алюминиевая двухголовочная циркулярная торцовочная пила для алюминиевого профиля
- Category: Window and Door Making Machine >>>
- Supplier: Jinan Haijinna CNC Machinery Co. Ltd.
Share on (62004259490):
Product Overview
Description
Product Description
Main Features

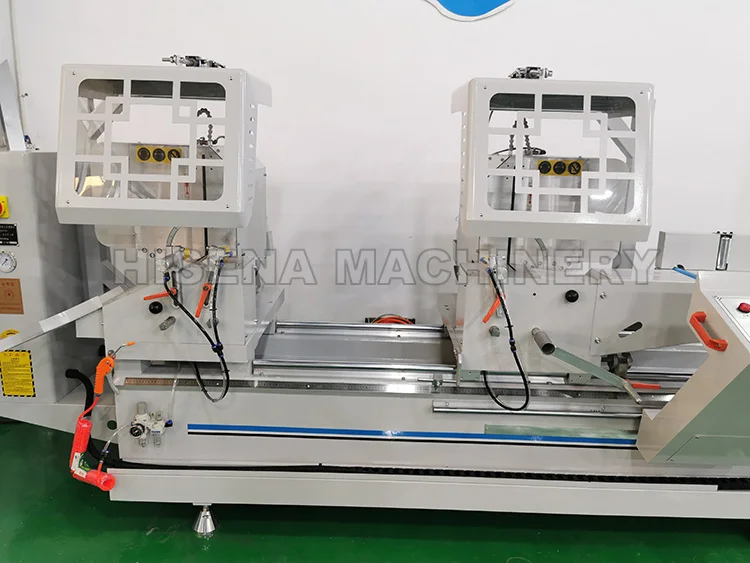

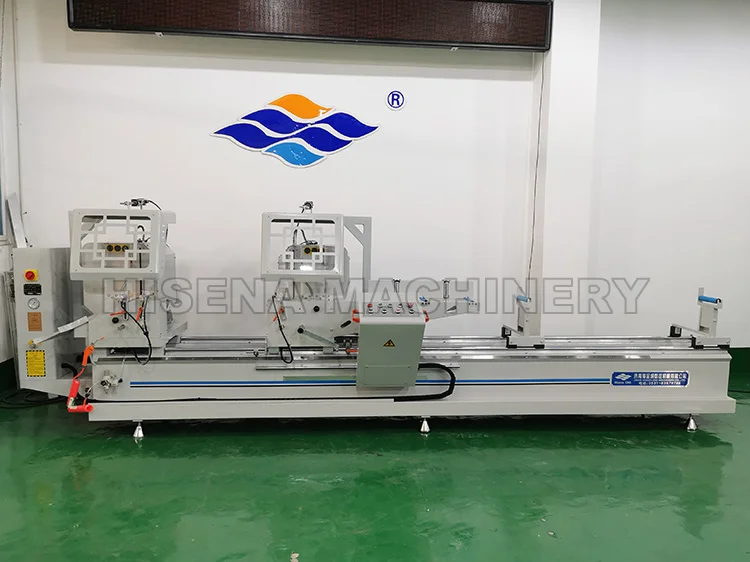

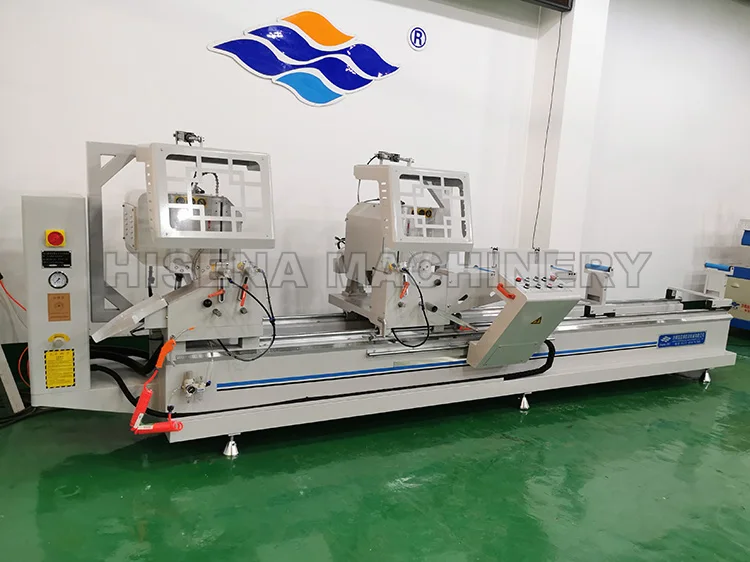

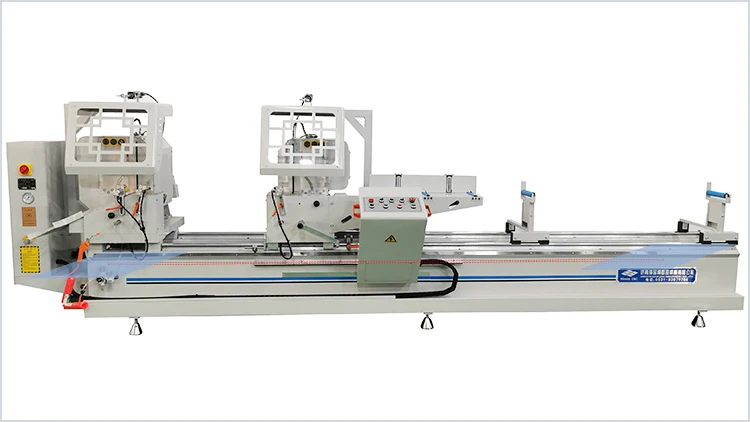

1. Used for cutting aluminum / upvc extrusions .
2.Two head can work Simultaneously or Separate .
3.Saw blade feeding system adopts imported linear guide pair, with high accuracy and long service life.
4.Two heads can automatically flip 90°and inward 45°,outward 45° is available manually. Saw blade rotate smoothly due to high
accuracy main spindle.
5.Imported carbide saw blade give accurate processing and high endurance.
6.Auto-opening guard shield ensured safety operation.
7.Spraying cooling system, make sure carbide saw blade long service life .
2.Two head can work Simultaneously or Separate .
3.Saw blade feeding system adopts imported linear guide pair, with high accuracy and long service life.
4.Two heads can automatically flip 90°and inward 45°,outward 45° is available manually. Saw blade rotate smoothly due to high
accuracy main spindle.
5.Imported carbide saw blade give accurate processing and high endurance.
6.Auto-opening guard shield ensured safety operation.
7.Spraying cooling system, make sure carbide saw blade long service life .
Specification
Model | LJZ2A-450*3700 |
Power supply | 380V 50Hz or to order |
Main motor power: | Power 2*1.5kw |
Input power | 3kw |
Air pressure | 0.5-0 8 M pa |
Air consumption | 200L /min |
Main motor rotation speed: | 2800rpm. |
Max/min Cutting length | 400-3700mm |
Saw blade | Φ450×Φ30×δ4mm Z=120 |
Maximum cutting width | 115mm |
Repeat locating length | ≤0.2mm |
Angle cutting tolerance | ±5′ |
Plane of cutting surface | ≤0.10 |
Cutting surface roughness | Ra12.5um |
Size: (W*W*H) | 5040 × 1220 × 1600mm |
Weight: | 1000Kg |
Cutting angle: | Auto inward 45°/90° |
Straightness of both ends of the bodysurface is less than 0.2mm,this makes which makes the right head move very smoothly,which is the basis for obtaining a precise cutting angle.
Both the swing support arm and the table are cast, with good durability and strength.

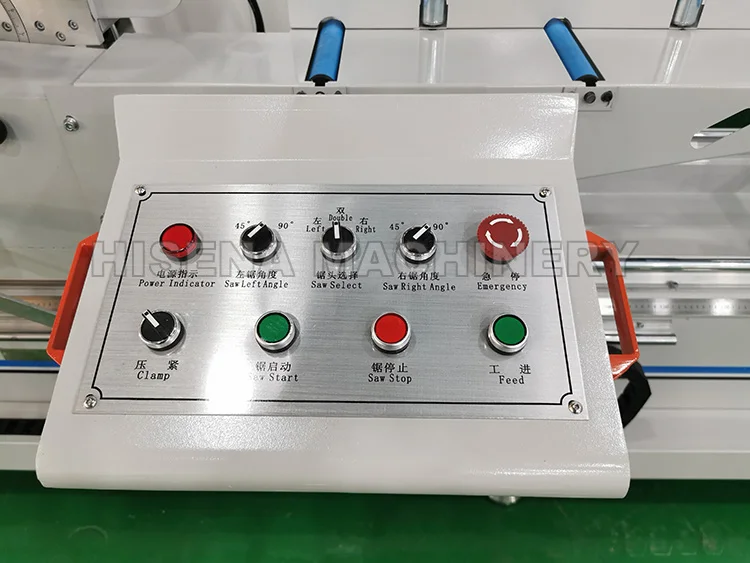

The buttons are the most frequently contacted part with the operator, we use the Siemens brand
All our manufacturers have more than 3 years experience,the machines will be commissioned well before shipment.
