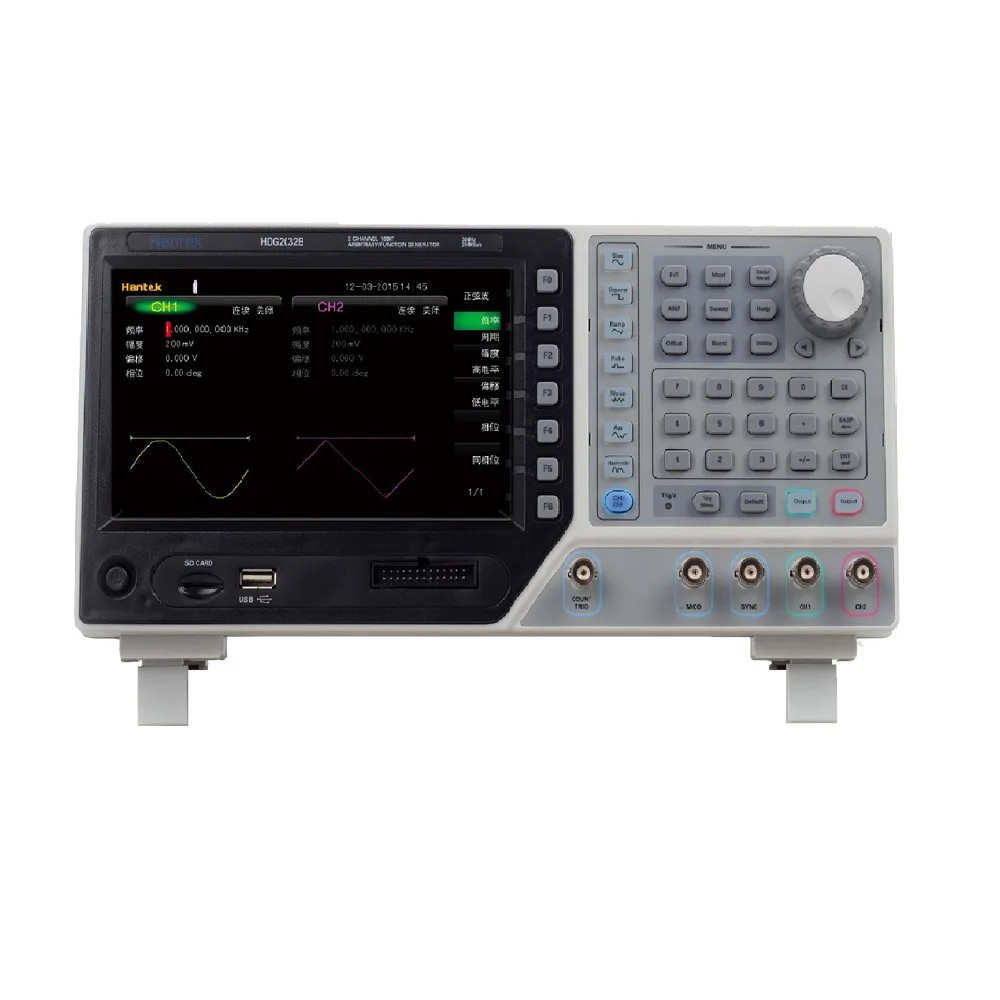

Hantek HDG2062B Arbitrary Waveform Function Generator 2CH 20M 16Bit 250MSa 64M Memory

Features:

  • l 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth;

    l 100/80/60/30/20/10MHz or 5MHz Max. Sine Output Frenquency;

    l 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice

    l Support AM, FM, PM, ASK, FSK, PSK and PWM modulations

    l TCXO timebase standard, OCXO optional for ultra-high stability

    l 7 inch, 64K true color TFT display, WVGA(800X480)

    l Plenty of interfaces: USB Host, USB Device, LAN

    l 80M Frequency Counter;

    This device is running Linux , for more detail see

Parameters:



ModelHDG2102BHDG2082BHDG2062BHDG2032BHDG2022BHDG2012BHDG2002B
Main Features
Channel2222222
Memory Depth64M64M64M64M64M64M64M
Frenquency100MHz80MHz60MHz30MHz20MHz10MHz5MHz
Sample Rate250MSa/s
Voltage Resolution16Bit
Digital Output16 Channels output
Frenquency Characteristic
Standard WaveformsSine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC
Sine1uHz~Max.
Square1uHz~30MHz1uHz~Max.
Pluse1uHz~15MHz1uHz~Max.
Ramp/Triangle1uHz~4MHz
White Noise1uHz~Max.
Arb.1uHz~30MHz1uHz~25MHz1uHz~20MHz1uHz~Max.
Resolution1uHz
Accuracy±2ppm, 18~28
Sine Wave Spectrum Purity
Harmonic DistortionTypica(l0dBm)DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dBc
Total Harmonic Distortion<0.1% (10Hz-20kHz, 0dBm)
Spurious signal
(non-hormonic)		Typical(0dBm): ≤10MHz: <-65dBc;
>10MHz <-65dBc+6dB/spectrum phase
Phase NoiseTypical(0dBm,10kHz offset,) 10MHz:  ≤-115dBc/Hz
Square
Rise/Down time<10ns<11ns<12ns<14ns<16ns<18ns<18ns
Overshoot<3%(100KHz, 1Vpp)
Duty Cycle≤10MHz: 20.0%~80.0%;
10MHz~40MHz: 40.0%~60.0%;
 >40MHz: 50.0%		8.0%~92.0%
Non-symmetry1% of period+5ns
Jitter(rms)Typical(1MHz,1Vpp, 50Ω)≤5MHz: 2ppm+500ps; > 5MHz: 500ps
Ramp
Linearity≤1%(1KHz, 1Vpp)
Symmetry0%~100%

Arb. Wavefrom Generator
Waveform Length64M Point
Vertical Resolution16 Bit
Sample Rate250MSa/s
Rise/Fall timeTypical(1Vpp):<6ns
JitterTypical(1MHz, 1Vpp, 50Ω)
≤5MHz 2ppm+500ps;
> 5MHz 500ps

General Specifications

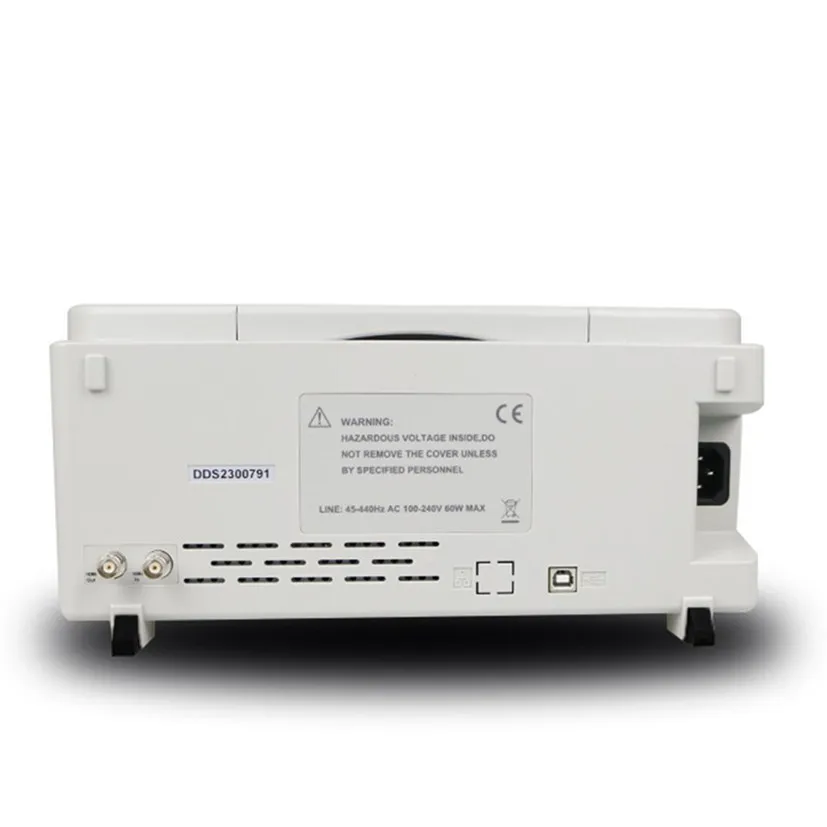

InterfaceUSB host, USB Device, LAN optional
Display7’’ 64K Color TFT Display, 800*480
Power Voltage100-120VACRMS(±10%), 45Hz to 440Hz, CATII; 120-240VACRMS(±10%), 45Hz to 66Hz, CATII
Power Consumption<60W
Weight3KG



Package:

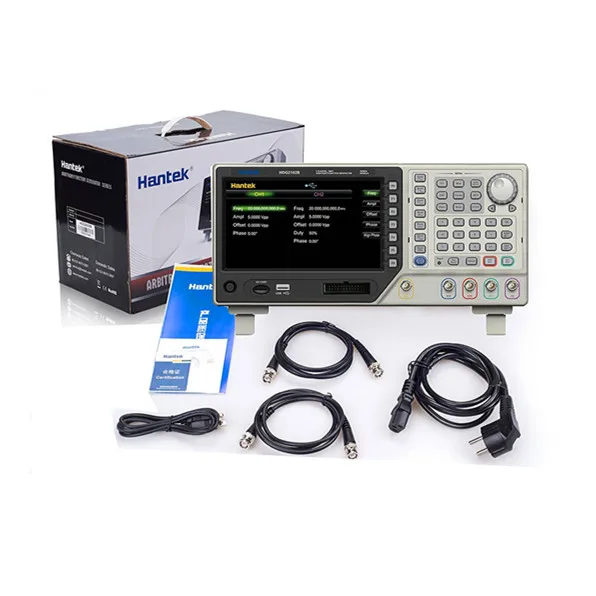

  1. 1 x HDG2062B Generator
  2. 1 x Power cable
  3. 1 x USB cable
  4. 1 x BNC cable
  5. 1 x CD
