eaton airflex 11.5VC500 air tube 403090

Production description:

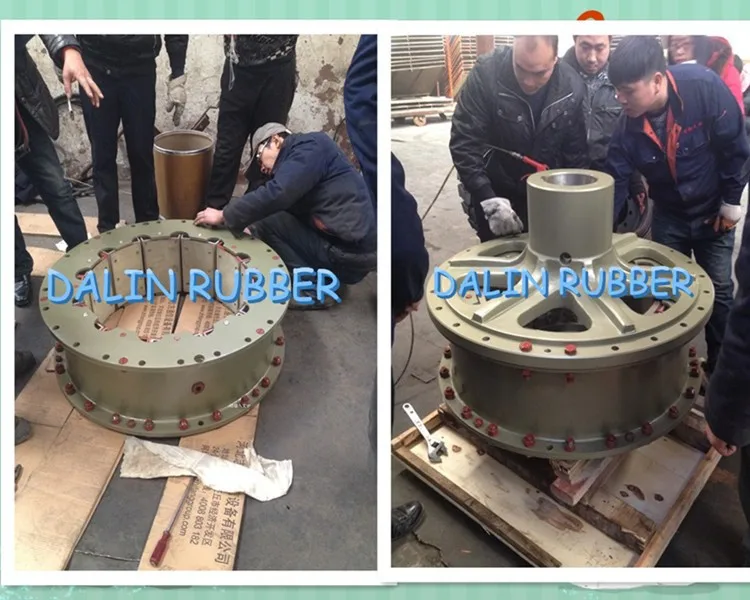

EATON AIRFLEX 11.5vc500  equivalent  Dalin brand  that is ventilated constriction clutch is designed to withstand brake and clutch applications where large inertia loads and sustained slippage would mormally result in loss of torque and reduced operating life.

The torque is transmitted by torque bar,not by the sidewalls of the actuating tube,the tube is loose and contained within the housing which is formed by a rim and two side plates, which are replaceable .the torque bar are held in position by the side plates which cross through the cavities of the aluminus brake shoes.pressurizing the air tube forces the brake shoe to engage around a cylindrical drum.the release springs in the torque bar cavities of the brake shoes retract the brake shoe when the actuating tube pressure has been released.

Name: 11.5vc500

Brand: Dalin

Original: China

Dalin 11.5vc500 clutch are made by Henan Dalin Rubber in China,dalin 11.5vc500 clutch are 100% interchangeable with Eaton airflex or Oil states industries.

Name: 11.5vc500
Brand: Dalin
Original: China

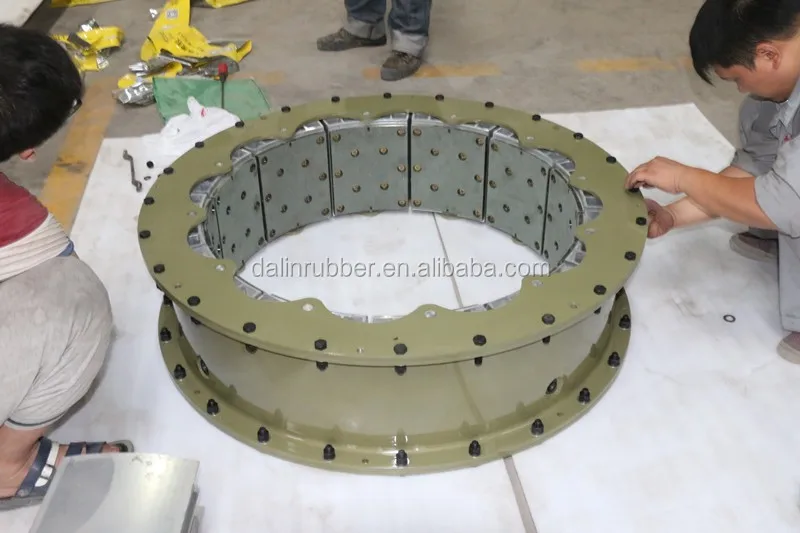

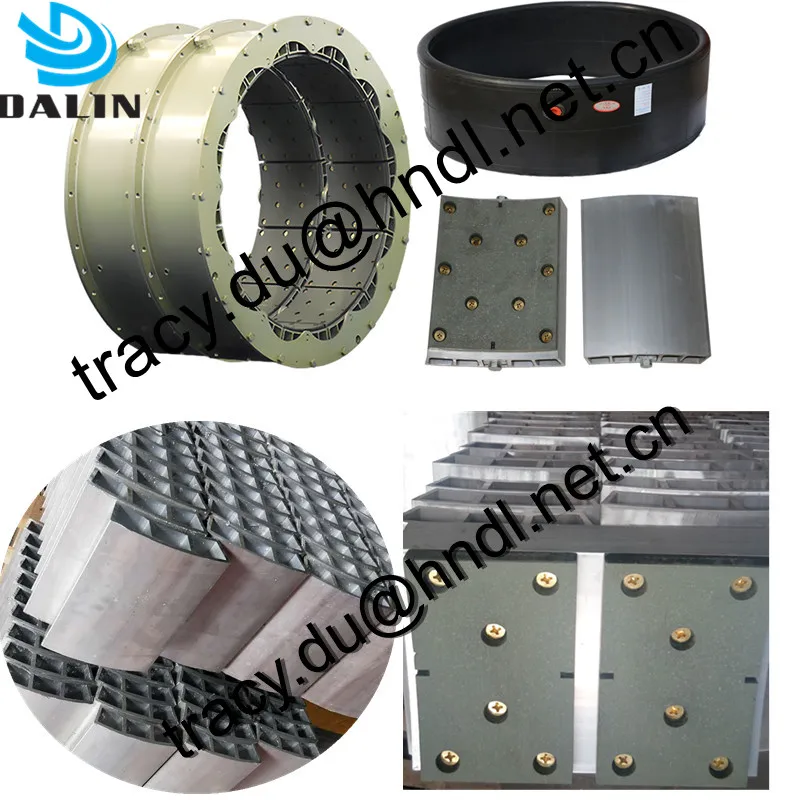

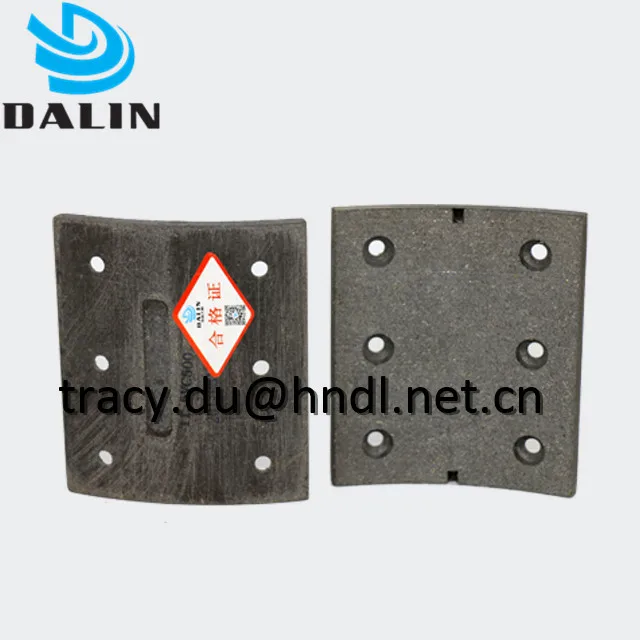

Dalin 11.5vc500 clutch is composed of rim,air tube,friction lining,shoe assembly,side plate,torque bar,release spring,etc

are 100% interchangeable with eaton airflex or oil states..

Clutch Parts

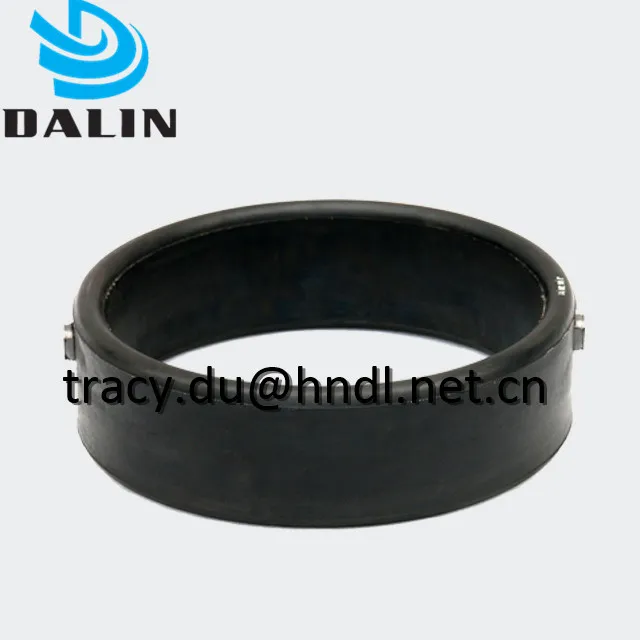

Name: air tube
Brand: Dalin
Original: China
This is Dalin air tube for 11.5vc500 clutch,can be interchangeable with airflex 403090.

Clutch Parts

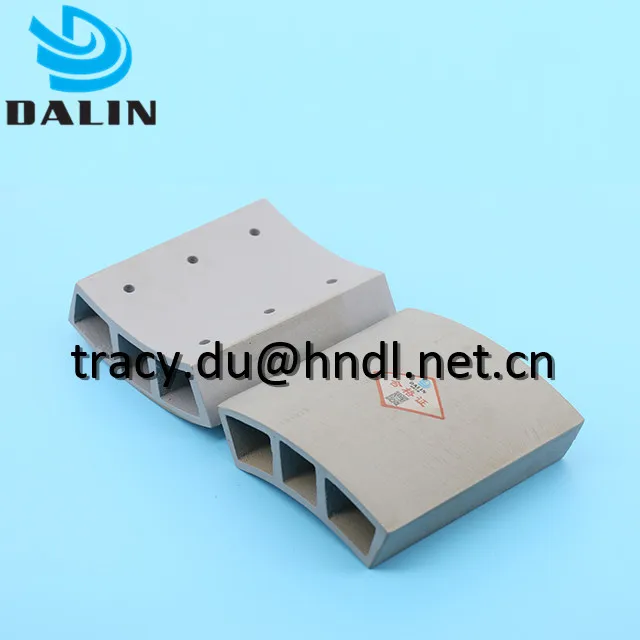

Name: friction shoe assembly & torque bar&release spring  kits
Brand: Dalin
Original: China
This is Dalin friction shoe assembly & torque bar&release spring kits for 11.5vc500, can be interchangeable with airflex146236A
