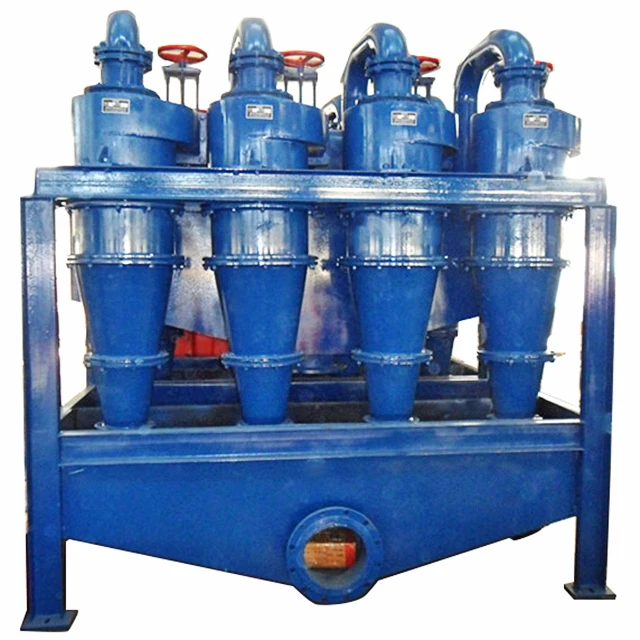

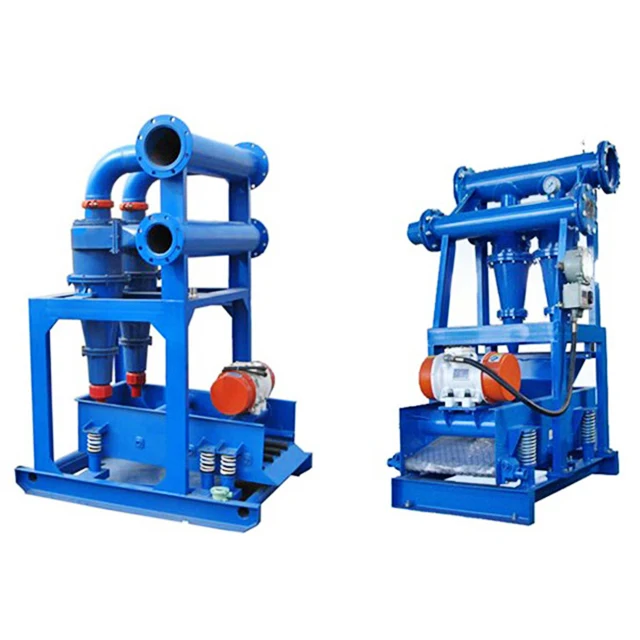

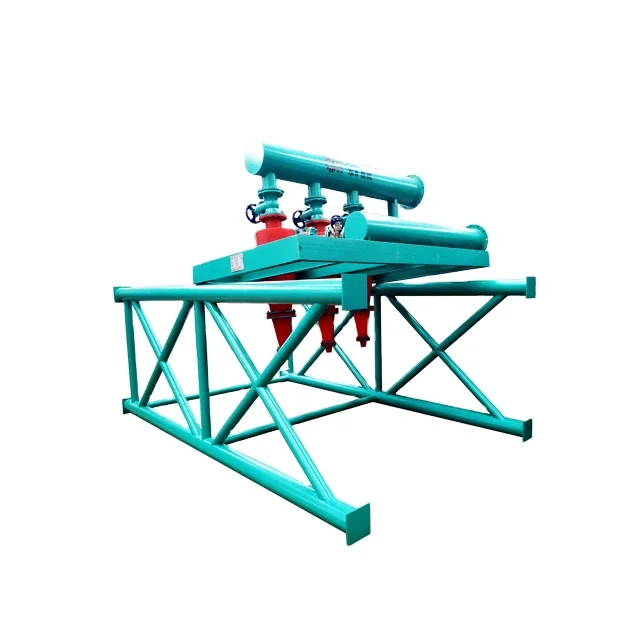

Hydro cyclone used for classifier gold, copper, silver, graphite, fluorite mine
- Category: Mineral Separator >>>
- Supplier: Henan Xingyang Mining Machinery Manufactory
Share on (62006040750):
Product Overview
Description
Describe: |

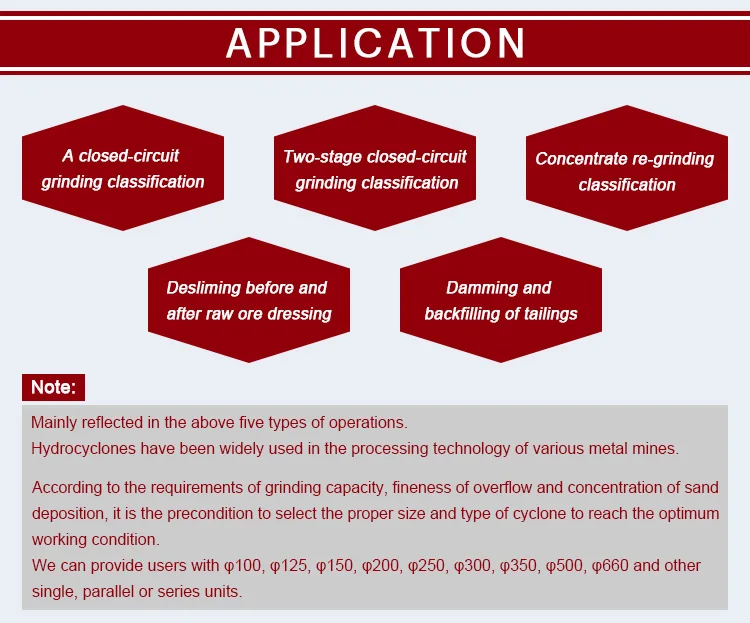

Hydrocyclone is a classifier which utilize centrifugal force to accelerate ore particle deposition. Due to the lack of moving, power parts, the need for the corresponding mud pump.It is mostly used in the second closed circuit grinding. |
Advantage: |

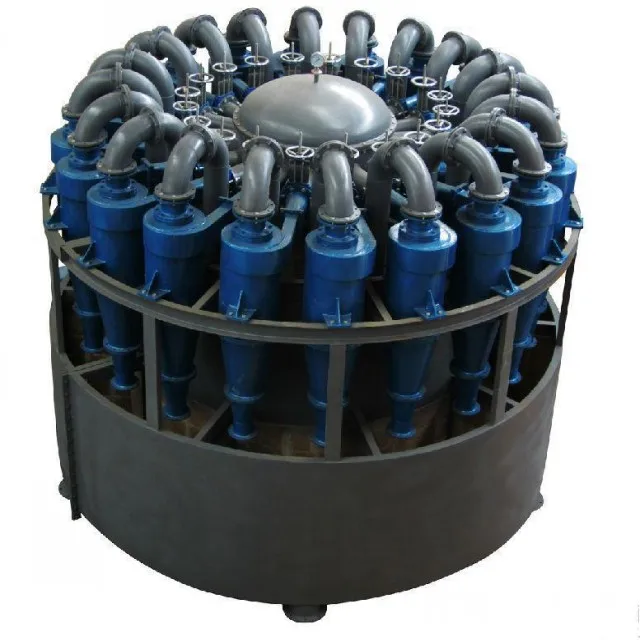

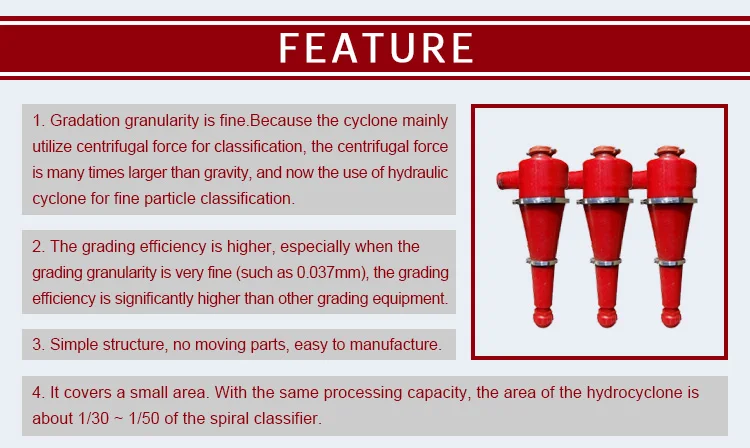

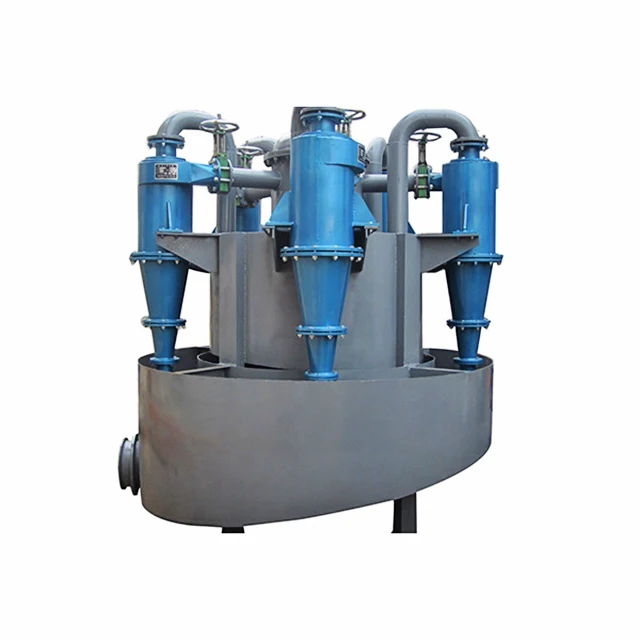

1. Automatic control can be adopted. 2. Large processing capacity and low operation cost. 3. Simple structure, easy to install and operate. 4. Small size, small footprint, easy to transport. 5. High grading efficiency (up to 80% ~ 90%) and fine grading granularity. 6. Multiple sets can be used in parallel or in series to improve the classification efficiency and processing capacity. 7. Using polyurethane wear-resistant material, the service life is greatly improved. |

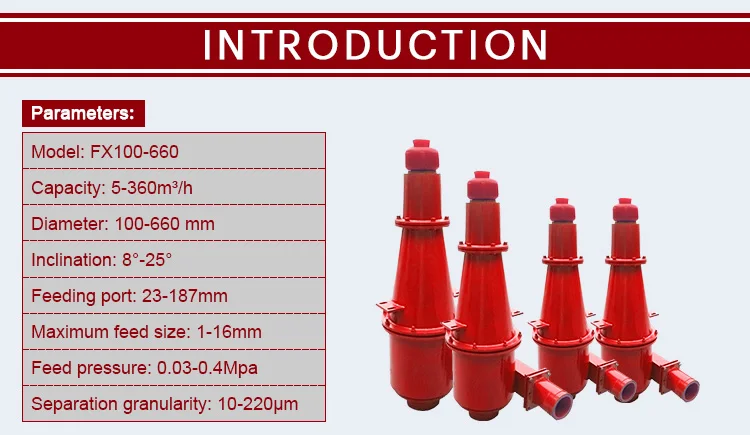

Model | Diameter (mm) | Inclination (°) | Maximum feed size (mm) | Feed pressure (Mpa) | Capacity (m³/h) | Separation size (mm) | Dimensions (mm) |
FX-100 | 100 | 8 | 1 | 0.05-0.4 | 5-12 | 10-74 | 257x210x829 |
| 15 | 10-100 | 257x210x575 | |||||
| 20 | 20-100 | 250x210x525 | |||||
FX-125 | 125 | 8 | 1 | 0.05-0.4 | 8-15 | 20-74 | 210x240x973 |
| 17 | 20-100 | 280x185x617 | |||||
FX-150 |
150 | 8 |
1.5 |
0.05-0.4 |
11-20 | 20-74 | 290x295x1267 |
15 | 30-74 | 252x349x899 | |||||
20 | 30-74 | 320x270x682 | |||||
FX-200 | 200 | 15 | 2 | 0.05-0.4 | 25-40 | 30-100 | 320x307x1114 |
| 20 | 40-100 | 548x307x1025 | |||||
FX-250 | 250 | 10 | 3 | 0.05-0.4 | 40-65 | 30-100 | 548x415x1380 |
| 15 | 40-100 | 548x390x1057 | |||||
| 20 | 40-100 | 563x534x1178 | |||||
FX-300 | 300 | 15 | 5 | 0.03-0.4 | 45-90 | 40-100 | 563x410x1490 |
| 20 | 50-150 | 530x410x1304 | |||||
FX-350 | 350 | 15 | 6 | 0.03-0.4 | 60-105 | 50-120 | 530x413x1674 |
| 20 | 50-150 | 530x413x1411 | |||||
| 25 | 50-150 | 530x413x1411 | |||||
FX-500 | 500 | 10 | 10 | 0.03-0.4 | 140-220 | 74-150 | 951x718x2280 |
| 20 | 74-200 | 850x623x1825 | |||||
| 25 | 74-200 | 951x718x1825 | |||||
FX-660 | 660 | 20 | 16 | 0.03-0.4 | 250-360 | 74-200 | 1215x850x2720 |
