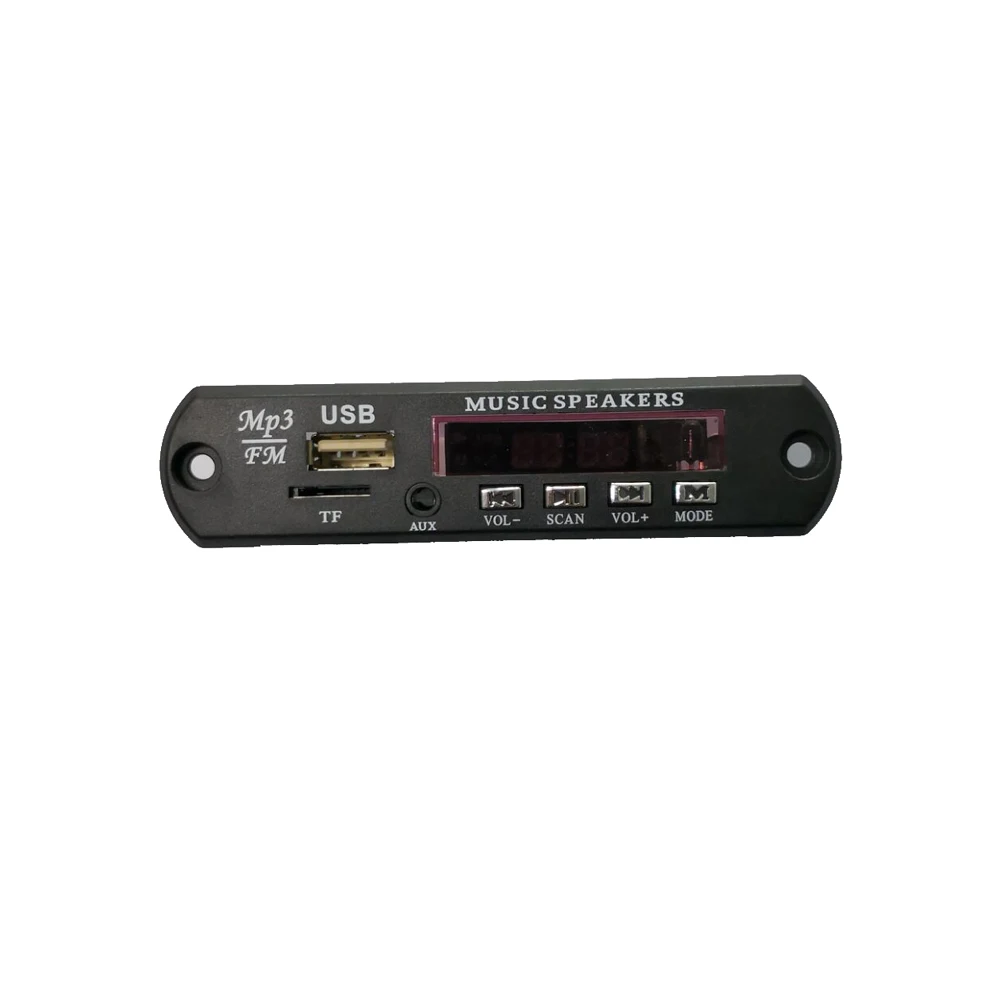

С модулем декодера TF AUX USB FM MP3

MODEL:JQ-D075A

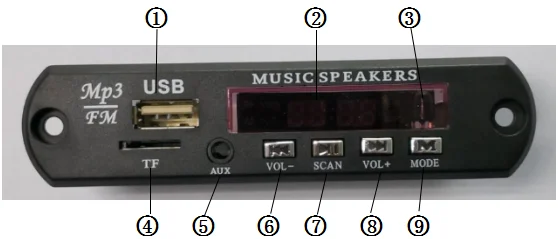

1.USB: Connect U Disk(Maximum 32GB)

2.LED: Digital Screen Display,Red Display

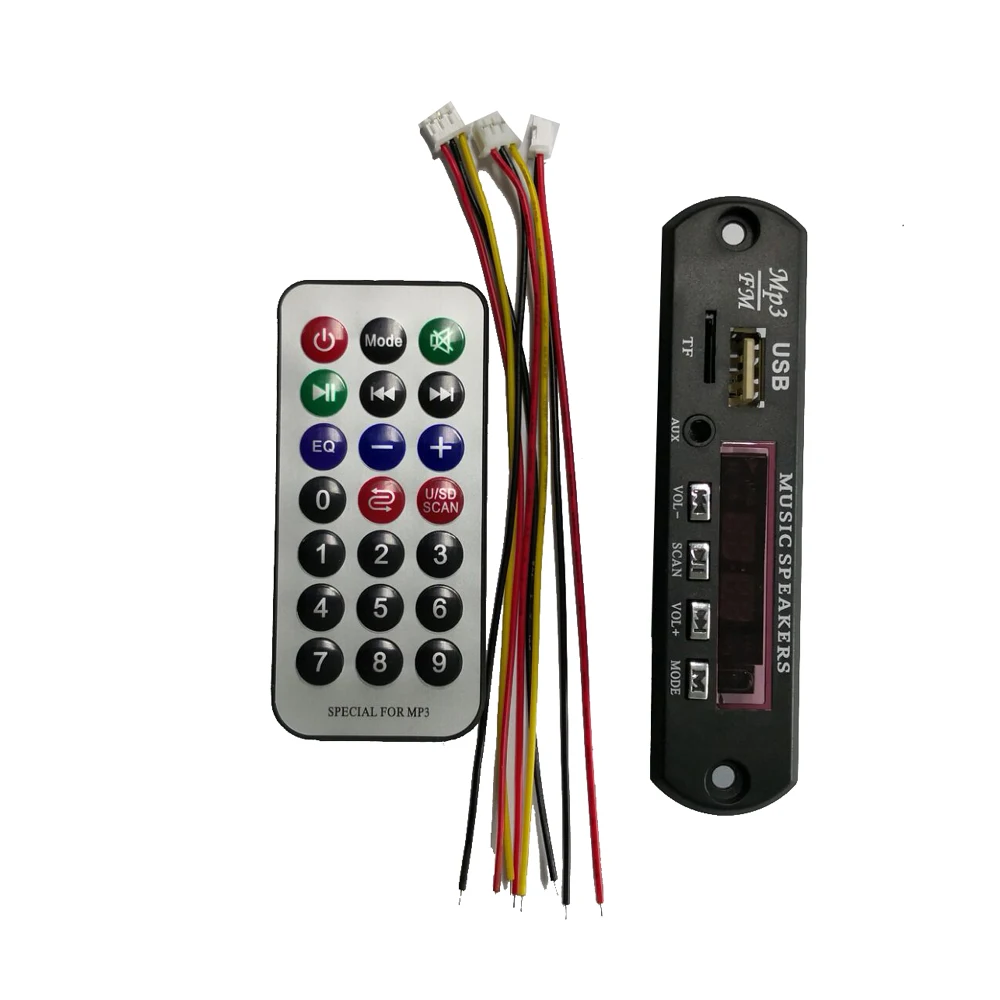

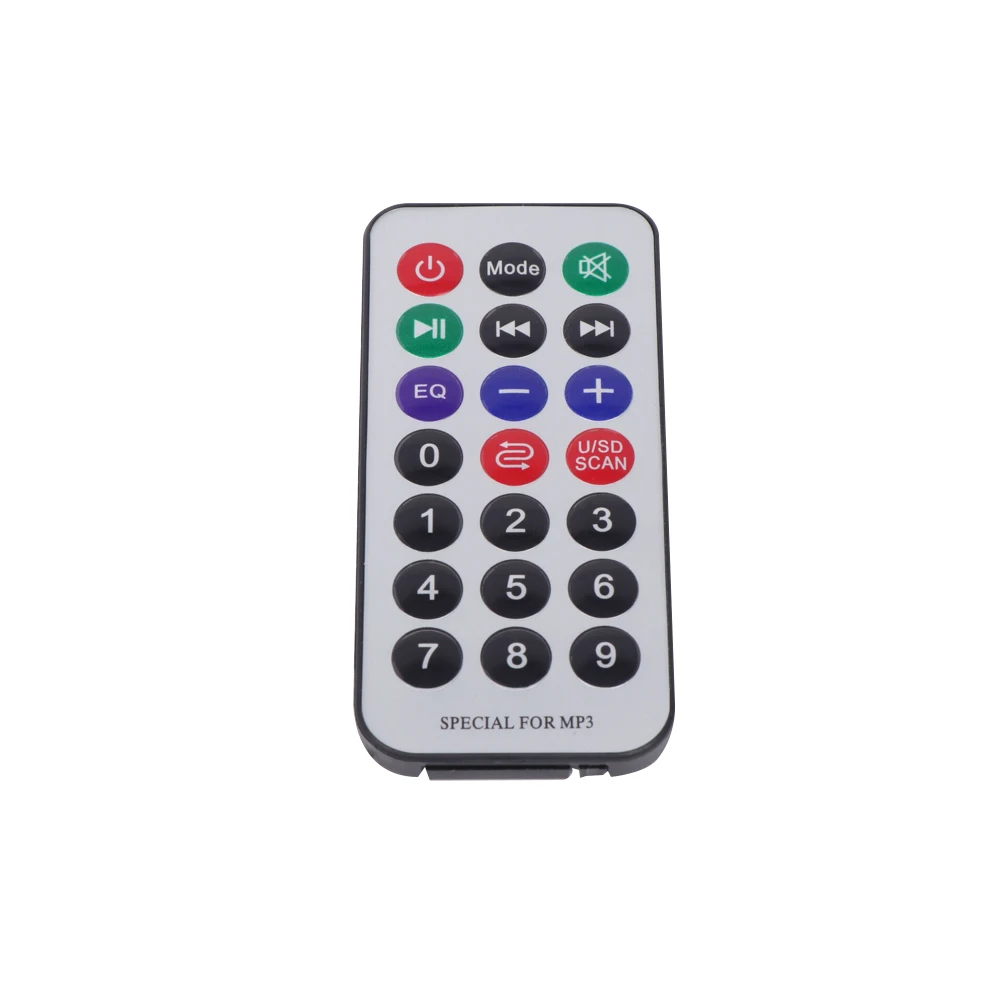

3.Infrared Receiver Module

4.TF:Max support 32GB

5.AUX: Audio Input

6.VOL-: Short Press LAST, Long Press VOL-

7.SCAN: Short Press PLAY/PAUSE; Long Press FM

8.VOL+: Short Press NEXT, Long Press VOL+

9.MODE:USB/TF/FM/AUX switch

Bluetooth IC: JR Solution

Format: MP3/WAV

FM Frequency: 87.5—108 MHZ

Function:Support MP3/USB/TF/LINE IN/FM/IR Remote Control

Voltage: DC 5V

Front Panel Size: 107 * 25 MM

Both sides are fixed with screw holes and the depth of the board is 30 MM

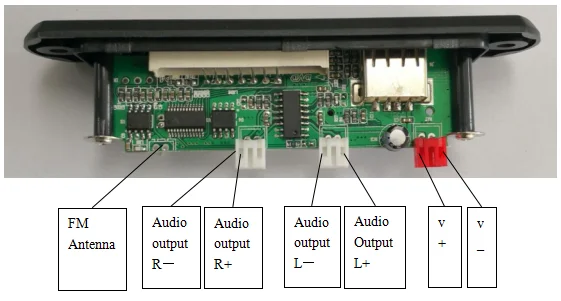

With Dual audio output PA:  4Ω,3W*2
