Horizontal Float Type Level Switch KF 213 Screwed Joint Type R1.1/2
Horizontal Float Type Level Switch KF-213 Screwed Joint Type R1.1/2
Horizontal Float Type Level Switch KF-213 Screwed Joint Type R1.1/2
Horizontal Float Type Level Switch KF-213 Screwed Joint Type R1.1/2

Horizontal Float Type Level Switch KF 213 Screwed Joint Type R1.1/2

Share on (62006406079):


Price:

Quantity:


Product Overview

Description


Horizontal Float Type Level Switch KF-213 Screwed Joint Type R1.1/2

Features

Various use applications are supported by lots of variations!

  • This series needs no power source and catches liquid surfaces accurately.
  • The internal mechanisms are simply unitized to facilitate maintenance.
  • Can be used for various purposes.
  • Wetted part material 316SS available.
  • Process connection screw R1.1/2

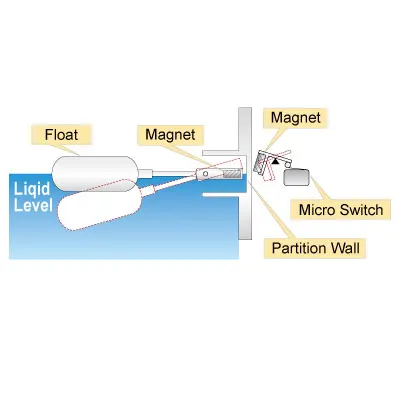

Operating Principles

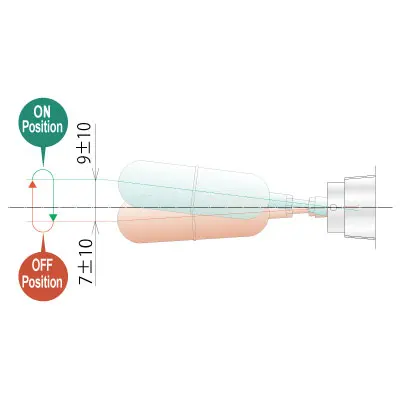

The magnet installed at the end of the float detects the rise and fall of the liquid surface as turning ON/OFF of the micro switch through the mutual magnetic force of the magnet in the terminal box completely isolated by the partition wall.


Standard Specification
 Float Dimension φ40x123L
 Allowable Pressure Max.490kPa
 Contact Capacity AC250V 5A
 Temperature  100℃
 Specific Gravity of Liquid Over 0.81
 Color Gold
 Enclosure Rating IP67

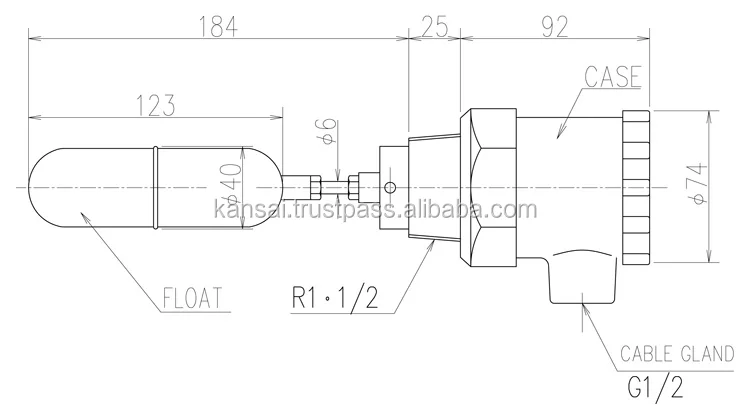

 Drawing

KF-213
