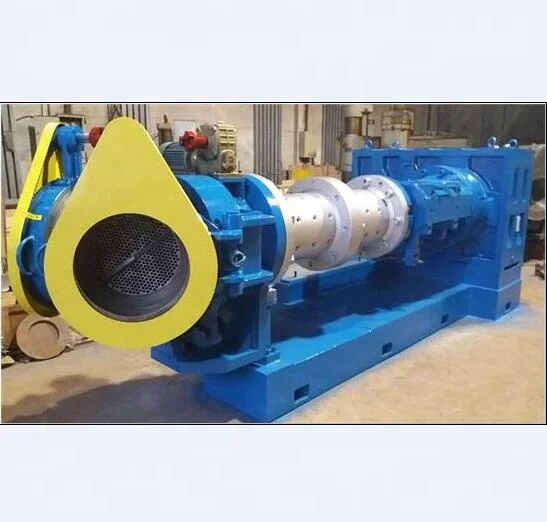

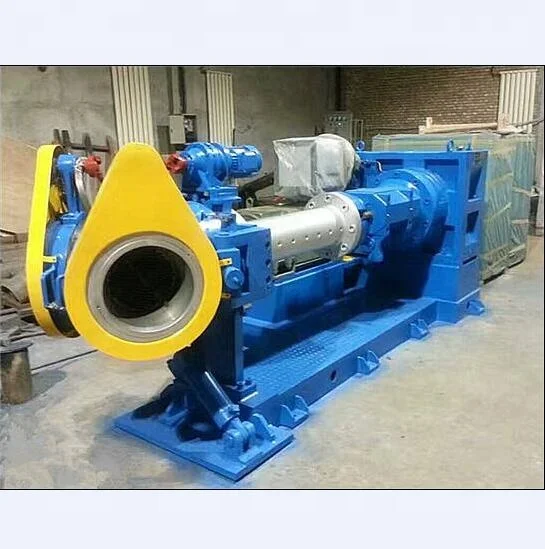

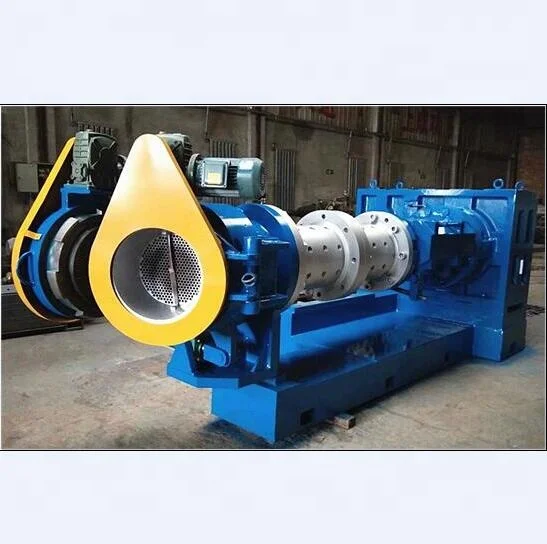

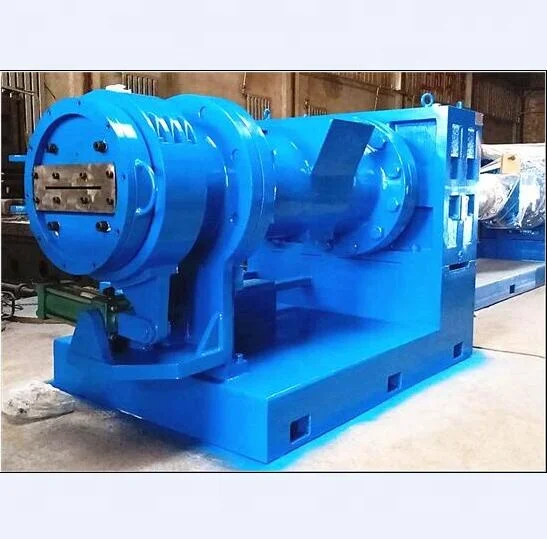

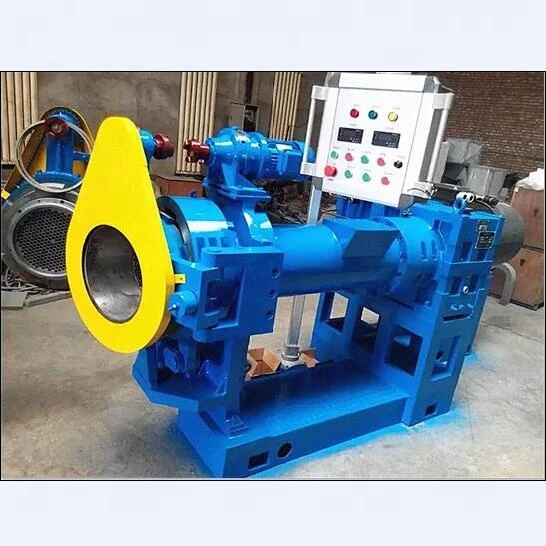

Higher efficiency XJDL 180 Pin barrel cold feed rubber strainer machine / rubber straining extruder / rubber filtering extruder

Product Overview

Description

Higher efficiency XJDL-180 Pin-barrel cold feed rubber strainer      machine / rubber straining extruder / rubber filtering extruder





1.The use introduction

It is used for filtering the impurities from rubber compound.

2. Main technical parameters

Model	XJDL-150*14D	XJDL-200*12D	XJDL-250*12D
Screw diameter	150mm	200mm	250mm
Max. screw speed	43r/min	33r/min	26r/min
Model of motor	Z4-250-21	Z4-280-22	Z4-315-42
Power	185kw	280kw	400kw
Speed of cutting device	16r/min	16r/min	11r/min
Cooling water pressure	≥0.2	≥0.2	≥0.2
Max. output	1000kg	1600kg	3800kg
Dimension (L*W*H)	3600*1590*1500mm	4900*1950*1800mm	5500*2400*1850mm
Weight	7600kg	16800kg	18900kg

3.Structural features:

1.The strainer equips single/double head.

2.The head is fitted with a mechanical cutter,which operates hydraulically.The operation is simple and easy.

3.Barrel is the sectional structure ,and in feeding section there is spiral channels inside the barrel,which fit with feeding roll to improve the feeding capacity.Barrel in plasticizing section and extrusion section is equipped with different pins.

4.Speed reducer and gears all adopt alloy steel hard tooth structure.

5.This machine takes advantages of good plasticizing effect ,high filtering,low stock output temeprature and stable running.



High filtering rubber strainer



Our packing way: Exported standard package or packaged according to your requirement.



Our Services :

1. We will design,manufacture,install and test the machines according to customers' requirement. Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.



2. Our service department  listen to customers' feedback at any time and provide spare parts timely.



Welcome to visit our factory and we can show you the machine in working condition:



If our products win your interest, please send us inquires and we will provide detailed information for you. We can also make non-standard machines according to your request.
