28 years history 850T aluminum injection molding machine
- Category: Metal Casting Machinery >>>
- Supplier: Guangzhou Zhen Gao Die-Casting Machine Co. Ltd.
Share on (62006583015):
Product Overview
Description
Company Information
Guangzhou Zhen Gao Die-casting Machine Co., Ltd. was established in the year of 1993, and it is mainly in manufacturing hot chamber & cold chamber die casting machine."Zhen Gao" is already become a well-known leading brand in domestic market of die casting machine.Zhen Gao die casting machine has owned CE. The products are well sold to all places in China, and also as far as to many countries, such as Europe, South America, Africa,Russia ,Middle-East, and South-East Asia.
Followed with the principle of "Customers are honored and Precision is reached for after precision," quality and service management is further enhanced. We have the ability to provide high quality machine and good service. Take high tech & excellent quality as a tenet, and provide for customers with superior machines at performance vs prices.ZHEN GAO will be more and more professional!
Company History
In 1993-2003
Hong Kong Chen Hsong Group and Guangzhou Machinery Institute (formerly China Machinery Industry Ministry of enterprise) joint venture, set up "ZHEN GAO" company , specializing in manufacturing die casting machine.
In 1996
In an only one-time national wide, among monitoring draw-checking for product quality, Zhen Gao runs No.1 .
In 2002
Evaluated as "Excellent quality brand", by the China Technology Monitoring Information Association .
IN 2003-2008
Hong Kong Chen Hsong out of fund stock,and remain technical stock ,instead by Guangzhou Machinery Engineering Research Institute (China mechanical equipment group Company) holding 75% shares, and the remaining shares by Australian, American composition.
In 2005
Fast melt and energy-saving furnace ,awarded national patent . Awarded CE certification .
In 2006
Awarded Guangdong famous brand .
In 2009-2012
Guangzhou Machinery Engineering Research Institute (China mechanical equipment group Company) become a wholly owned holding company.
In 2012
Change tobe Private company and renamed "Guangzhou Zhen Gao Die-casting Machine Co.,Ltd. " continue to serve customers.
In 2016
Auto extractor with spray ,deburr cutting machine material return , whole auto system work successfully
Our Certificates
In 1996
In an only one-time national wide, among monitoring draw-checking for product quality, Zhen Gao runs No.1 .
In 2002
Evaluated as "Excellent quality brand", by the China Technology Monitoring Information Association .
In 2004
Evaluated as "Qualified Products in National Quality Checking", by China Quality Checking Association.
In 2005
Fast melt and energy-saving furnace ,awarded national patent .
Award CE.
In 2006
Awarded Guangdong famous brand .
In 2009
Adopted ISO9001 certification .
Detailed Images

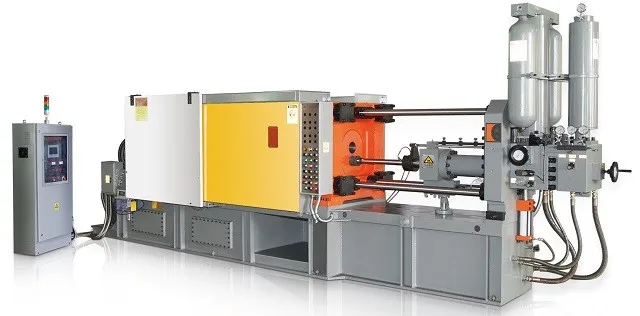

800T aluminum injection molding machine :

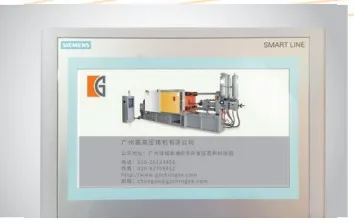

Auto Siemens PLC controller
Adopt Siemens PLC and electrical control sensor to make sure die locking, die adjusting, pressure of ejector and speed are all can be processed by numerical control. Dynamically display die opening, locking and injection, and operate at ease and convenience.

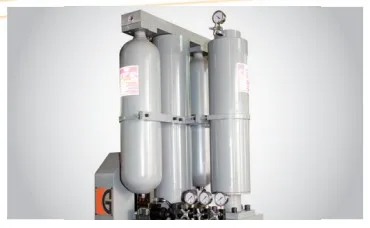

Strong injection design
Strong injection /ejection force, high die casting force design , can make sure to produce high quality die castings for customer .
Make sure products have very good die casts solidification.

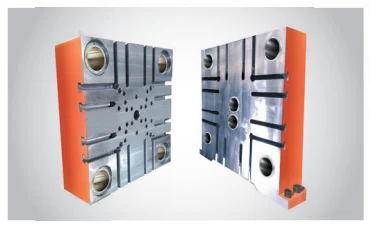

Reliable mold platen
mold platen toggle : QT500-7
tie-bar :38CrMoLu
copper brush: Bronze

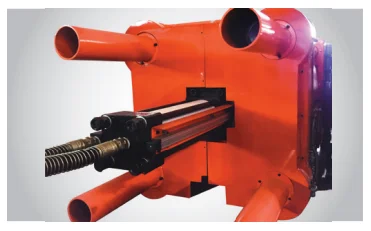

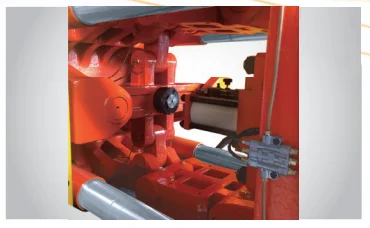

Strong hinge
Strong hinge , can make sure high quality and more longer life time of machine .

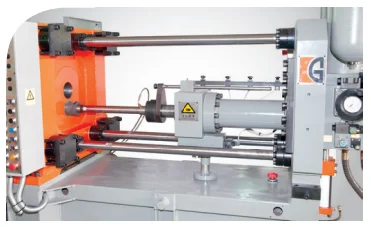

Rod type structure
three stage injection adjustment
Adopt rod type structure ,more easy for maintenance. Multi injection position can be chosed for different molds
Auto lubrication
Adopt auto lubrication , so can make sure hydraulic spare parts more longer life time,also can make sure machine stable working .
Auto gear mold adjustment
precise electrical sensor
Mold adjustment gear wheel with hydraulic type has stable transmission, convenient operation and precisely durable.
Reliable European and Japanese hydraulic valve
Adopt European and Japanese famous brand hydraulic valve ,more reliable , to make sure high quality .

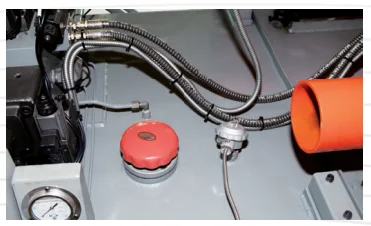

Special oil temperature sensor
Special oil temperature sensor ,stale and low temperature control ,make sure spare parts longer times.

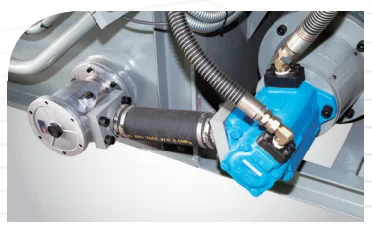

imported high quality dual-pump
Double pump and double proportional pressure & flow rate control are adopted for hydraulic system, and according to needs, high and low pressure work action can be proceed in one step by one step following a program sequence. It can not only reduce oil temperature lift up speed, but also save energy effectively.
Product Description
850T aluminum injection molding machine specification: | ||||||
Item | Unit | ZG-850 | ||||
locking system | locking force | ton | 850 | |||
tie-bar diameter | mm | 180 | ||||
space between tie-bar | mm | 910*910 | ||||
mold thickness | mm | 400/950 | ||||
die stroke | mm | 760 | ||||
shot position | mm | 0/-250 | ||||
injection system | plunger diameter | mm | 90/100 | |||
injection stroke | 760mm | 570 | ||||
injection force | KN | 280-740 | ||||
casting weight | kg | 7/9/11 | ||||
casting area | cm2 | 544-2285 | ||||
casting flange diameter | mm | 200 | ||||
over height of flange | mm | 20 | ||||
ejection system | ejection force | KN | 320 | |||
ejection stroke | mm | 180 | ||||
hydraulic system | motor power | kw | 45 | |||
electrical furnace power | kw | 90 | ||||
operation pressure | kg/cm2 | 140 | ||||
oil tank capacity | L | 1300 | ||||
oil / gas furnace capacity | kg | 900 | ||||
Other | machine size | mm | 8500*2300*3450 | |||
machine weight | ton | 38.5 | ||||
Our Service
Professional service for pre-sales and after-sales :
Followed with the principle of "Customers are honored and Precision is reached for after precision," Zhen Gao will try best to provide professional service for customer .
* Provide plant layout and peripheral equipment configuration for new customers, make the machine more reasonable installation, safety.
* Install and adjust machine for customer , also train worker how to operate and solve normal trouble .
* After-sale service department and branch office will provide professional service for customer ,make sure machine normal working .
* Preventive maintenance: After-sale engineer will not regularly visit customers , give advice according to machine use, maintenance and adjustment etc. .
* We will provide various training ,to teach customer how to operate ZHEN GAO machine well ,and also organize many communication meetings of die casting technology.
Pre-Sales Service
* Inquiry and consulting support.
* Provide plant layout and peripheral equipment configuration for customer.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
