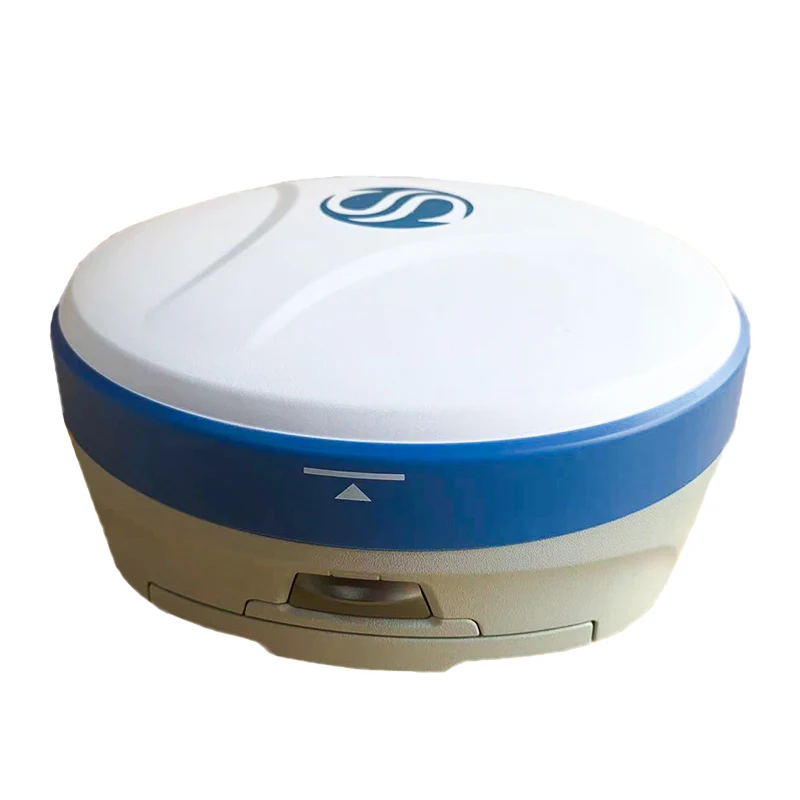

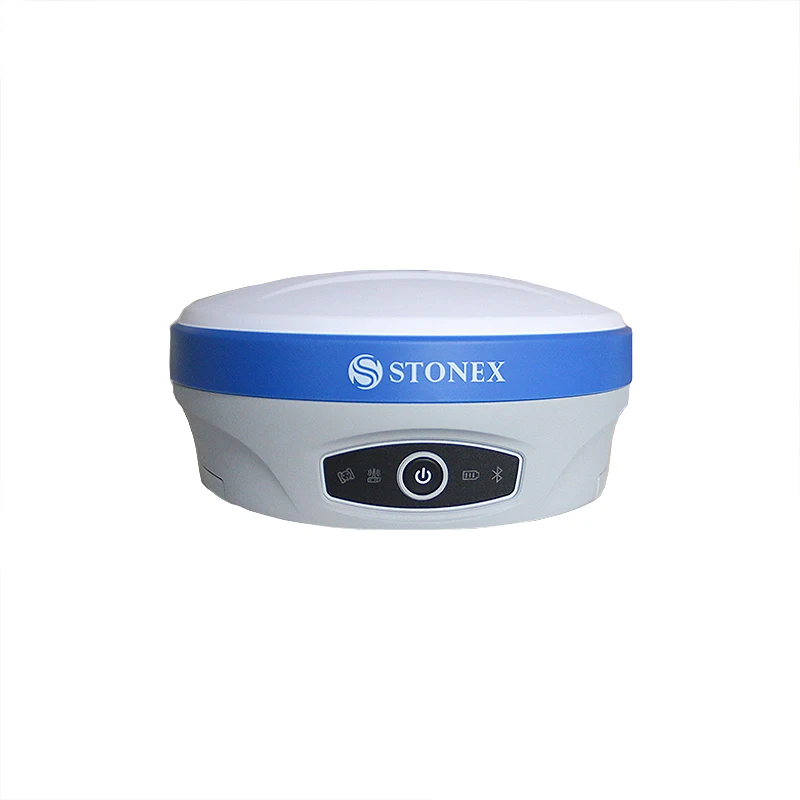

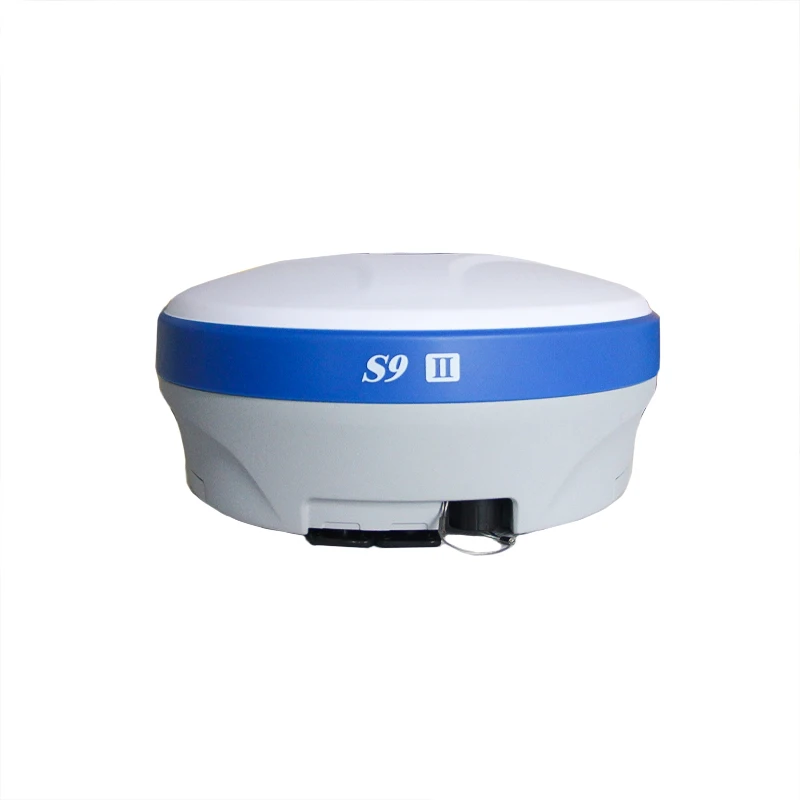

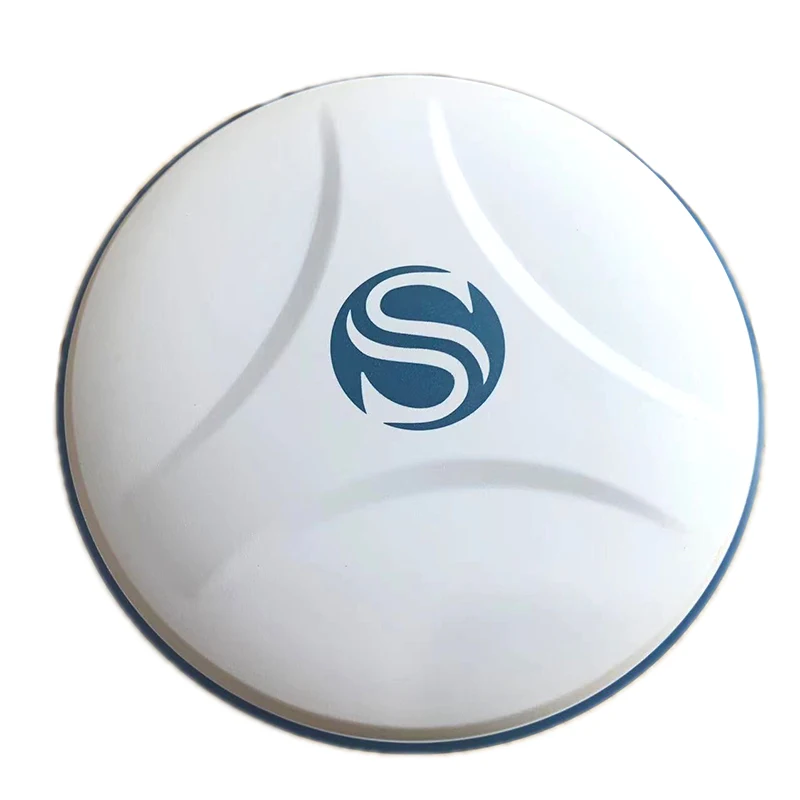

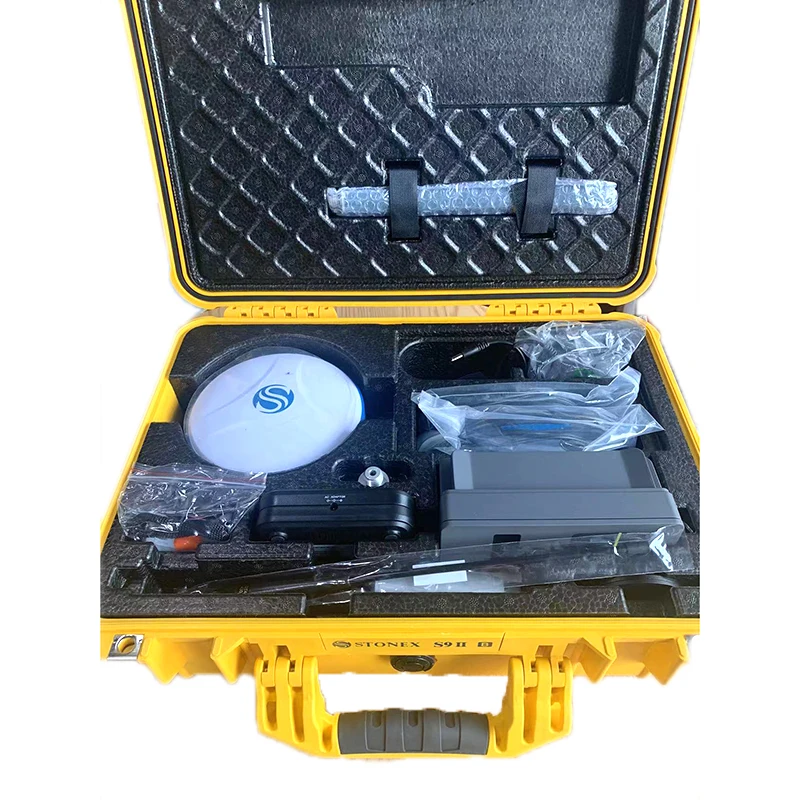

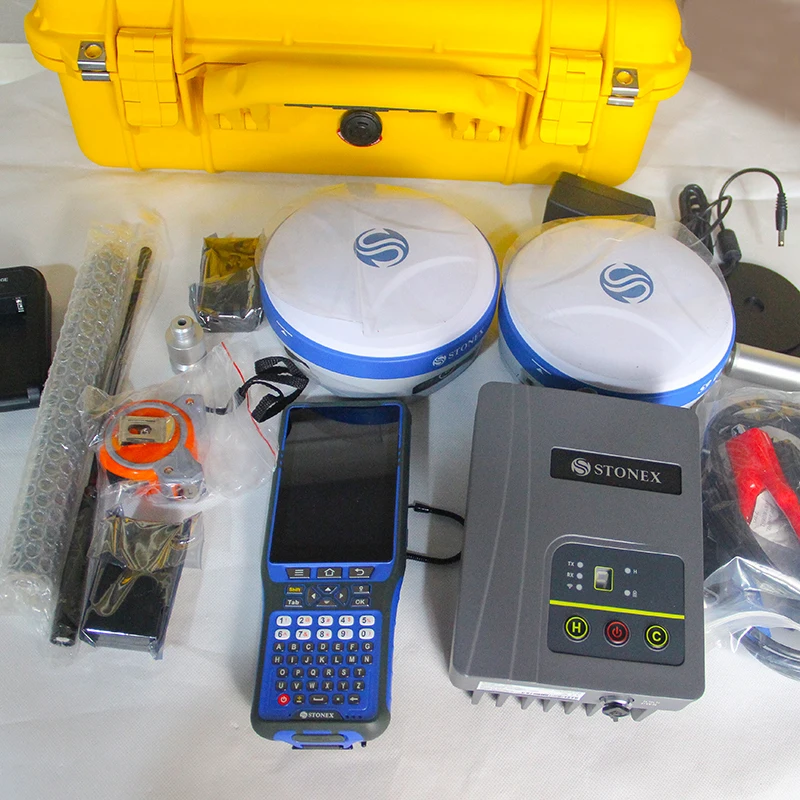

Stonex S9II/S900A GPS RTK Dual Frequency GNSS RTK

Product Overview

Description

Stonex RTK GPS Stonex S9II/S900A GNSS System

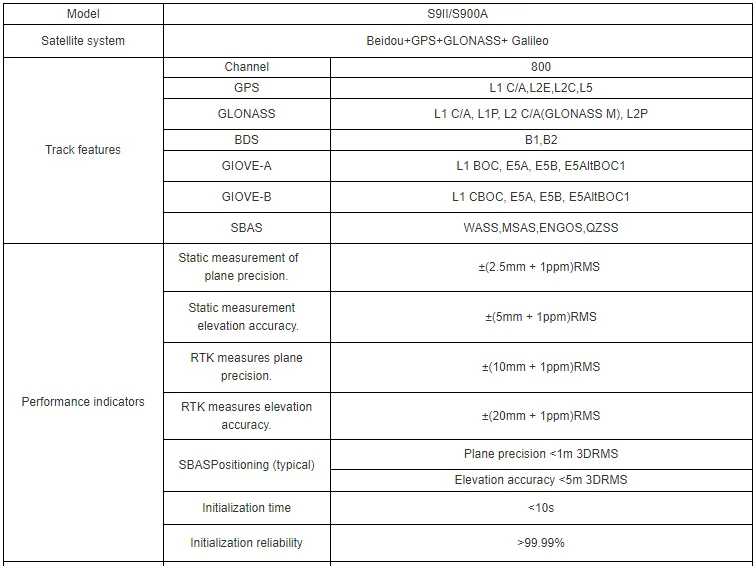

Model	S9II/S900A
Satellite system	Beidou+GPS+GLONASS+ Galileo
Track features	Channel	800
	GPS	L1 C/A,L2E,L2C,L5
	GLONASS	L1 C/A, L1P, L2 C/A(GLONASS M), L2P
	BDS	B1,B2
	GIOVE-A	L1 BOC, E5A, E5B, E5AltBOC1
	GIOVE-B	L1 CBOC, E5A, E5B, E5AltBOC1
	SBAS	WASS,MSAS,ENGOS,QZSS
Performance indicators	Static measurement of      plane precision.	±(2.5mm + 1ppm)RMS
	Static measurement     elevation accuracy.	±(5mm + 1ppm)RMS
	RTK measures plane precision.	±(10mm + 1ppm)RMS
	RTK measures elevation accuracy.	±(20mm + 1ppm)RMS
	SBASPositioning (typical)	Plane precision <1m 3DRMS
		Elevation accuracy <5m 3DRMS
	Initialization time	<10s
	Initialization reliability	>99.99%
Environmental indicators	Working temperature	- 30℃~+65℃
	Storage temperature	- 40℃~+80℃
	Waterproof and dustproof	IP67
	drop	Resistance to 2 m drop (concrete hard ground)
	Waterproof	Immersing 1 meter in water (30 minutes)
	humidity	100% condensation resistance
Memory and data	Internal Storage	Onboard 4G SD card expansion, maximum support 32G.
	differential output	RTCM2.3,RTCM3.0,RTCM3.X,CMR,CMR+
GNSS antenna performance	The internal integrated quad-feeder microstrip antenna, zero-phase center, built-in multipath suppression plate.
		built-in,V2.0 Class2
	Network communication	Built-in WCDMA 3.5G network communication module;Customizable CDMA2000 3G network communication.
Wireless communications	Communication protocol	TrimTalk is interchangeable with international brand radio and can be customized with domestic hosts.

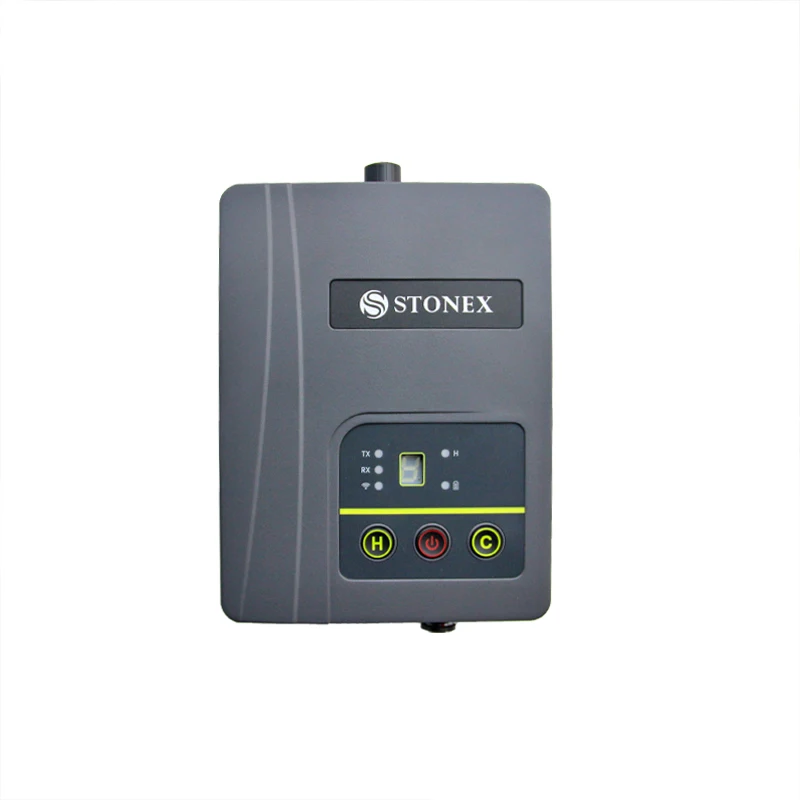

	UHF radio	Built-in transceiver	0.5W/2W
		outer launch	5W/35W
		Working frequency	410-470MHZ
Physical and power characteristics.	size	φ19cm×9.9cm
	Weight	1.2kg
	Battery capacity	Single block 3400mAh
	keys	2
	service time	6 hours

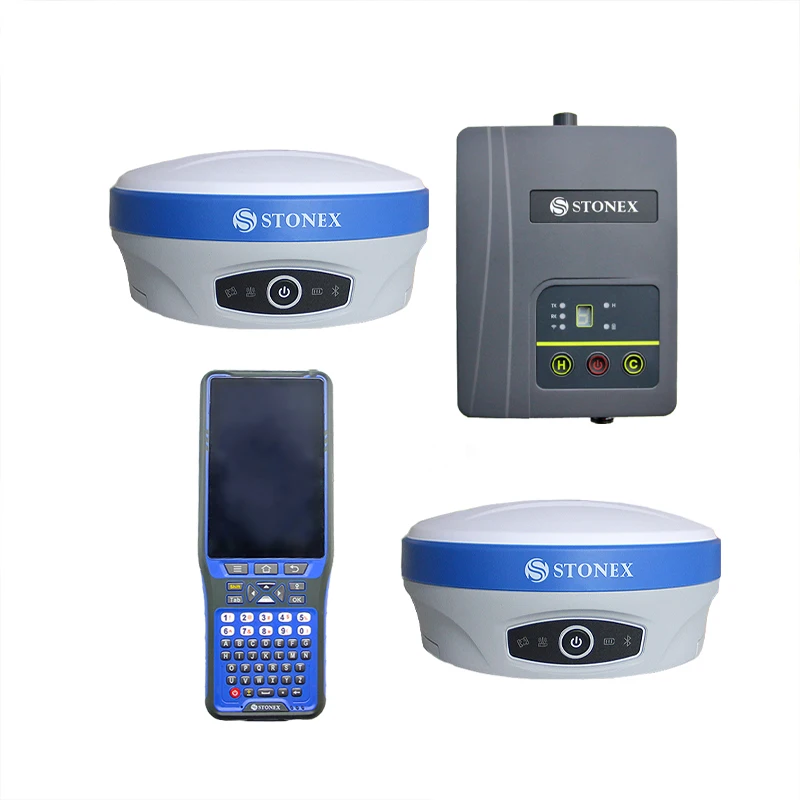

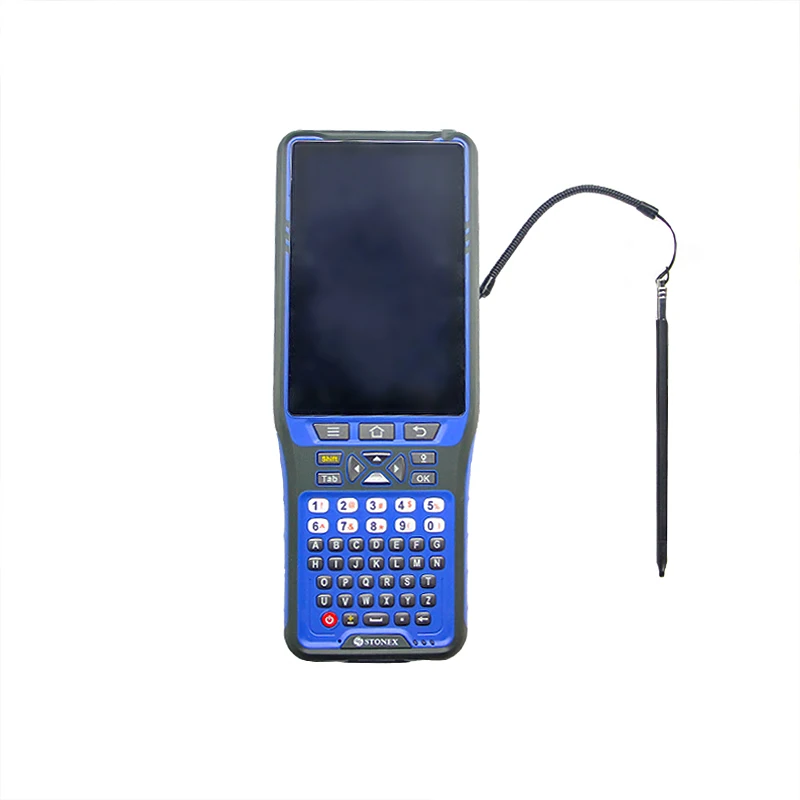

industrial-grade controller P9	operating system	Windows Mobile 6.5
	Hardware platform	AM335X frequency 1GHz
	onboard memory	RAM:512MB DDR3 onboard memory 4G
	Display	3.7 inches Blanwiew TFT,480*640VGA resolution ratio
	Battery	7.2V/3400mAH
	Waterproof and dustproof	IP67
	Working temperature	- 30℃~+60℃
	Storage temperature	- 30℃~+70℃
	drop	Resistance to 2 m drop (concrete hard ground)
	camera	5 megapixel autofocus.
	communication	Wi-Fi  /USB OTG/3.5G
