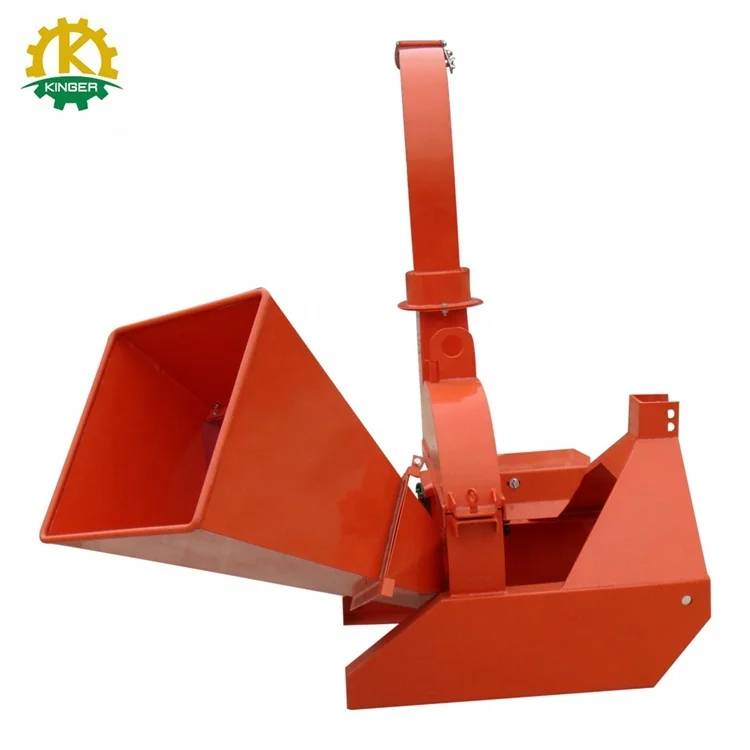

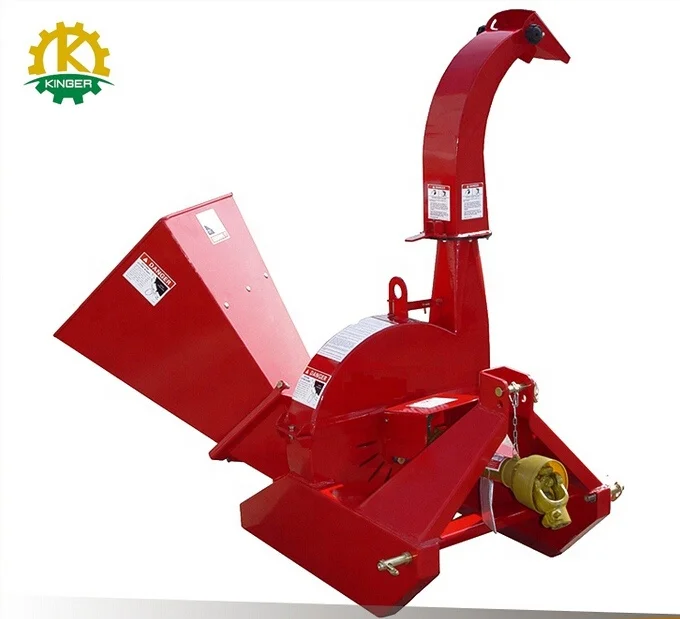

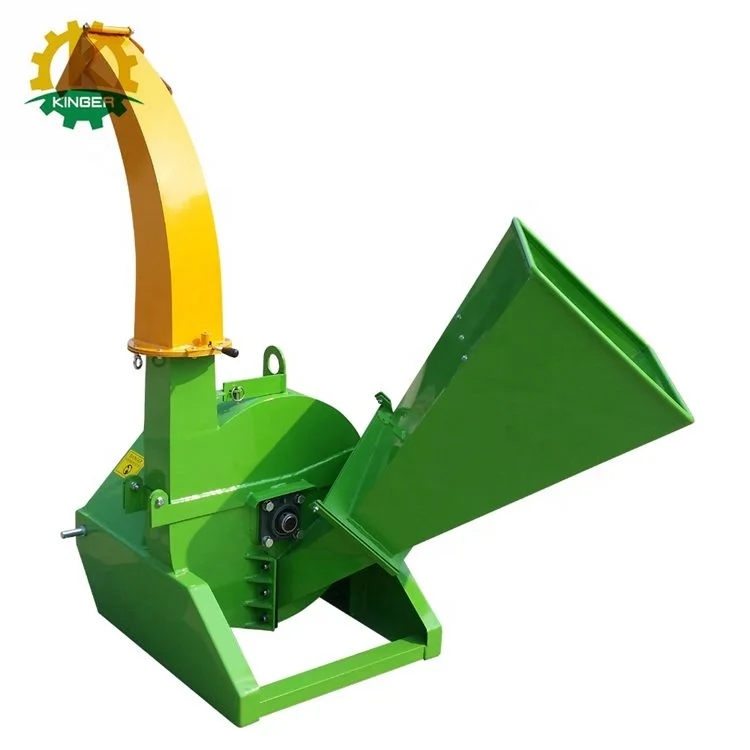

BX42S Wood Chipper Manual Shredder Tractor PTO Driven Wood Chipper Shredder With CE

Share on (62006798661):


Price:

Quantity:


Product Overview

Description


Product Description

BX42S wood chipper manual shredder wood chipper shredder for sale


Product Application

1. Driven by tractor, PTO connected, hydraulic feeding, easy to operate, with CE.

2. Used to make log and branches into chips, then as a fuel supply for energy and heating, and for industrial purposes such as MDF board and paper production.

3. In addition, used as ground cover or as surfacing material for paths as an environment-friendly weed killer, which reduces or eliminates the need for chemical sprays

\t
SPECIFICATIONS FOR BX SERIES WOOD CHIPPER
\t
Model
\t
BX42S/BX42R
\t
BX62 /BX62R
\t
BX72R
\t
BX92R
\t
Drive System
\t
Direct drive, PTO Shaft
\t
Direct drive, PTO Shaft
\t
Direct drive, PTO Shaft
\t
Direct drive, PTO Shaft
\t
HP Range
\t
18-50
\t
30-70
\t
50-100
\t
65-120
\t
Chipper Capacity
\t
4 Dia. (max. 12 slab)
\t
6 Dia. (max. 12 slab)
\t
7 Dia. (up to 13 slab)
\t
9 Dia. (up to 14 slab)
\t
Rotor Size
\t
25
\t
29"
\t
35
\t
37"
\t
Rotor Knives QTY
\t
4
\t
4
\t
4
\t
4
\t
Knife Type
\t
Hardened tool steel
\t
Hardened tool steel
\t
Hardened tool steel
\t
Hardened tool steel
\t
Knife size
\t
210*60*9mm
\t
210*60*9mm
\t
240*60*9mm
\t
320*100*16mm
\t
Rotor Weight
\t
50kgs
\t
98kgs
\t
98kgs
\t
242kgs
\t
Rotor thickness
\t
18mm
\t
25mm
\t
25mm
\t
30mm
\t
Feeding System
\t

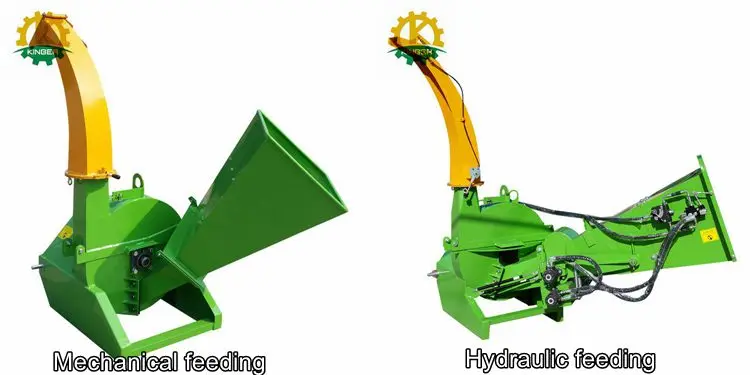

Self or Hydraulic Feed
\t
Self or Hydraulic Feed
\t
Hydraulic Feed
\t
Hydraulic Feed
\t
Mounting System
\t
3 Point Hitch
\t
3 Point Hitch
\t
3 Point Hitch
\t
3 Point Hitch
\t
Dimensions (Hopper Folded)
\t
1600*1600*1830mm
\t
1850*1550*2040mm
\t
1850*1550*2040mm
\t
1950*1750*2040mm
\t
Hopper Opening
\t
500 x 500mm
\t
6½ x 12
\t
630 x 630 mm
\t
640 x 640 mm
\t
Discharge Hood Rotation
\t
360°
\t
360°
\t
360°
\t
360°
\t
Discharge Hood Height
\t
60
\t
74
\t
84
\t
87
\t
Rated RPM
\t
540-1000
\t
540-1000
\t
540-1000
\t
540-1000
\t
Weight
\t
260/430 kgs
\t
480/560 kgs
\t
 600 kgs
\t
780 kgs
Detailed Images

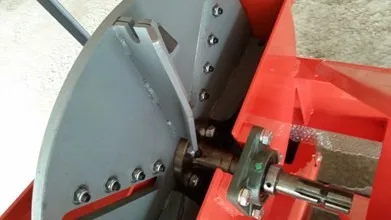

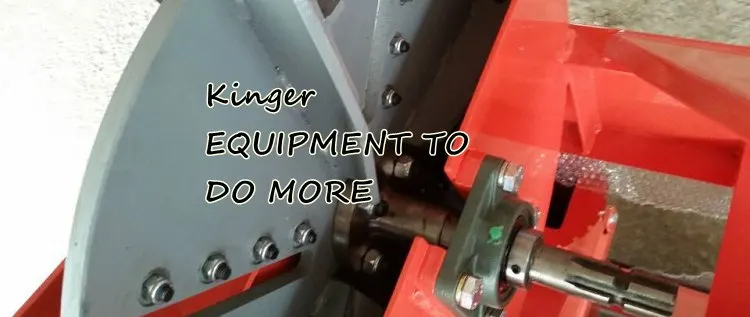

1. Rotor:

At the heart of the Wallenstein BX Chipper is an oversize heavy duty rotor and reversible

chipping blades. The large diameter rotor has a faster tip speed for improved chipping

action and the heavy gauge steel keeps your momentum to power through 6" diameter tree trunks.

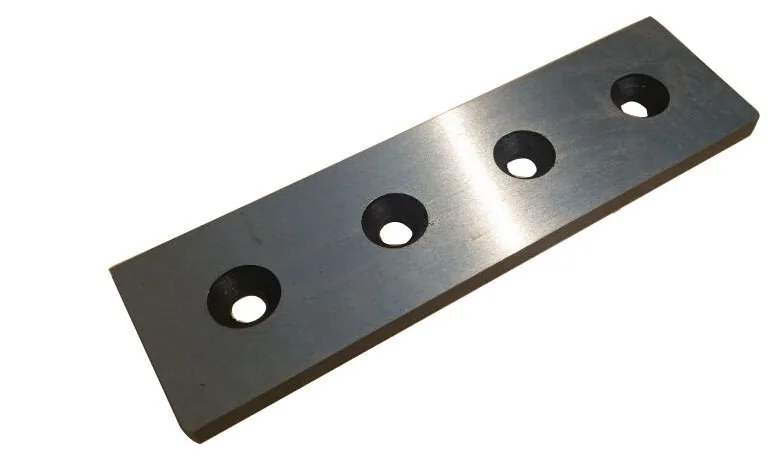

2. Blades


The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper

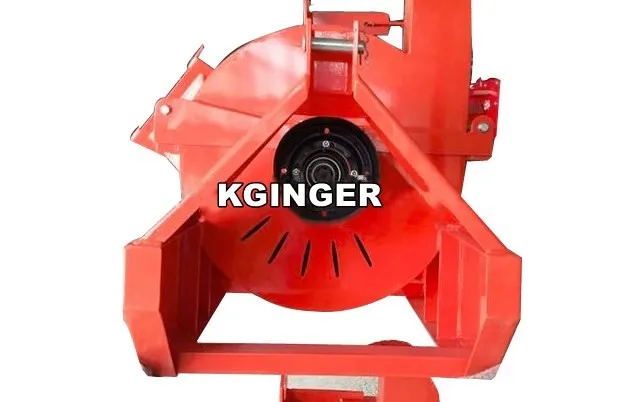

 3. Air Vents

Blowing force is maximized with air intake vents on the side of the chipper. Air enters through

the vents and powers the chips out the chute up to 20 feet.

4.Twig Breaker Blower Paddles

Behind the blades are blower paddles with integrated twig breakers designed for greater output

force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.

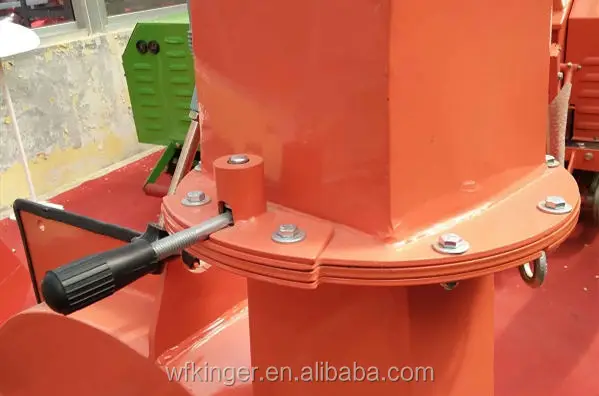

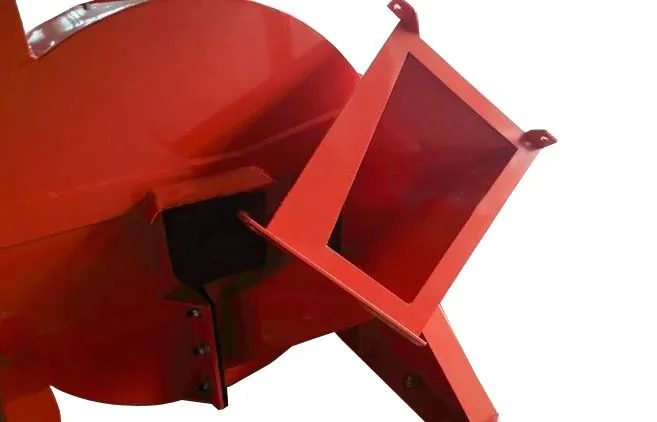

 5.Adjustable Chute

Easily control where you want the chips with the double adjustable Exit Chute.

The chute swivels 360 degrees and the top deflector adjusts the distance.

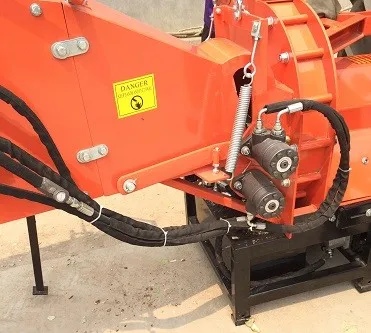

6.Hydraulic Feeding System


It can get the rollers

going forward / stop / going reverse

Crushed Material
Use of wood chipps
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

*  We are Alibaba gold supplier can deal from Alibaba to       ensure your payment safety.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

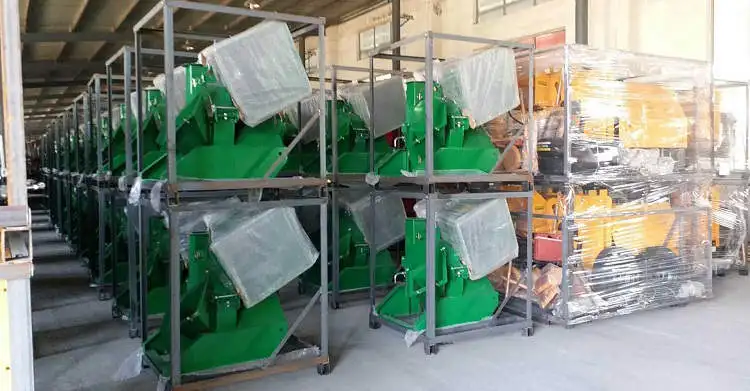

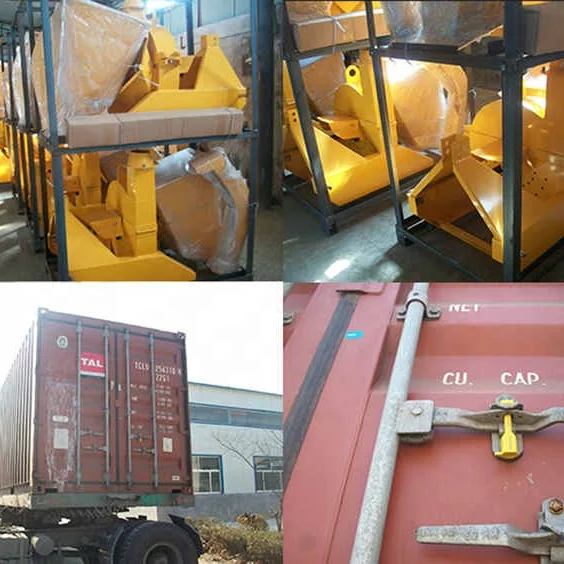

Packing & Delivery
\t
Packaging
\t
Size
\t
1140*820*1800(mm) for BX42R
\t
Weight
\t
430kg
\t



Packaging Details
\t


The normal package is iron crate with anti-dust film cover.
Or depend on customers' requirements.
\t
Packaging
\t
Size
\t
1230*1130*2000(mm) for BX92R
\t
Weight
\t
750KG
\t



Packaging Details
\t


The normal package is iron crate with anti-dust film cover.

Or depend on customers' requirements.
Related Products

Wood Chipper use 15hp gasoline

91.8% Response Rate

Wood chipper use diesel engine

91.8% Response Rate

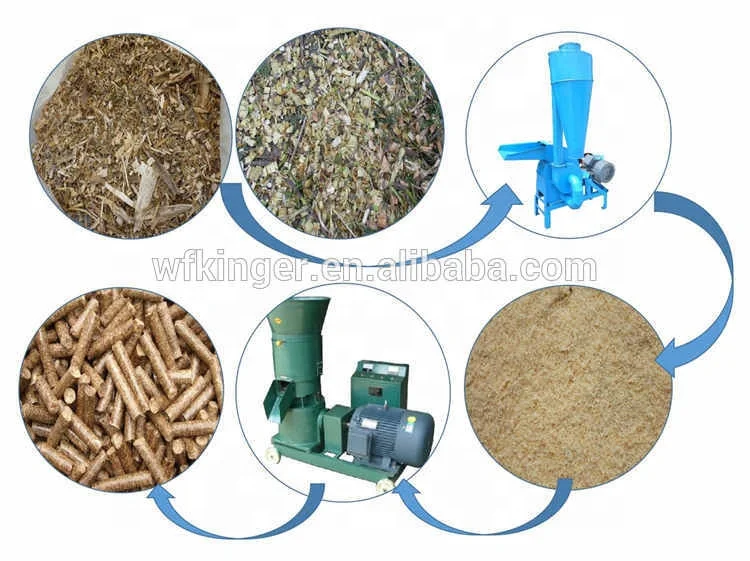

Related machines for making wood pellet
