Vibratory Deburring Bowls Finishing Machine
US $750.00-$800.00

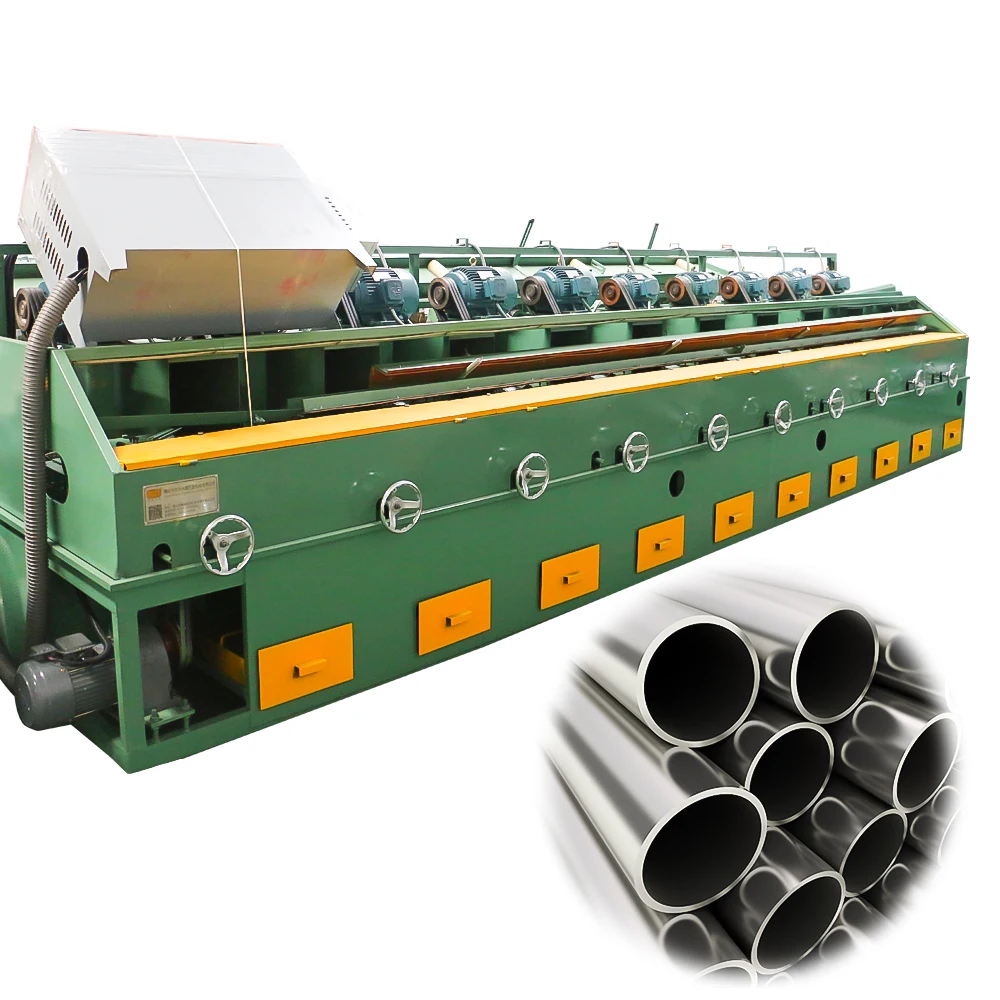

High Speed Metal Round Pipe Rod Bar Grinding Buffing Polishing Machine
- Category: Metal Polishing Machine >>>
- Supplier: Foshan YXH Import & Export Co. Ltd.
Share on (62008097969):
Product Overview
Description
Pipe Buffing/Grinding Polishing Machine for Stainless Steel Round Tube
YXH —— The first foreign office established in the industry
Product Description
Parameter
| Technical data | YP-8 | YP-10 | DYP-10 | YP-8(New) | DYP-8(New) |
| Model(Unit) | 8 | 8 | 10 | 8 | 8 |
| Working range | 12.7—Φ63 | 19—Φ63 | 50—Φ113 | 12.7—Φ63 | 50—Φ113 |
| Polishing speed | 2~30M/NIM | 2~30M/NIM | 2~30M/NIM | 2~40M/NIM | 2~40M/NIM |
| Rated power(KW) | 5.5KW=4,4KW=4 | 5.5KW=5,4KW=5 | All 5.5KW | All 7.5KW | All 11KW |
| Motor power(KW) | 3kw VFD | 3kw VFD | 4kw VFD | 4kw VFD | 4kw CVT |
| Total power(KW) | 41 | 50.5 | 59 | 64 | 92 |
| Voltage(V) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Machine size (L*W*H MM) | 5600*1270*1200 | 7020*1270*1200 | 7040*1450*1350 | 7940*1245*1350 | 7940*1450*1350 |
Packaging & Shipping
- We use steel wire and wooden frame to fix the Pipe/Tube Polishing Machine;
- In addition, used shockproof film to protect the main motors.
- We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
Company Information
About YXH:
One of the leading manufacturers and exporters for 20 years, specializing in manufacturing the Stainless Steel Pipe Making Machine, YXH has passed the International standard quality system certification ISO9001:2008 and become one of the large-scale machinery and mould factories in China.
YXH Stainless Steel Pipe Polishing Machine is hot selling in India, Bangladesh, Vietnam,Pakistan,etc.
Contact Us
Pipe Buffing/Grinding Polishing Machine for Stainless Steel Round Tube
Pipe Buffing/Grinding Polishing Machine for Stainless Steel Round Tube
Pipe Buffing/Grinding Polishing Machine for Stainless Steel Round Tube
