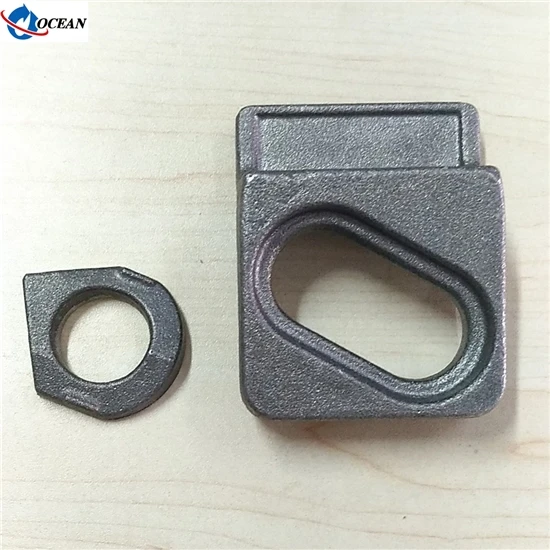

GSR B124/15/40 Crane Rail Bolted Fixing Clips
GSR B124/15/40 Crane Rail Bolted Fixing Clips
GSR B124/15/40 Crane Rail Bolted Fixing Clips

GSR B124/15/40 Crane Rail Bolted Fixing Clips

Share on (62008241928):


Price:RUB 75.82 - RUB 758.18

Quantity:


Product Overview

Description

B124/15

GSR Bolted Fixing



The GSR B124-15 adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 125kN.

Its low profile allows it to be used with cranes that are fitted with guide rollers.





1.SPECIFICATIONS:
MAX SIDE LOAD using Grade 8.8 bolt : 125kN
MAX SIDE LOAD using Grade 10.9 bolt : 140kN



HORIZONTAL RAIL ADJUSTMENT : 15mm

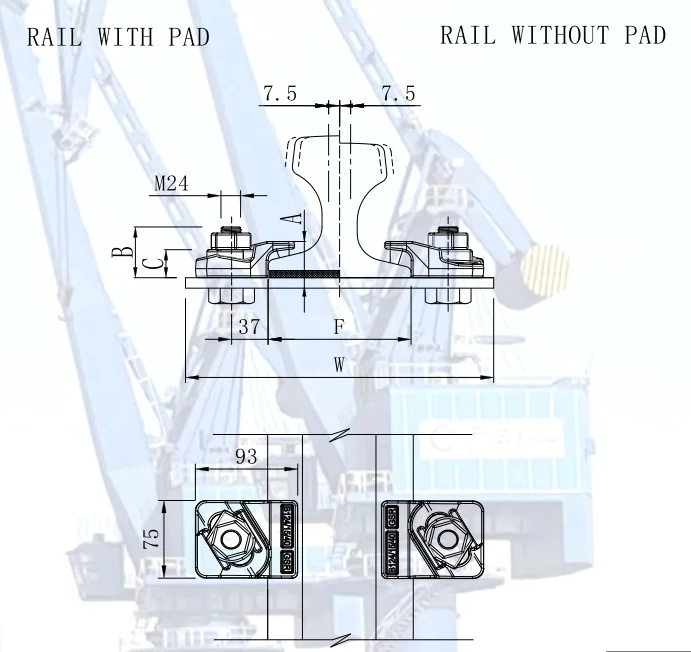

2.DIMENSIONS (mm):

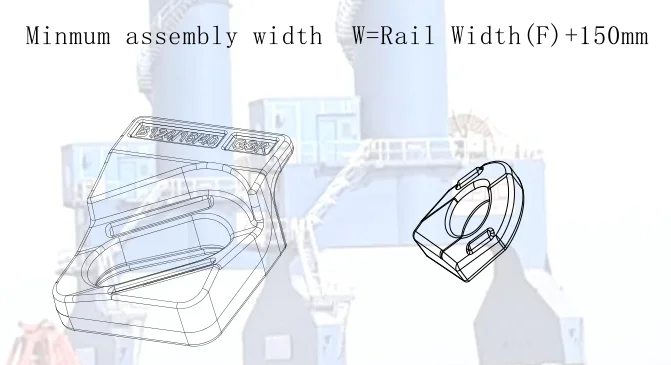

The hexagon headed fixing bolt can be inserted from above or below the supporting structure – see configurations below.

REF NO.AB (FULL NUT)CWEIGHT kg
B124-15-40405530

0.8



3. TIGHTENING TORQUE :
Grade 8.8 bolt 600Nm; Grade10.9 bolt 750Nm









Major Projects:





Company Details:

Tianjin Ocean Mechanical and Electrical Equipment Co., Ltd.( Ocean Engineering Technology Limited)

As a coucil member of China Port Association and Chinese Machinery Association of port machinery branch, is the exclusive agent of British GSR crane rail system products in China as well as the exclusive authorized dealers and manufacturers of American FiveStar building materials. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.



Busiess scopes:
1. Supply GSR clips and pads
2. Supply all series of Five star cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. SupplyAnchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.



paste-pic-dp_uuid_ov8fi



Certificates:





Contact details:

If you have any other questions, pls feel free to contact us as below:

Company name: Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd.
Address: 2-1207 Boling Building No.108 Dazhigu Mid Road Hedong District, Tianjin, China.
Tel: 0086 22 24387905
Fax: 0086 22 24387909

Ckype/WhatsApp/WeChat: 86 131 32559262
