Automatic garage door infrared beam sensor
US $9.00-$9.50
Fast Speed 200mm/s Chain Drive Metal Chassis 800N, 1000N, 1200N Garage Door Opener
- Category: Garage Door Openers >>>
- Supplier: Shenzhen Zhongtian Door Co. Ltd.
Share on (62008400615):
Product Overview
Description
Products Description

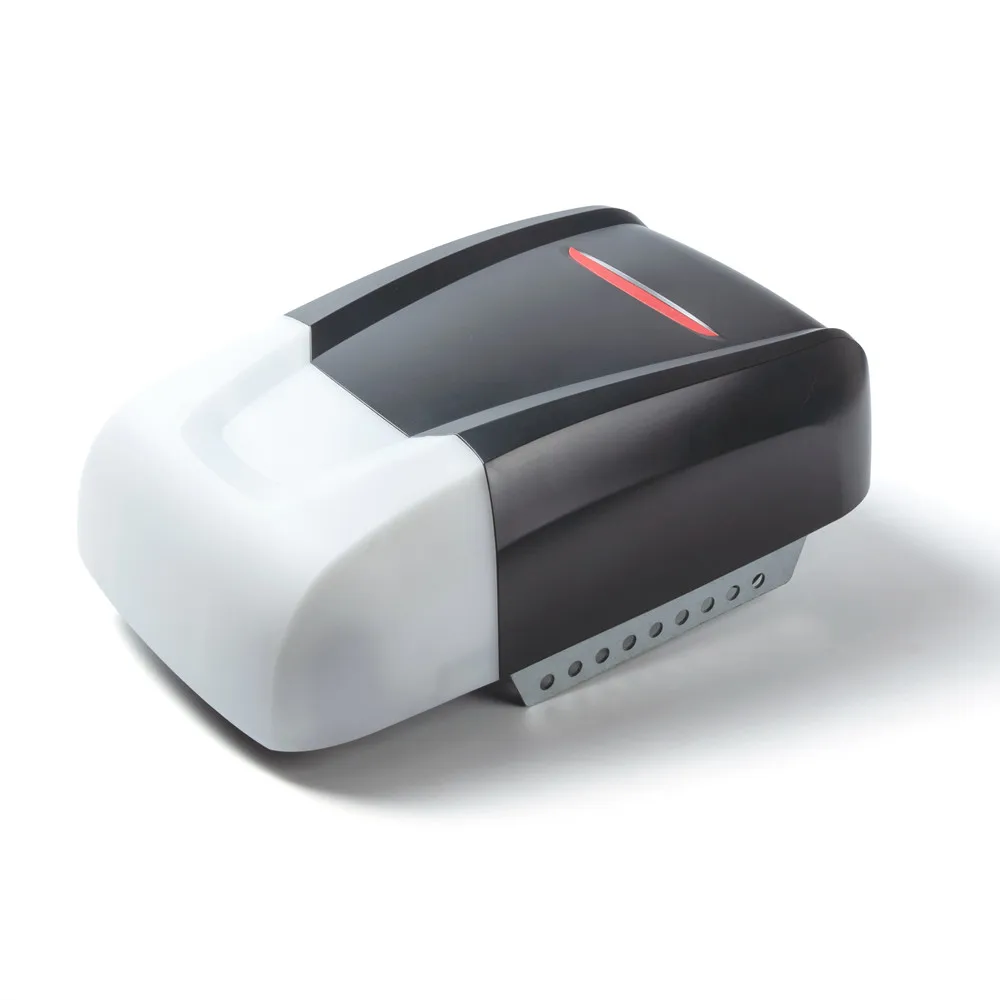

ZTQ Garage Door Opener
This model of Garage Door Motor is super strong, powerful and reliable with the ability to handle any tilt or sectional garage door. The DC 24V motor make it's silent drive.
It has the Durable Steel chassis, metal internal drive gears instead of plastic, makes it's long running lifespan.
It has the Durable Steel chassis, metal internal drive gears instead of plastic, makes it's long running lifespan.
It compatible for both C rail and T rail for some markets. Also it's available for built-in Wi-Fi module, which lets your operate your garage doors from anywhere anytime!.

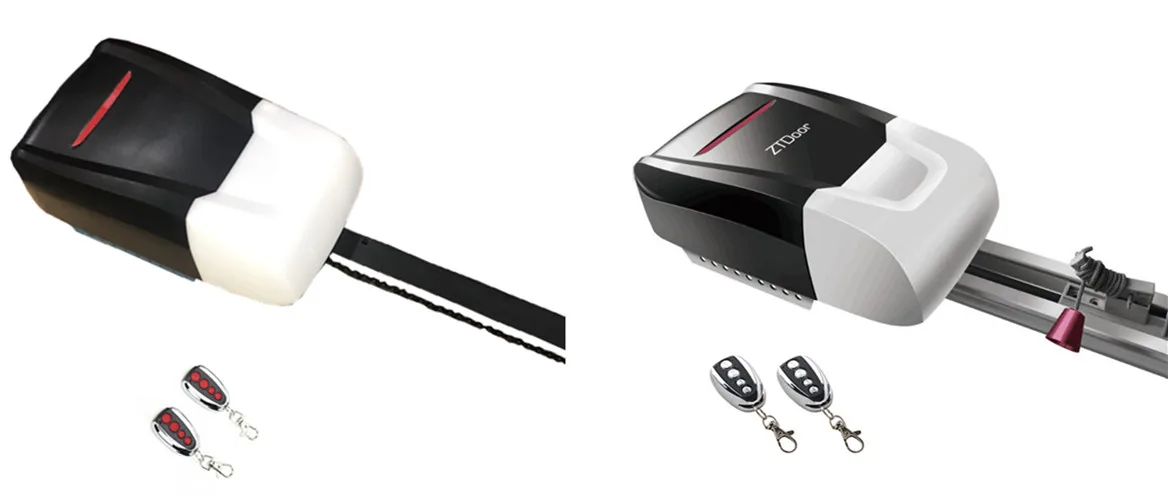

ZTQ Garage door operator with T rail.
ZTQ Garage door operator with C rail
Specification
Product Specification
The model of garage door motor include 3 kinds of driving force 800N, 1000N, 1200N, and customized rail length from 3m to 4.2m, to fit different size of garage doors.
Item | ZTQ800 | ZTQ1000 | ZTQ1200 |
Pull and Push Force | 800N | 1000N | 1200N |
Rated Voltage | AC:220-240V(50HZ-60HZ) | AC:220-240V(50HZ-60HZ) | AC:220-240V(50HZ-60HZ) |
Motor Power | 154W Max | 200W Max | 260W Max |
Apply Door Size | 12 ㎡ Max | 15 ㎡ Max | 17 ㎡ Max |
Rail Length | 3m,3.3m,3.6m,3.9m | 3m,3.3m,3.6m,3.9m | 3m,3.3m,3.6m,3.9m |
Opener Noise | Below 60db | Below 60db | Below 60db |
Running Speed | 120-200mm/s | 120-200mm/s | 120-200mm/s |
Remote Distance | 50m | 50m | 50m |
Remote Control Code | Rolling Code | Rolling Code | Rolling Code |
Remote Frequency | 433.92MHZ | 433.92MHZ | 433.92MHZ |
Auto Lighting | Turn off after 3~5minutes | Turn off after 3~5minutes | Turn off after 3~5minutes |
Temperature range | -25℃~55℃ | -25℃~55℃ | -25℃~55℃ |
Product Features
Title goes here.
•Durable and Strong Metal Chassis
• Fast Running Speed up to 200mm/s
• Built-in Wi-Fi module compatible
• Soft Start, Soft Stop operation
• Easy installing and programming
• Courtesy LED light
• Auto safety reverse
• Auto Force Adjustment
• Electronic limits with power fail memory
• Manual release in case of power failure
• C rail and T rail compatible
• Photocell, battery terminal available
• Fast Running Speed up to 200mm/s
• Built-in Wi-Fi module compatible
• Soft Start, Soft Stop operation
• Easy installing and programming
• Courtesy LED light
• Auto safety reverse
• Auto Force Adjustment
• Electronic limits with power fail memory
• Manual release in case of power failure
• C rail and T rail compatible
• Photocell, battery terminal available
Optional Accessory
This type of Garage Door Opener compatible for vairous optional accessories :
Wireless wall push button
Wireless keypad
Photocell sensor
Emergency Lock
Back Battery
External Wifi Box
Wireless keypad
Photocell sensor
Emergency Lock
Back Battery
External Wifi Box
Product Application
Sectional doors,
Tilting doors,
Sliding doors,
Folding doors
Tilting doors,
Sliding doors,
Folding doors
Certifications
Our Certification
Our garage door opener comply with -certificate of CE, SAA, SASO, C-Tick, TUV for different market distribution.
FAQ
Q1: What is your MOQ?
A: No min order for garage door opener.
Q2: Can I get a sample of garage door opener for quality check?
A: Sample testing is available.
Q3: How can I get a price of needed garage door opener?
A: Please give the exactly size, weight and quantity of your required door. We can give you a detail quotation based on your
requirements.
Q4: What kind of payment terms would you accept?
A: We usually accept T/T, Paypal, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
Q5: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q6: How to install your product, is it difficult?
A: Easy to install. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q7: Can you print our brand or logo in your motor and Box?
A: Yes, we can make OEM logo, customized packaging box if you buy the quantity over 1 full container.
A: No min order for garage door opener.
Q2: Can I get a sample of garage door opener for quality check?
A: Sample testing is available.
Q3: How can I get a price of needed garage door opener?
A: Please give the exactly size, weight and quantity of your required door. We can give you a detail quotation based on your
requirements.
Q4: What kind of payment terms would you accept?
A: We usually accept T/T, Paypal, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
Q5: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q6: How to install your product, is it difficult?
A: Easy to install. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q7: Can you print our brand or logo in your motor and Box?
A: Yes, we can make OEM logo, customized packaging box if you buy the quantity over 1 full container.
Q8: What's your lead time?
A: For sample it takes 3-7 days. For production order, it takes 15-25 days.
Company Profile
Shenzhen ZhongTian Door Co., Ltd was founded in 2004, located in Shenzhen, China. We are the leading company that manufactures quality Garage door openers, Roller Door Openers, and an extensive range of accessories and spare parts in China.
For the past 17 years, ZT Door got rich experiences and customer feedback in the garage door industry. We devote to the research and development of the most intelligent, feature packed, best value and robust garage door openers on the market. With our professional professional R&D team, in-house PCB production lines, we keep our products up to the top advanced technology of the world. We perform strict and accurate tests to ensure the highest quality and safety standards.
Our commitment toward customers is SAFETY, RELIABILITY AND DURABILITY.
We accept OEM, ODM service, we have the capability to make customized design, mechanical, electronic for the openers.
Whether you are door manufacturers or Door Automation distributors, then ZT Door has the best solutions for you.
For the past 17 years, ZT Door got rich experiences and customer feedback in the garage door industry. We devote to the research and development of the most intelligent, feature packed, best value and robust garage door openers on the market. With our professional professional R&D team, in-house PCB production lines, we keep our products up to the top advanced technology of the world. We perform strict and accurate tests to ensure the highest quality and safety standards.
Our commitment toward customers is SAFETY, RELIABILITY AND DURABILITY.
We accept OEM, ODM service, we have the capability to make customized design, mechanical, electronic for the openers.
Whether you are door manufacturers or Door Automation distributors, then ZT Door has the best solutions for you.
Our factory
Our factory located Shenzhen, Guangdong, welcome to visit us!

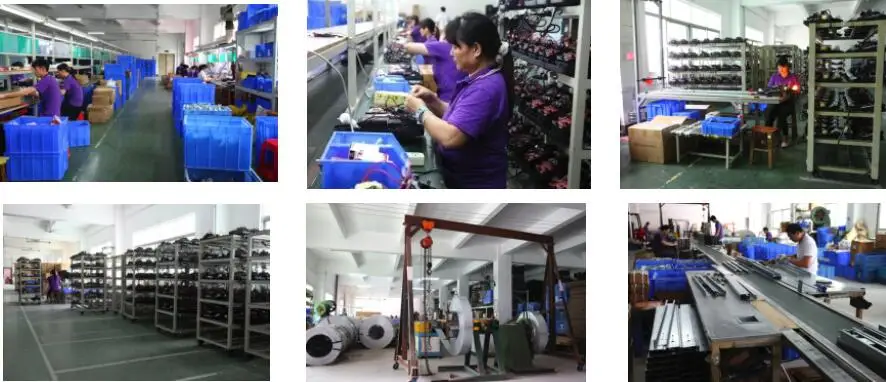

Workshop
Our production lines for motor assemble lines, rail production lines
Our exhibition
We take in R+T fair.
Contact US
We are flexible and competitively priced. Welcome to contact us!
