Best Quality Mini 30m3 Concrete Pump
- Category: Concrete Pumps >>>
- Supplier: AIMIX GROUP CO. LTD.
Share on (62008593738):
Product Overview
Description

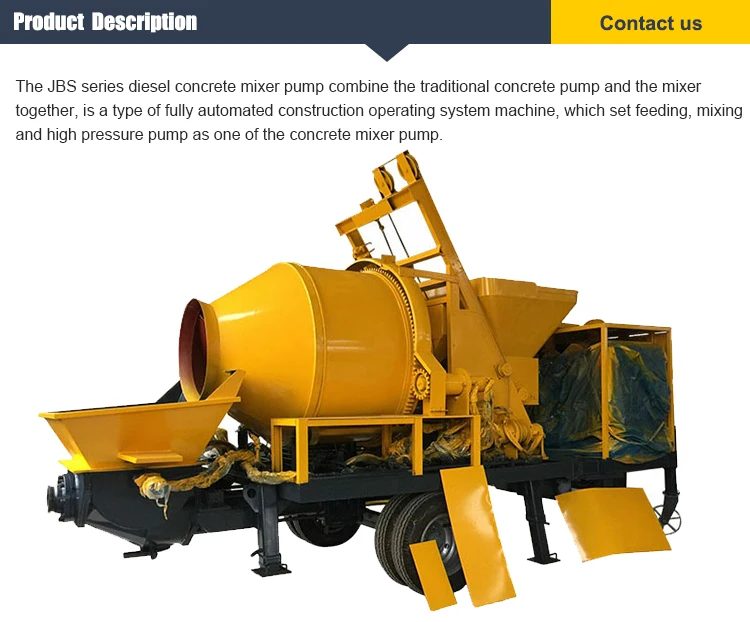

Product Description

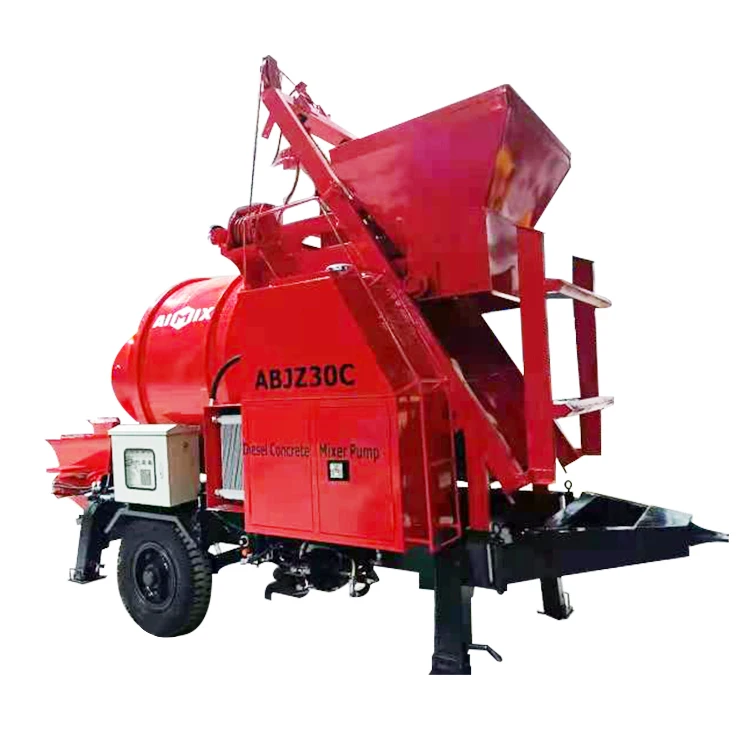

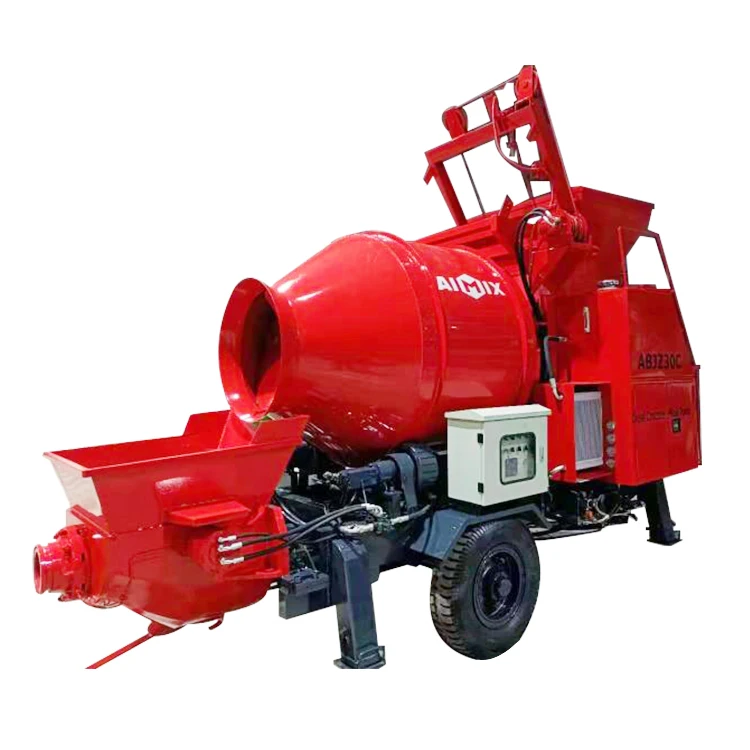

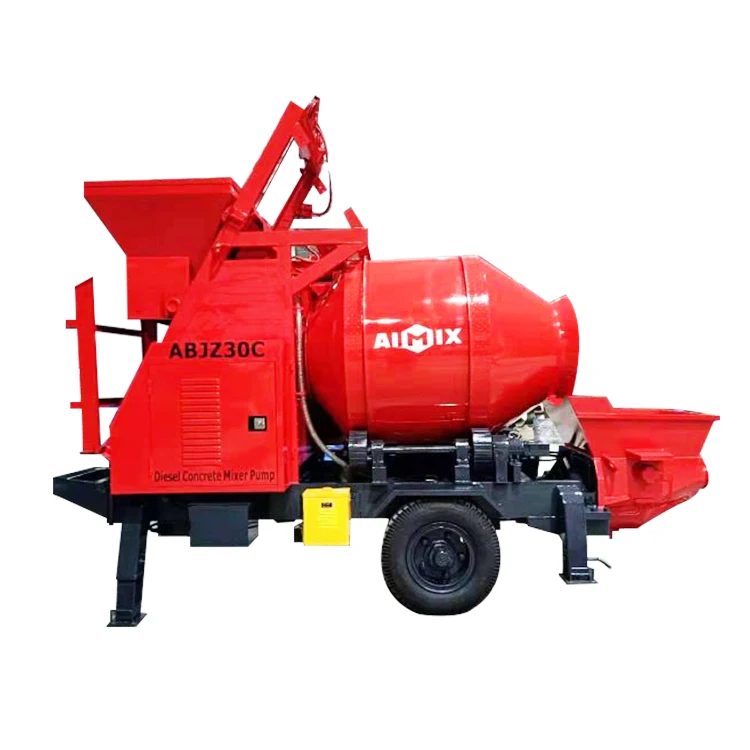

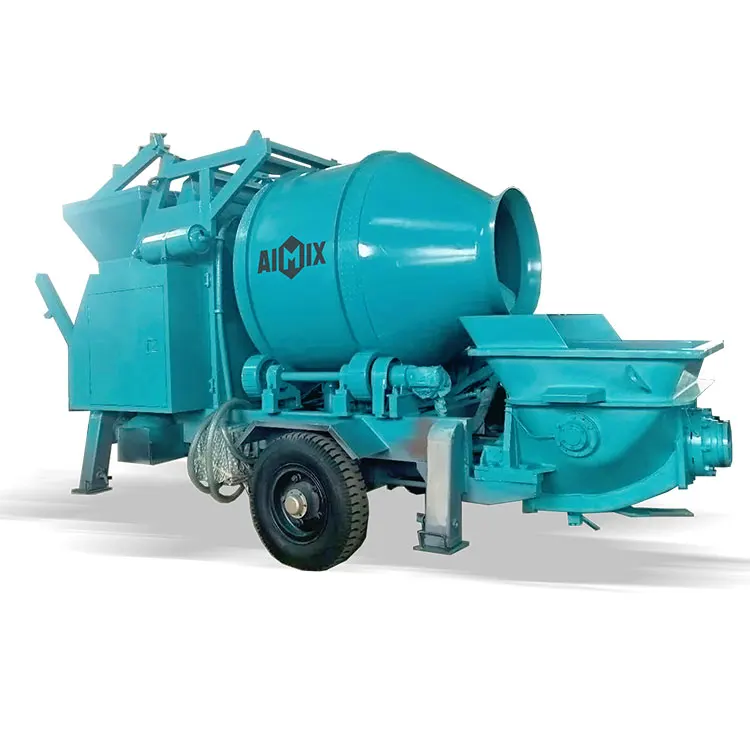

Best Quality Mini 30m3 Concrete Pump
Characters:
1.Power system adopts the domestic famous brand and electric/diesel engine. 2.Using three-pump system, hydraulic loop does not interfere with each other; the system runs stably, high reliability. 3.With anti-pump function, to promptly eliminate the failure of blocking tube, for a short period of time and reliable downtime. 4.Using advanced S tube corundum, can automatically compensate the wear gap between the parts, good sealing performance. 5.Using durable alloy glasses plate and cutting ring, long service life. 6.Long stroke cylinder, extended the service life of cylinder and piston. 7.Optimal design of hopper, easy to clean, absorbing better. 8.Equipped with hydraulic driving high pressure cleaner, cleaning faster, less water. 9.Automatically centralized the lubrication system , make sure the machine obtain the timely and effective lubrication while operation. 10.Humanized design of products makes the operation more convenient. |
Technical Parameters
Best Quality Mini Concrete Pump
| 30m3 concrete mixer with pump | Perameters | |
| ABJZ30C | ||
| Max. theo. concrete output(L./H) | M3/h | 30 |
| Mixer rated feed capacity | m3 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 8 |
| Distribution valve type | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ140x1000 |
| Hopper capacity | L | 400 |
| Outlet diameter | mm | Φ100 |
| Winding motor power | KW | Hydraulic motor |
| Stir the motorPower | KW | Hydraulic motor |
| Water pump motor powe | KW | Hydraulic motor |
| Diesel engine model | Yuxing | |
| Diesel engineering power | KW | 66 |
| Rotate speed | r/min | 1800 |
| Circuit type | Open circuit | |
| Pumping system pressure | MPa | 28 |
| Mixing system pressure | MPa | 6-8 |
| Capacity of oil tank | L | 350 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/400 |
| Max. aggregate diameter | mm | Slick/scree:20 |
| Inside diameter of delivering pipe | mm | Φ100 |
| Dimensions:length×width×height | mm | 6000x2300x3150 |
| Total weight | kg | 5500 |

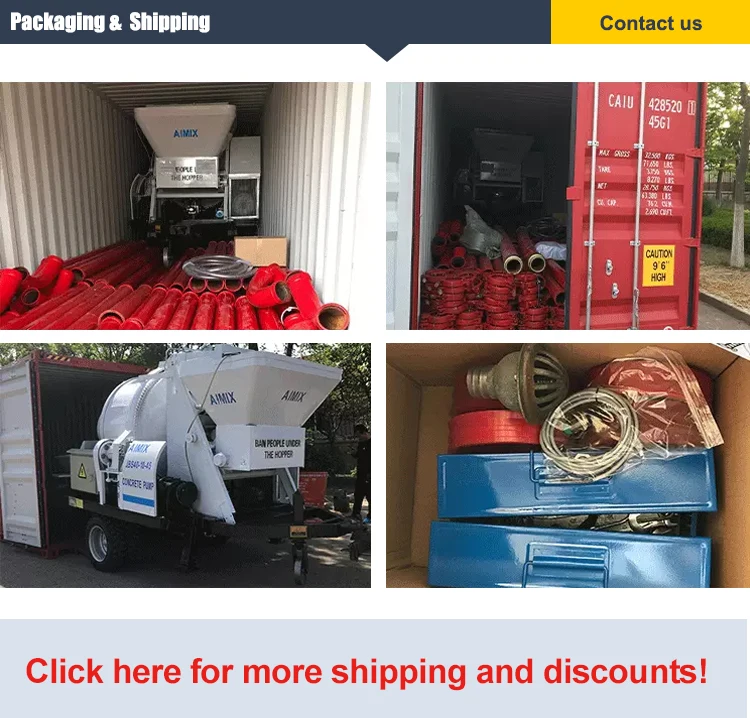

Packaging & Shipping
Usually , Standared packing way , of course we can provide u customerized packing methods

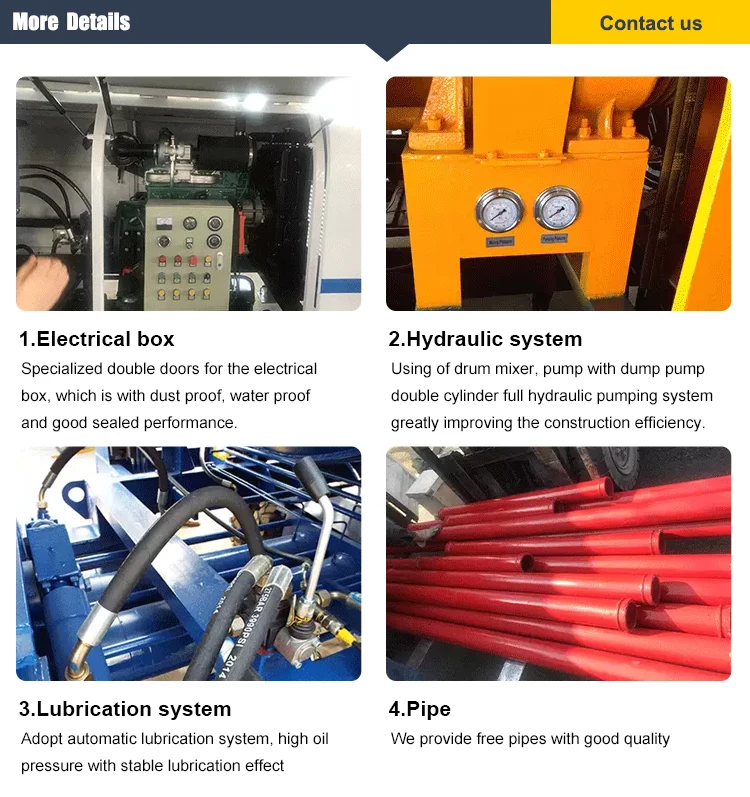

Detailed Pictures

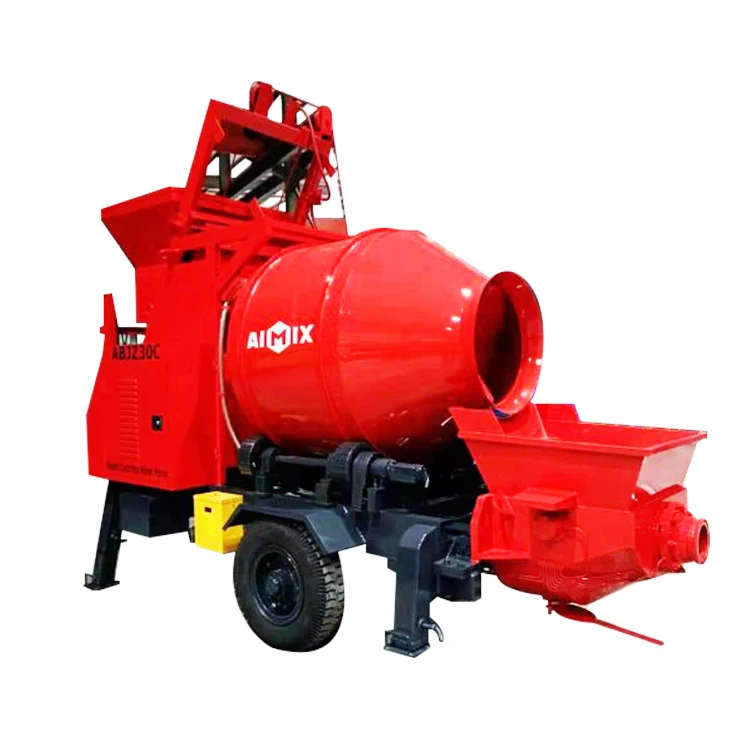

Best Quality Mini Concrete Pump

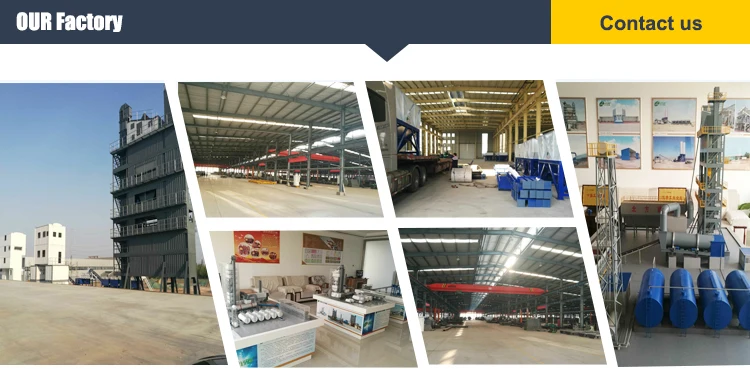

Company Information
Brief introduction about our factory below:
1. Founded in 1982, long history , 37 years experience in this machine field.
2. Supplier of Lafarge , one of the world`s top 500 enterprises.
3. CE, SGS, BV, ISO, IAF, CNAB Certification approve.
4. Capital Assets:36 Millions USD dollars Per year .
5. Covering space:more than 90,000m²,building area around 50,000 m²
6. Employees:almost 2,300 workers ;including engineers (56), professional technicians skill (190), administrators (120), skill workers (900), sales, and service personnels.
7. Have business relationship with at least 30 countries worldwide.
8. Have set up over 200 branches all over the country, and our products are popular at home and abroad.
Our Services
1. Reply your inquiry soon.
2. Provide u the most professional and best quotation .
3. Supply top quality products
4. provide u necessary help during installation . and we can also arrange our technicians to your place to help you .
5. 12 months warranty.
6. Help you arrange hotels if you visit our factory .
7. Clients can come and inspect the goods before shipment .
8. Our factory can assure u the delivery on time
9. The most compitive price on the market .
10. Your success is our business.
11. Free repair during warranty .
12. Free inspection upon delivery .
13. Free operation and repair training .
14. Free technical enquiries.
15. Free period follow-up and maintenance service.
FAQ1
FAQ:
1. How about the installation?
We will send you the installation materials which you can refer to. if you can't install it yourself, we will send our engineers or technicians to your place to supervise, you are responsible for their flight tickets, food and accomodation in your local place, as well as their salary.
2. What is your warranty?
One year.
If the construction machinery are broken in one year , how will you repair ?
If the construction machinery are broken naturally not by human during warranty period , we will send you the parts free , but if it is by human , you have to pay all the cost .
3. Your price is so expensive
All our construction machinery is made of national standrad steel and imported FRP , our strict quality control system try to assure the high quality for every parts , also our machinery have to be tested to promise it is extremely safe when running .
4. Is it can be customized ?
All our construction machinery can be customized according to your requirements.
5. How about the delivery time?
There are 1000 workers in our factory, so we can produce about 30 sets of common construction machinery within one month.
of course, we have some products in stock . we can send to u in one week .
6. what is your payment way ?
T/T or L/C is OK for us.
On T/T item , 30% T/T in advance and 70% T/T after inspecting the finished goods before shipment.
On LC Item , a 100% irrevocable L/C without "soft clauses" can be accepted .
7. How can I trust your factory ?
we are a long history factory . you can search information about us on internet, of course , we do welcome you to visit our factory .
8. what kind of quotation you can provide ?
we normally work on FOB , CIF, CFR, EXW
9. How can I choose transportation tools?
90% of our shipment , we go by sea, eighter by container or ro-ro/ bulk shipment.
For neighbourhood countries of China , you can choose road or railway .
For light spare parts in urgent demand , we can ship them by TNT , Fedex, , UPS,, DHL .
10. Does your factroy also provide other products ?
