Hwashi Automatic Multiple Head Bundy Tube Condenser Welding Machine Wire Mesh Welding Machine

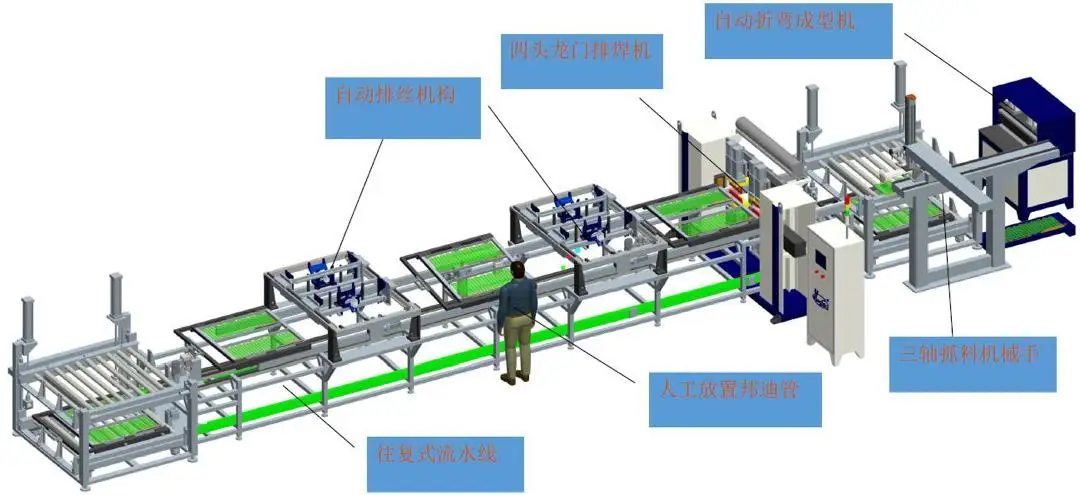

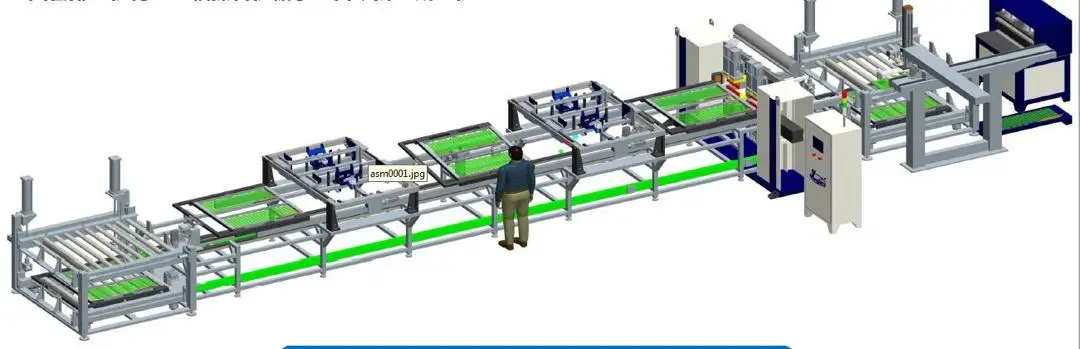

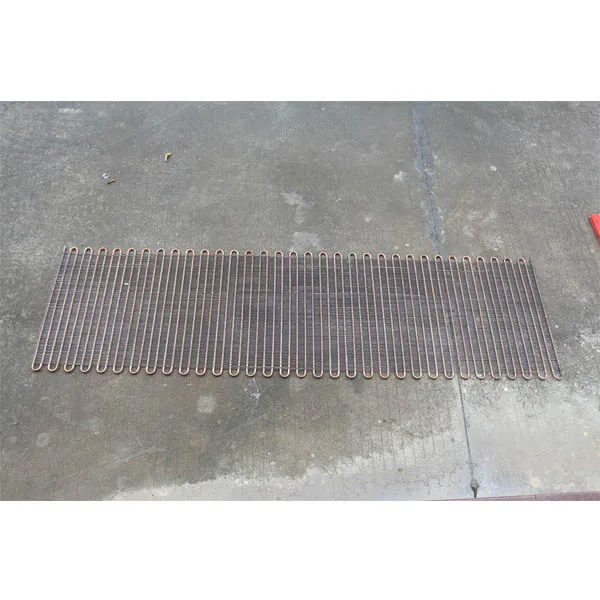

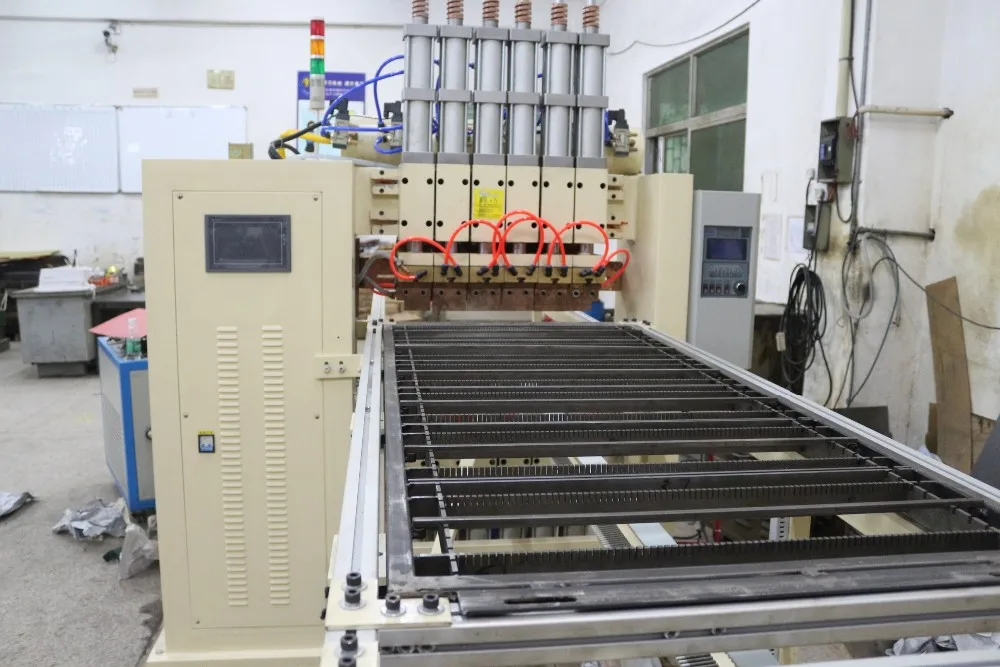

HWASHI Six-Head Refrigerator Condenser Automatic Welding Machine is designed for welding the condenser. Besides, we can also provide the whole production line machine for condenser. The condenser production line machine including Wire Straightening and Cutting Machine, Bundy Tube Straightening and Cutting Machine, Bundy Tube Bending Machine, Condenser Welding Machine, Condenser bending machine, Tube End Expanding Machine and Tube end shrinking machine, etc. This high quality automatic refrigerator condenser cnc automatic welding machine is customized for welding condenser as well as wire mesh. According to the product specification provided by your company, and in order to increase efficiency and production rate, the machine is designed as two feeding fixture system, automatic wire feeding system, automatic mobile system, automatic welding system, and cooling system.

1. Power Source: Adopt medium frequency inverter welding source. Duty cycle rate reaches 50%. The three-phase power supply is under rectifying through a special inverter and converted to 1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.

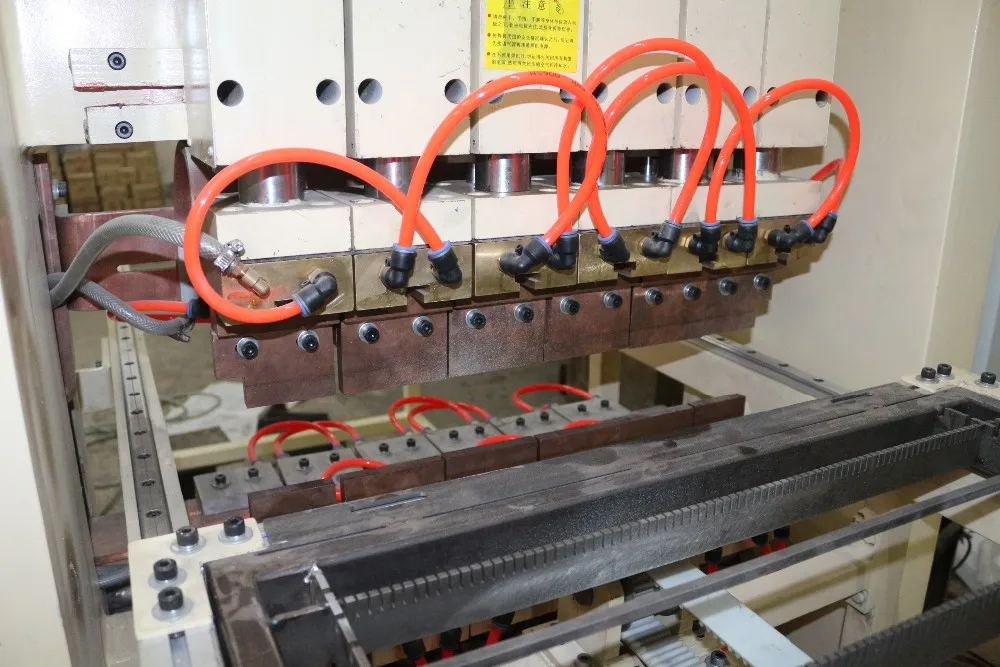

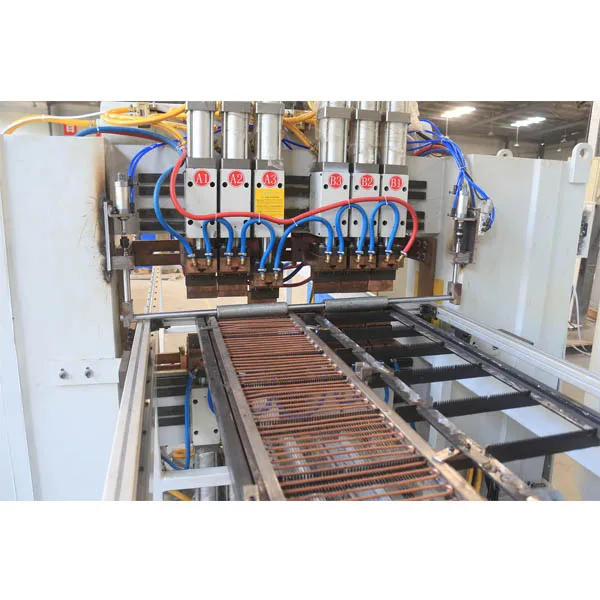

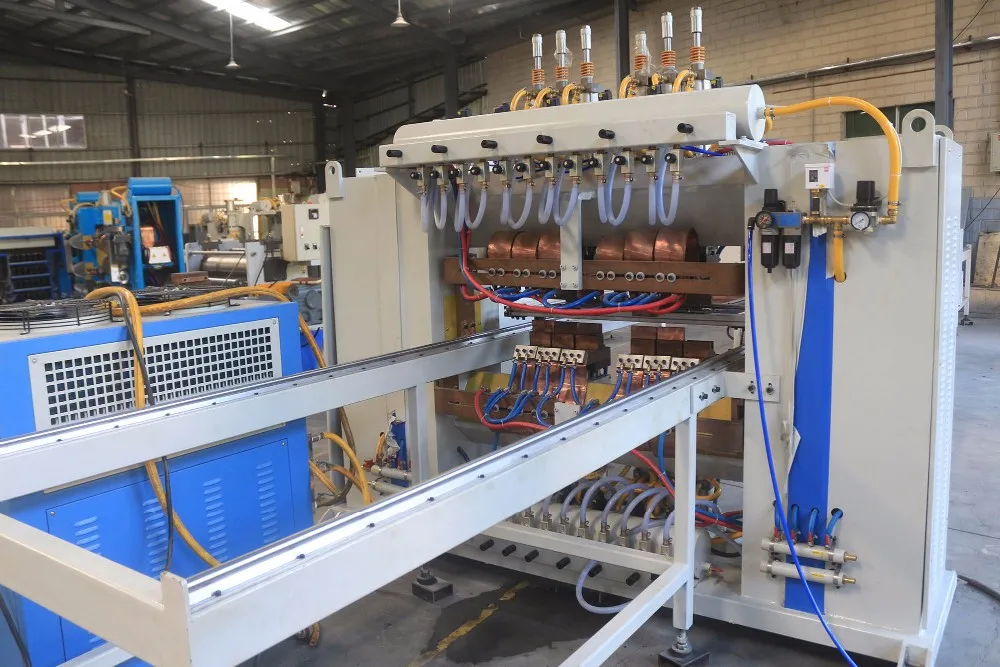

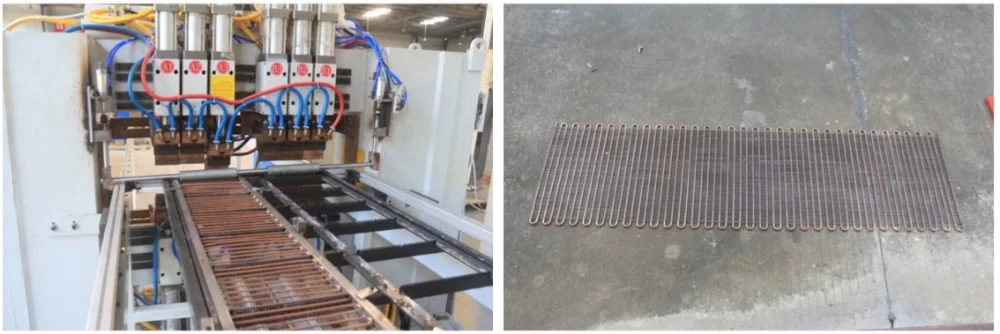

2. Row Welding Structure: 6 sets of welding electrodes are installed on the beam and equipped with slide guide that could move horizontally. It is convenient to adjust the distance of welding spot so it is suitable for welding the work pieces with different pinch. The welding program of row welding electrode is flexible and various kinds of welding programs are available. So you could choose to weld from the middle to the sides or from the sides to the middle or single welding. Truly achieve the stable, reliable and good consistency of welding effect.

Story About HWASHI

Guangdong Hwashi Technology Inc. was established in 2001. The headquarter is located in Hwashi industrial park in Huizhou. Hwashi is a high-tech enterprise specialized in developing, manufacturing and selling of resistance welding machine, automatic welding machine and an industrial robot.

In the past 20 years, Hwashi has obtained more than 50 patents for invention patents, utility model patents, design patents, and software Copyrights. It is the drafting unit of several national standards and industry standards. Hwashi has been awarded "China famous brand", "Guangdong famous brand", "China quality credit enterprise", "world outstanding Chinese businessman association member unit", "Guangdong province science and technology innovation quality management advanced unit", "Guangdong province academician expert enterprise workstation" and many other honorary titles.

For 20 years, Hwashi keeps innovating and follow up with the latest technology in the world. Invest heavily in product development and innovation every year. In cooperation with key universities and national key laboratories and engineering technology centers in new materials and processes, the "medium frequency inverter" technology was first introduced into resistance welding equipment. Help to realize the "unmanned, intelligent" factory, the practice we have been striving for is to create efficient, energy saving, safe and environmentally friendly production environment for customers.

With the trend of intelligent manufacturing in the world, Hwashi has set up a large-scale robot development base of 50,000 square meters in Yichun City, Jiangxi province. Introducing the world's top advanced production and processing equipment in our factory. We have a technical team and high-quality workers including mechanical, electronic, welding, automatic control, electromechanical integration, and management. We are committed to providing customers with efficient automation welding solutions in order to become a leading enterprise in world-class industrial intelligent equipment.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
