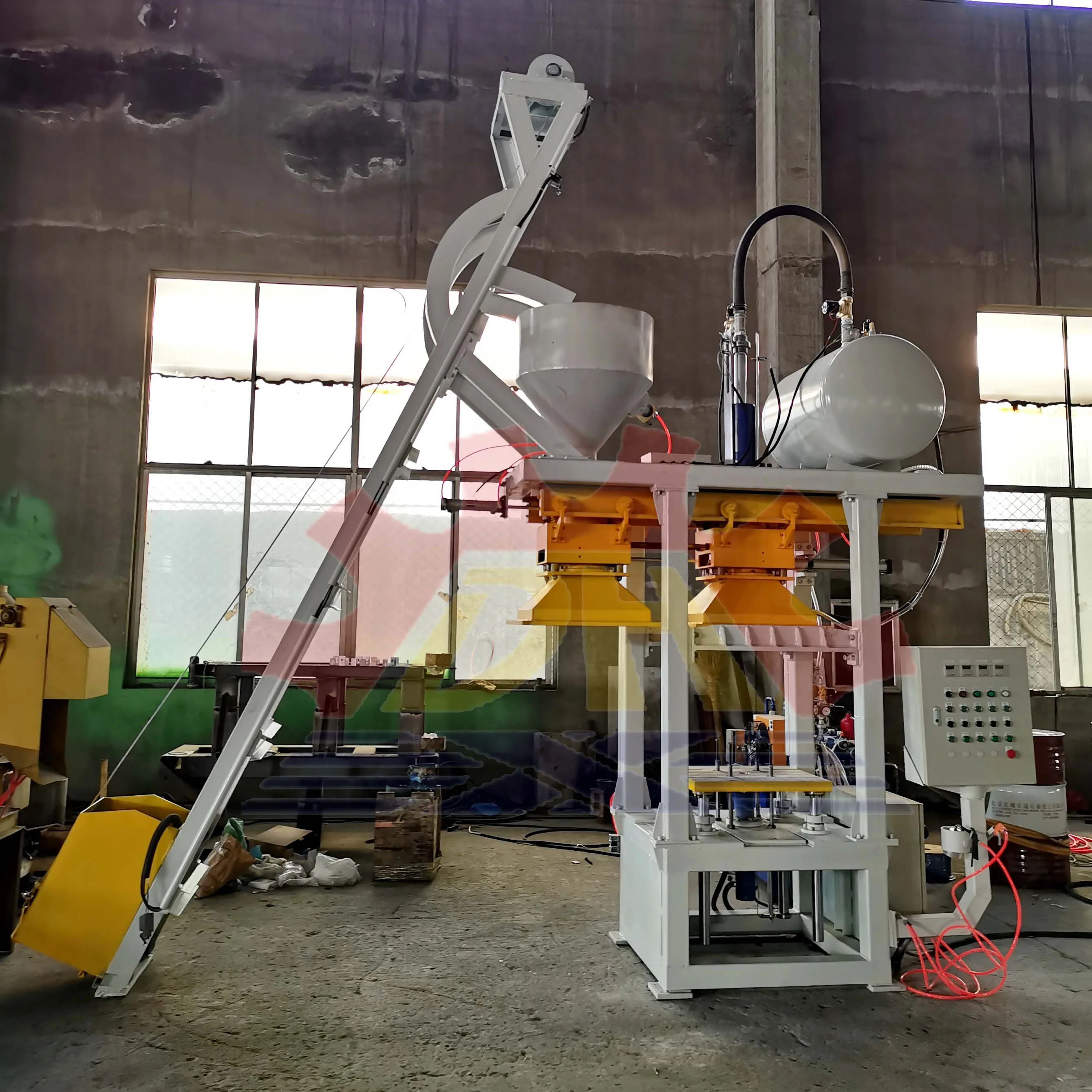

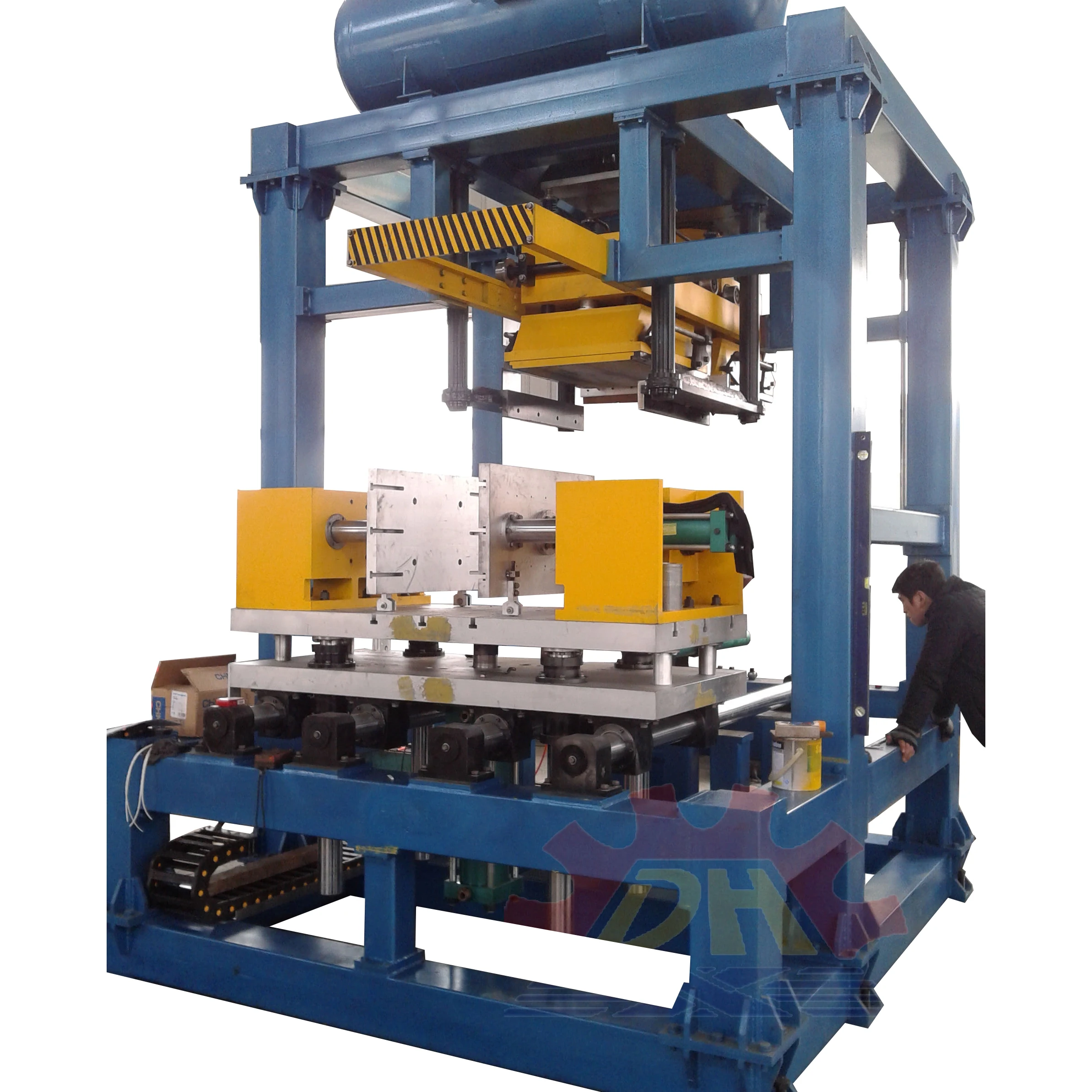

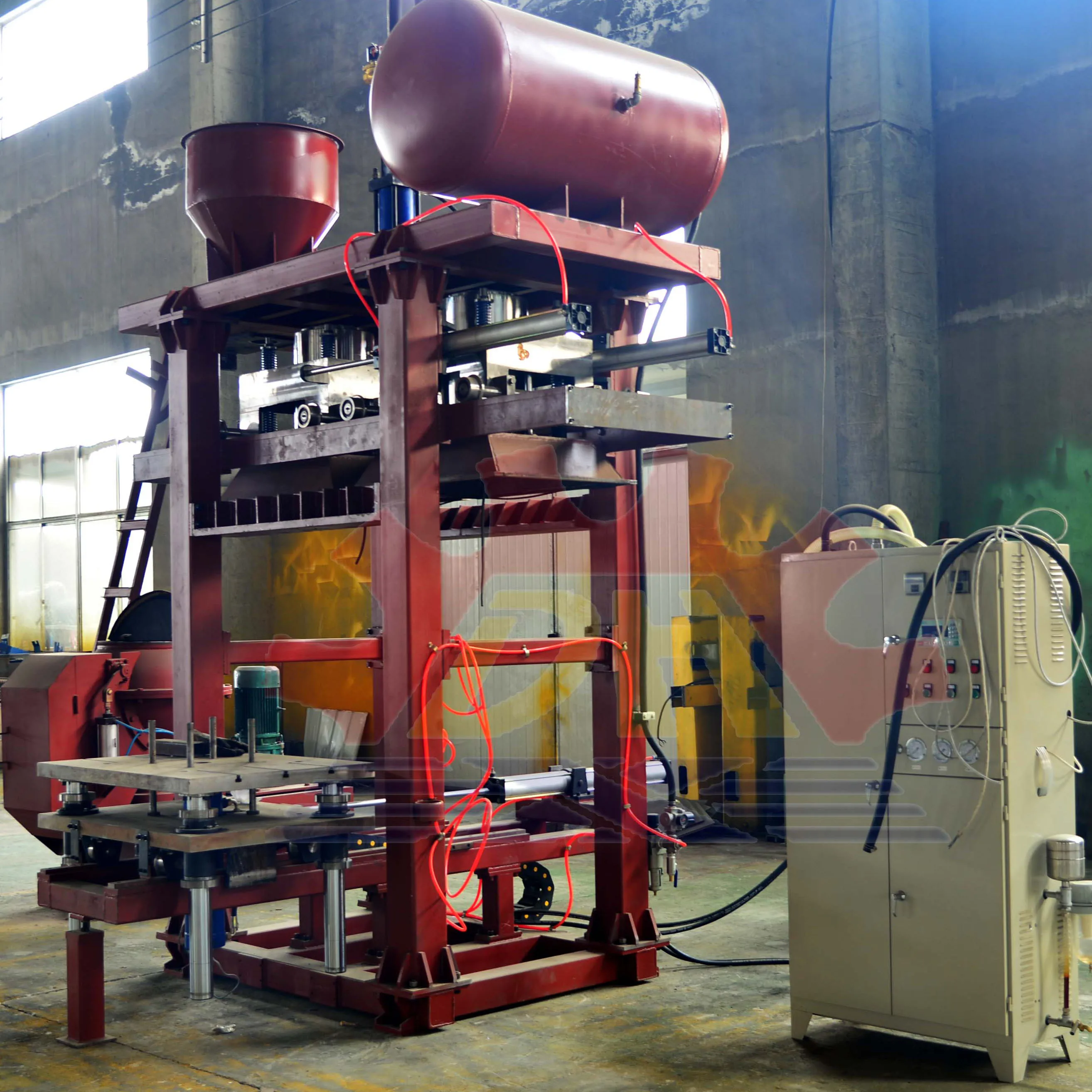

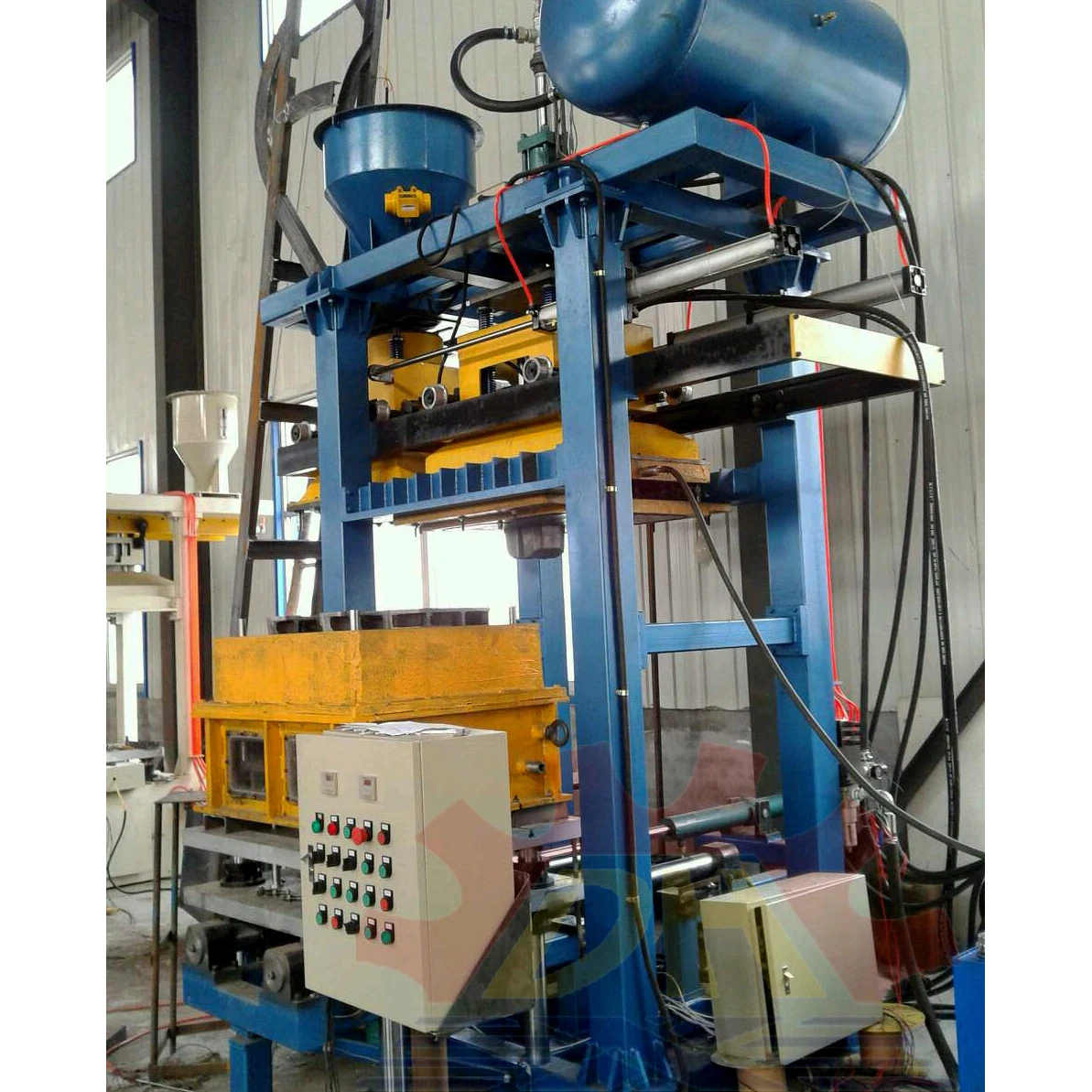

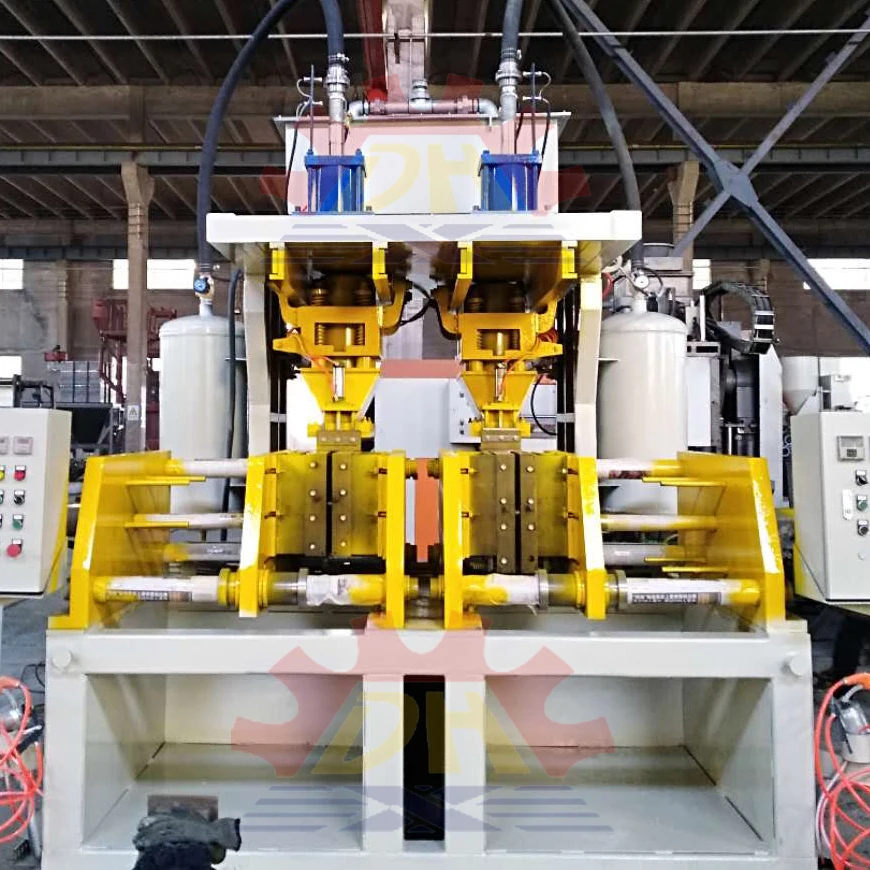

Машина для изготовления пескоструйных сердечников для литейной промышленности/формовочная машина для изготовления пескоструйных сердечников/формовочная машина

Product Overview

Description

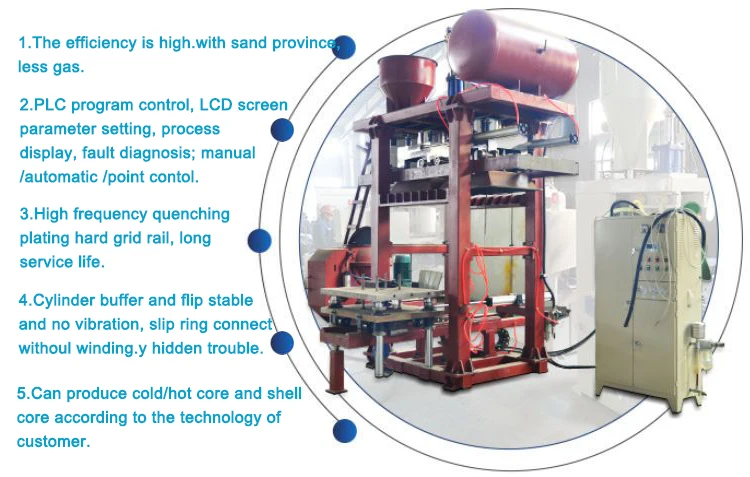

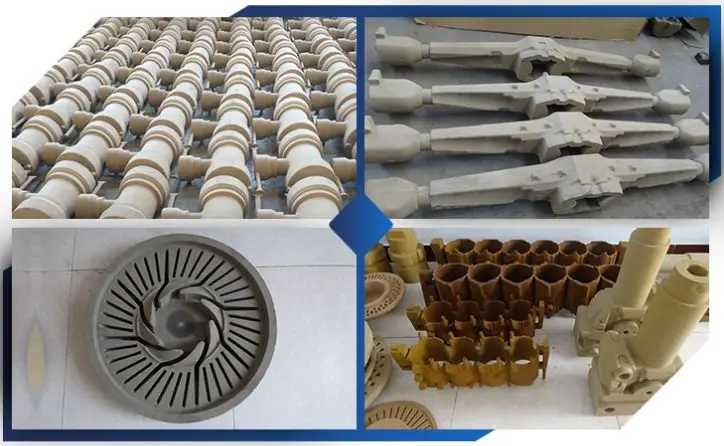

Application:  Apply to vertical or horizontal parting mold; through heating phenolic resin coated sand to produce shell core or hot core, or through carbon dioxide and triethylamine to produce cold cores; the efficiency is high.with sand province,less gas.













Technical Parameter :

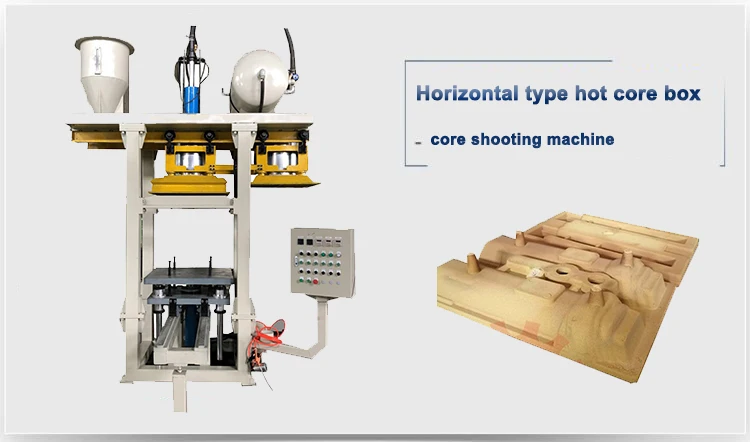

ZHR series horizontal parting hot core box core shooting machine

	ZH550R-15	ZH660R-25	ZH780R-40	ZH890R-50	ZH1090-60	ZH1290-70
Max core box size(mm)	500x500x300	600x600x400	700x800x500	800x900x500	1000x900x600	1200x900x600
Open/close mould distance(mm)	300~600	350~700	400~800	450~900	500~1000	550~1100
Max sand shooting amount(kg)	15	25	40	50	60	70
Max sand shooting amount(s)	15	17	20	23	25	30
Drive method	pneumatic	pneumatic	hydraulic	hydraulic	hydraulic	hydraulic

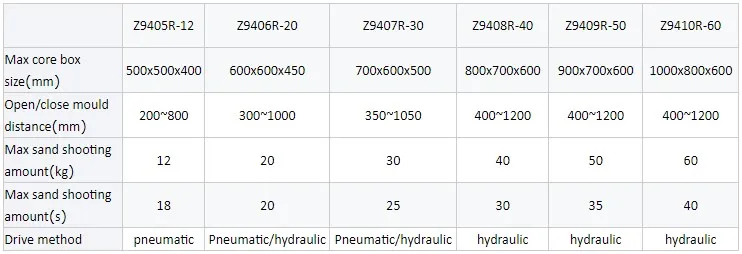

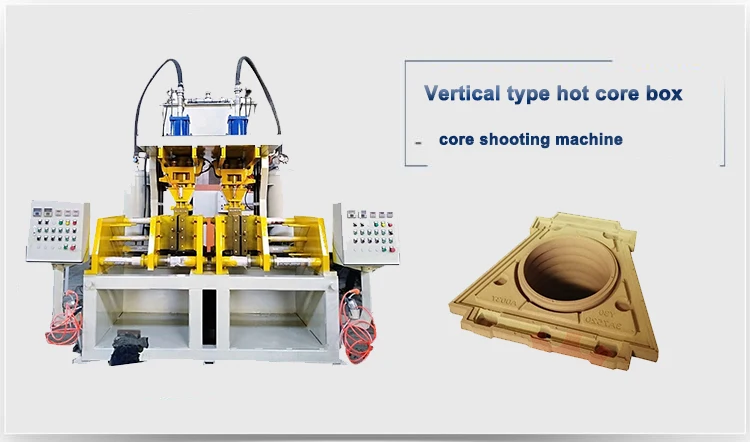

Z94R series vertical parting hot core box core shooting machine

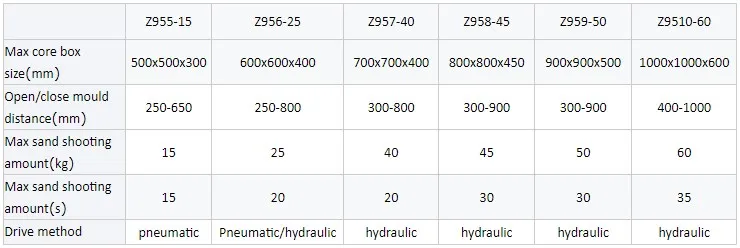

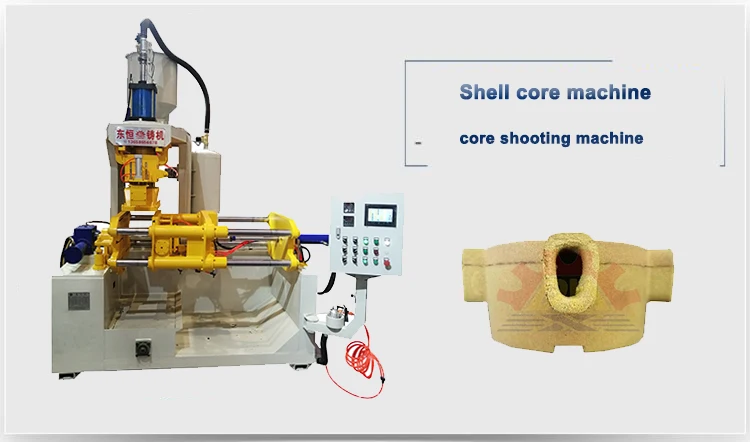

Z95 series shell core machine

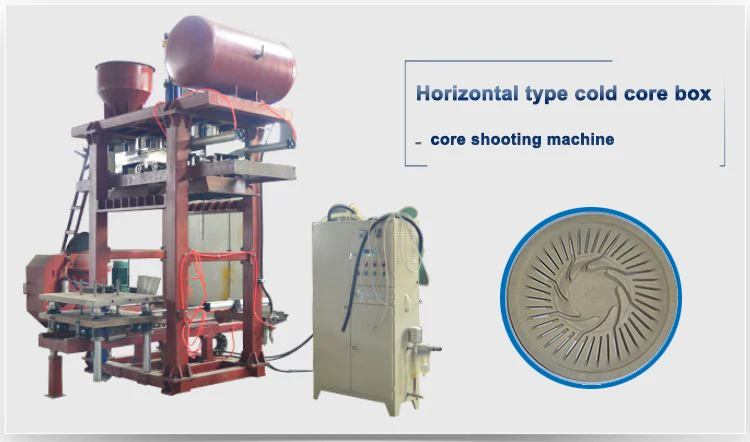

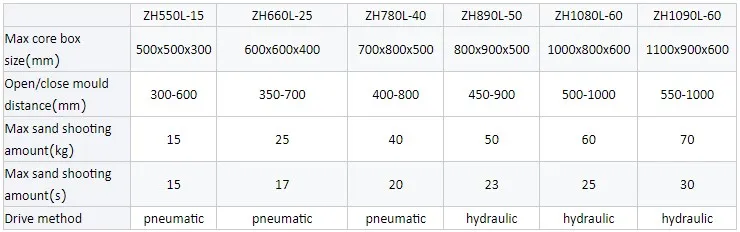

ZHL series horizontal parting cold core box core shooting machine

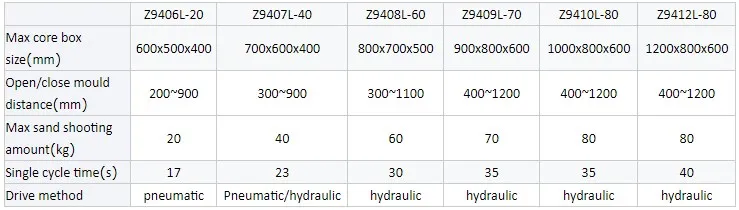

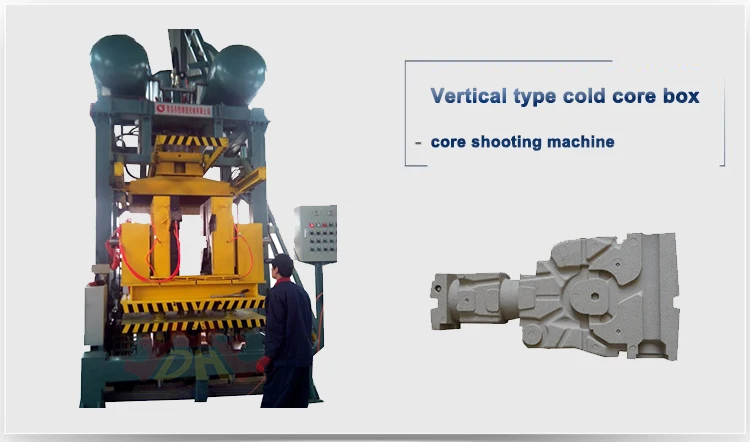

Z94L series vertical parting cold core box core shooting machine

We can design and produce all kinds of non-standard Core Shooting Machine according to customers' products details and requirement.
