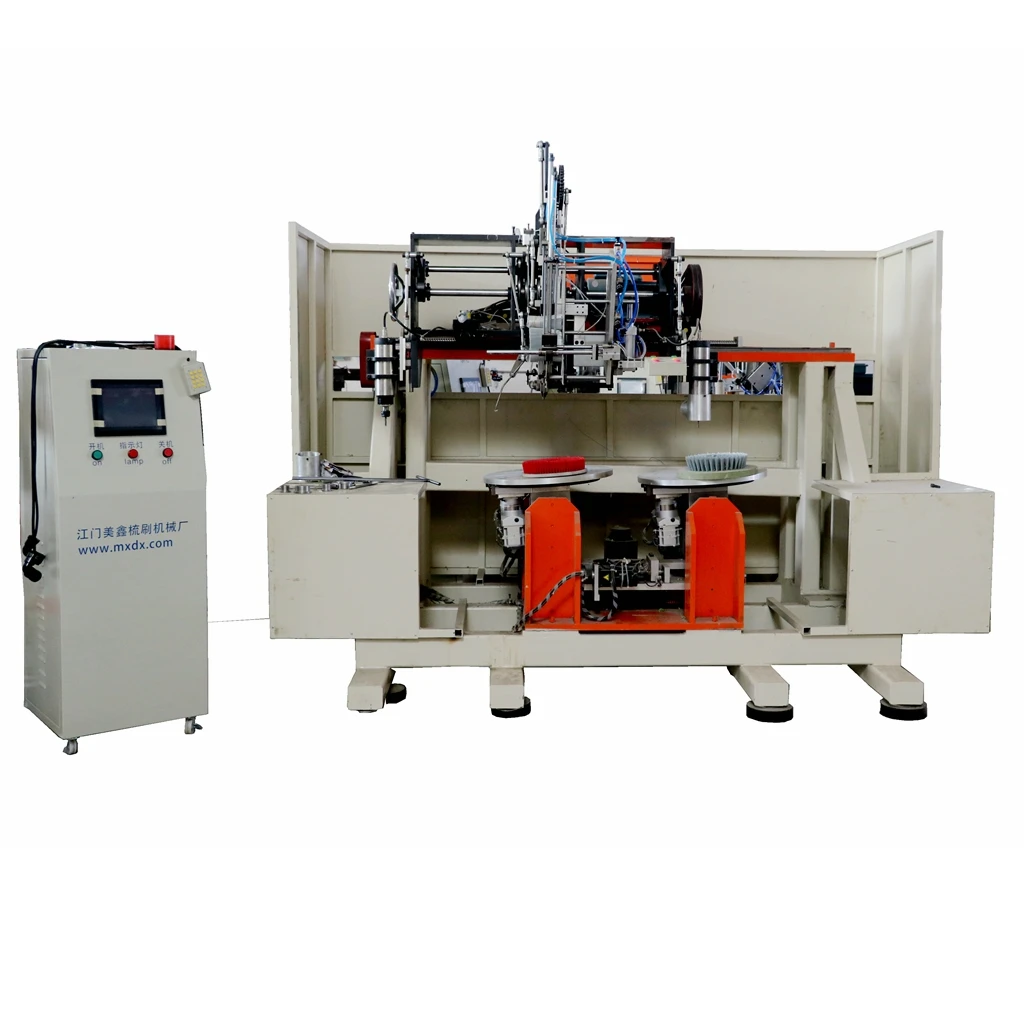

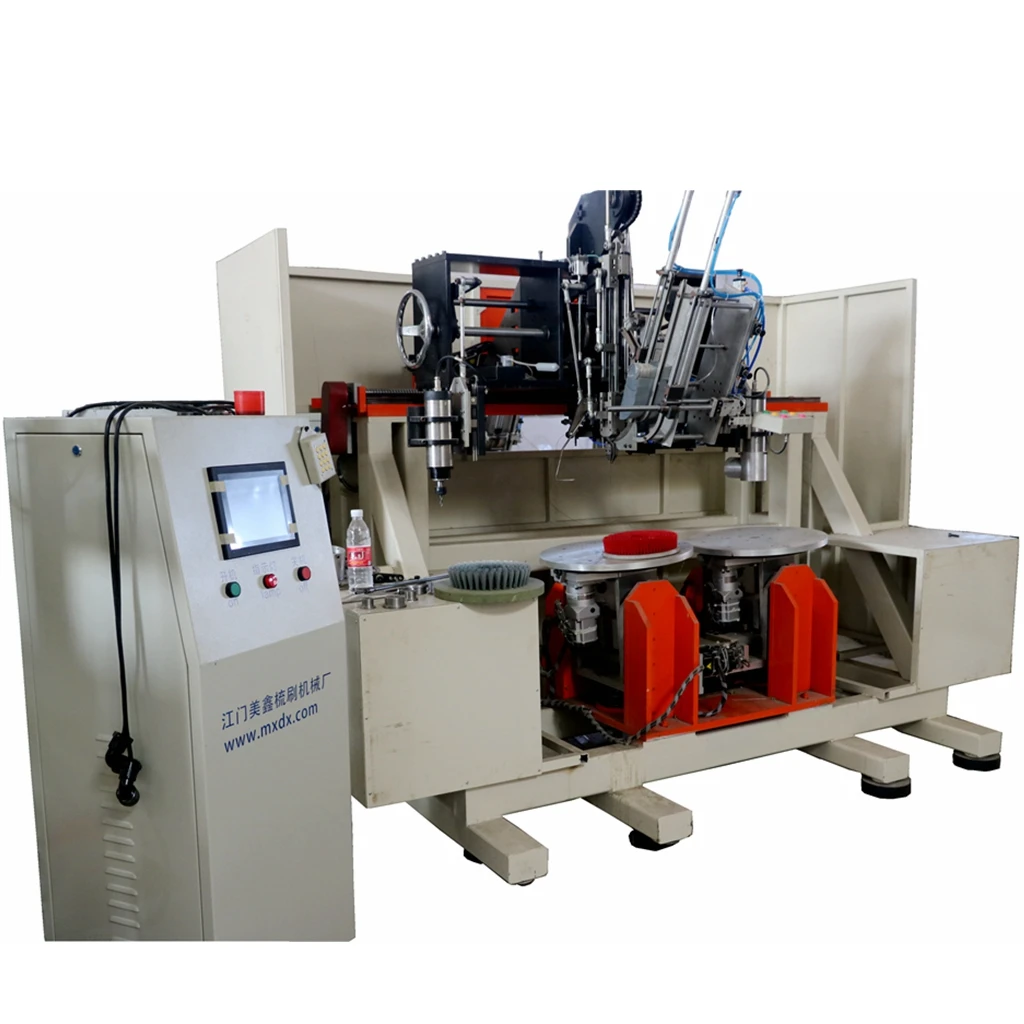

2 axis double head drilling & single head tufting Industrial Brush Machine
2 axis double head drilling & single head tufting Industrial Brush Machine
2 axis double head drilling & single head tufting Industrial Brush Machine
2 axis double head drilling & single head tufting Industrial Brush Machine
2 axis double head drilling & single head tufting Industrial Brush Machine

2 axis double head drilling & single head tufting Industrial Brush Machine

Share on (62009012286):


Price:

Quantity:


Product Overview

Description


Industrial Brush Machinery



Description:
ModelMX-6U16WK
NO. of axis5 axis
Qty of heads2 drilling and 1 tufting
Applicationflat brush ,broom
Brush base materialsPlastic, wood
Filament materialsPP,PET, Nylon,animal hair plant fiber etc.
The mold fixture size400*50mm
Diameter of hole 4~6mm
The length of filament(outside the hole)15~400mm
Colors of Brush Filaments2 colors
Parameter:
Drilling and tufting Speed4~6 holes/sec.
Power voltage, frequence220/380v , 50/60HZ  (customer choose)
Main motor power1kw
Air Source Input0.4~0.5Mpa
Equipment sizeL1.8 x W1.2 x H1.8 M
Weight750kg
Electrical parts:
Control System(PLC)MEIXIN Chinese and English version
Touch screenMEIXIN Chinese and English version
Main motor SNMA
Servo motorMaxsine
Relay IDEC (Janpan)
Variable-FrequencyDELTA (Taiwan)
Safety Protection:Schneider (France brand)





12photobank (2)
